TRENDnet TEW-645UB Manuale utente

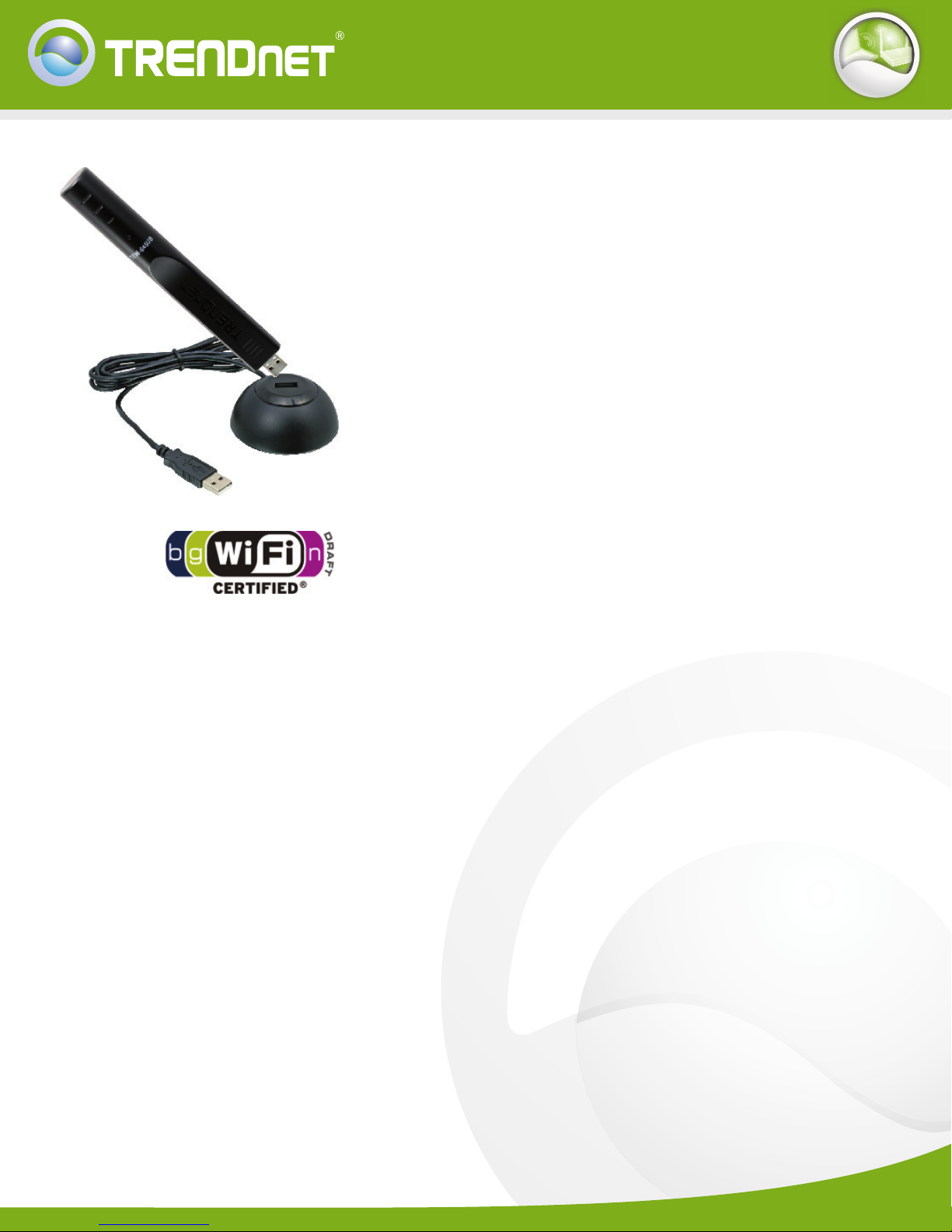

The High Power Wireless N USB Adapter provides over 2x the wireless

coverage of standard wireless n and up to 8x the coverage of wireless g

adapters*.

Connect your laptop or desktop computer to a high speed wireless n

network and position the included 1.5 m (4.9 ft) USB base to capture

the highest wireless signal strength.

Connecting to a wireless network is a breeze with automated Wi-Fi

Protected Setup. Advanced wireless encryption ensures the highest data

security. Wireless Multi Media (WMM) Quality of Service technology

prioritizes streaming video, wireless gaming and online calls**.

TEW-645UB (V1.0R)

High Power Wireless N USB Adapter

TEW-645UB

rev:01.20.2009

• Wi-Fi compliant with IEEE 802.11n draft 2.0 standard

• Backwards compatible with IEEE 802.11g and IEEE 802.11b devicesSupports Ad-Hoc (Client-Client) and Infrastructure (AP-

Client) Mode

• Supports Signal Input Multiple Output (SIMO) antenna technology

• Maximum reliability, throughput and connectivity with automatic data rate switching

• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported

• Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK

• Low interference and high susceptibility provide reliable performance supports Windows 2000/XP/Vista (32/64-bit) operating

systems

• Easy user setup and intuitive diagnostic utility

• 3-Year Limited Warranty

FEATURES

wireless

SPECIFICATIONS

Supported OS

Certification

• IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)

• 802.11b: -84dBm (typical) at 11mpbs

• 195 x 67 x 24mm (7.6 x 2.6 x 0.9in)

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• 1~11 (FCC), 1~13 (ETSI)

Wireless

Interface

Hardware

• USB 2.0

Power Consumption

• Windows 2000/XP (32-bit)/Vista (32/64-bit)

Receiving Sensitivity

Encryption

Channels

• 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK

• Receiving mode: 480mA @ 5v DC(max)

Standards

• FCC, CE

• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM

• 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations

Dimensions (LxWxH)

Weight

Data Rate (auto fallback)

• 2.412 ~ 2.484 GHz

Module Technique

Temperature

Humidity

• 110g (3.8 oz)

• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 70° C (68° ~ 158° F)

• 10% ~ 90% max (non-condensing)

Antenna

Frequency

Output Power

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network

traffic, building materials and other conditions.

• 802.11g: -72dBm (typical) at 54Mbps

• 802.11n: -68dBm at 150Mbps

• 802.11b: 20dBm (typical)

• 802.11g: 18dBm (typical)

• 802.11n: 15dBm (typical) at Ht20/ HT40

• 802.11n: up to 300Mbps (RX)/150Mbps(TX)

TEW-645UB (V1.0R)

High Power Wireless N USB Adapter

• 802.11b: DBPSK, DQPSK, CCK (DSSS)

• Internal antenna 3dBi

TEW-645UB

rev:01.20.2009

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

PACKAGE CONTENTS

• TEW-645UB

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

TEW-643PI Wireless N PCI Adapter

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

TEW-641PC Wireless N PC Card

• CD-ROM(Driver and Utility)

TEW-672GR Dual Band Wireless N Gigabit Router

TEW-645UB (V1.0R)

High Power Wireless N USB Adapter

• USB base stand with fixed USB A cable 1.5m (4.9ft)

Wireless N Speed

High Power Wireless N USB Adapter

(TEW-645UB)

Wireless N Home Router

(TEW-652BRP)

Desktop Notebook

Notebook with

Wireless N PC Card

(TEW-641PC)
