TRENDnet TFM-560PCI Manuale utente
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.1
Lo ok
I101V.90/K56flexMODEMUSER’SMANUAL
TABLE OF CONTENT
1. Contents of Package
2. Comprehensive Modem Installation Instructions
2.1 System Requirements..............................2
2.2 Hardware Installation................................3
2.3 System Setup...........................................4
2.3.1 Setup Instructions for Windows 98...........4
2.3.2 Setup Instructions for Windows 95...........6
2.3.3 Uninstall Modem in Windows 98/ 95...........9
2.3.4 Setup Instructions for Windows NT4.0..........10
2.3.5 Uninstall Modem in Windows NT4.0...........11
2.4 Testing your modem.................................12
2.5 Install Communication Software...............12
3. Troubleshooting
Appendix 1: Modem Specifications...........................15
Appendix 2: AT Commands...................................15
Appendix 3: S-registers Summary.............................20
Appendix 4: Result Code Summary...........................22
Appendix 5: Government Compliance.......................24
○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.2
Section 1 Contents of Package
OneV.90/K56flex PCI bus window modem
Onetelephonecable
OneCD-ROMdiskcomprises Communication software, Modem Driver & User's Manual
Quickinstallationguide
Please contact the place of purchase if any of the above listed items are missing.
Speaker and microphone are additional accessories. User can purchase seperately by personal
favoriate.
Section 2 Comprehensive Modem Installation Instructions
Section 2.1 System Requirements
Themodemoperateson a personal computer equipped with the following:
Windows 95 / 98 / NT4.0 operating system
MMXCompatibleCPU,Pentium200 or above is recommomded
8 MB hard disk space
16MBRAM
Onevacant 32-bit PCI slot
OneavailableIRQ:3through 15
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.3

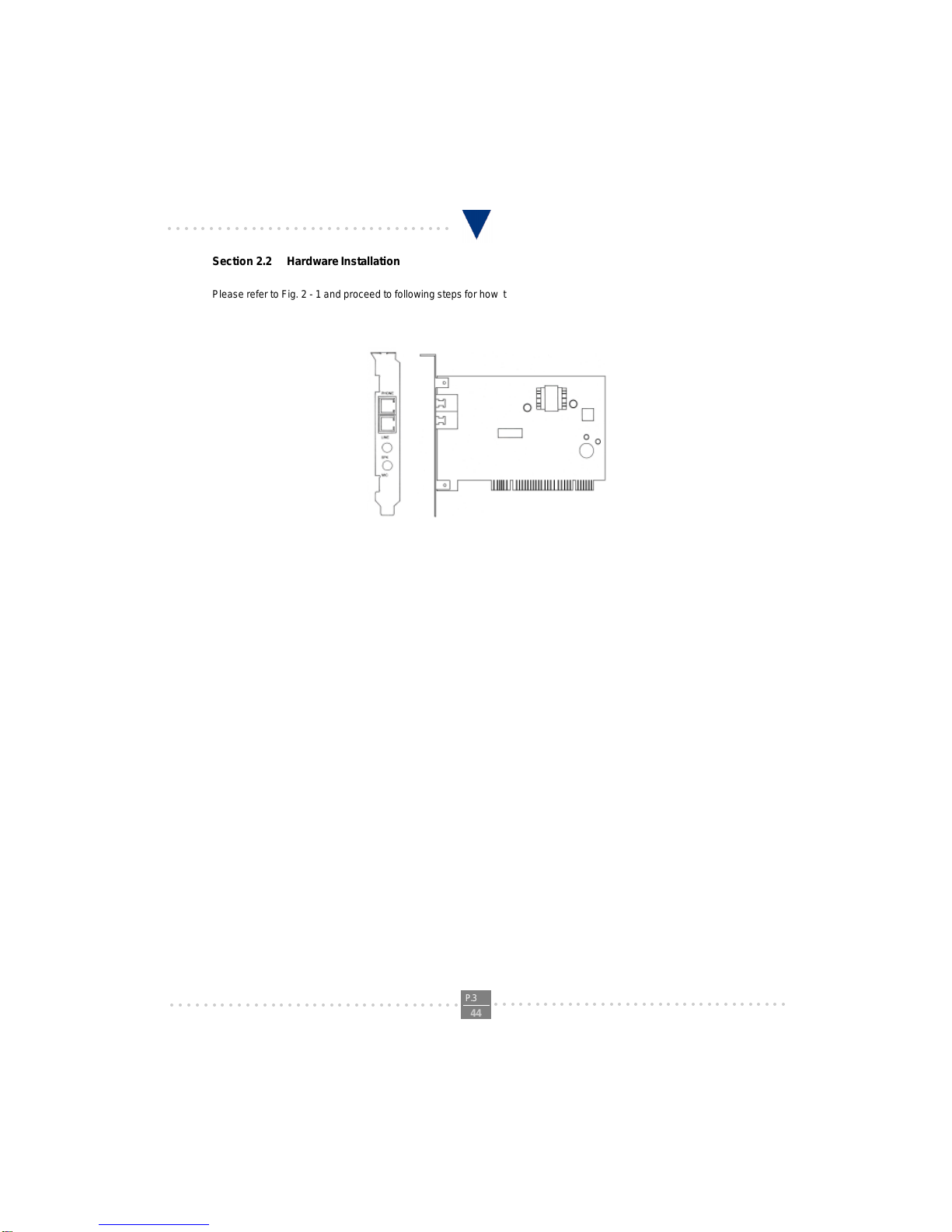

Section 2.2 Hardware Installation
Please refer to Fig. 2 - 1 and proceed to following steps for how to insert your modem into the computer and connect
telephone wire and audio accessories.
FIGURE 2-1 Internal modem diagram
1. Turn off and unplug your computer from theAC outlet.
2. Unplug any peripheral devices (keyboard, monitor, etc.) from your computer to avoid the risk of
electric shock.
3. Take the cover off your computer, review computer's manual if you need further instructions.
4. Find an empty PCI slot.
5. Unscrew the PCI slot bracket and save the screw, then remove the bracket.
6. Plug the modem into the PCI slot carefully until the modem is properly seated.
7. Fasten the modem bracket firmly with the screw saved in step 5.
8. Reassemble your computer cover and re-plug cables for peripheral.
9. Plug one end of telephone cord into the "LINE" jack at the modem's bracket. Plug another end of the
telephonecordintothetelephonewall jack
10. Some models may comprise a phone jack for an optional telephone. If you wish to use a phone through the
same telephone wall jack when the modem is not in use, plug the telephone cord of the phone into "PHONE"
jack at the modem's bracket now. Lift the handset and listen for a dial tone to check for a properly
connection.
11. Connect the "SPK" and "MIC" jack to speaker and microphone respectively.
12. Plug the power cord into the computer and turn the computer on.
13. Up to now, the hardware installation has been finished. If you have not encountered any problems, you can
go to Section 2.3 System Setup. If you are having problems, see Section 3 Troubleshooting.
NOTE : The telephone wall jack you use must be for an ANALOG phone line (the type found in most homes). Many
offices are equipped with digital phone lines. Please be sure you know which type of line you have. The modem will be
damaged if you use a digital phone line.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.4

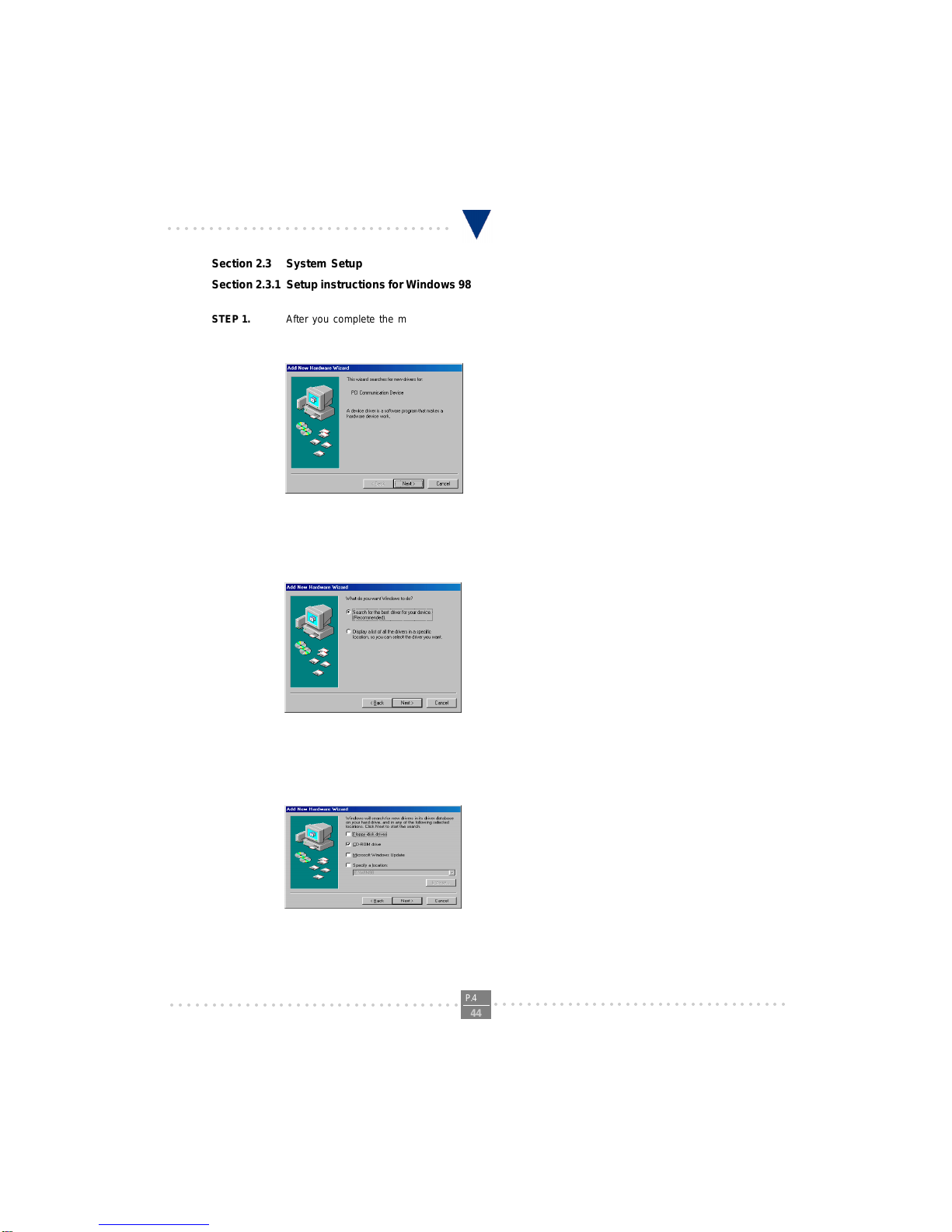

Section 2.3 System Setup
Section 2.3.1 Setup instructions for Windows 98
STEP 1. After you complete the modem hardware installation and turn on your PC, Windows system will
automatically detect your new added devices.Windows system will then prompt you with a Add New
Hardware Wizard screen as shown in figure.
Then click on Next.
STEP 2. A prompt screen will ask you to select “search for the best driver for your device” or display a
list of all the drivers in a specific location, so you can select the driver you want”. Please select the
recommended one as shown in figure.
Then click on Next
STEP 3. And then, a prompt screen will ask you to indicate where your driver is located, “floppy disk drives”,
“CD-ROM drive”, “Microsoft Windows Update” or “specify a location:”. Please select “CD-ROM
drive” as shown in figure.
Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device
then click on Next.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.5

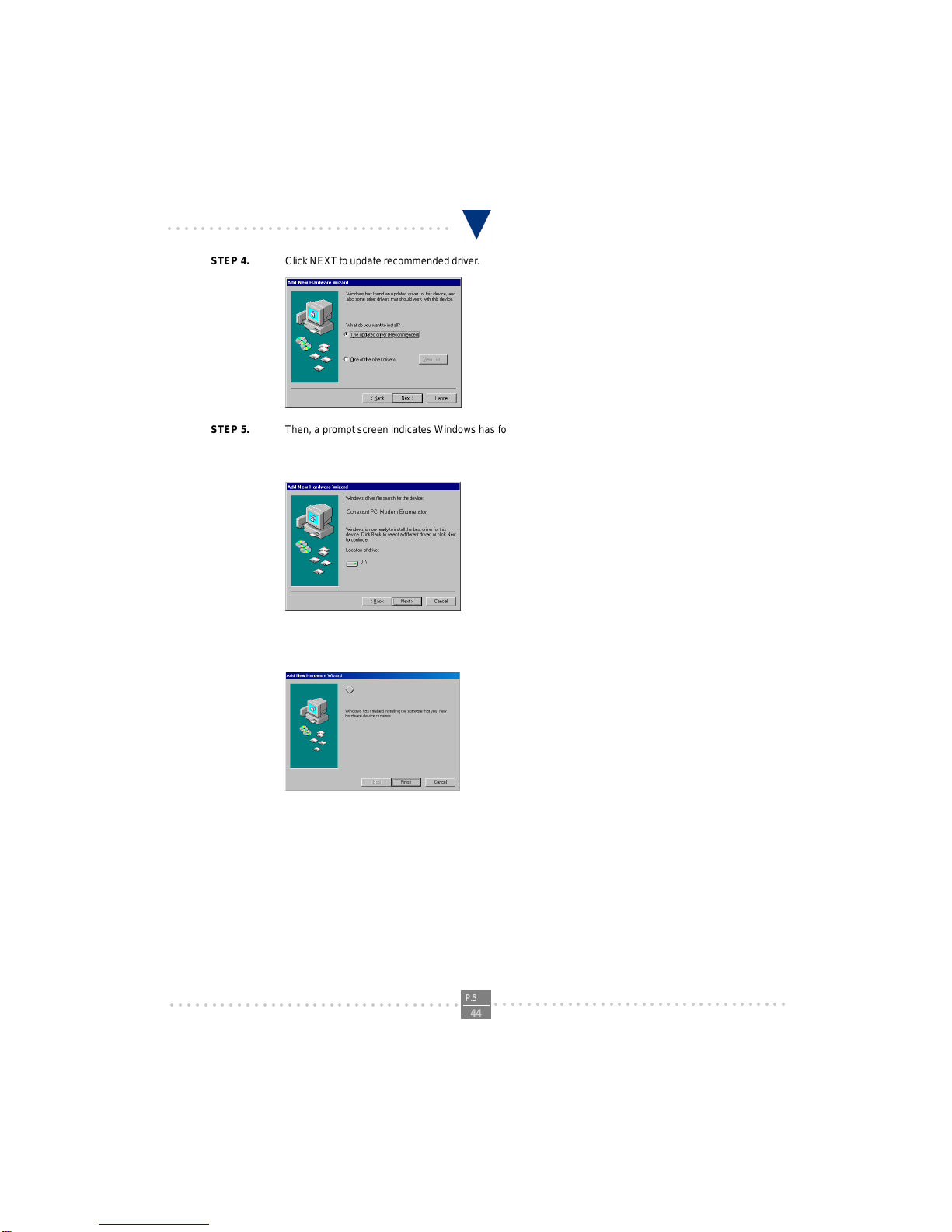

STEP 4. ClickNEXTtoupdaterecommendeddriver.
STEP 5. Then, a prompt screen indicates Windows has found the best driver for your modem as
shown in figure.
Please make sure the source of your driver is correct then click on Next.
STEP 6. Click on Finishtocompletethemodeminstallation.
STEP 7. The system will restart your system. If there is no error message while the system is re-booting, your
modem has been set up properly and functionally.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.6
Section 2.3.2 Setup instructions for Windows 95
Before you start the installation for Windows 95, please check your version of Windows 95 prior to system setup.
Please open My Computer window then click on Control Panel. When the Control Panel window opened, double
click the System icon and click on the General tab. The General tab will show you that you have the Windows 95
Version 4.00.950B”,Windows 95 Version 4.00.950A” or Windows 95 Version 4.00.950".Take note of the version
and go to the next appropriate step.
Setup instructions for Windows 95 Version 4.00.950B
STEP 1. After you complete the modem hardware installation and turn on your PC. Windows system
will automatically detect your new added devices. Windows system will then prompt you with
an Update Device Driver Wizard screen, as shown in figure.
Please insert the Modem Driver CD-ROM disk into your CD-ROM drive device D:\, then
click on the Next.
STEP 2. Then a prompt screen will advise you the Windows system can not locate a driver for your modem,
as shown in figure.
`Please click on Other Locations.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.7
STEP 3. Then a prompt screen will ask you to locate the driver for your modem as shown in figure.
Please browse the CD-ROM disk directory at D:\ and select the exact driver. Then click on OK.
STEP 4. Then, a prompt screen will advise you and confirm the modem? driver has been found, as shown in
figure.
Then click on Finish.
Note: Ifinstallationwizardshowsfollowingpromptwindow,specifythedriverdirectory again and click
OK.
STEP 5. The system will prompt with another Update Device Driver Wizard screen with the phrase
Wave Device for Voice Modem. Please insert the Modem Driver disk attached with your
modem into the CD-ROM drive device D:\. Then go through the STEP 1 and STEP 4 again.
STEP 6. If you are not encountered any problem through the STEP 1 to STEP 5, you will be prompted to
restart system. If there is no error message, your modem has been set up properly and functionally.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.8
Setup instructions for Windows 95 Version 4.00.950(or .950A)
STEP 1. After you complete the modem hardware installation and turn on your PC. Windows system will
automatically detect your new added devices. Windows system will then prompt you with a New
Hardware Found screen as shown in figure.
On this screen it will ask you “elect which driver you want to install your new hardware”,
please select “river from disk provided by hardware manufacturer”. Then click on OK.
STEP 2. And then, a prompt screen may ask you to locate where your driver is from, as shown in figure.
Please insert the Modem Driver disk attached with your modem into CD-ROM drive device D:\.
Then click on OK.
STEP 3. The system will prompt with another “New Hardware Found” screen with the phrase “Have Device
for Voice Modem”. Please insert the Modem Driver disk attached with your modem into the CD-
ROM drive device D:\. Then go through the STEP 1 and STEP 2 again
STEP 4. If you are not encountered any problem through the STEP 1 to STEP 3, please turn off your PC and
restart it. If there is no any error message, your modem has been set up properly andfunctionally.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.9
Section 2.3.3 Uninstall Modem in Windows 98/95
Inany reason, you want to remove or reinstall the modem.Pleasefollowthestepsbelowtocompletelyuninstall the
modem.
STEP 1. Click on the Add/Remove Programs icon in CONTROL PANEL.
STEP 2. Select “ Connexant SoftK56 Modem” under the Install/Uninstall tab and click the ADD/Remove button
STEP 3. When the uninstall is completed, the INF files , VXDs and registry information caused by modem installa-
tion will also be cleared. Click Yes to remove modem driver.
I101 V.90 PCI MODEM USER'S MANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
44
P.10
Section 2.3.4 Setup Instructions for Windows NT4.0
STEP 1. Run “SETUP.EXE” in “\Driver\NT40\SETUP.EXE” and click NEXT for next step.
STEP 2. Click NEXT for next step.
STEP 3. The Installation Wizard will automatically install the driver. Click FINISH when the process is com-
pleted.
