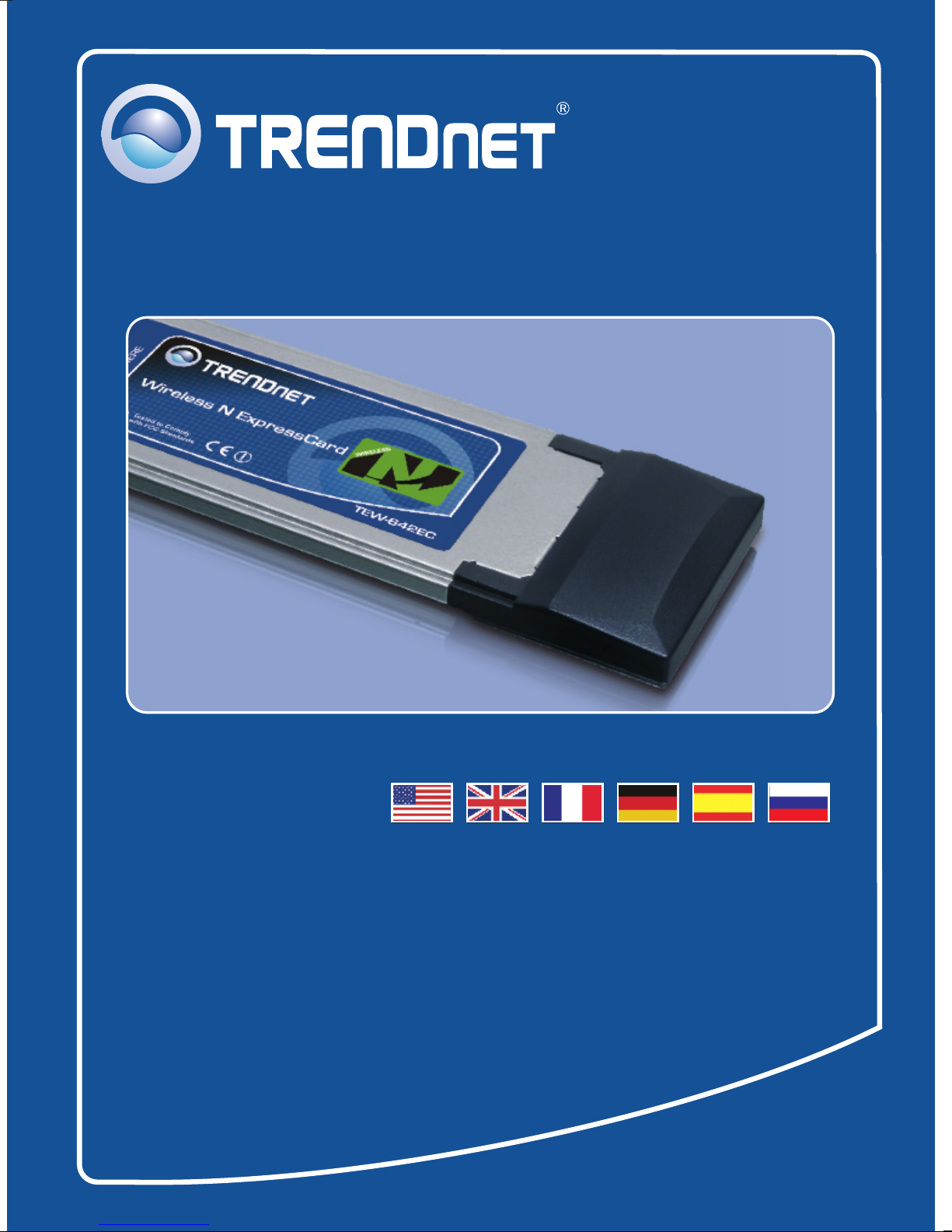

TRENDnet TEW-642EC Manuale utente

TEW-624EC

H/W: v1.0

Quick Installation Guide

Table of Contents

Version 03.28.2008

English ..................................................................................................... 1

1. Before You Start

2. .....................................................................................

................................................................................

How to Install

3. Using the Wireless Adapter ..............................................................

Troubleshooting ........................................................................................ 10

System Requirements

Application

Package Contents

1. Before You Start

English

TEW-642EC

Utility & Driver CD-ROM

Quick Installation Guide

?CPU: 300MHz or above/ 800MHz or above (Windows Vista)

?Memory: 256 MB RAM or above/ 512 MB RAM or above (Windows Vista)

?Windows Vista/XP/2000

CD-ROM Drive

Express Card/34 or Express Card/ 54 slot

300Mbps, share multimedia throughout the house

DATA

300Mbps Wireless

N Express Card

(TEW-642EC)

DATA

2. How to Install

English

Important! DO NOT install the Adapter in the computer until instructed to do so.

Windows Vista

2. Insert Adapter firmly into free

Express Card slot of notebook PC .

3. Click Locate and install driver

software (recommended).

4. Click Next.

1. Insert the Utility & Driver CD-ROM

into your computer's CD-ROM Drive

and then click Install Driver &

Utility.

English

Windows XP/2000

1. Insert the Utility & Driver CD-

ROM into your computer's CD-

ROM Drive and then click Install

Driver & Utility.

2. Follow the InstallShield Wizard

instructions.

5. Click Install the driver software

anyway.

6. Click Close.

English

Windows XP

3. Click Continue

Anyway.

Windows 2000

3. Click Yes. Proceed to

step 5.

4. Click Finish.

Note: Please refer to your computer's user manual regarding hardware

installation.

5. Insert Adapter firmly into free

Express Card slot of notebook PC .

English

Windows XP

6. The Found New

Hardware Wizard

appears. Select No,

not this time and then

click Next.

Windows 2000

6. Drivers will install

automatically.

7. Select Install the

software

automatically

(Recommended) and

then click Next.

7. Click Yes. Driver

installation is now

complete. Continue on

to section 3.

English

Windows XP

9. Click Finish.

Your installation is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

8. Click Continue Anyway.

English

3. Using the Wireless Adapter

1. On the bottom right-hand corner of

the screen, right click the wireless

network connection icon and select

Connect to a network.

3. Click Connect Anyway.

Windows Vista

2. Select the desired network and

then click Connect.

4. Click Close.

Connecting to an Unsecured Wireless Connection

English

1. On the bottom right-hand corner of

the screen, right click the wireless

network connection icon and select

Connect to a network.

Connecting to a Secured Wireless Connection (WEP and WPA-PSK)

Note: Make sure you know the wireless encryption key before proceeding. If

you are not sure, contact the network administrator or log on to your wireless

2. Select the desired network and

then click Connect.

3. Enter the security key and then

click Connect.
