TRENDnet TFM-PCIV92A - DATA SHEETS Manuale utente

- 1 - Rev. 1.00.2.1.63

TABLE OF CONTENT

1. Contents of Package 2

2. Comprehensive Modem Installation Instructions 2

2.1 Modem Installation 2

2.2 Hardware Installation 2

2.3 System Setup 4

2.3.1 Setup Instructions for Windows 98 4

2.3.2 Uninstall Modem from Windows 98 5

2.3.3 Setup Instructions for Windows Me 6

2.3.4 Uninstall Modem from Windows Me 7

2.3.5 Setup Instructions for Windows NT4.0 8

2.3.6 Uninstall Modem from Windows NT4.0 9

2.3.7 Setup Instructions for Windows 2000 10

2.3.8 Uninstall Modem from Windows 2000 12

2.3.9 Setup Instructions for Windows XP 13

2.3.10 Uninstall Modem from Windows XP 15

2.4 Testing your modem 16

2.5 Install Communication Software 16

3. Troubleshooting 17

Appendix 1: Modem Specifications 19

Appendix 2: AT Command Set 20

Appendix 3: S-Register Summary 25

Appendix 4: Result Codes Summary 28

Appendix 5: Government Compliance 30

- 2 - Rev. 1.00.2.1.63

Section 1 Contents of Package

zOne 56K (V.92) High Speed Internal PCI Data/Fax/Voice Modem

zOne Quick Installation Guide

zOne Driver CD-ROM with User’s Guide

zOne RJ-11 Telephone Cable

Please contact your local dealer if there is any content missing.

Section 2 Comprehensive Modem Installation Instructions

Section 2.1 Modem Installation

This section will provide how to installation your modem. There are two sessions: 1)hardware installation and

2) system setup. The modem hardware must be installed into the computer correctly before you start the

system setup.

Section 2.2 Hardware Installation

Please refer to Fig. 2 - 1 and proceed to following steps for how to insert your modem into the computer and

connect telephone wire and audio accessories.

Figure 2-1 Internal modem diagram

1. Turn off and unplug your computer from the AC outlet.

2. Unplug any peripheral devices (keyboard, monitor, etc.) from your computer to avoid the

risk of electric shock.

3. Remove the top tower of your computer, review computer's manual if you need further instructions.

4. Find an empty PCI slot.

5. Unscrew the PCI slot bracket and save the screw, then remove the bracket.

6. Plug the modem into the PCI slot carefully until the modem is properly seated.

- 3 - Rev. 1.00.2.1.63

7. Fasten the modem bracket firmly with the screw saved in step 5.

8. Reassemble your computer cover and re-plug cables for peripheral.

9. Plug one end of telephone cord into the "LINE" jack at the modem's bracket. Plug another end of the

telephone cord into the telephone wall jack

10. Some models may comprise a phone jack for an optional telephone. If you wish to use a phone through

the same telephone wall jack when the modem is not in use, plug the telephone cord of the phone into

"PHONE" jack at the modem's bracket now. Lift the handset and listen for a dial tone to check for a

properly connection.

11. Plug the power cord into the computer and turn the computer on.

12. Up to now, the hardware installation had been finished. If you have not encountered any problems, you

can go to Section 2.3 System Setup. If you are having problems, see Section 3 Troubleshooting.

NOTE: The telephone wall jack you use must be for an ANALOG phone line (the type found in most homes).

Many offices are equipped with digital phone lines. Please be sure you know which type of line you have. The

modem will be damaged if you use a digital phone line.

- 4 - Rev. 1.00.2.1.63

Section 2.3 System Setup

Section 2.3.1 Setup instructions for Windows 98

STEP 1. After you complete the modem hardware installation, turn on your PC. The Windows system will

automatically detect your new added devices. Windows system will prompt you with an “Add New

Hardware Wizard”.

Then click on Cancel.

STEP 2. Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device,

Then run <CD-ROM letter>:\drivers\Win98\Setup.exe as shown in figure.

Then click on OK

STEP 3. And then, a prompt screen will ask you to ensure to install the modem driver.

Then click OK.

The setup utility will copy the needed files into windows system.

STEP 4. If there is no error message while the system is installing, your modem has been set up properly

and functionally.

- 5 - Rev. 1.00.2.1.63

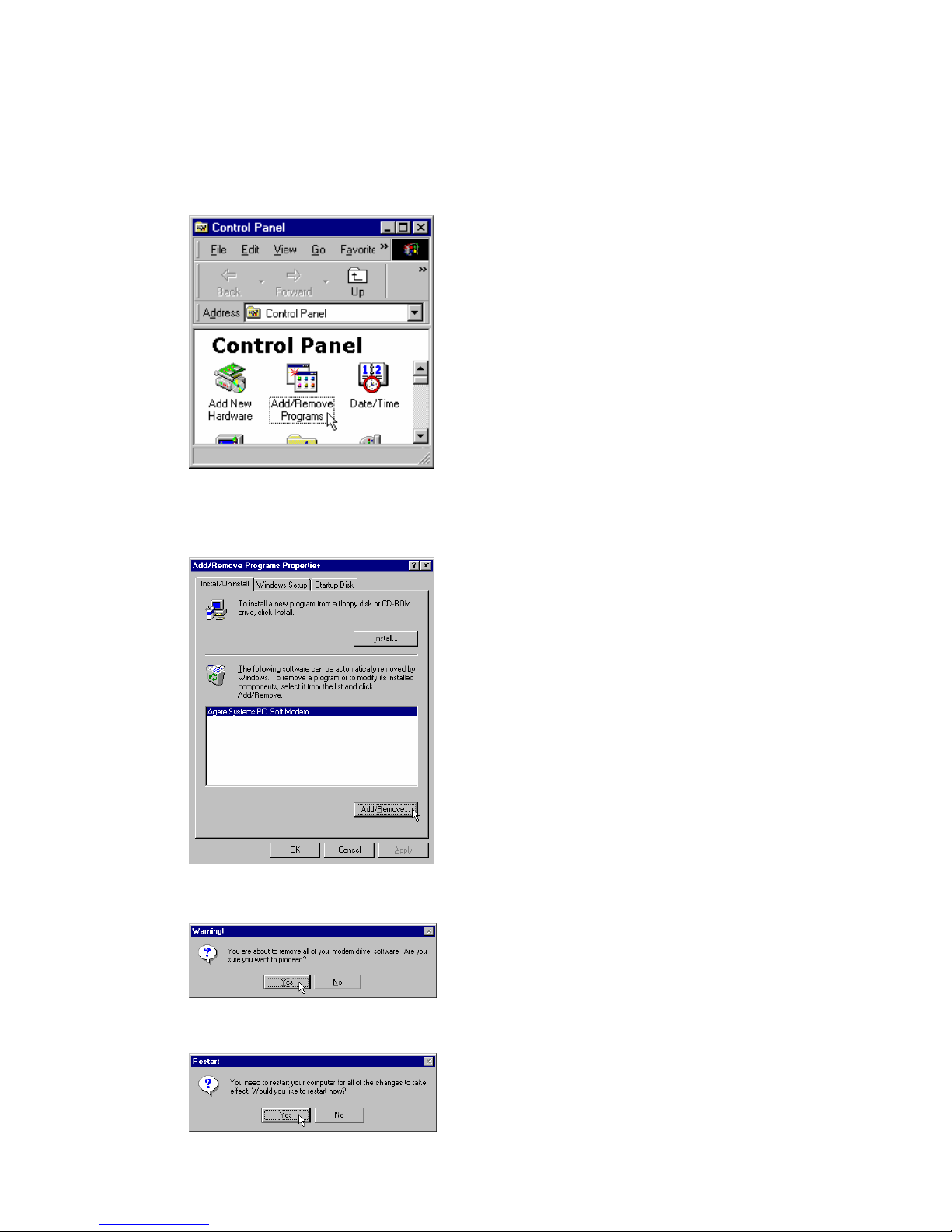

Section 2.3.2 Uninstall Modem from Windows 98

STEP 1. Open Control Panel window, then click Add/Remove Programs icon.

STEP 2. Choose Agere Systems PCI Soft Modem device in stall/Uninstall tab, then click on

Add/Remove… .

STEP 3. Click Yes to ensure to remove Agere Systems PCI Soft Modem device and its drivers.

STEP 4. Click Yes to restart your computer for all of the changes to take effect.

- 6 - Rev. 1.00.2.1.63

Section 2.3.3 Setup instructions for Windows Me

STEP 1. After you complete the modem hardware installation and turn on your PC, Windows system will

automatically detect and install your new added devices. Windows system will prompt you with an

Add New Hardware Wizard.

Click on Cancel.

STEP 2. Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device,

then run <CD-ROM letter>:\drivers\WinMe\SETUP.EXE to upgrade the modem driver as shown

in figure.

Then click on OK.

STEP 3. And then, a prompt screen will ask you to ensure to install the modem driver.

Then click OK.

The setup utility will copy the needed files into windows system.

STEP 4. If there is no error message while the system is installing, your modem has been set up properly

and functionally.

- 7 - Rev. 1.00.2.1.63

Section 2.3.4 Uninstall Modem from Windows Me

STEP 1. Open Control Panel window, then click on Add/Remove Programs icon.

STEP 2. Choose Agere Systems PCI Soft Modem device in Install/Uninstall tab, then click on

Add/Remove...

STEP 3. Click Yes to ensure to remove Agere Systems PCI Soft Modem device and its drivers.

STEP 4. Click Yes to restart your computer for all of the changes to take effect.

- 8 - Rev. 1.00.2.1.63

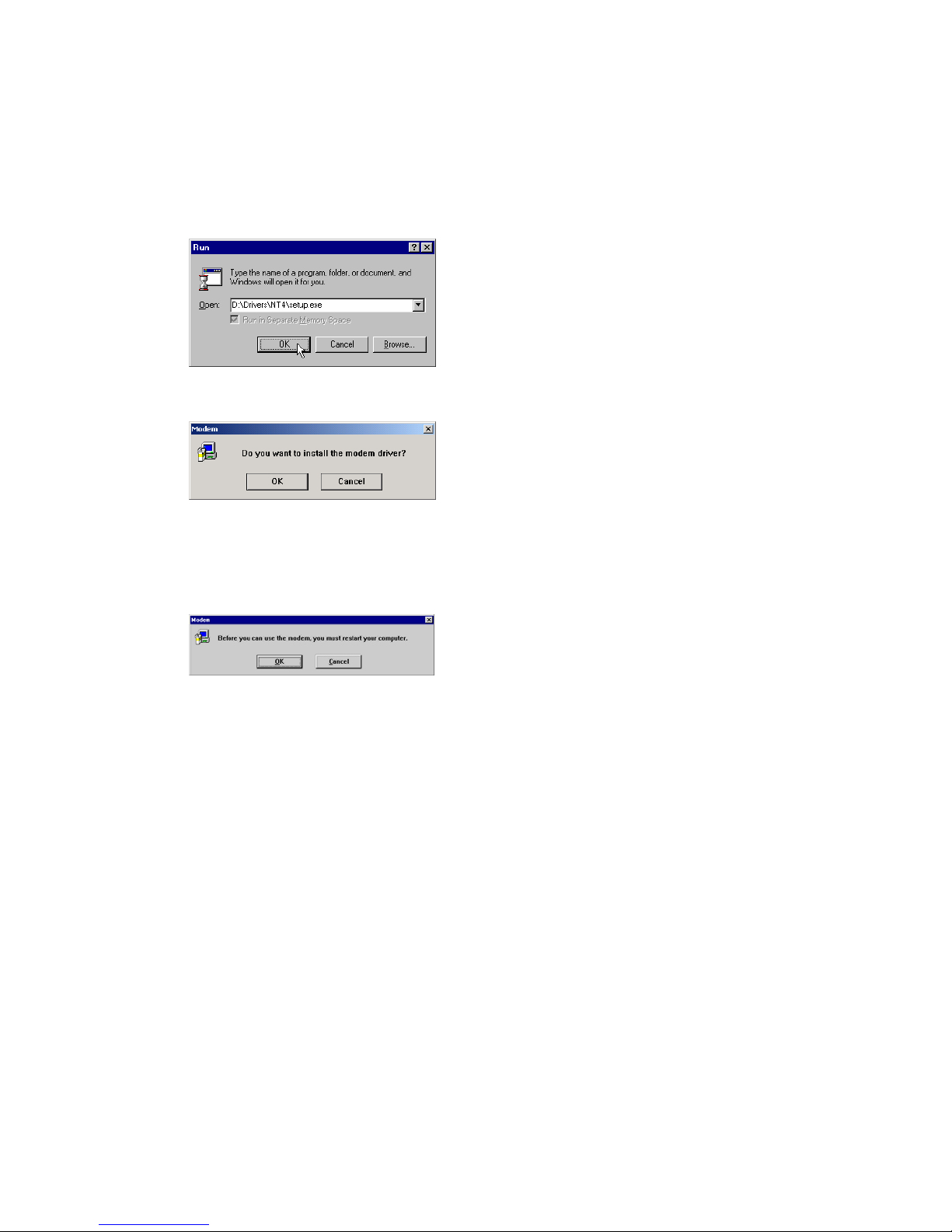

Section 2.3.5 Setup instructions for Windows NT4.0

STEP 1. Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device,

Then run <CD-ROM letter>:\Drivers\ NT4\Setup.exe as shown in figure.

STEP 2. And then, a prompt screen will ask you to ensure to install the modem driver.

Then click OK.

The setup utility will copy the needed files into windows system.

STEP 3. The prompt screen will ask you to restart to enable the modem driver.

Then click on OK.

STEP 4. The system will restart your system. If there is no error message while the system is re-booting,

your modem has been set up properly and functionally.

- 9 - Rev. 1.00.2.1.63

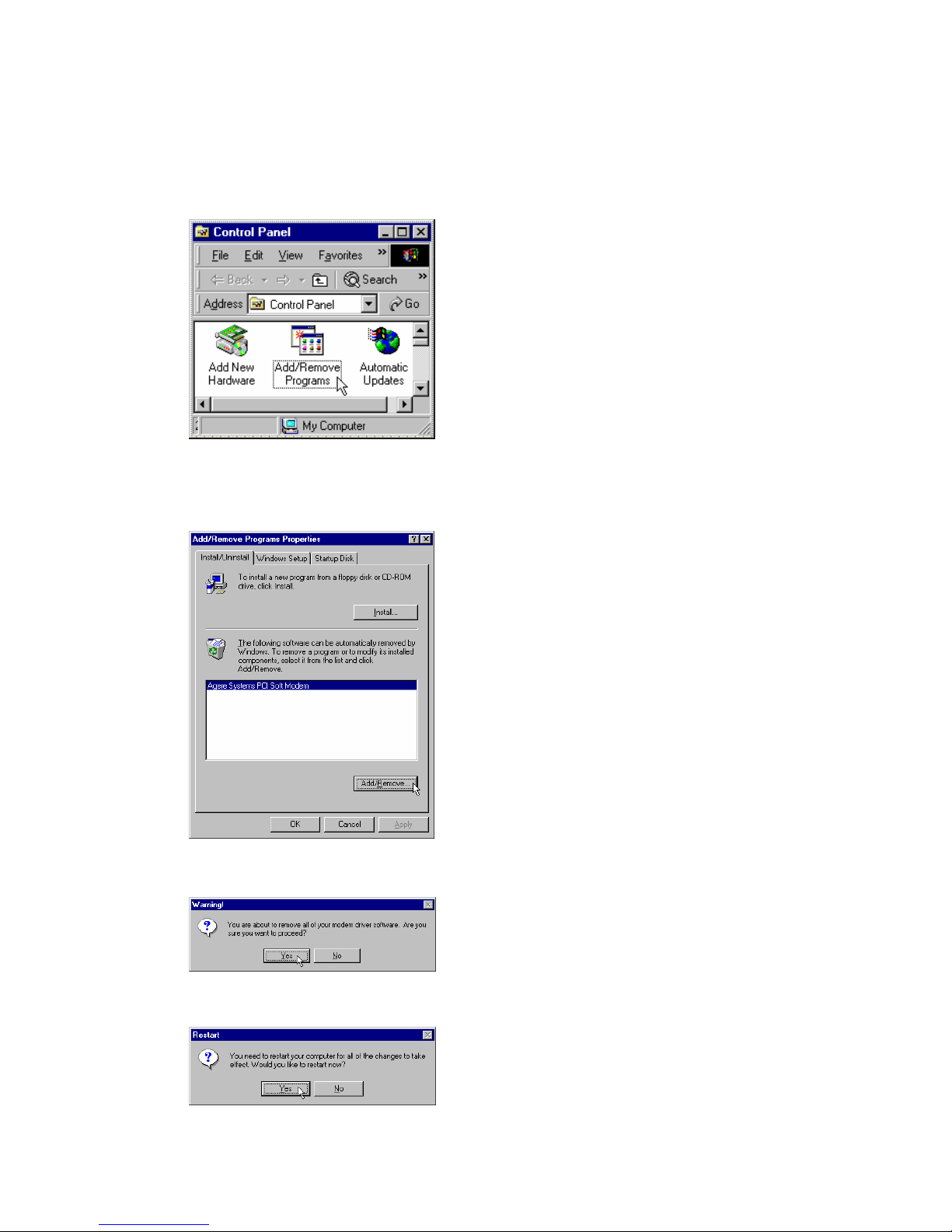

Section 2.3.6 Uninstall Modem from Windows NT4.0

STEP 1. Open Control Panel window, then click Add/Remove Programs icon.

STEP 2. Choose Agere Systems PCI Soft Modem device in stall/Uninstall tab, then click on

Add/Remove… .

STEP 3. Click Yes to ensure to remove Agere Systems PCI Soft Modem device and its drivers.

STEP 4. Click Yes to restart your computer for all of the changes to take effect.
