Product Overview

TV-IP262P

Package Contents

TV-IP262P

Multi-Language Quick Installation Guide

CD-ROM (Utility&User’sGuide)

Network cable (1.5m / 5ft)

Power adapter (12V DC, 1.5A)

Camera mounting kit

If any package contents aremissing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

The Megapixel PoE Dome Internet Camera (model TV-IP262P) is an indoor, enterprise

class surveillance camera capable of transmitting H.264 video at up to 1280 x 1024

resolution. View and manage the tamper resistant domeIP camera from any computer

with an internet connection.

Manually pan the camera side-to-side350 degrees and tilt it up-and-down 70degrees to

fix its final viewing position. No need to install this camera near a power source, power

and data are received through a single Ethernet cable using Power over Ethernet (PoE)

technology. View this camera on your mobile device with TRENDnet’s free mobile App*.

Manage up to 32 TRENDnet cameras with the included complimentary camera

management software**. Define up tothreemotion detection windowswithemail

alert, image snapshot, and continuous recording triggers. Scheduled recording sessions

and define video storage location with Samba client support. Multiple video streaming

support for H.264, MPEG-4,and MJPEG compression types. Other features include two-

way audio support (mic and speaker sold separately), date/time text overlay, mask

overlay to conceal sensitive areas, and image flip capabilities for upside down

installations. Integrated cabling allows for easy wall/ceilingmounting and the off-white

IP camera housing blends into most environments.

* TRENDnet’s Mobile APP supports iPhone®, iPad®, iPod® Touch and

Android. Search for SecurView Mobile from iTunes® or Google Play™.

For future updates, please check www.trendnet.com/App

for details.

** Monitoring multiple cameras may required a high performance CPU

TRENDnet User’s Guide TV-IP262P

Product Hardware Features

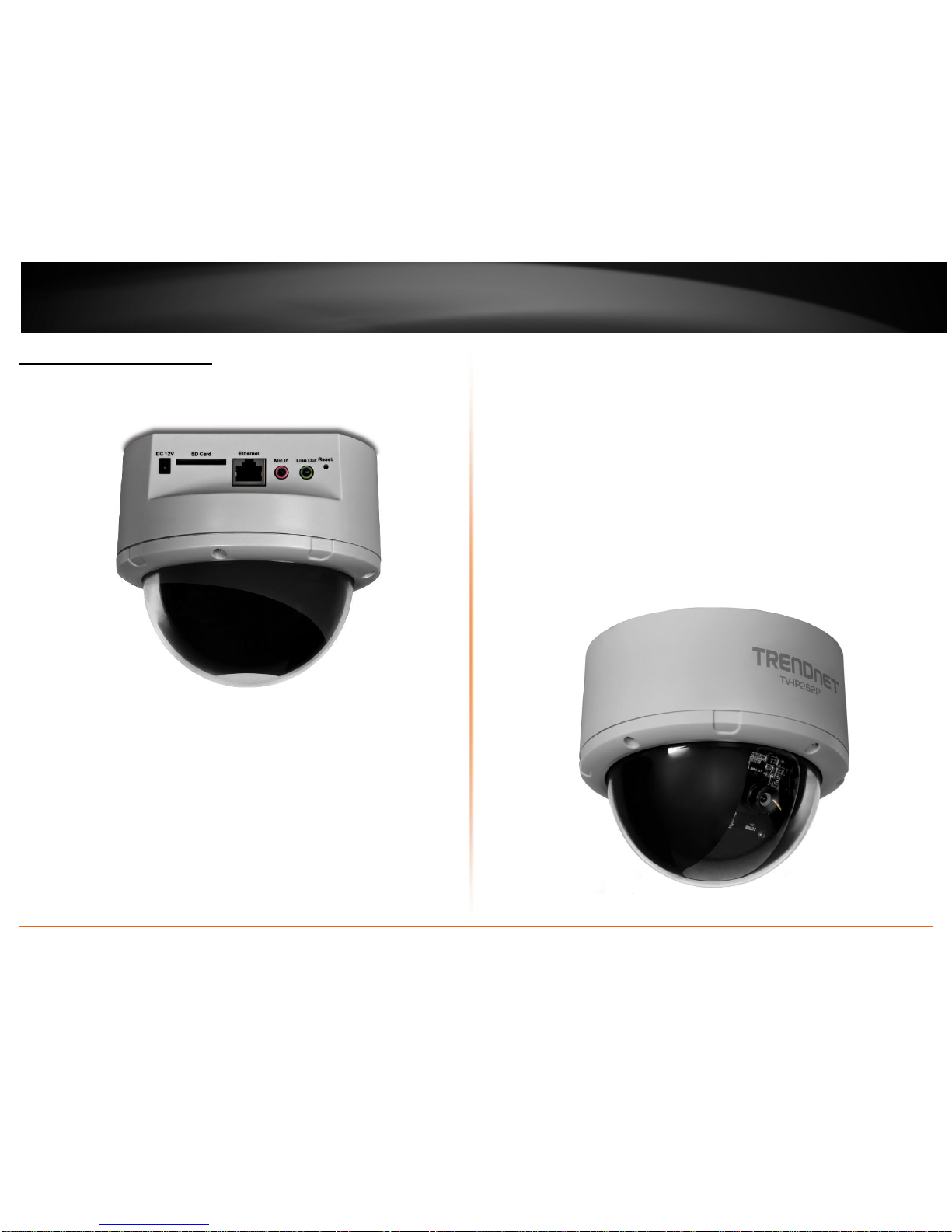

Rear Panel View

Power : Connect theprovided AC power adapter to supply power to the

camera.

SD Card Slot: Insert a memory card for expansion of storage.

Ethernet Cable Connector: Connect the provided network cable (RJ-45 type)

-The connector supports Power over Ethernet standard, enabling the camera

to be powered by the Ethernet.

Mic In: Connect an external microphone.

Line Out: Connects an external active speaker.

Reset: Press and hold the reset button for five seconds to reset the camera to

factory default settings.

Front Panel View

TRENDnet User’s Guide TV-IP262P

Inside Component

LED indicators

-Power: Indicate the camera is powered on with the steady amber

light.

-Link: Indicate the camera’s network connectivity with the flashing

green light.

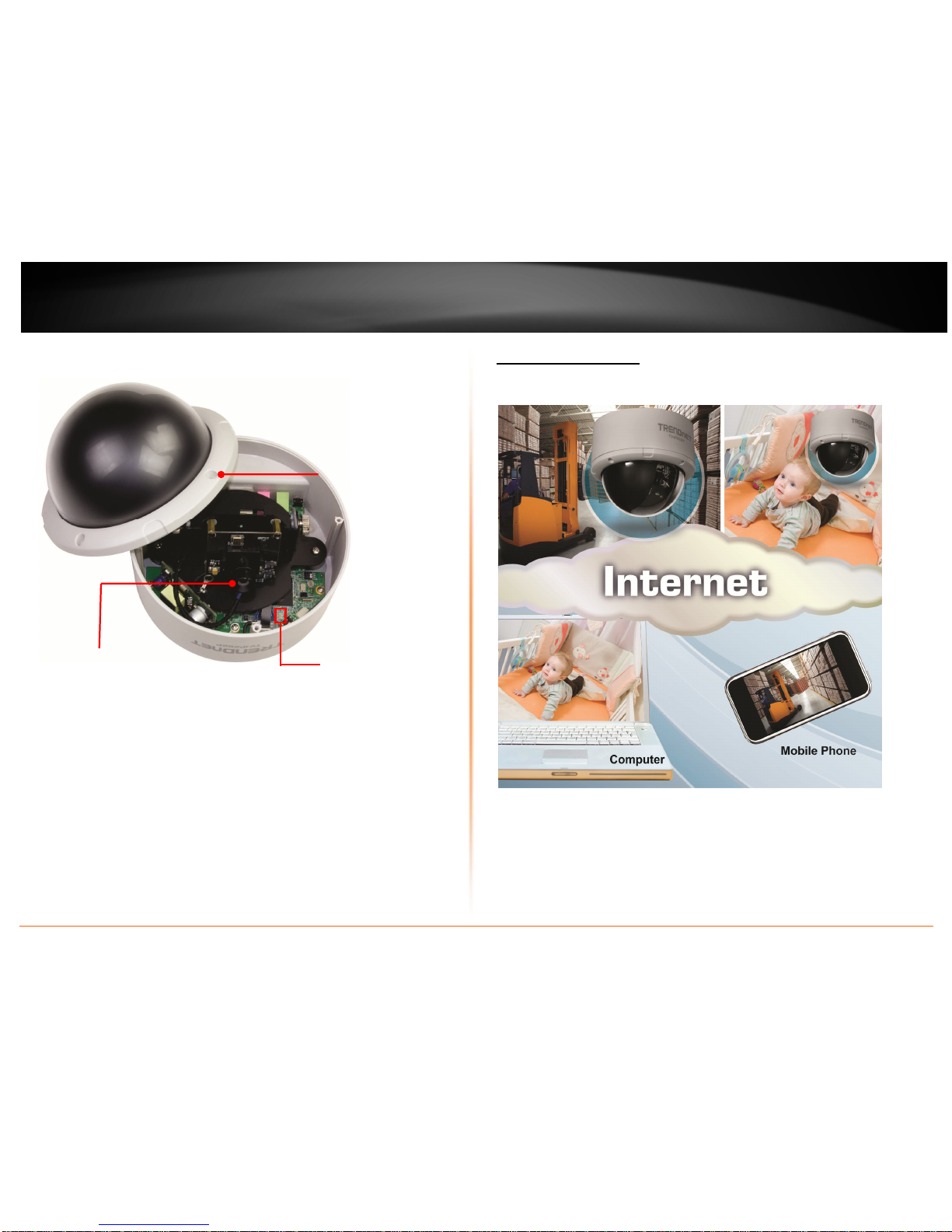

Application Diagram

Unscrew four screwsto

disassemble the Dome

cover.

Lens assembly with

the adjustable base

LED indicators

TRENDnet User’s Guide TV-IP262P

Installation

Hardware Installation

The camera can be mounted to the ceiling surface directly by following the steps below:

1. Remove the Dome cover by unscrewing the four screws.

2. Use the includeddrill template to drill three mounting holes on the desire location

and hammer the plastic anchors into the holes.

3. Secured the camera to the location with three screws.

4. Before put the Dome cover back, adjust the lens assembly by the following steps:

Tilt the camera lens to a proper position by loosing the screws () and then

swinging the adjustable base ().

Rotate the camera lens by turning the base pedestal () in either clockwise or

anti-clockwise direction.

Adjust the lens focus by turning the lens ring slowly () in either clockwise or

anti-clockwise direction.

NOTE:You can reviewthe image quality fromthe Web browserwhen you complete the

installation. If the image quality is poor, you haveto disassemble the Dome cover to

adjust the lens focus until the desired image appears clearly.

5. Put the Dome cover back and secure with four screws.









TRENDnet User’s Guide TV-IP262P

Camera Installation

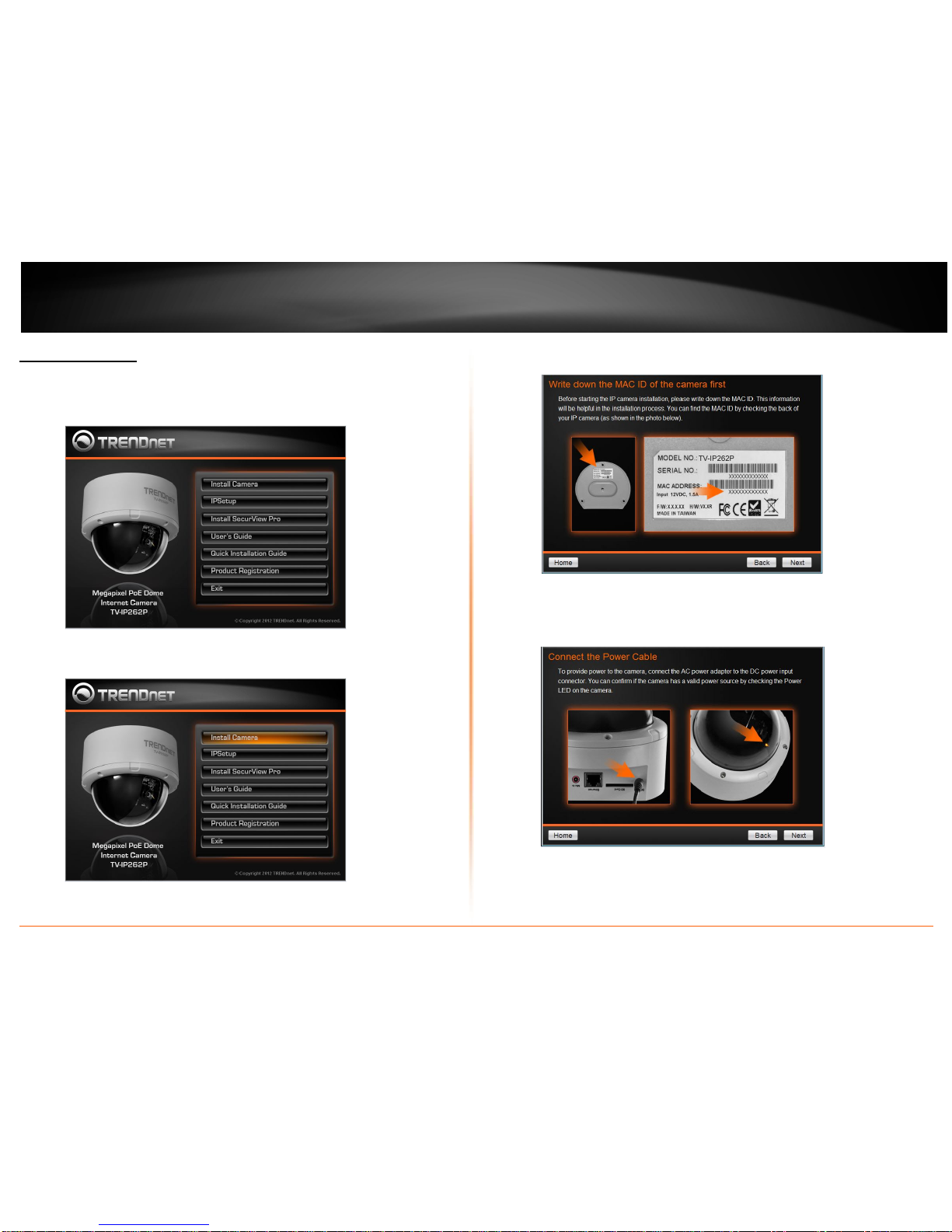

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. lick the Install Camera.

3. Write down the MACID of the camera

4. Connect one end of the power adapter into the Power Connector, then click on

Next. Please click Next if you are using the PoE injector or switch.

TRENDnet User’s Guide TV-IP262P

5. Connect one end of the Ethernet (Network) Cable to the camera’s Ethernet

Port, and then connect the other end of the Ethernet cable to the router’s LAN

Port.

6. Wait while camerais searching.

7. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than one

camera in the same Network, you will need to identify the camera by the MAC

ID.

8. Type in the Password. The password is “admin” by default. If you would like to

change camera’s password,check the Change Password now.

TRENDnet User’s Guide TV-IP262P

9. Type in the new and confirm the new password by entering the password

twice.

10. Click TV-IP262Pto access to the camera webpage.

11. Click Finish to exit the program or click Home return to the main screen.

TRENDnet User’s Guide TV-IP262P

Starting IPSetup

The camera comes with a conveniently utility, IPSetup,which isincludedin the

Installation CD-ROM, allowing you to search the camera on your network easily.

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. Click the IPSetup from the Auto-Runmenu screen. Then the IPSetup Wizard

will appear. Click Install to install the utility.

3. When the Completing theIPSetup Setup Wizard appears, click Finish.
