TRENDnet TEG-S081FMi Manuale utente
1
1.1.
IntroductionIntroduction
The TEG-S081FMi Switch is compact desktop size switches which are
ideal solutions for Fiber network infrastructure. It provides wire-speed,
Fast Ethernet switching function that allows high-performance, low-cost
connection. The Switch features a store-and-forward switching and it can
auto-learn and MAC address on an 8K-entry MAC address table.
The TEG-S081FMi Switch is compact desktop size switches which are
ideal solutions for Fiber network infrastructure. It provides wire-speed,
Fast Ethernet switching function that allows high-performance, low-cost
connection. The Switch features a store-and-forward switching and it can
auto-learn and MAC address on an 8K-entry MAC address table.
Figure 1-1. The TEG-S081FMi Switch
The Switch provides 8 100Mbps Fiber ports and one GBIC slot for
optional GBIC modules.
The fiber ports are 100Base-SC type multi-mode fiber ports support up to
2kms distance.
With their build-in Web-based Management, managing and configuring
the TEG-S081FMi Switch becomes easier. From cabinet management to
port-level control and monitoring, you can visually configure and manage
your network via Web Browser. Just click your mouse instead of typing
command strings. However, the TEG-S081FMi Switch can also be
managed via Telnet, Console, or SNMP Management.
2
Features
Conforms to IEEE802.3u, IEEE802.3z and IEEE802.3x
Ethernet Standards
8x 100Base-FX SC Type Fiber ports and one GBIC slot
One Console port on the front side for switch Configuration
Half-duplex mode for backpressure, and Full-duplex for flow
control
Store-and-forward switching architecture
Automatic address learning, address migration
8K-entry MAC address table
2Mbits memory buffer sharing
Performs non-blocking full wire speed
LED-indicators for Power, LNK/ACT, FDX/COL,
LNK/ACT(GBIC)
19-inch Rack-Mount size design
Intelligent Management Features
Web-based management
SNMP network management
Console and Telnet management
Port Base VLAN and IEEE 802.1q Tag VLAN, and VLAN group
up to 256 , VLAN ID up to 4K
IEEE 802.3 ad port trunk with LACP (Link Aggregation Control
protocol) supported
IEEE 802.1d Spanning Tree
MIB II (RFC 1213) supported
IP Multi-cast, IGMP Snooping, up to 256 IGMP groups
Support Quality of Service (system provides 8 levels) and Class
of service (per port Hi/Low Queue)
Port Mirror, Broadcast Filter, Static MAC Address filtering, Port
Security and GVRP supported
3
Package Contents
Unpack the contents of the TEG-S081FMi Switch and verify them against
the checklist below.
Switch
Power Cord
Four Rubber Feet
RS-232 cable
User Guide
TEG-S081FMi Switch Power Cord
Rubber Feet RS-232 cable User Guide
Figure 1-2. Package Contents
Compare the contents of your TEG-S081FMi switch package with the
standard checklist above. IF any item is missing or damaged, please
contact your local dealer for service.
Management Methods
The 8port Fiber Management Switch series supports following
4
management methods:
Console and Telnet Management
Web-based Management
SNMP Network Management
Console and Telnet Management
Console Management is done through the RS-232 Console Port.
Managing the TEG-S081FMi Switch in this method requires a direct
connection between PC and the TEG-S081FMi Switch. While Telnet
management is done over the network. Once the TEG-S081FMi Switch
is on the network, you can use Telnet to Log in and change the
configuration.
Web-based Management
The Switch provides an embedded HTML web site residing in flash
memory. It offers advanced management features and allow users to
manage the TEG-S081FMi Switch from anywhere on the network
through a standard browser such as Microsoft Internet Explorer.
SNMP Network Management
SNMP (Simple Network Management Protocol ) provides a means
to monitor and control network device, and to manage
configurations, statistic collection, performance, and security.
5
2.
Hardware Description
FrontPanel
The Front Panel of the Fiber Management Switch series consist of 8x
100Mbps Fast Ethernet Fiber and GBIC ports, and the LED indicators
are also located on the frond panel of the switch.
Figure 2-1. The Front Panel of the Fiber Management Switch
Console Port : Console management can be done through the Console
Port. It requires a direct connection between the Switch and an end
station (PC ) via a RS-232 cable.
Figure 2-2. The Front Panel of the TEG-S081FMi Switch with SC
connector
Console Port
Baud Rate: 9600,N,8,1
100Base-FX Fiber Port: There are 2 types of fiber connectors
available for the TEG-S081FMi Switchas shown above. The
distance for fiber cabling can be extended up to 2 kilometers.
6
GBIC port : It only support 3.3V model Gigabit Transceiver for
Gigabit SX or LX.

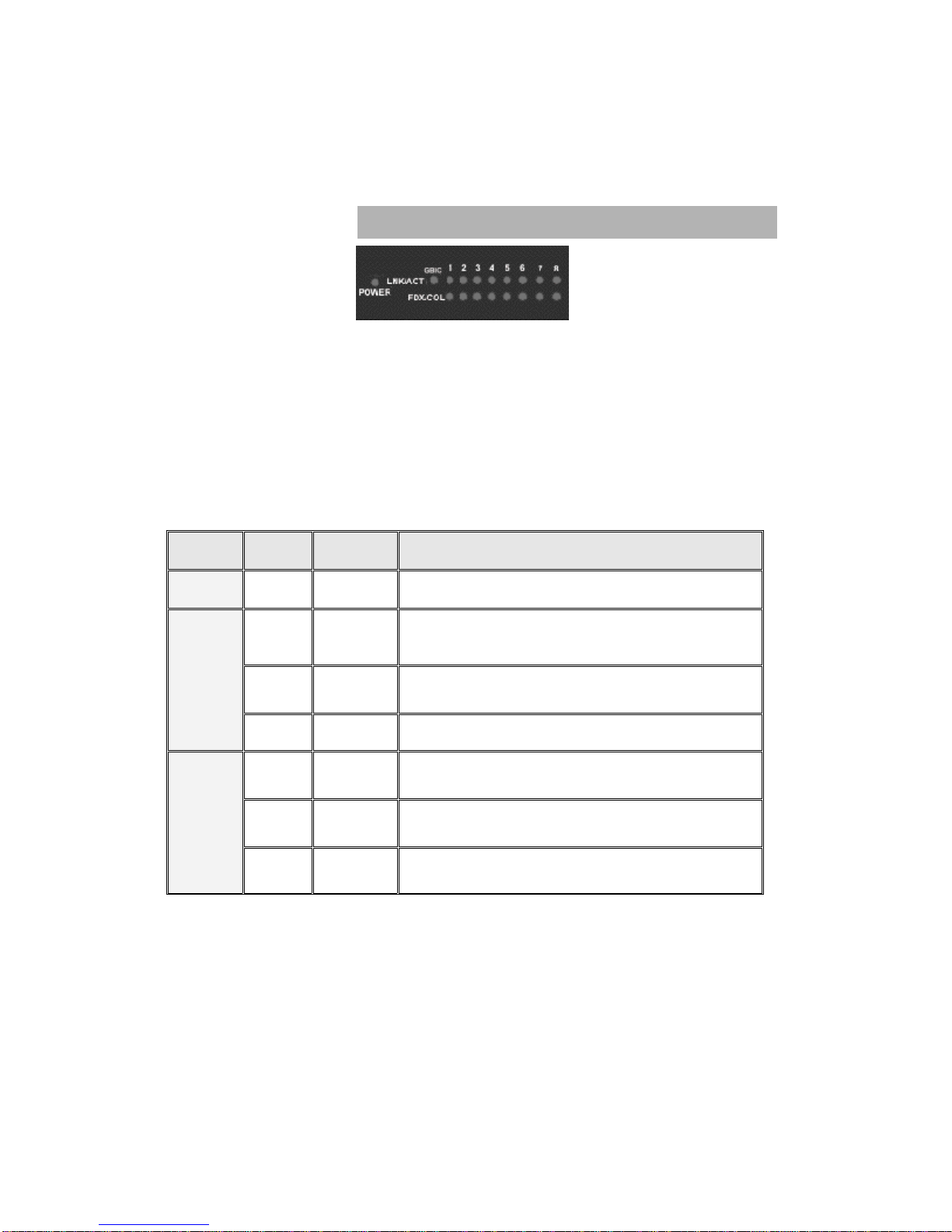

LEDIndicators
Figure 2-3. LED Indicators
There are three LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port.
The following table provides descriptions of the LED statuses and
meaning. They provide a real-time indication of systematic operation
status.
LED Status Color Description
Power On Green Power On
LNK /
ACT
On Green
The port is successfully connecting
with the device on 100Mbps.
Blinks Green The port is receiving or transmitting
data.
Off No device attached.
FDX /
COL
On Orange The port is operating in Full-duplex
mode and device is attached.
Blinks Orange Collision of Packets occurs in the port.
Off
Half-duplex mode or no device
attached.
Table 2-1. The description of LED Indicator
7
Rear Panel
The Console port and 3-pronged power plug are located at the Rear
Panel of the TEG-S081FMi Switch as shown in Figure 2-8. The Switches
will work with AC in the range 100-240V AC, 50-60Hz.
AC Power Plug Socket
Power on/off switch
Figure 2-7 The Rear Panel of the 8 Port 100Mbps Fiber plus one GBIC
Management Switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby.
The surface where you put your Switch should be clean, smooth, level,
and sturdy.
Make sure there is enough clearance around the Switch to allow
attachment of cables, power cord and air circulation.
Power On
Connect the power cord to the power socket on the rear panel of the
Switch. The other side of power cord connects to the power outlet. The
internal power supply in the Switch works with AC in the voltage range
100-240VAC, frequency 50~60Hz.
Check the power indicator on the front panel to see if power is properly
supplied.
8
3.
Network Application
This section provides you a few samples of network topology in which the
Switch is used. In general, the TEG-S081FMi Switch is designed to be
used as a desktop or segment switch.
SegmentApplication
For enterprise networks where large data broadcast are constantly
processed, this switch is suitable for department user to connect to the
corporate backbone.
Figure 3-2 Segment Application
9
You can use the TEG-S081FMi Switch to connect PCs, workstations, and
servers to each other by connecting these devices directly to the Switch.
All the devices in this network can communicate with each other.
Connecting servers to the backbone switch allow other users to access
the server’s data.
The Switch automatically learns node address, which are subsequently
used to filter and forward all traffic based on the destination address. You
can use any of the Fiber port of the Fiber Management Switch to connect
with another Switch or Hub to interconnect each of your small switched
workgroups to form a larger and long distance switched network.
Figure 3-3 Use fiber port (TEG-S081FMi Switch) to extend the distance
between workgroups
10
