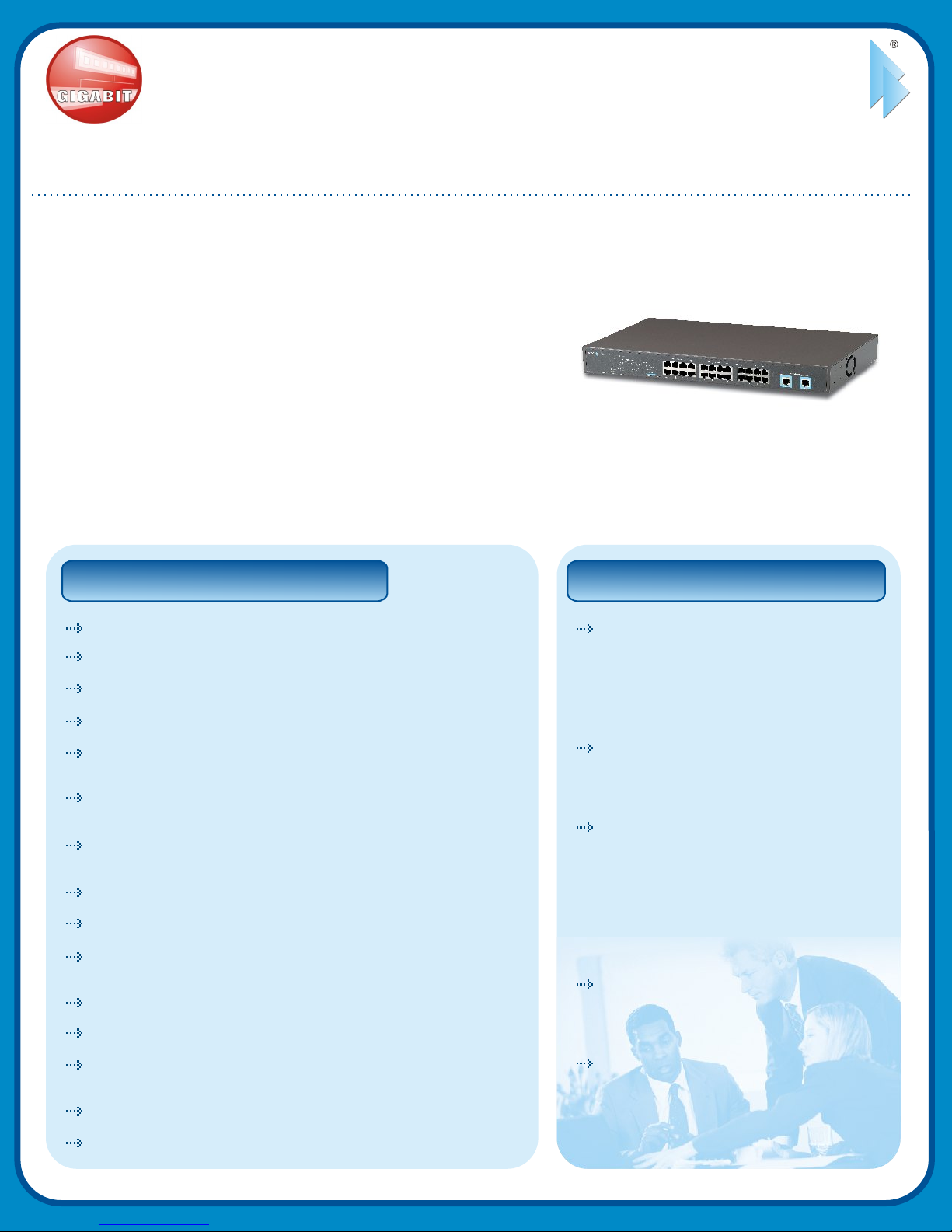

TRENDnet TEG-S224TX Manuale utente
TRENDnet's TEG-S224TX is a 26-port 10/100/1000Mbps
NWay Gigabit Switch with 24 10/100Mbps NWay Ethernet
ports and two 1000Base-T Copper Gigabit Ethernet ports. All
ports supports full and half duplex transfer mode with non-
blocking store-and-forward switching method. This high-
performance switch also supports IEEE 802.1p Quality of
Service (QoS) for priority data packet processing. And with
Broadcast Storm Control, Port Trunking, and VLAN supports,
the TEG-S224TX is powerful and easy-to-use in reducing
unnecessary broadcast traffic, segmenting the network, and
enhancing network security.
TEG-S224TX
26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch
2 10/100/1000Mbps Auto-Negotiation Copper Gigabit Ethernet Ports
24 10/100Mbps Auto-Negotiation Ethernet/Fast Ethernet Ports
Full/half Duplex transfer mode for each 10/100/1000Mbps ports
Auto MDI-II / MDI-X media type detection for all ports
Supports store and forward architecture with non-blocking full wire
speed performance
802.3x flow control for full duplex and collision-based back pressure
function for full duplex operation
Supports up to 32K MAC addresses table/hashing algorithm on
address learning
Supports 2Mbytes packet buffer per device
Broadcast storm control
Port Trunking (2 Trunk Groups) with 2, 3, 4, 5, 6, 7, or 8 designated
10/100Mbps ports
Port-based VLAN
Supports IEEE 802.1p Port-Based Quality of Service (QoS)
Console Port (cable included) for easy configuration with Windows-
Based GUI (for Win95/98/ME)
Extensive front-panel diagnostic LED's
5 Year Warranty
BENEFITSFEATURES
Performance:
Flexibility:
Expandability:
Cost Effectiveness:
Security:
Provides two 1000Mbps Gigabit
connections to Power Servers and/or
other Gigabit Switch, with each port
running at full wire speed.
Connects to 10Base-T, 100Base-TX,
and 1000Base-T Networks.
Simple expansion can be done by
uplinking to other 10/100Mbps or
Gigabit Switches. Trunks two switches
with up to 8 10/100Mbps ports to
create 1.6Gbps "pipe" between two
Switches.
Provides Gigabit Performance at an
affordable price.
Port-based VLAN to further segment
the network.
TEG-S224TX (11-17-2002)
TRENDnet
TRENDware, USA
What's Next in Networking
PRODUCT INFORMATION
To Order Please Call:
1-888-326-6061
TEG-S224TX: 26-port 10/100/1000Mbps NWay Copper Gigabit
Switch
TEG-S80TX: 8-port 10/100/1000Mbps NWay Copper Gigabit
Switch
TEG-S18TX: 9-port 10/100/1000Mbps NWay Copper Gigabit
Switch
TEG-PCITX: 32-Bit PCI 10/100/1000Mbps NWay Copper Gigabit
Ethernet Card
TEG-PCITX2: 32/64-Bit PCI 10/100/1000Mbps NWay Copper
Gigabit Ethernet Card
ETH-800I: EIA-19" Rack-Mount Kit for TEG-S18TX

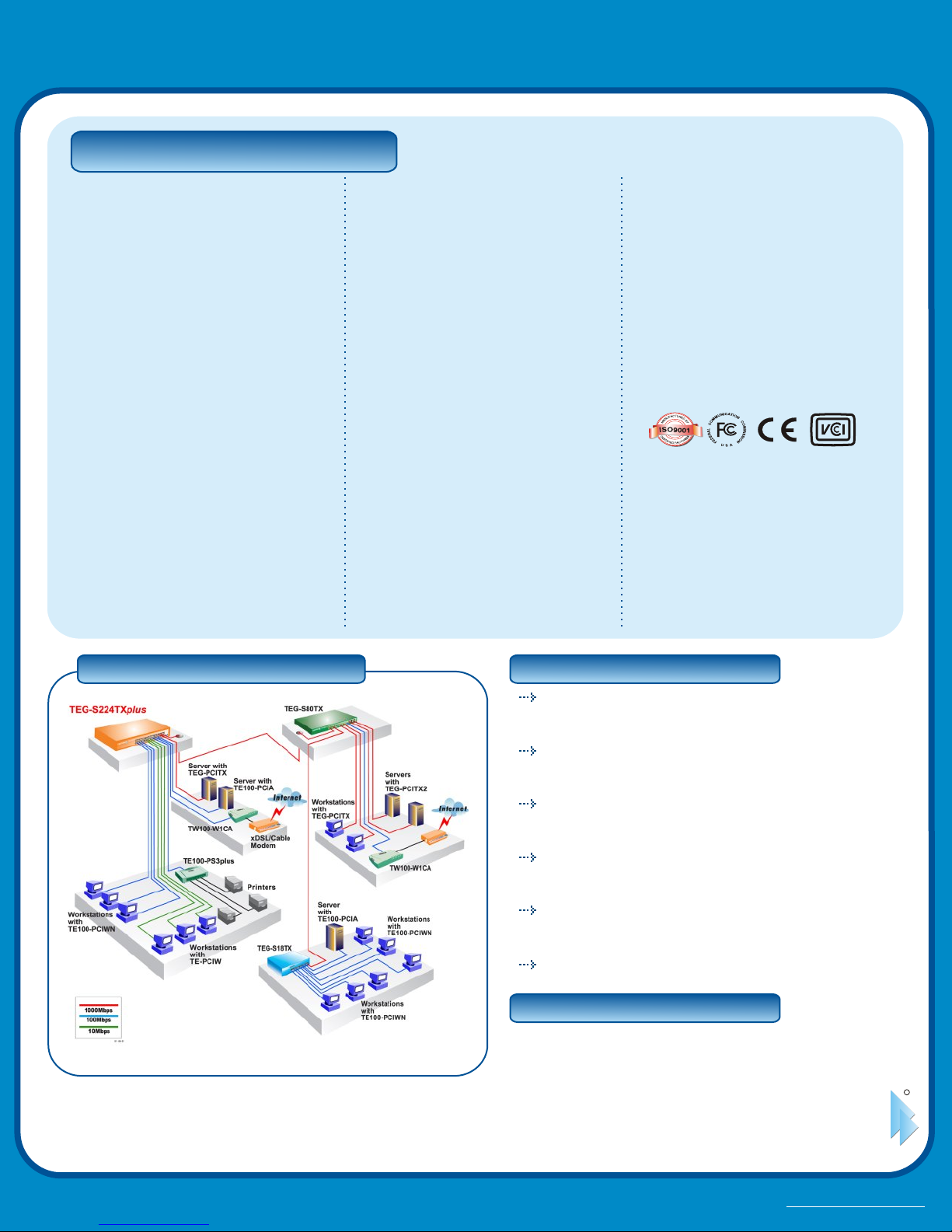

NETWORKING SOLUTIONS
SPECIFICATIONS
TEG-S224TX
26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch
TEG-S224TX
26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch
Standards:
• IEEE 802.3 10Base-T Ethernet,
IEEE 802.3u 100Base-TX Fast
Ethernet, IEEE 802.3ab 1000Base-T
Gigabit Ethernet, IEEE 802.3z
1000Base-F Gigabit Ethernet,
ANSI/IEEE 802.3 NWay
Auto-Negotiation, IEEE 802.3x
Full-Duplex Flow Control
Data Transfer Rate:
• Ethernet: 10Mbps (Half-Duplex),
20Mbps (Full-Duplex)
• Fast Ethernet: 100Mbps (Half-
Duplex), 200Mbps (Full-Duplex)
• Gigabit Ethernet: 1000Mbps (Half-
Duplex),2000Mbps (Full-Duplex)
Protocol:
• CSMA/CD
Topology:
• Star
Cabling:
• Ethernet: UTP CAT 3,4,5,
EIA.ITA-568 100-ohm screened
twisted pair (STP)
• Fast Ethernet: UTP CAT 5,
EIA/TIA-568 100-ohm screened
twisted pair (STP)
• Gigabit Ethernet: UTP CAT 5,
EIA/TIA-568 100-ohm screened
twisted pair (STP)
Data RAM Buffers:
• 2Mbit per Device
Filtering Address Table:
• 32K entries per device
Diagnostic LEDs:
• Power, 10M Link/Act, 100M Link/Act,
1000M Link/Act
Power Consumption:
• 100~240 VAC 50/60hz, Internal
Universal Power Supply
Dimensions:
• 440 x 200 x 44mm (W x H x D)
Temperature:
• Operating: 0° to 50°C (32° to 122° F)
• Storage: -5° to 55° C (23° to 131° F)
Humidity:
• 5 % to 90 % non-condensing
Certifications:
• FCC Class A, CE Class A, VCCI-A
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web:
Email: [email protected]
www.TRENDNET.com
