TRENDnet TEG-S240TX - DATA SHEETS Manuale utente

Quick Installation Guide

TEG-S240TX

TEG-S160TX

Table of Contents

Version 05.11.2006

English ......................................................................................................

Technical Specifications .........................................................................................

Troubleshooting ......................................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

................................................................................

1. Before You Start

English

Installation Requirements

Application

Computer with Network adapter installed

An environment that is fairly cool and dry

Package Content

TEG-S160TX/TEG-S240TX

Quick Installation Guide

2 mounting brackets and screws

4 Rubber Feet

Power Cord

EIA Standard, 19 inch rack or sturdy, level surface that can support the

weight of the Switch

An environment that is free from strong electromagnetic field generators

(such as motors), vibration, dust and direct exposure to sunlight

Leave at least 10 cm of space at the front and rear of the Switch for

ventilation

Notebooks with

(TEG-PCBUSR)

Gigabit CardBus PC Card

Servers with 10/100/1000Mbps

Copper Gigabit PCI Adapter

(TEG-PCITXR)

Workstations with 10/100/1000Mbps

Copper Gigabit PCI Adapter

(TEG-PCITXR)

16-Port 10/100/1000Mbps

Copper Gigabit Switch

24-Port 10/100/1000Mbps

Copper Gigabit Switch

(TEG-S240TX)

(TEG-S160TX)

2. Hardware Installation

English

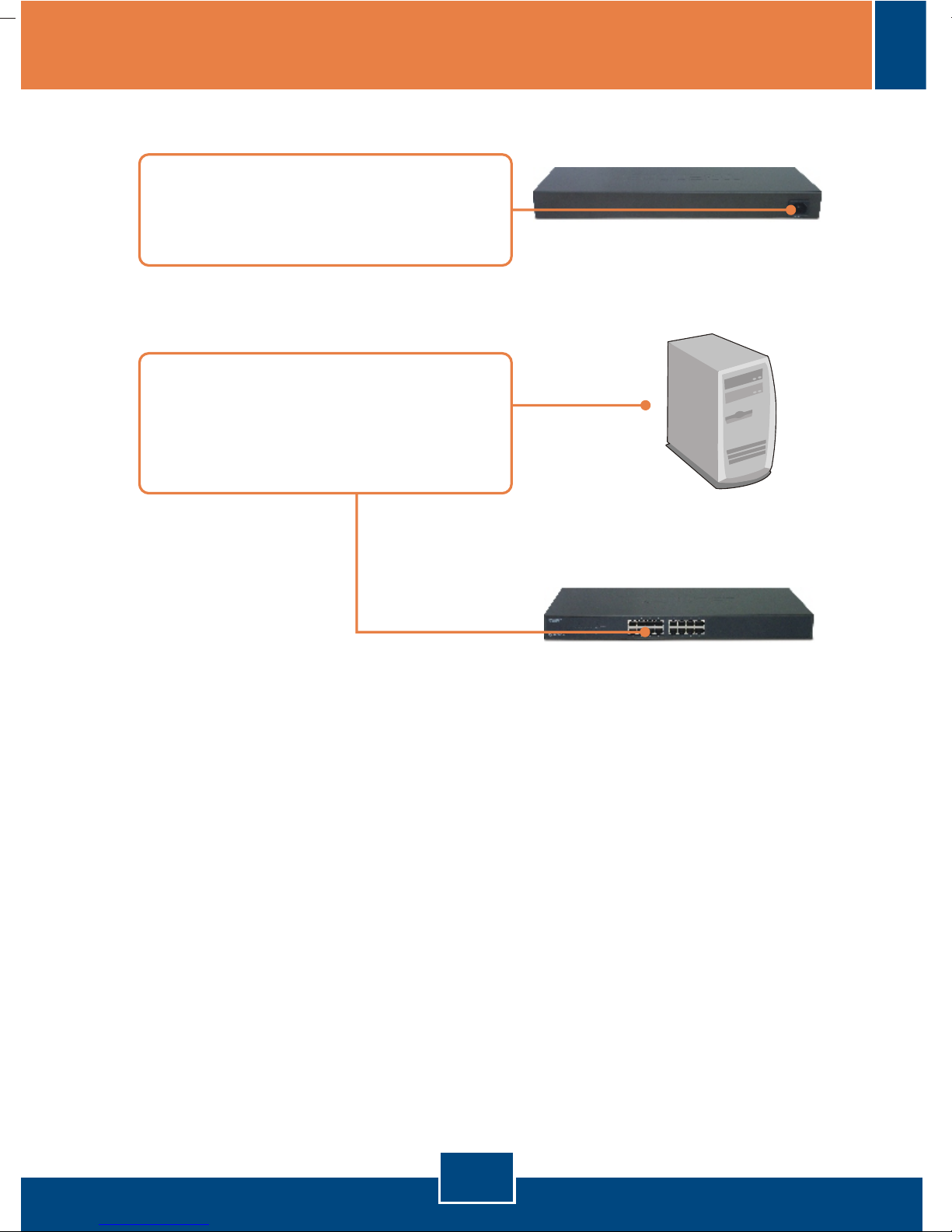

1. Connect the AC Power Adapter to

the TEG-S160TX/TEG-S240TX

and then to a power outlet.

2. Connect a CAT-5e or CAT-6 RJ-45

network cable from the computer to

an available Ethernet port on the

TEG-S160TX/TEG-S240TX.

English

Rack Mount

The Switch can be mounted in an EIA standard-size, 19-inch rack, which can

be placed in a wiring closet with other equipment.

3. Attach the mounting brackets to

the Switch's front panel (one on

each side), and secure them with

the provided screws.

4. Use the screws provided with the

equipment rack to mount the

Switch.

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Full-Duplex Flow Control

Protocol CSMA/CD

Data Transfer

Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)

Gigabit Ethernet: 2000Mbps (full-duplex)

Topology Star

Network Cables

Ethernet: UTP/STP CAT-3, -4, -5

Fast Ethernet: UTP/STP CAT-5

Gigabit : UTP/STP CAT-5e, CAT-6 (Recommended)

Number of Ports

Weight

Temperature

16/24 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX

3Kg

Operating: 0° ~ 40° C (32° ~ 104° F)

Storage: -10° ~ 70° C (14° ~ 158° F)

Hardware

Technical Specifications

Physical and Environmentalware

Power 100-240V AC Universal, 50/60 Hz Internal Power Supply

Power

Consumption

13.5 Watts. Max (TEG-S160TX)

19 Watts Max (TEG-S240TX)

Humidity 5% ~ 90% (non-condescending)

Dimensions 440 x 140 x 44 mm

Emissions CE, FCC

Filtering Address

Table 8K entries per device

Performance

RAM Buffer 340KB per device (TEG-S160TX)

500KB per device (TEG-S240TX)

Transmission

Method Store-and-Forward

Packet Filtering/

Forwarding Rate

10Mbps Ethernet: 14,880pps (packet per second)

100Mbps Fast Ethernet: 148,800pps

1000Mbps Gigabit Ethernet: 1,488,000pps

MAC Address

Learning: Self-learning, auto-aging

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn on.

Check the connection of the power adapter to the

and the power outlet. Also check that the power outlet is receiving

power.

When I connect a computer to the Switch port, the LINK/ACT LED turns on,

but the 1000Mbps LED remains off.

First, check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6

Ethernet Cables. Some CAT-5 cables are not rated to run Gigabit. Second,

make sure that you have a Gigabit Ethernet Adapter installed on your computer.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is on.

Second, check the network cable. The minimum length of the cable is 1.5 meters

and the maximum length of the cable is 100 meters. Third, disable any software

firewall program. Fourth, verify that you have file and printer sharing enabled.

Please contact Microsoft support for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

The Switch was not designed to share Internet between multiple computers.

You need to get an Internet router.

If you still encounter problems or have any questions regarding the

please contact TRENDnet's Technical Support

Department.

TEG-S160TX/

TEG-S240TX

TEG-S160TX/TEG-S240TX

Limited Warranty

- 5-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEG-S160TX/TEG-S240TX

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty
