TRENDnet TEG-S2620i Manuale utente

H/W: V1.0R

TEG-S2620i

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation ........................................................................

3. Configure the Switch .........................................................................

................................................................................

Table of Contents

Version 05.08.2008

System Requirements

Optional Equipment

Application

Package Contents

1. Before You Start

English

?Multi-Language Quick Installation

Guide

?User's Guide CD-ROM

?RS-232 cable

?Power Cord

?Rack Mount Kit

TEG-S2620i

?Acomputer with a network adapter properly installed

?TCP/IP protocol

?One RJ-45 network cable

Web Browser: Internet Explorer (5.5 or higher)

?Mini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D3_D5,TEG-MGBS40D3_D5) for Mini

GBIC slots

EIAstandard 19” rack

1000MbpsRS-232 Console 10/100Mbps

Console Terminal

RS-232 8-Port 100Base-FX Layer 2

Managed Switch with Mini GBIC Slot

(TEG-S811Fi)

Virtual LAN

26-Port 10/100Mbps Layer 2 Switch with

Gigabit Ethernet Ports and Mini-GBIC Slots

(TEG-S2620i)

Virtual LAN

Network Servers

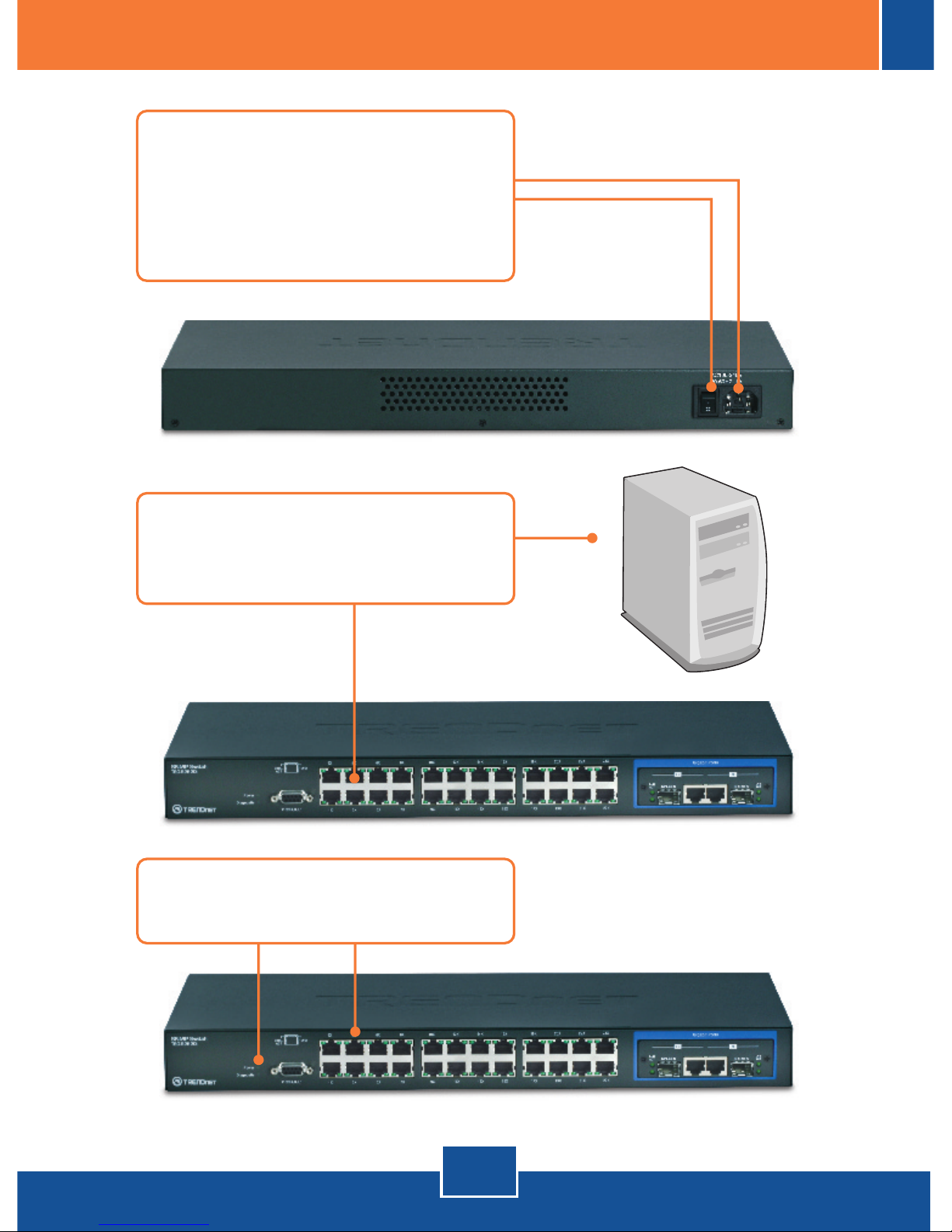

2. Hardware Installation

English

2. Connect a RJ-45 network cable

from the computer to an available

Ethernet port on the TEG-S2620i.

3. Verify that the following panel lights

are on: POWER and LINK/ACT.

1. Connect the Power Cord to

the TEG-S2620i and then to a

power outlet. Then press on the

switch to power up the

TEG-S2620i.

English

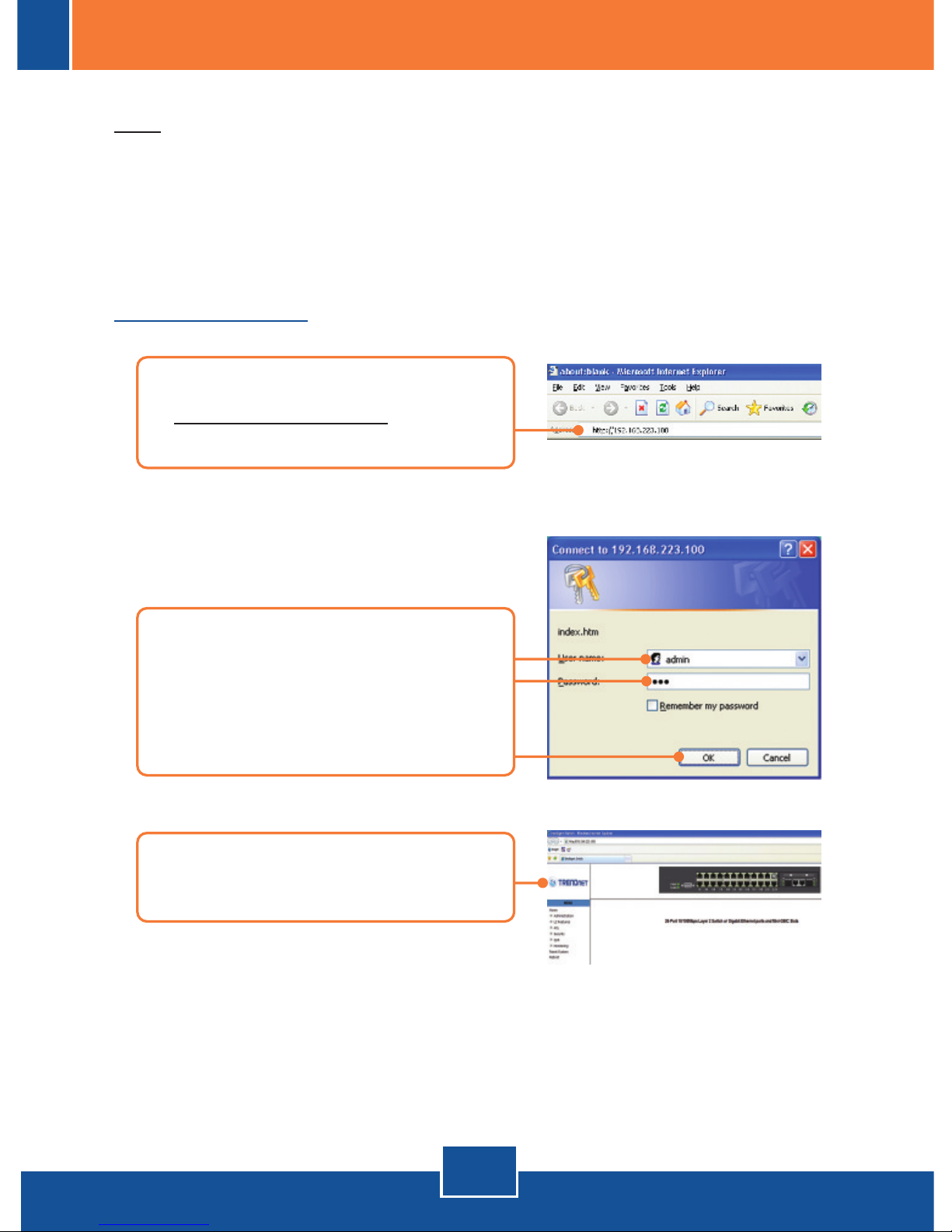

3. Configure the Switch

Note: It is recommended that you configure the Switch from a wired computer.

Before the Switch can be configured, a Static IP address must be assigned to

your computer's network adapter in the subnet of 192.168.223.x. Since the

Switch's default IP address is 192.168.223.100, make sure no other network

devices are assigned an IP address of 192.168.223.100. (Refer to

Troubleshooting section on how to configure TCP/IPsettings on your PC.)

Web Browser

1. Open your web browser, type

http://192.168.223.100 in the

Address bar, and then press Enter.

3. Select the desired options for

configuring the SNMP switch.

2. Enter the User Name and

Password, and then click OK.

By default:

User Name: admin

Password: 123

English

HyperTerminal

2. Go to Start -> Programs ->

Accessories -> Communications ->

HyperTerminal.

3. Enter a name, choose an icon and

then click OK.

4. Select the correct COM port (e.g.

COM1, COM2) and then click OK.

1. Connect the RS-232 cable from a

serial port on your Windows PC to

the console port on your computer.

English

6. Press Enter.

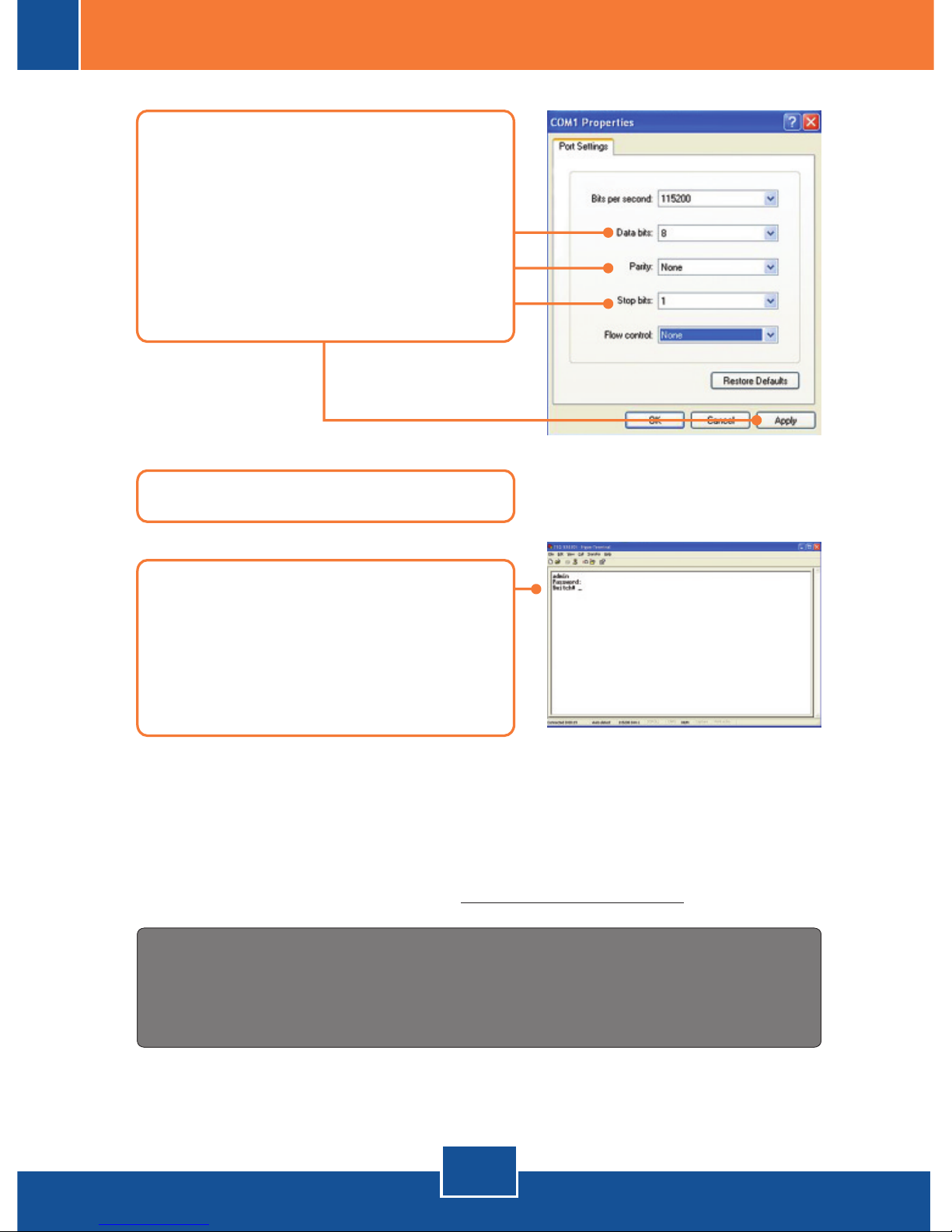

5. Enter the following, click Apply

and then click OK:

Bits per second: 115200

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

Your configuration is now complete.

For detailed information regarding the TEG-S2620i's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

7. Enter the User Name and

Password, and then hit Enter.

By default:

User Name: admin

Password: 123

Troubleshooting

Q1: How do I configure TCP/IP settings on my computer?

Q2:

A2:

A3:

: I typed http://192.168.223.100 in my Internet Browser's Address Bar, but an error message

says “The page cannot be displayed.” How can I get into the TEG-S2620i's web configuration

page? First, check your hardware settings again by following the instructions in section 2.

Second, make sure the POWER and LINK/ACT lights are lit. Third, make sure the TCP/IP

settings are configured properly (see Q1). Fourth, since the Switch's default IP address is

192.168.223.100, make sure that no other network devices are assigned an IP address of

192.168.223.100.

If my network's IP is different than the Switch's range, what should I do?

You should still configure the Switch first.After all the settings are applied, go to the

Switch's configuration page, click onAdministrator, click IP & Management Mode and change

the IP address of the Switch to match your network's IP.

What are the default port settings for configuring the Switch through the console port

using HyperTerminal?

Bits per Second: 115200; Data bits: 8; Parity: None; Stop bits: 1; Flow control: None.

If you still encounter problems or have any questions regarding the TEG-S2620i, please contact

TRENDnet's Technical Support Department.

Q3:

Q4:

1. Go into the Control Panel, double-click the Network

Connections icon, and then right-click the Local Area

Connection icon and then click Properties.

2. Click Internet Protocol (TCP/IP) and then click

Properties. Then click on Use the following IP

address, and make sure you assign your network

adapter an IP address in the subnet of 192.168.223.x.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FORANYRADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TOTHIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’SAUTHORITYTO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recyclewherefacilitiesexist. CheckwithyouLocal

AuthorityorRetailerforrecyclingadvice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

20675 Manhattan Place

Torrance, CA 90501

USA
