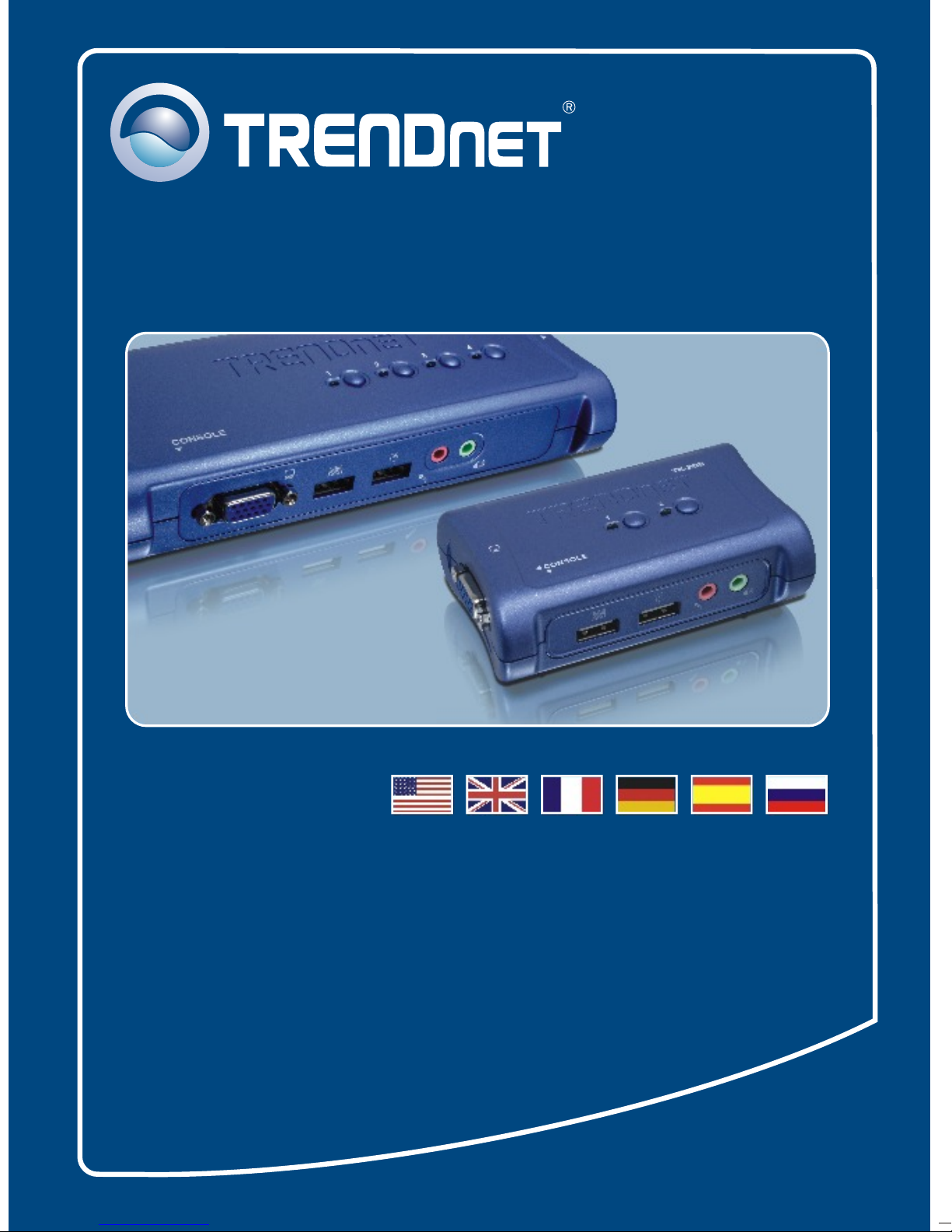

TRENDnet TK-209K Manuale utente

TK-209K

TK-409K

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Connect .................................................................................

3. Operation ..........................................................................................

.................................................................................

Table of Contents

Version 03.16.2007

System Requirements

Application

TK-209/TK-409

Quick Installation Guide

Utility CD-ROM

Type A USB Keyboard

Type A USB Mouse

VGA or SVGA Compatible Monitor

Microphone and Speaker (optional)

Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, or Mac OS

Package Contents

1. Before You Start

English

2 Sets (TK-209) or 4 Sets (TK-409)

of Audio Cables

2 Sets (TK-209) or 4 Sets (TK-409)

of USB KVM Cables

PC 1 PC 2

2/4 Ports USB KVM

Switch with Audio

(TK-209K/TK-409K)

CablesCables

Microphone

Monitor

Keyboard Speakers

Mouse

PC 1

1. Turn off both computers and their

peripherals, and disconnect all

power cords.

3. Use the provided KVM and audio

cables to connect your PC to your

KVM switch.

2. How to Connect

English

Connect the shared keyboard,

monitor, mouse, microphone

(optional) and speaker (optional)

to the KVM Switch's console port

Note: The TK-209/TK-409 USB KVM Switch does not require any drivers or

software.

4. Turn ON the first computer and

wait until startup completes.

KVM Cable

Audio Cable

TK-209 TK-409

PC 2 (TK-209)

PC2, PC 3, PC4 (TK-409)

5. Press the face panel button on the

KVM Switch to select the second

computer (Optional).

Your installation is now complete.

English

6. Turn ON the second computer and

wait until startup completes.

Note: For PC switching, you can use the face-panel buttons of the KVM Switch,

a Hot-Key Command sequence via keyboard, or the Client Switch Software

(Windows only). For more detail on the Client Switch Software, please consult

the Client Switch Software manual on the User's Guide CD-ROM.

After pressing the ScrLk key, you have 2 seconds to press the ScrLk key

again. If you do not press the key within 2 seconds, the switch will exit hot-key

mode.

3. Operation

English

Face-Panel Buttons

Hot-Key Command Sequence

Press the corresponding face-panel

button to select your PC.

Universal Hot-Key Command

Command Hot-Keys Description

Select PC ScrLk ScrLk

Select the active PC channel,

PC Channel 1 or PC Channel 2 or

PC Channel 3 or PC Channel 4.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q6:

A6:

Where is the power supply? I did not find one in the box.

The TK-209/TK-409 does not require a power supply. It draws power from your computer's USB

connection. As long as your KVM switch is connected to the USB port, it will receive the necessary

power to function.

I have the KVM switch connected properly, but my keyboard and mouse don't work.

Can I connect and disconnect the USB cables while the computers are turned on?

Yes, you can connect or disconnect the USB cables while the computers are turned on because the

USB interface is Hot-Pluggable.

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching between your computers.

(i.e.: Caps Lock, Num Lock, etc.)

How do I switch from one computer to another with the KVM switch?

First, make sure your USB port is working properly by testing it with your other USB devices. Second,

once you confirm that the USB port is functional, please reboot your computers, and try to use the KVM

switch again. Third, if your computer is running Windows 98SE, you may need to download and install the

USB hot fix. Please go to this link for download and installation instructions:

http://support.microsoft.com/kb/q240075. Once the hot fix is installed, follow the installation instructions in

Section 2.

PC User: Push Buttons, Universal Hot-Key Commands or Client Switching Software

Mac User: Push Buttons

Linux User: Push Buttons, Universal Hot-Key Commands

If you still encounter problems or have any questions regarding the TK-209K/TK-409K, please contact

TRENDnet's Technical Support Department.

Troubleshooting

Limited Warranty

TRENDnet warrants its products against defects in material and

workmanship, under normal use and service, for the following lengths of

time from the date of purchase.

TK-209K/TK-409K - 2-Year Warranty

If a product does not operate as warranted above during the applicable

warranty period, TRENDnet shall, at its option and expense, repair the

defective product or part, deliver to customer an equivalent product or

part to replace the defective item, or refund to customer the purchase

price paid for the defective product. All products that are replaced will

become the property of TRENDnet. Replacement products may be new

or reconditioned.

TRENDnet shall not be responsible for any software, firmware,

information, or memory data of customer contained in, stored on, or

integrated with any products returned to TRENDnet pursuant to any

warranty.

There are no user serviceable parts inside the product. Do not remove

or attempt to service the product by any unauthorized service center.

This warranty is voided if (i) the product has been modified or repaired

by any unauthorized service center, (ii) the product was subject to

accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within

the applicable warranty period for a Return Material Authorization (RMA)

number, accompanied by a copy of the dated proof of the purchase.

Products returned to TRENDnet must be pre-authorized by TRENDnet

with RMA number marked on the outside of the package, and sent

prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT

OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE

REMEDY SHALL BE, AT TRENDnet'S OPTION, REPAIR OR

REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDnet NEITHER ASSUMES NOR AUTHORIZES ANY OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDnet'S PRODUCTS.

TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS

TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE

BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,

FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW

TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY

LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT

OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION

OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY

TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE

PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR

DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of

the state of California.

AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a

1 Year Warranty

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón

necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir

daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y

frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
