TRENDnet TPE-S88 - Web Smart PoE Switch Manuale di istruzioni

Q: What is the default IP address of the TPE-S88?

A:The default IP address is http://192.168.0.1

TPE-S88 F.A.Q.

Q: What is the default password?

Q: How do I configure the switch through the web-based configuration?

Q: How do I reset my switch to factory defaults?

Q: Why are my ping requests slower when using TRENDnet Web SMART

Switches?

Q: Why doesn’t my Cisco 7940G/7960G IP Phone power on when connected to my

TPE-S88?

The default password is admin.

Log into the switch by entering the default IP address into the browser. The default IP address is

http://192.168.0.1 and the password is admin.

Locate the reset button on the back of the switch. Press and hold it in for approximately 15

seconds.

Since Web Smart switches are not as robust in features as fully managed switches they have a

slower CPU. Therefore, depending on what processes the Web Smart switch is currently running,

the ping response time will be varied and longer.

The Cisco 7940G and 7960G are pre-802.3af POE devices. They will not be able to get power

from the POE switch.

The following link is provided for reference and may provide further information regarding the

incompatibility between 802.3af compliant devices and Cisco phones.

This article is not provided by Cisco nor endorsed by TRENDnet: http://www.voip-info.org/wiki-

Cisco+POE

Note: This may include other Cisco IP Phones that are not 802.3af compliant. For further

information on your Cisco IP Phone, please contact Cisco.

Q: How can the TPE-102S be applied to home or business solutions?

A:Below are a couple of scenarios that make the TPE-102S an ideal solution.

a. When a person uses an IP Camera as an outdoor security camera, the TPE-102S will supply

your IP Camera with power and data.

b. When you want to place an IP Camera or Access Point in an office where power outlets are

unavailable, the TPE-102S can supply power and data to these network devices.

Q: Which TRENDnet products support the 802.3af protocol?

A:Currently only the TEW-453APB.

TPE-S88 F.A.Q.

Q: What TRENDnet products are compatible with the TPE-S88?

A:TEG-S80TXE Yes (5V 2.4A)

TEW-430APB Yes (5V 2.1A)

TEW-432BRP Yes (5V 2.5A)

TEW-450APB Yes (5V, 2A)

TEW-510APB Yes (5V, 2.5A)

TEW-511BRP Yes (5V 2.5A)

TEW-610APB Yes (5V, 2A)

TEW-611BRP Yes (5V, 2A)

TE100-P1P Yes (5V, 2.5A)

TE100-P1U Yes (5V, 2.5A)

TE100-PS3plus Yes (5V, 1.6A)

TE100-P21 Yes (5V, 2.5A)

TEW-P1PG Yes (5V 2.5A)

TEW-P1UG Yes (5V 2.5A)

TEW-PS1U Yes (5V 2.5A)

TEW-P21G Yes (5V, 2.5A)

TV-IP100 Yes (5V, 2.5A)

TV-IP100W Yes (5V, 2.5A)

TV-IP200 Yes (5V, 2.5A)

TV-IP200W Yes (5V, 2.5A)

TV-IP400 Yes (5V, 2.5A)

TV-IP400W Yes (5V, 2.5A)

TS-U100 Yes (5V, 2.5A)

TS-U200 Yes (5V, 2.5A)

TPE-S88 F.A.Q.

Q: How do I setup VLAN´s on the TPE-S88?

A:In this example two VLAN´s will be created. The VLAN´s will not be able to access each other, but

will be able to get out to a gateway. The gateway is connected to port 1.

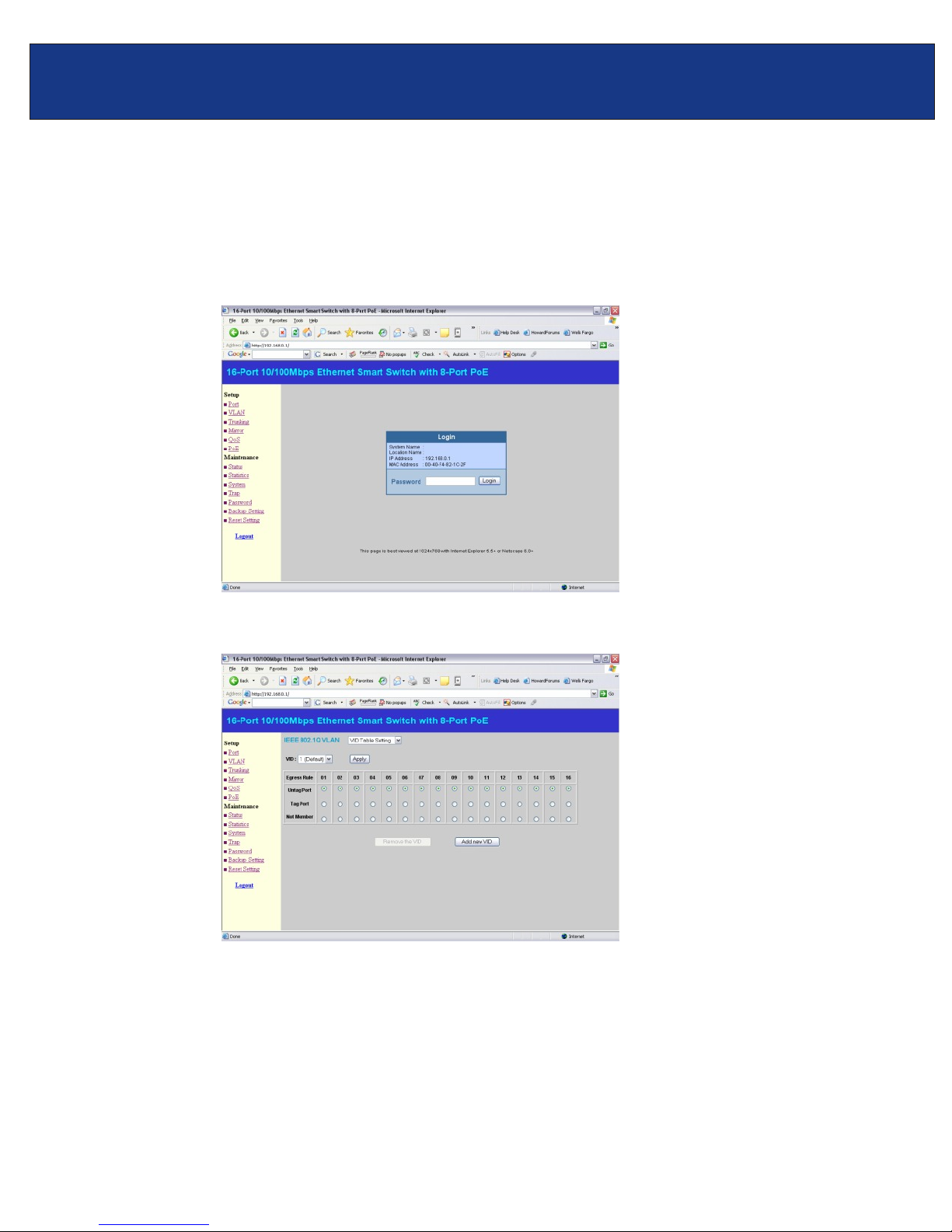

Step 1. Open a web browser and log into the switch (192.168.0.1 by default). Enter the

password (admin by default) then hit Login.

Step 2. Click on VLAN on the left hand side then click Add new VID.

TPE-S88 F.A.Q.

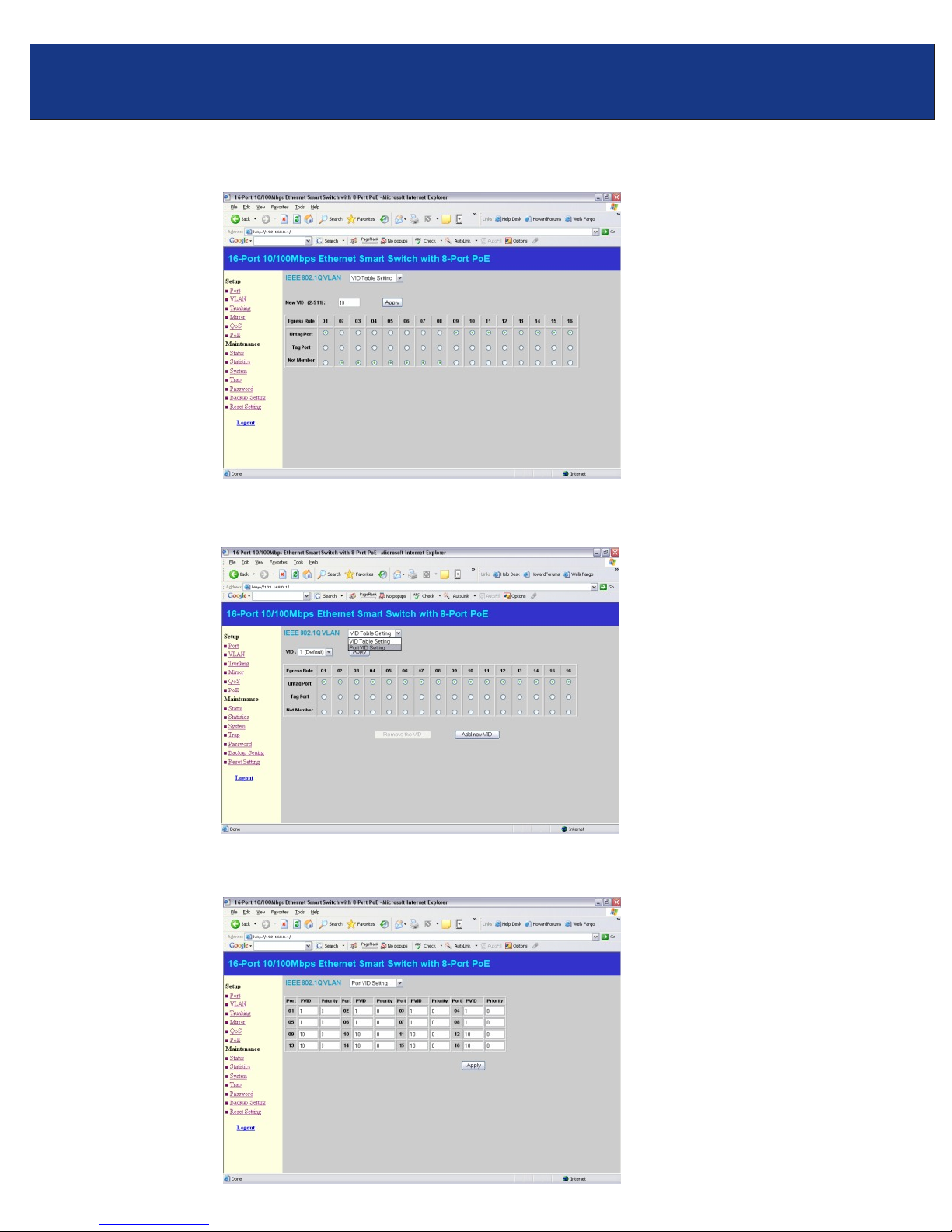

Step 3. Create a new VID and add Untagged Member Ports.

Step 4. Go back to the VLAN menu and select Port VID Settings.

Step 5. Change the PVID of the ports in the created VLAN and click Apply.

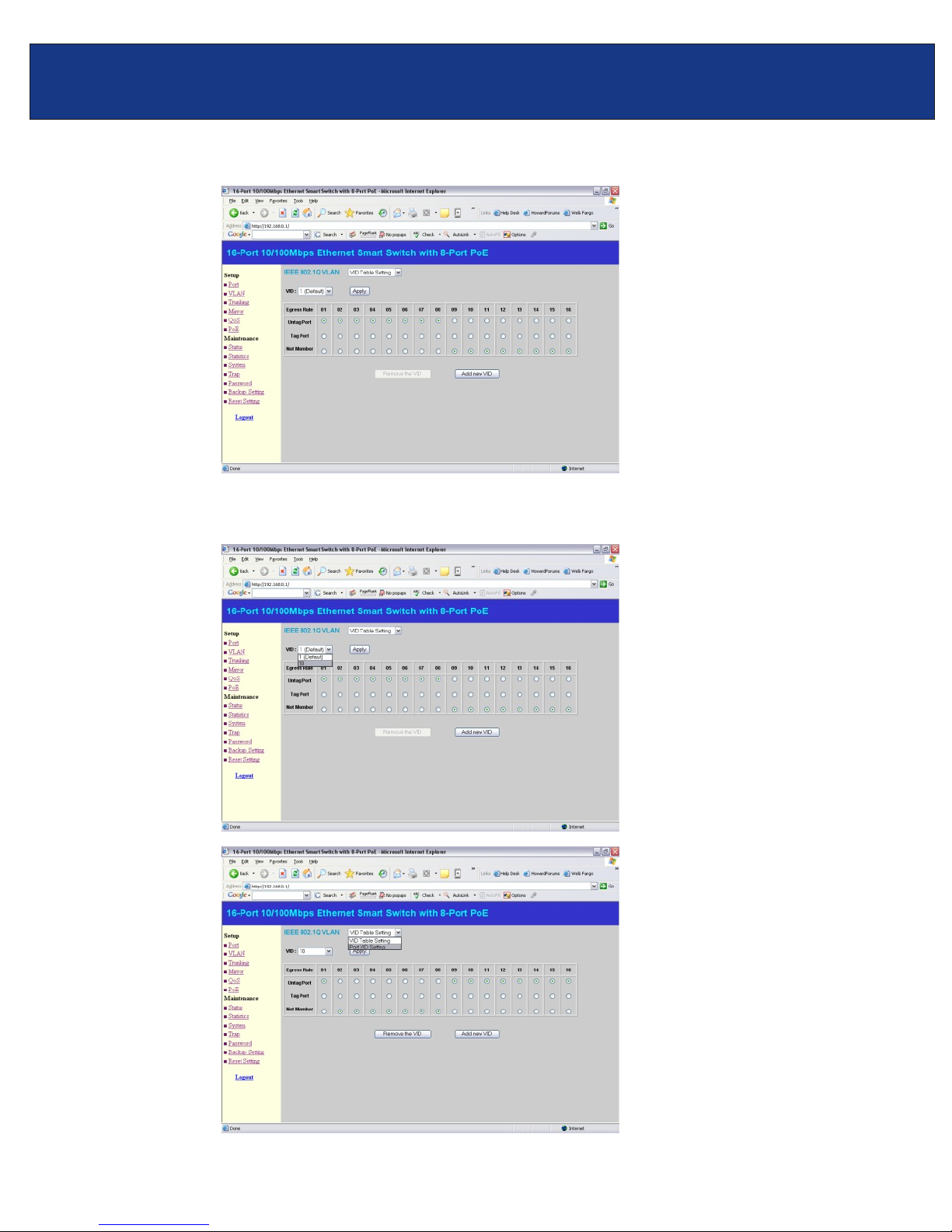

Step 6. Remove the ports from the second VLAN and hit Apply.

Step 7. Select VID 10 then select Port VID Settings.

TPE-S88 F.A.Q.

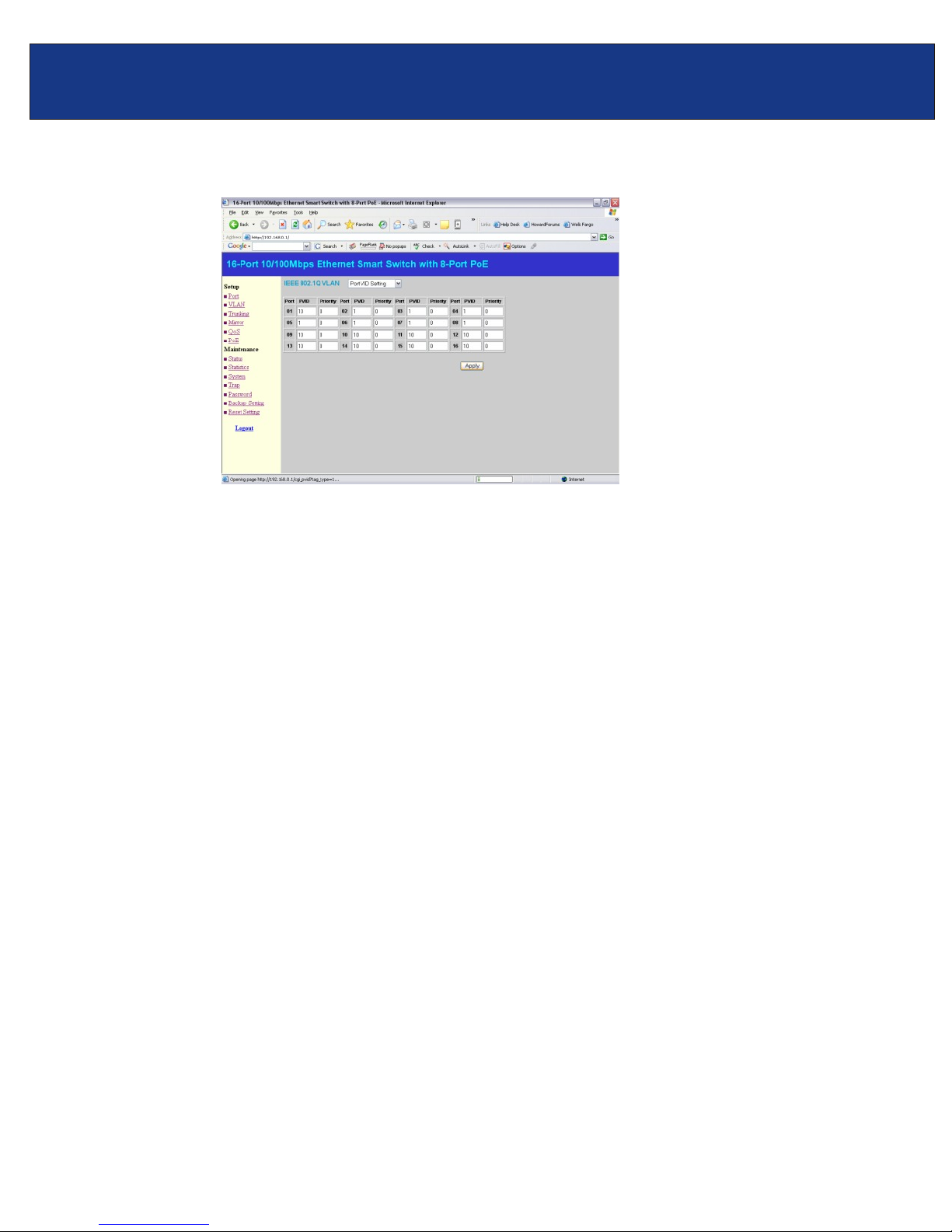

Step 8. Change the PVID of the ports in the created VLAN and click Apply.

TPE-S88 F.A.Q.
