TRENDnet TI-PG80 Manuale utente

TI-PG80

Quick Installation Guide

Minimum Requirements

Package Contents

ŸTI-PG80

ŸQuick Installation Guide

ŸRemovable terminal block

ŸDIN-rail mount

ŸWall mount plates

1. Before You Start

ŸExisting network

ŸPower source (TI-S24048)

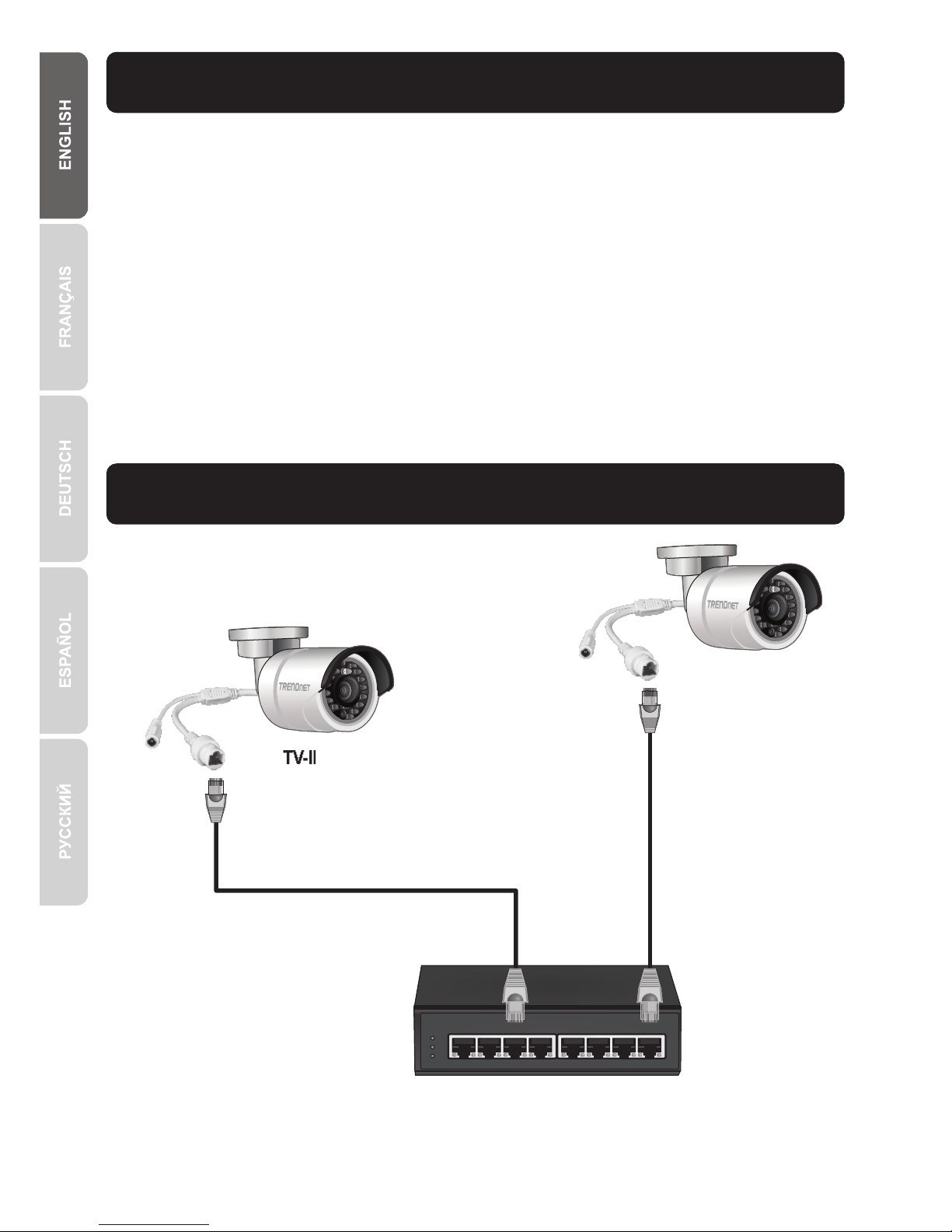

2. Quick Reference

TV-IP310PI

TV-IP322WI

3. Hardware Installation

ŸThe TI-PG80 can be placed on a desktop, wall, or mounted to a DIN-rail.

1. Attach the DIN-rail mount bracket to the switch.

2. Position the switch in front of the DIN-rail and hook the mount bracket over

the top of the rail.

Mounting the switch Releasing the switch

DIN-rail Mounting Instructions

3. Rotate the switch downward towards the rail to lock it into place. You will

know it is secure when you hear the click.

4. To remove the switch, pull down to clear the bottom of the DIN-rail and

rotate away from the rail.

1. Attach the wall mount plates to the switch.

Wall Mounting Instructions

2. Mount the switch.

ŸTurn off the power before connecting any module or wire. The correct power

supply voltage (48 - 56 V DC) is listed on the product label. Check the

voltage of your power source to make sure that you are using the correct

part. Do NOT use voltage greater than 48 - 56 V DC, as specified on the

product label.

ŸCalculate the maximum possible current in each power wire and common

wire. Observe all electrical codes dictating the maximum current allowable

for each wire size. If the current surpasses the maximum ratings; the wiring

could overheat, causing serious damage to your equipment.

Safety Note

3. Connect a network source and devices to the switch. Check the LEDs to

confirm the connections are established. Your installation is completed.

1. Connect the power supply (sold separately) to the included terminal block

(as shown below) and secure with the screws.

Applying Power

2. Attach the terminal block to the unit, secure with the included screws,

connect the neutral wire to the ground, and supply power to the power

adapter.

Note: Polarities must match.

Directives:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

RoHS Directive 2011/65/EU

REACH Regulation (EC) No. 1907/2006

TRENDnet hereby declare that the product is in compliance with the essential requirements and

other relevant provisions under our sole responsibility.

This product is herewith confirmed to comply with the Directives.

Product Information:

Product Name:

Model Number: TI-PG80

Trade Name: TRENDnet

8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

EMC

Person responsible for this declaration.

Date: August 2, 2015

Title: Director of Technology

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Manufacturer’s Name and Address

EN 55011: 2009 + A1: 2010 Class A

EN 55022: 2010 + AC: 2011 Class A

EN 61000-6-4: 2007 + A1: 2011

EN 55024: 2010

EN 61000-6-2: 2005 + AC: 2005

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use

and service. Specific warranty periods are listed on each of the respective product pages on the

TRENDnet website.

Garantie Limitée

TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des

conditions normales d'utilisation et de service. Les périodes de garanties précises sont

mentionnées sur chacun des pages produits du site web de TRENDnet.

Eingeschränkte Garantie

TRENDnet gewährt eine Garantie für seine Produkte im Falle von Material- und

Bearbeitungsdefekten, bei normaler Verwendung und Wartung. Spezielle Garantiezeiträume

werden auf jeder Produktseite auf der Website von TRENDnet genannt.

Garantía limitada

TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en

condiciones de uso y funcionamiento normales. Los periodos específicos de garantía figuran en

cada una de las páginas de producto del sitio web de TRENDnet.

Ограниченная гарантия

Компания TRENDnet предоставляет гарантию на свои изделия от дефектов материалов и

сборки при нормальном использовании и обслуживании. Конкретные гарантийные сроки

указаны на странице каждого продукта на сайте компании TRENDnet.

Garanzia limitata

TRENDnet garantisce i propri prodotti da difetti di materiali e manodopera, in condizioni di

normale uso ed esercizio. I periodi di garanzia specifici sono elencati sulle rispettive pagine di

prodotto sul sito TRENDnet.

Garantia Limitada

A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições

normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das

páginas dos respectivos produtos no site da TRENDnet.

Piiratud garantii

TRENDneti garantii hõlmab materjali- ja koostamisdefekte, mis ilmnevad toote tavapärasel

kasutamisel. Garantiiaja täpne pikkus konkretse toote puhul on leitav TRENDneti kodulehelt

vastava toote infolehelt.

TI-PG80

Certifications

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful

interference.

(2) This device must accept any

interference received. Including

interference that may cause undesired

operation.

Waste electrical an electronic products

must not be disposed of with household

waste. Please recycle where facilities

exist. Check with your Local Authority or

Retailer for recycling advice.

TRENDnet

20675 Manhattan Place, Torrance, CA 90501. USA

TI-PG80 (V1) /08.24.2015

Note

The Manufacturer is not responsible for any

radio or TV interference caused by

unauthorized modifications to this equipment.

Such modifications could void the user’s

authority to operate the equipment.

Advertencia

En todos nuestros equipos se mencionan

claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento.

El uso de un adaptador distinto al mencionado

puede producir daños fisicos y/o daños al

equipo conectado. El adaptador de

alimentación debe operar con voltaje y

frecuencia de la energia electrica domiciliaria

exitente en el pais o zona de instalación.

Applies to PoE Products Only: This product is

to be connected only to PoE networks without

routing to the outside plant.

Product Warranty Registration

Please take a moment to register your

product online. Go to TRENDnet’s website at:

http://www.trendnet.com/register

Technical Support

If you have any questions regarding the product

installation, please contact our Technical Support.

Toll free US/Canada: 1-866-845-3673

Regional phone numbers available

at www.trendnet.com/support

Обмежена гарантія

TRENDnet надає гарантію на свою продукцію щодо відсутності дефектів матеріалів та

роботи за умови її належного використання та обслуговування. Конкретні гарантійні

періоди перелічені на сторінці кожного виробу на сайті компанії TRENDnet.
