TRENDnet TPE-80WS - Web Smart PoE Switch Manuale utente

TPE-80WS

Quick Installation Guide

Table of Contents

Version 07.19.2007

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation .........................................................................

3. Configuring the Power Over Ethernet (PoE) Switch ..........................

................................................................................

Troubleshooting ........................................................................................

System Requirements

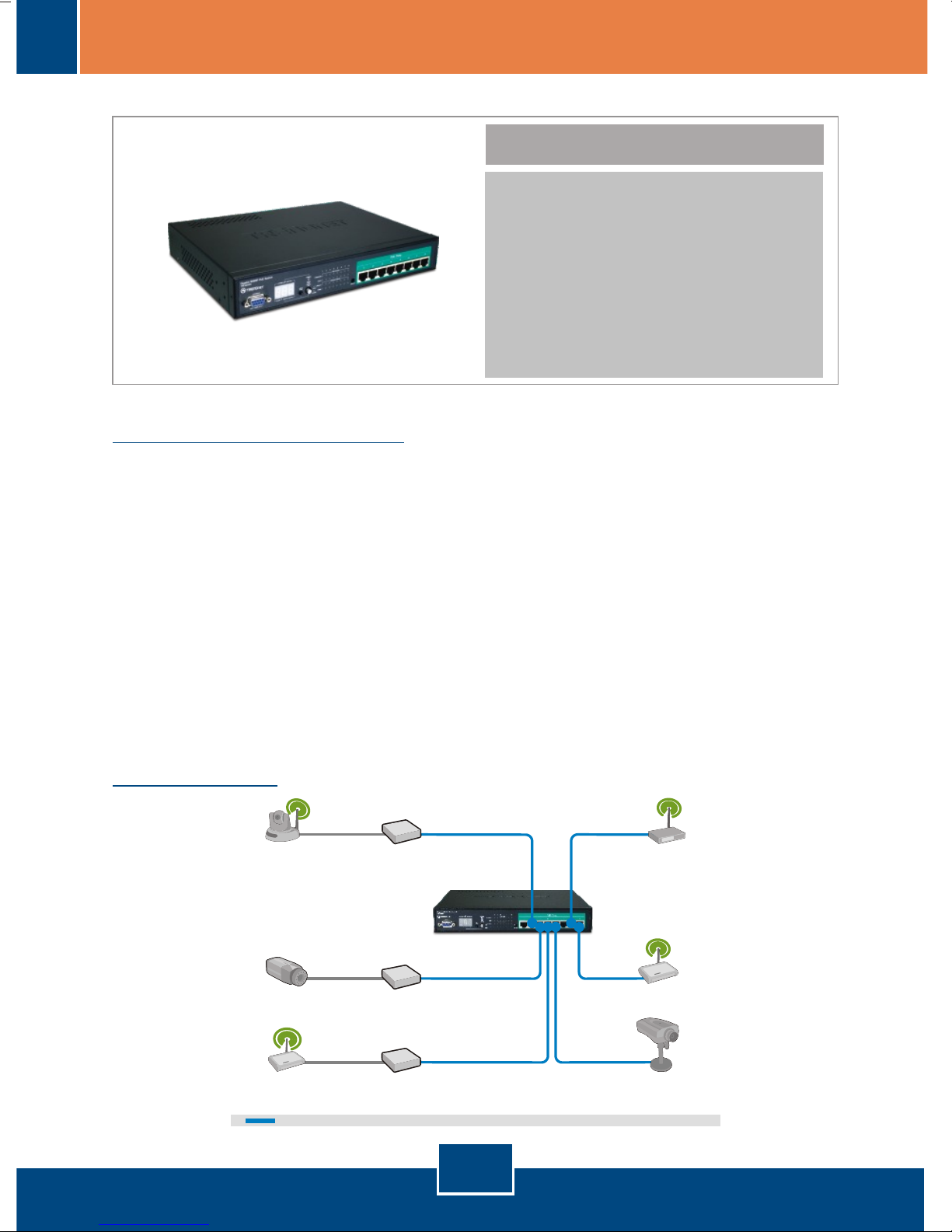

1. Before You Start

English

Package Contents

Application

TPE-80WS

Quick Installation Guide

User's Guide CD-ROM

RS-232 Cable

Power Cord

Rack Mount Kit

(4.7 or higher).

?A computer with a network adapter properly installed.

?A RJ-45 network cable.

Web Browser: Internet Explorer (5.5 or higher) or Netscape Navigator

EIA standard 19” rack (Optional)

Note: The TPE-80WS only support Power over Ethernet (PoE) devices that

follow the IEEE 802.3af standard

8-Port Gigabit Web

Smart PoE Switch

(TPE-80WS)

108Mbps 802.11g

Hot-Spot Access Point

(TEW-453APB)

PoE Internet

Camera Server

(TV-IP201P)

Advanced Wireless Pan & Tilt

Internet Camera Server

(TV-IP400W)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

108Mbps 802.11g

Wireless Access Point

(TEW-450APB)

Advanced Day/Night Internet

Camera Server with Audio

(TV-IP301)

54Mbps 802.11g Wireless

PoE Access Point

(TEW-434APB)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

Power + Ethernet Data

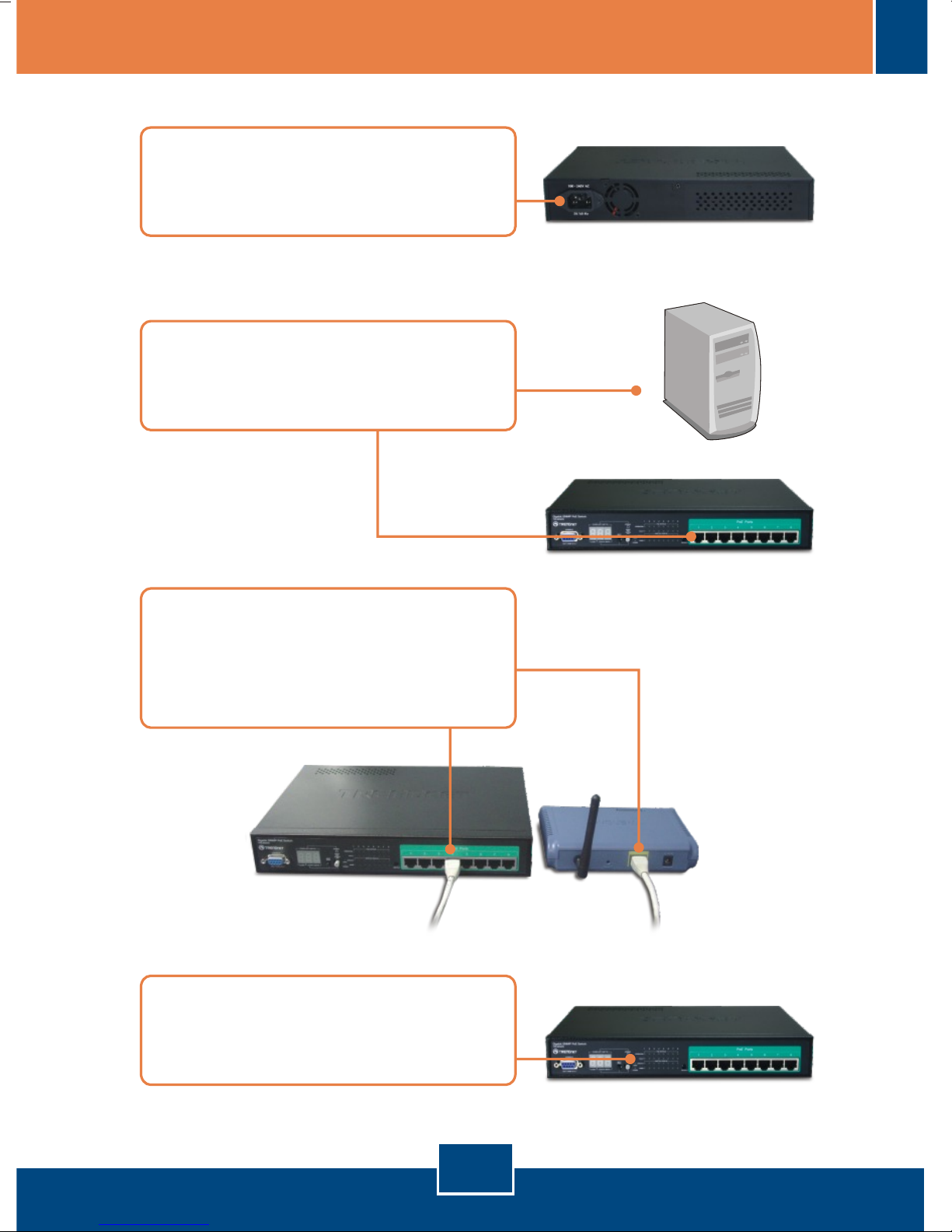

2. Hardware Installation

English

3. Connect a RJ-45 cable from a PoE

port on the TPE-80WS to the LAN

Port of the PoE device (e.g.

TEW-434APB)

4. Verify that the following panel lights

are on: POWER, OPERATING and

LINK/ACT

2. Connect a RJ-45 network cable

from the computer to an available

Ethernet port on the TPE-80WS.

1. Connect the Power Cord to the

rear of the TPE-80WS and then

to a power outlet.

English

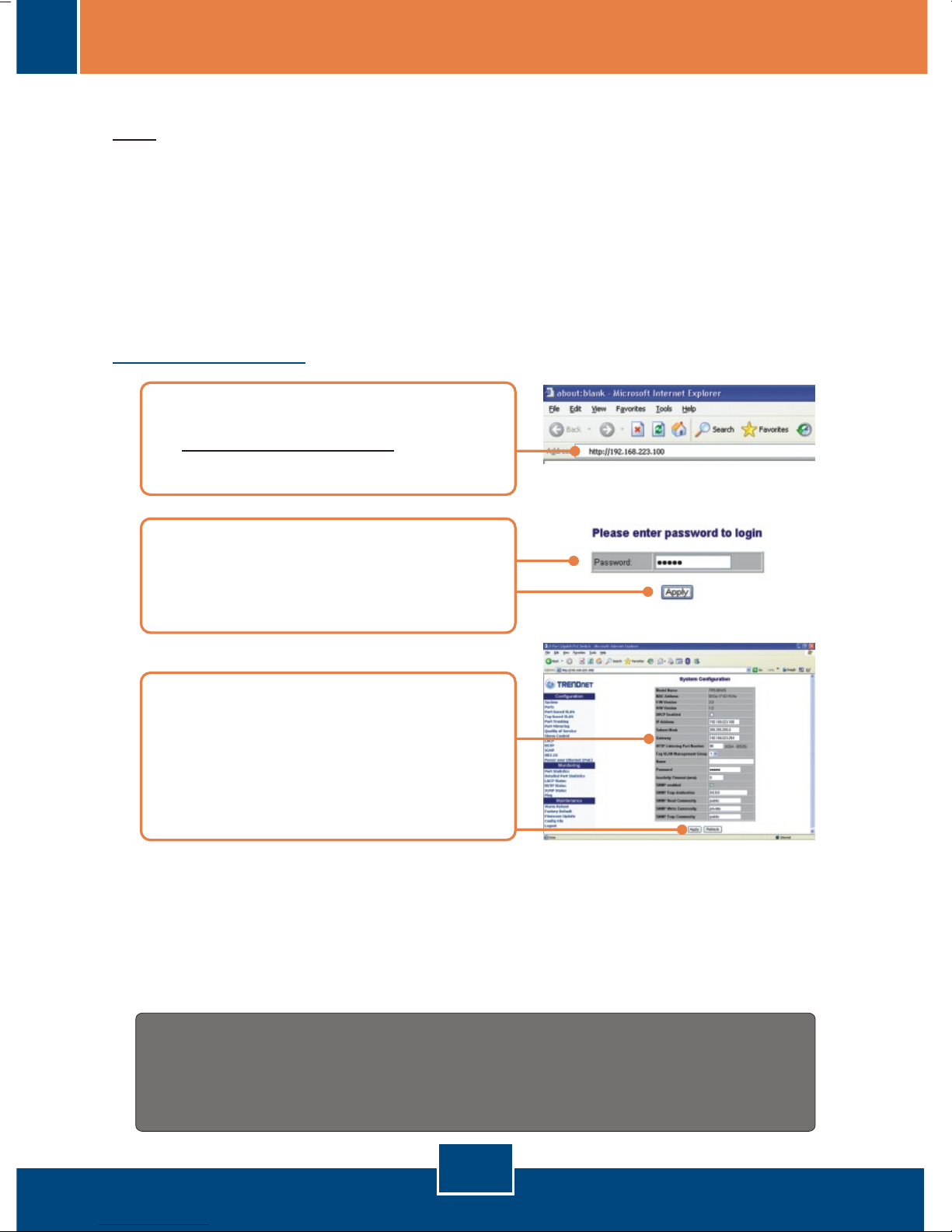

1. Open your web browser, type

http://192.168.223.100 in the

Address bar, and then press Enter.

Web Browser

3. Configure the Power Over Ethernet (PoE) Switch

Note: It is recommended that you configure the PoE Switch from a wired

computer. Before the PoE Switch can be configured, a Static IP address must

be assigned to your computer's network adapter in the subnet of

192.168.223.x. Since the PoE Switch's default IP address is 192.168.223.100,

make sure no other network devices are assigned an IP address of

192.168.223.100. (Refer to Troubleshooting section on how to configure

TCP/IP settings on your PC.)

3. Click Configuration and then click

System. Configure the IP

Address, Subnet Mask and

Gateway to match your network

and then click Apply.

Your installation is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TPE-80WS's configuration and

advanced settings, please refer to the Troubleshooting section, User's

Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com

2. Enter the Password, and then click

Apply. By default:

Password: admin

Troubleshooting

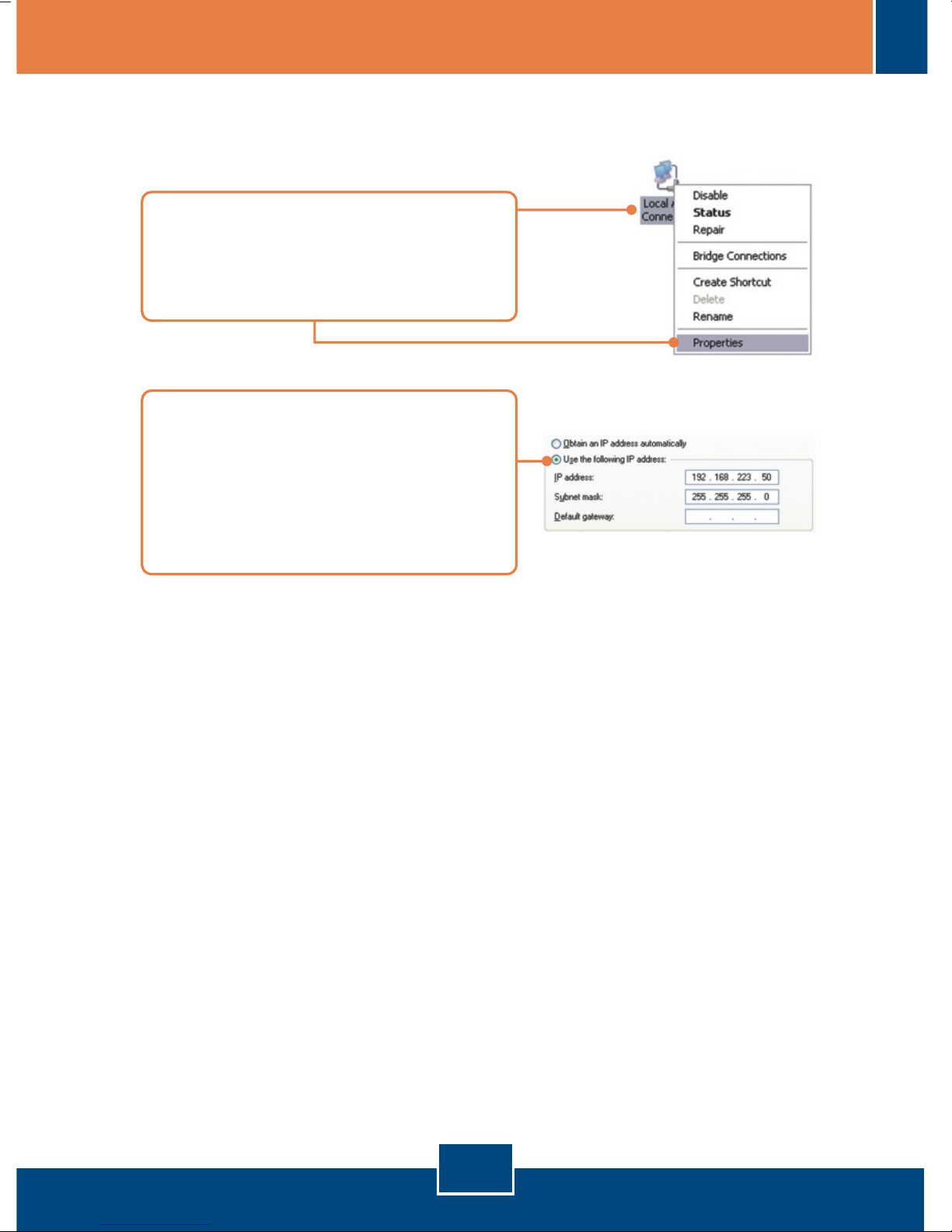

Q1: How do I configure TCP/IP settings on my computer?

1. Go into the Control Panel and double-

click the Network Connections icon,

right-click the Local Area Connection

icon and then click Properties.

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Use the following IP address, and

make sure you assign your network

adapter an IP address in the subnet of

192.168.223.x.

Q2:

A2:

Q3:

A3:

If my network's IP is different than the PoE Switch's range, what should I do?

You should still configure the PoE Switch first. After all the settings are

applied, go to the PoE Switch's configuration page, click on IP settings and change

the IP address of the PoE Switch to match your network's IP.

I typed http://192.168.223.100 in my Internet Browser's Address Bar, but an

error message says “The page cannot be displayed.” How can I get into the TPE-

80WS's web configuration page?

First, check your hardware settings again by following the instructions in

section 2. Second, make sure the POWER and LINK/ACT lights are lit. Third,

make sure the TCP/IP settings are configured properly (see Q1). Fourth, since

the PoE Switch’s default IP address is 192.168.223.100, make sure that no other

network devices are assigned an IP address of 192.168.223.100.

Q4:

A4:

Q5:

A5:

Q6:

A6:

I forgot the administration password. How do I reset my TPE-80WS?

Press on the default button using a pen or paperclip for 10 seconds. The

default password is admin.

What are the default port settings for configuring the Switch through the

console port using HyperTerminal?

Bits per Second: 115200; Data bits: 8; Parity: None; Stop bits: 1; Flow control:

None; Emulation: VT100.

If you still encounter problems or have any questions regarding the TPE-80WS, please

contact TRENDnet’s Technical Support Department.

My 802.3af Powered device does not power on when I plug the device into

the Switch. What should I do?

First, verify that your PoE device supports IEEE 802.3af protocol. Second,

verify that your PoE device powers up using its power adapter. Third, power cycle

the PoE switch. Unplug power to the switch, wait 15 seconds, then plug the

power back in. Fourth, plug the device into a different port on the PoE switch.

Fifth, try using another Cat-5e cable.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

20675 Manhattan Place

Torrance, CA 90501

USA
