TRENDnet TEG-S5g - Gigabit GREENnet Switch Manuale utente

TEG-S5g

TEG-S8g

Quick Installation Guide

Table of Contents

Version 02.26.2009

Technical Specifications .............................................................................

Troubleshooting ..........................................................................................

Español .......................................................................................................

1. Antes de iniciar ...................................................................................

2. Instalación del Hardware ....................................................................

Español

1. Antes de iniciar

Contenidos del paquete

Requisitos del sistema

•

Guía de instalación rápida

•

TEG-S5g/TEG-S8g

•

Adaptador de alimentación AC

•Un PC con adaptador de red instalado correctamente

•Cable de Red CAT 5e o 6

•La superficie debe soportar al menos 1,5 Kg para el conmutador

•La toma de corriente debe estar a 1,82 metros (6 pies) del conmutador

•Inspeccione visualmente el jack de corriente DC para comprobar que

está conectado al adaptador de corriente

•Compruebe que existe una correcta regulación de la temperatura y una

ventilación adecuada alrededor del conmutador

•No coloque objetos pesados encima del conmutador

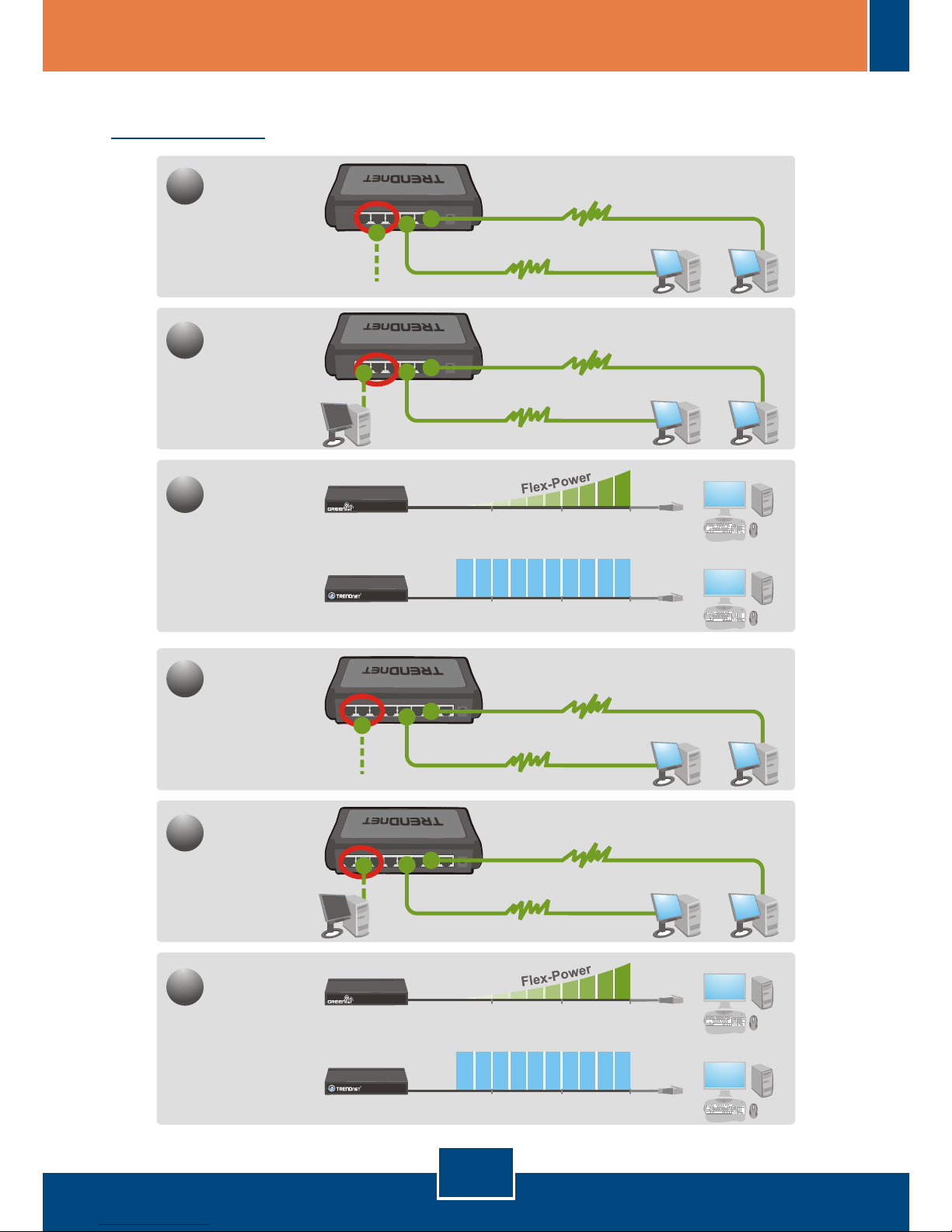

60m

Full Power

60m

Delivers less power

to unused ports

100m

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

when devices are off

Delivers less power

with shorter

cable lengths

on on

less power

on on

off less power

Related Products

60m

Full Power

60m

Delivers less power

to unused ports

100m

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

when devices are off

Delivers less power

with shorter

cable lengths

less power

off less power

Español

Aplicación

Español

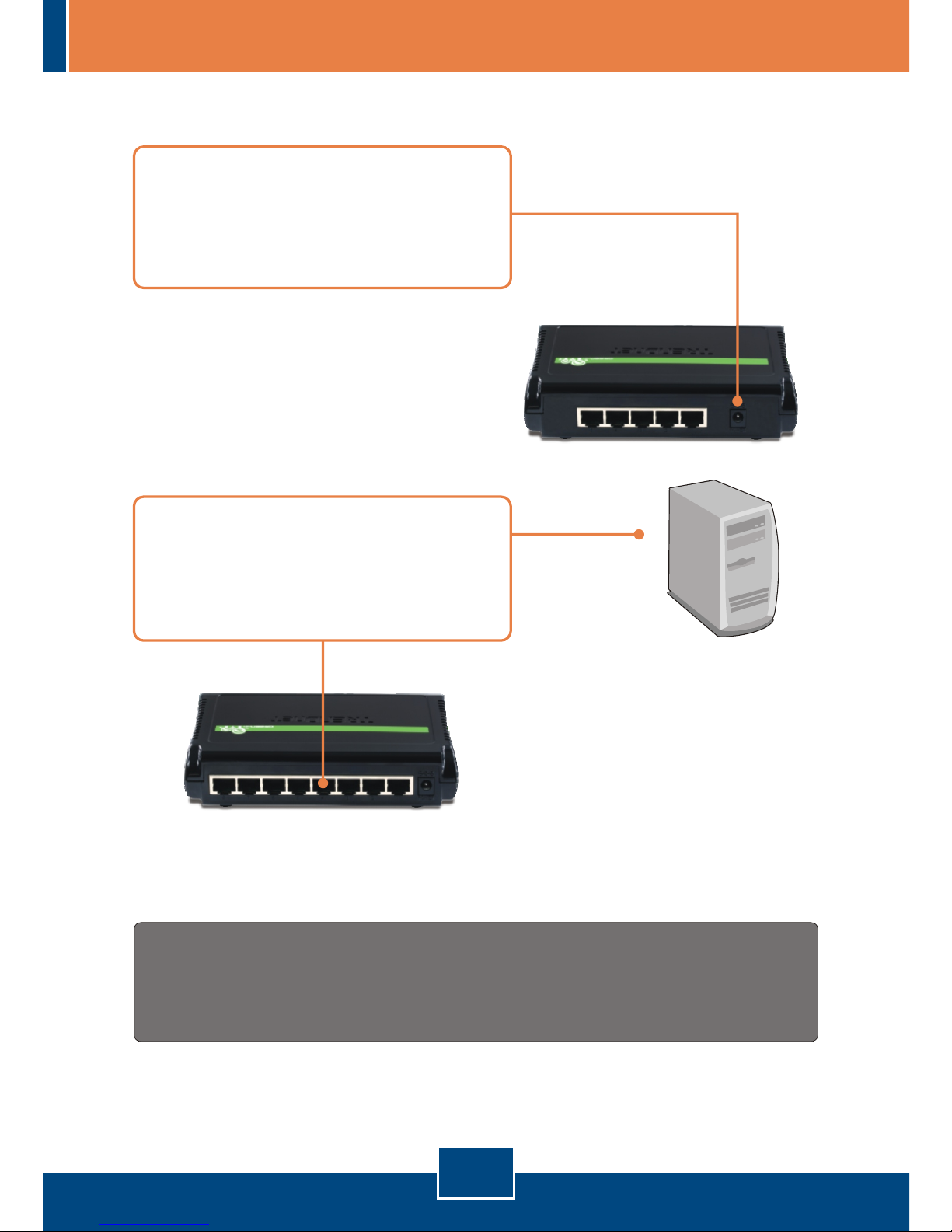

2. Instalación del Hardware

2. Conecte un cable de red RJ-45

CAT 5e o 6 del PC a un puerto

Ethernet disponible en el

TEG-S5/TEG-S8.

1. Conecte el adaptador de

alimentación AC al

TEG-S5/TEG-S8 y luego a una

toma de corriente.

La instalación ha sido completada

Registre su producto

Para asegurar los más altos niveles de servicio y apoyo al cliente, registre su producto

en línea en: www.trendnet.com/register

Gracias por elegir TRENDnet

Technical Specifications

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Protocol CSMA/CD

Data Transfer Rates

Ethernet:

10Mbps (Half-Duplex), 20Mbps (Full-Duplex)

Fast Ethernet:

100Mbps (Half-Duplex), 200Mbps (Full-Duplex)

Gigabit Ethernet:

2000Mbps (full-duplex)

Network Cables

Ethernet: UTP/STP CAT-3, 4, 5

Fast Ethernet: UTP/STP CAT-5, 5E , 6

Gigabit : UTP/STP CAT-5e, CAT-6 (Recommended)

Number of Ports

TEG-S5g:

5 x 10/100Mbps Auto-negotiation, Auto-MDIX ports

TEG-S8g:

8 x 10/100Mbps Auto-negotiation, Auto-MDIX ports

General

Topology

LEDs

Star

Per Port: LINK/ACT

Per Unit: PWR

DC inputs Switching Power: 5V DC, 2A

Linear Power: 9V DC, 1A

Temperature Operating: 0 ~ 50 C° °

Dimensions (L x W x H) mm150 x 105 x 33

Weight 225g

Physical and Environmental

Humidity

Certification

Operating: 10% ~ 90%

CE, FCC

Power Consumption TEG-S5g: 3W

TEG-S8g: 6W

Transmission Method Store-and-Forward

Packet Filtering/

Forwarding Rate

10Mbps Ethernet: 14,880pps (packet per second)

100Mbps Fast Ethernet: 148,800pps

1000Mbps Gigabit Ethernet: 1,488,000pps

MAC Address Learning

Switch Fabric

Filtering Address Table

Automatic update

TEG-S5g: 10Gbps Forwarding Capacity

TEG-S8g: 16Gbps Forwarding Capacity

TEG-S5g: 1K entries per device

TEG-S8g: 4K entries per device

Performance

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn

on.

Check the connection of the external power adapter to the

When I connect a computer to the Switch port, the PWR and

LINK/ACT LED turns on, but the 100/1000Mbps LED remains off or the

light is yellow.

When the 100/1000Mbps LED remains off or is yellow, the computer's

connection speed is 10Mbps and 100Mbps, respectively. First, check

the Ethernet Cable. Make sure you are using CAT-5e or CAT-6 Ethernet

Cables. Some CAT-5 cables are not rated to run in Gigabit. Second,

make sure that you have a Gigabit Ethernet Adapter installed on your

computer.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is

on.

The Switch was not designed to share Internet between multiple

computers. You need to get an Internet router, such as the

TW100-S4W1CA.

TEG-S5g/TEG-S8g and the power outlet. Also check that the power

outlet is receiving power.

Second, check the network cable. The minimum length of the cable is

1.5 meters and the maximum length of the cable is 100 meters. Third,

disable any software firewall program. Fourth, verify that you have file

sharing enabled. Please contact your operating system support for more

information.

After I connect my PCs to the Switch, I can only get onto the Internet

from one computer.

If you still encounter problems or have any questions regarding the

TEG-S5g/TEG-S8g please contact Trendnet's Technical Support Department.

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEG-S5g/TEG-S8g

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

5-Year Limited Warranty

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a 1-Year

Warranty
