TRENDnet TPE-1016L Manuale utente

Quick Installation Guide

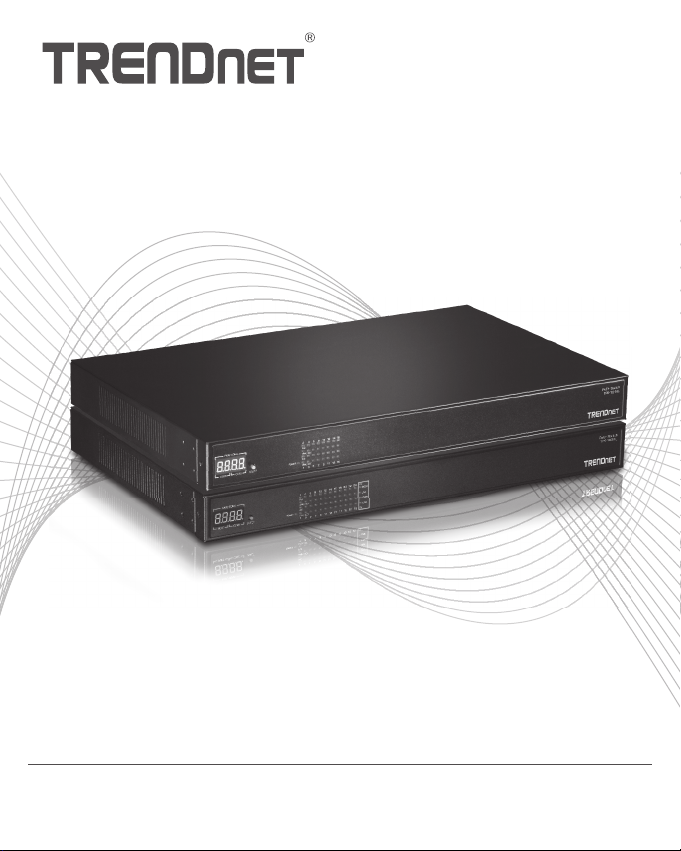

TPE-1016L/TPE-1026L

English

1. Before You Start

2. Hardware Installation

3. LEDs

Table of Content

ENGLISH

FRANÇAIS

DEUTSCHESPAÑOL

РУССКИЙ

1. Before You Start

Package Contents

ŸTPE-1016L/TPE-1026L

ŸQuick Installation Guide

ŸPower cord

ŸRack mount kit

Minimum requirements

ŸNetwork devices

ŸNetwork Cable

Optional Equipment

Ÿ EIA standard 19” rack

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРУССКИЙ

2. Hardware Installation

Network

1. Connect the Power cord to the switch and plug it into an electrical outlet. Flip the power

switch to the "On" position.

2. Connect a network cable from the switch to your computer's network port and/or PoE devices.

3. Connect a network cable from a port on the switch to your network.

ENGLISH

FRANÇAIS

DEUTSCHESPAÑOL

РУССКИЙ

3. LEDs

1. Verify the following LEDs are on: Power, PoE and Link/ACT.

LED

Power

Sequence Function

PoE

Link/ACT

Solid

Off

Blinking

Device is on

The Switch is connected and supplying power to a PoE device

A connection has been detected

Device is off

No PoE device has been detected at this port

Data is being transmitted

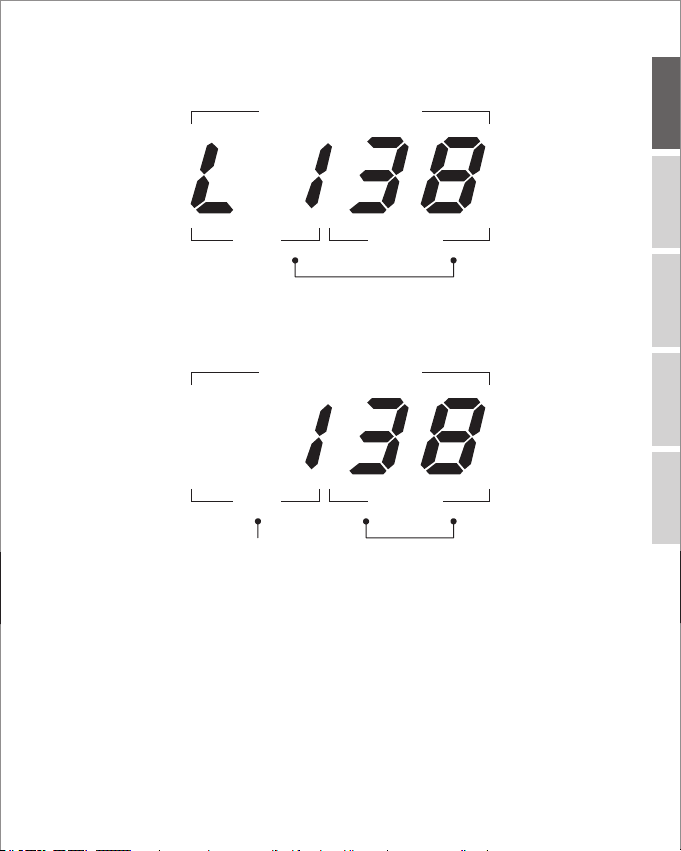

7-Segment Display

1. Use the red select button next to the 7-segment display to toggle between display types.

PoE power allocation

PWR/CONS

Port CONS SELECT

P Watts

PWR/CONS

Port CONS

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРУССКИЙ

*Note: If multiple PoE devices are connected, press the select button to display PoE

Consumption information for the next port.

PoE Consumption per Port*

Total PoE power remaining

Watts

PWR/CONS

Port CONS

Port Number Watts

PWR/CONS

Port CONS

Directives:

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

REACH Regulation (EC) No. 1907/2006

TRENDnet hereby declares that the product is in compliance with the essential requirements and

other relevant provisions under our sole responsibility.

This product is herewith confirmed to comply with the Directives.

Product Information

Product Name:

Model Number: TPE-1016L / TPE-1026L

Trade Name: TRENDnet

16-Port Ethernet 250 Watt PoE+ Switch

24-Port 10/100 Mbps 430W PoE+ Switch with 2 x Gigabit SFP Combo ports

EMC

Person responsible for this declaration.

Date: December 16, 2015

Title: Director of Technology

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Manufacturer’s Name and Address

EN 55022: 2010 + AC: 2011 Class A

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2013

EN 55024: 2010

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service.

Specific warranty periods are listed on each of the respective product pages on the TRENDnet website.

Garantie Limitée

TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des conditions normales

d'utilisation et de service. Les périodes de garanties précises sont mentionnées sur chacun des pages produits

du site web de TRENDnet.

Eingeschränkte Garantie

TRENDnet gewährt eine Garantie für seine Produkte im Falle von Material- und Bearbeitungsdefekten, bei

normaler Verwendung und Wartung. Spezielle Garantiezeiträume werden auf jeder Produktseite auf der Website

von TRENDnet genannt.

Garantía limitada

TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en condiciones de uso

y funcionamiento normales. Los periodos específicos de garantía figuran en cada una de las páginas de producto

del sitio web de TRENDnet.

Ограниченная гарантия

Компания TRENDnet предоставляет гарантию на свои изделия от дефектов материалов и сборки при

нормальном использовании и обслуживании. Конкретные гарантийные сроки указаны на странице

каждого продукта на сайте компании TRENDnet.

Garantia Limitada

A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e

serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos

no site da TRENDnet.

Piiratud garantii

TRENDneti garantii hõlmab materjali- ja koostamisdefekte, mis ilmnevad toote tavapärasel kasutamisel.

Garantiiaja täpne pikkus konkretse toote puhul on leitav TRENDneti kodulehelt vastava toote infolehelt.

Garanzia limitata

TRENDnet garantisce i propri prodotti da difetti di materiali e manodopera, in condizioni di normale uso ed

esercizio. I periodi di garanzia specifici sono elencati sulle rispettive pagine di prodotto sul sito TRENDnet.

Certifications

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

TRENDnet

20675 Manhattan Place

Torrance, CA 90501

USA

Applies to PoE Products Only: This product is to be connected

only to PoE networks without routing to the outside plant.

Note

The Manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user’s authority

to operate the equipment.

Advertencia

En todos nuestros equipos se mencionan claramente las

caracteristicas del adaptador de alimentacón necesario para

su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo

conectado. El adaptador de alimentación debe operar con

voltaje y frecuencia de la energia electrica domiciliaria exitente

en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your

product online. Go to TRENDnet’s website at:

www.trendnet.com/register

Technical Support

If you have any questions regarding the product

installation, please contact our Technical Support.

Toll free US/Canada: 1-866-845-3673

Regional phone numbers available

at www.trendnet.com/support

Waste electrical an electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with your

Local Authority or Retailer for recycling advice.
