TRENDnet TPE-1620WS Manuale utente

16-Port Gigabit Web Smart PoE+ Switch

TPE-1620WS

ŸQuick Installation Guide (1)

TPE-1620WS (V1) / 08.06.2015

Minimum Requirements

Optional Equipment

ŸTPE-1620WS

ŸMulti-Language Quick Installation Guide

ŸCD-ROM (Utility and User's Guide)

ŸPower cord

ŸRack mount kit

ŸComputer with an Ethernet port and web browser

ŸNetwork cable

ŸEIA standard 19” rack

ŸSFP modules (e.g. TE100-MGBFX, TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D3, TEG-MGBS10D5, TEG-MGBS40D3, TEG-MGBS40D5)

Package Contents

1. Before You Start

2. Quick Reference

802.3at PoE+

802.3af PoE

Non-PoE

Network

5. Enter the User name and Password, and then click Login. By default:

User Name: admin

Password: admin

Note: User Name and Password are case sensitive.

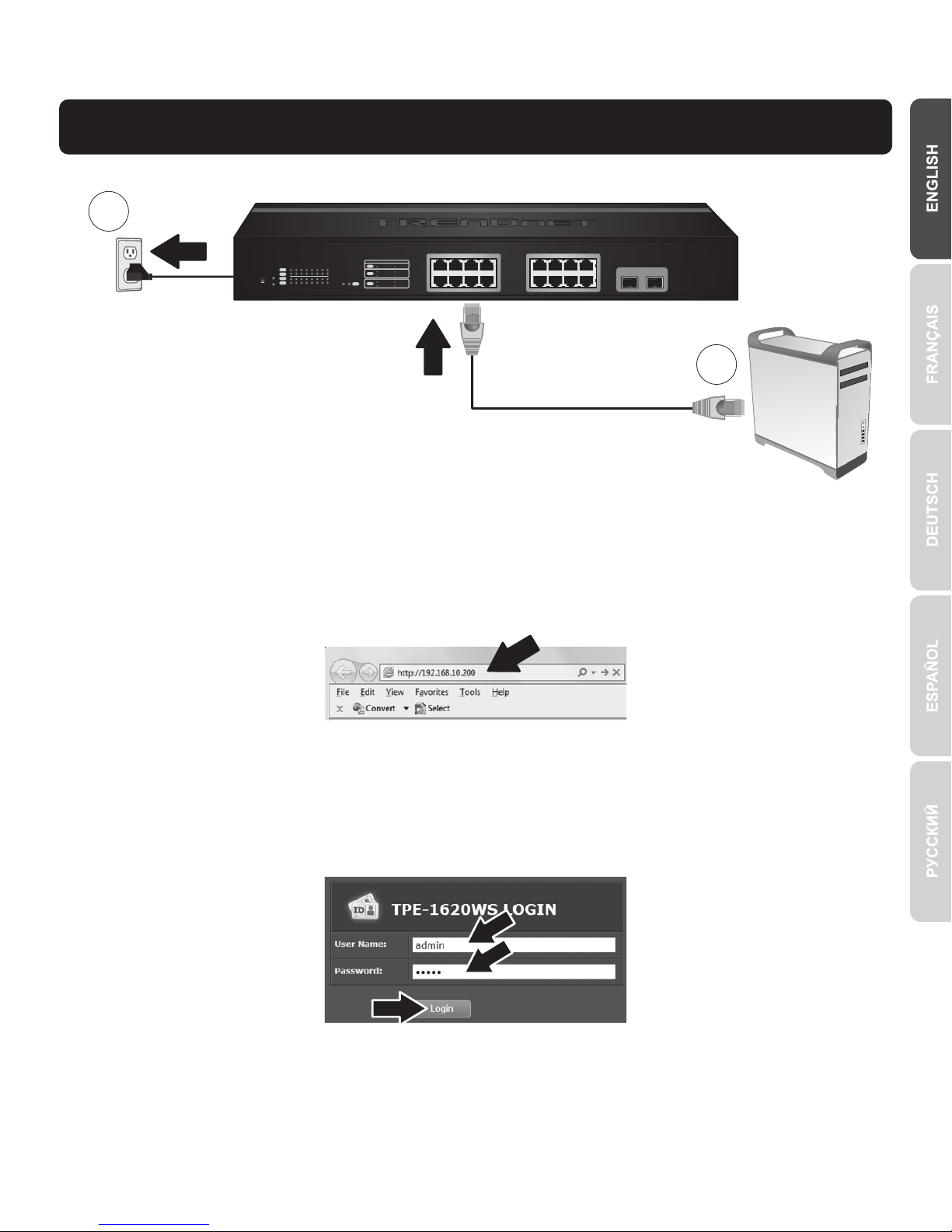

3. Hardware Installation and Configuration

3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x

(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter.

The default IP address is 192.168.10.200.

Note:

If you would like to easily discover all the Web Management Switches on the network, assign IP

Address, change the password, and upgrade new firmware, then install the Web Smart Switch

Management Utility. Follow the steps provided on the User's Guide.

For detailed information regarding the TPE-1620WS’s configuration and advanced settings, please

refer to the User's Guide on the provided CD-ROM.

11. Click OK.

8. Click OK.

9. Click Save Settings to Flash (on the menu bar).

10. Click Save Settings to Flash (button).

7. Configure the switch to match the requirements of your network. Then click Apply.

6. Click System and then click IPv4 Setup.

Directives:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

RoHS Directive 2011/65/EU

REACH Regulation (EC) No. 1907/2006

TRENDnet hereby declare that the product is in compliance with the essential requirements and

other relevant provisions under our sole responsibility.

This product is herewith confirmed to comply with the Directives.

Product Information:

Product Name:

Model Number: TPE-1620WS

Trade Name: TRENDnet

16-Port Gigabit Web Smart PoE+ Switch

Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011

EMC EN 55022: 2010 Class A

AS/NZS CISPR 22: 2009 Class A

EN 55024: 2010

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 Class A

EN 61000-3-3: 2008

Person responsible for this declaration.

Date: January 21, 2015

Title: Director of Technology

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Manufacturer’s Name and Address

TPE-1620WS

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service. Specific

warranty periods are listed on each of the respective product pages on the TRENDnet website.

Garantie Limitée

TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des conditions normales

d'utilisation et de service. Les périodes de garanties précises sont mentionnées sur chacun des pages produits du site web

de TRENDnet.

Eingeschränkte Garantie

TRENDnet gewährt eine Garantie für seine Produkte im Falle von Material- und Bearbeitungsdefekten, bei normaler

Verwendung und Wartung. Spezielle Garantiezeiträume werden auf jeder Produktseite auf der Website von TRENDnet

genannt.

Garantía limitada

TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en condiciones de uso y

funcionamiento normales. Los periodos específicos de garantía figuran en cada una de las páginas de producto del sitio

web de TRENDnet.

Ограниченная гарантия

Компания TRENDnet предоставляет гарантию на свои изделия от дефектов материалов и сборки при нормальном

использовании и обслуживании. Конкретные гарантийные сроки указаны на странице каждого продукта на сайте

компании TRENDnet.

Garanzia limitata

TRENDnet garantisce i propri prodotti da difetti di materiali e manodopera, in condizioni di normale uso ed esercizio.

I periodi di garanzia specifici sono elencati sulle rispettive pagine di prodotto sul sito TRENDnet.

Garantia Limitada

A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os

períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.

Обмежена гарантія

TRENDnet надає гарантію на свою продукцію щодо відсутності дефектів матеріалів та роботи за умови її належного

використання та обслуговування. Конкретні гарантійні періоди перелічені на сторінці кожного виробу на сайті

компанії TRENDnet.

Piiratud garantii

TRENDneti garantii hõlmab materjali- ja koostamisdefekte, mis ilmnevad toote tavapärasel kasutamisel. Garantiiaja täpne

pikkus konkretse toote puhul on leitav TRENDneti kodulehelt vastava toote infolehelt.

TPE-1620WS (V1) /08.06.2015

TPE-1620WS

Product Warranty Registration

Please take a moment to register your

product online. Go to TRENDnet’s website at:

http://www.trendnet.com/register

TRENDnet

20675 Manhattan Place, Torrance, CA 90501. USA

Technical Support

If you have any questions regarding the product

installation, please contact our Technical Support.

Toll free US/Canada: 1-866-845-3673

Regional phone numbers available

at www.trendnet.com/support

Waste electrical an electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with your

Local Authority or Retailer for recycling advice.

Certifications

This device can be expected to comply with Part 15 of the

FCC Rules provided it is assembled in exact accordance

with the instructions provided with this kit.

Operation is subject to the following conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received

including interference that may cause undesired

operation.

Note

The Manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user’s authority to

operate the equipment.

Advertencia

En todos nuestros equipos se mencionan claramente las

caracteristicas del adaptador de alimentacón necesario para su

funcionamiento. El uso de un adaptador distinto al mencionado

puede producir daños fisicos y/o daños al equipo conectado. El

adaptador de alimentación debe operar con voltaje y frecuencia de

la energia electrica domiciliaria exitente en el pais o zona de

instalación.

Applies to PoE Products Only: This product is to be connected

only to PoE networks without routing to the outside plant.
