TRENDnet TPE-224WS - Web Smart PoE Switch Manuale utente
24-Port 10/100Mbps Web Smart PoE Switch
with 4 Gigabit Ports and 2 Mini-GBIC Slots
TPE-224WS
1.12
ŸQuick Installation Guide (1)
ŸTroubleshooting (3)
1
Minimum Requirements
Package Contents
If any of the above contents are missing, please contact your reseller.
1. Before You Start
ŸWeb Browser: Internet Explorer (6.0 or above)
ŸComputer with network adapter installed
ŸIEEE 802.3af PoE Device
ŸCat. 5, Cat. 5e or Cat 6 RJ-45 network cable
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
TPE-224WS
Multi-Language Quick Installation Guide
CD-ROM (Utility and User Guide)
Power Cord
Rack Mount Kit
Optional Equipment
ŸStandard 19” Rack
ŸMini-GBIC Modules (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,
TEG-MGBS80, TEG-MGBS10D35, TEG-MGBS40D35)
Note: The TPE-224WS only works with Power over Ethernet (PoE) devices that
follow the IEEE 802.3af standard.
2. Hardware Installation
Note:
1. After hardware installation is complete, use the Web Smart Switch
Management Utility to configure the TPE-224WS. To access the Web Smart
Switch Management Utility, open your web browser, and enter the default IP
Addr
configured to the same network segment.
2. The Mini-GBIC slots are shared with Gigabit Ethernet ports 25 and 26. When
the Mini-GBIC slots are in use, Gigabit Ethernet ports 25 and 26 are disabled.
ess http://192.168.0.1 and default password "admin". Make sure your
computer and the TPE-224WS are

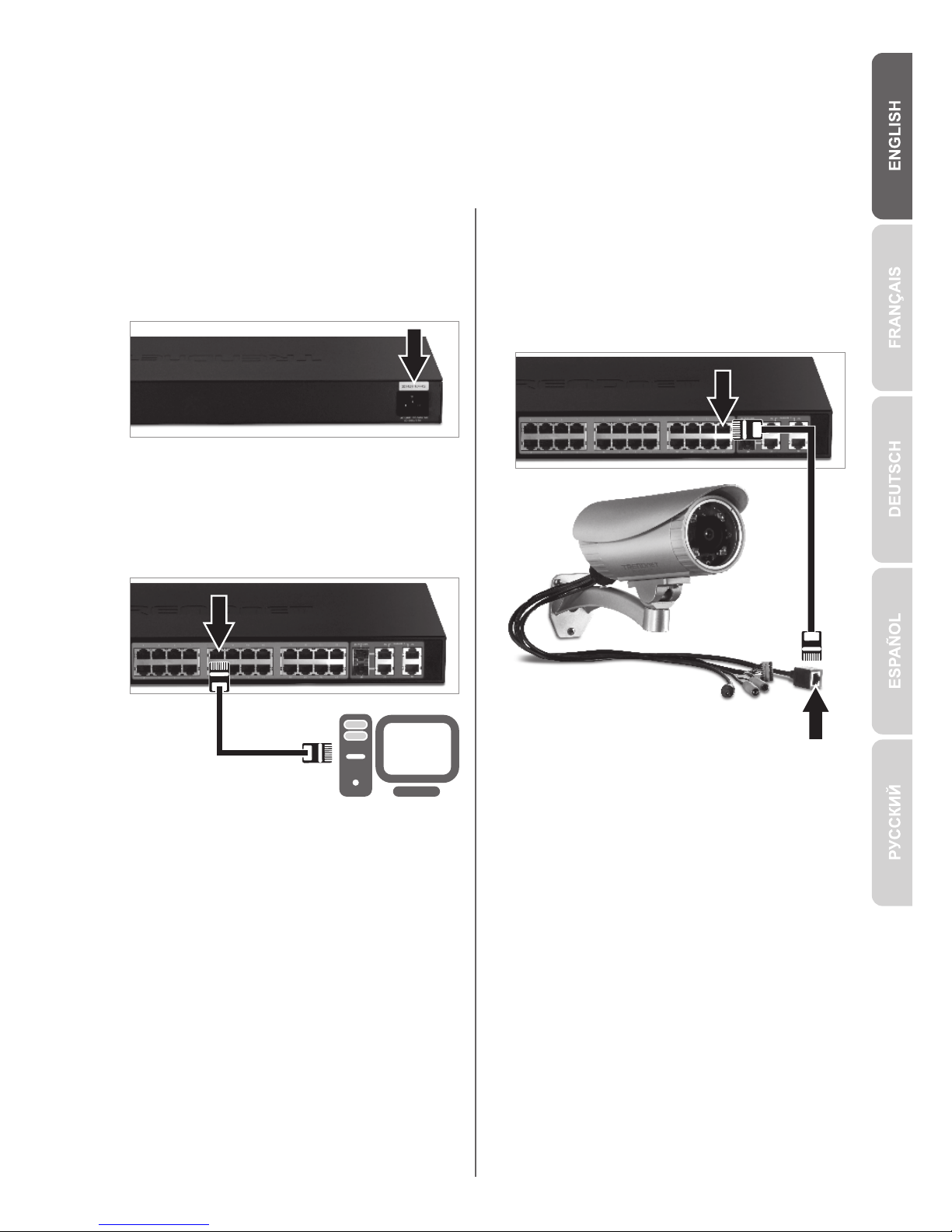

2. Connect a network cable from the
computer to an available Ethernet
port of the TPE-224WS.
1. Connect the Power Cord to the
rear of the TPE-224WS and then
to a power outlet.
For more information regarding the
Web Smart Switch Management
Utility configuration and advanced
settings, please refer to the User's
Guide included on the provided
CD-ROM or TRENDnet's website at
www.trendnet.com
3. Connect a RJ-45 network cable
from from a PoE port (1~24) on the
TPE-224WS to the LAN port on the
PoE device (e.g. TV-IP322P)
2. Hardware Installation
3. If you would like to easily discover all the Web Smart Switch Management
Utility on the network, assign IP Address, change the password, and upgrade
new firmware, then install the Web Smart Switch Management Utility. Follow
the steps provided on the user's guide.
2
Troubleshooting
3
1. After connecting the TPE-224WS to a power outlet, the LEDs do not turn on.
1. Check the connection of the power cord to the TPE-224WS and the power outlet.
2. Check that the power outlet is receiving power.
2. When I access the TPE-224WS using a web browser, I get a screen that tells
me “only one user can login”. What should I do?
Another computer is configuring the TPE-224WS. Please wait until the user logs
off. If the other user has already logged off and you still get the same screen, then
disconnect the power cord from the TPE-224WS, wait for 5 seconds, reconnect the
power cord to the TPE-224WS, allow 5 seconds for the switch to power on, and
then attempt to access the web configuration page again.
3. I forgot the administration password. How do I reset my TPE-224WS?
Press on the reset button using a pen or paperclip for 10 seconds. The
default password is admin. Note: The default password is case sensitive.
4. When I connect a computer to the Switch's Gigabit Ethernet port, I am not
getting Gigabit speeds. What should I do?
1. Check the LEDs on the Switch. When the 1000Mbps LED remains off and the
100Mbps LED remains on, the computer's connection speed is 100Mbps. When
the 1000Mbps and 100Mbps LEDs remain off, the computer's connection speed
is 10Mbps.
2. Make sure that you have a Gigabit Ethernet adapter installed.
3. Make sure to use a Cat. 5e or Cat. 6 Ethernet cable. Some Cat. 5 cables are
not rated to run in Gigabit.
5. My 802.3af PoE Device does not power on when I plug the device into the
Switch. What should I do?
1. Verify that the PoE device supports IEEE 802.3af Mode A protocol.
2. Power cycle the PoE switch. Unplug power to the Switch, wait 15 seconds, then
plug the power back in.
3. Plug the device into a different port on the PoE switch.
4. Try using another RJ-45 network cable.
If you still encounter problems or have any questions regarding the TPE-224WS,
please refer to the User's Guide included on the provided CD-ROM or contact
Trendnet's Technical Support Department.

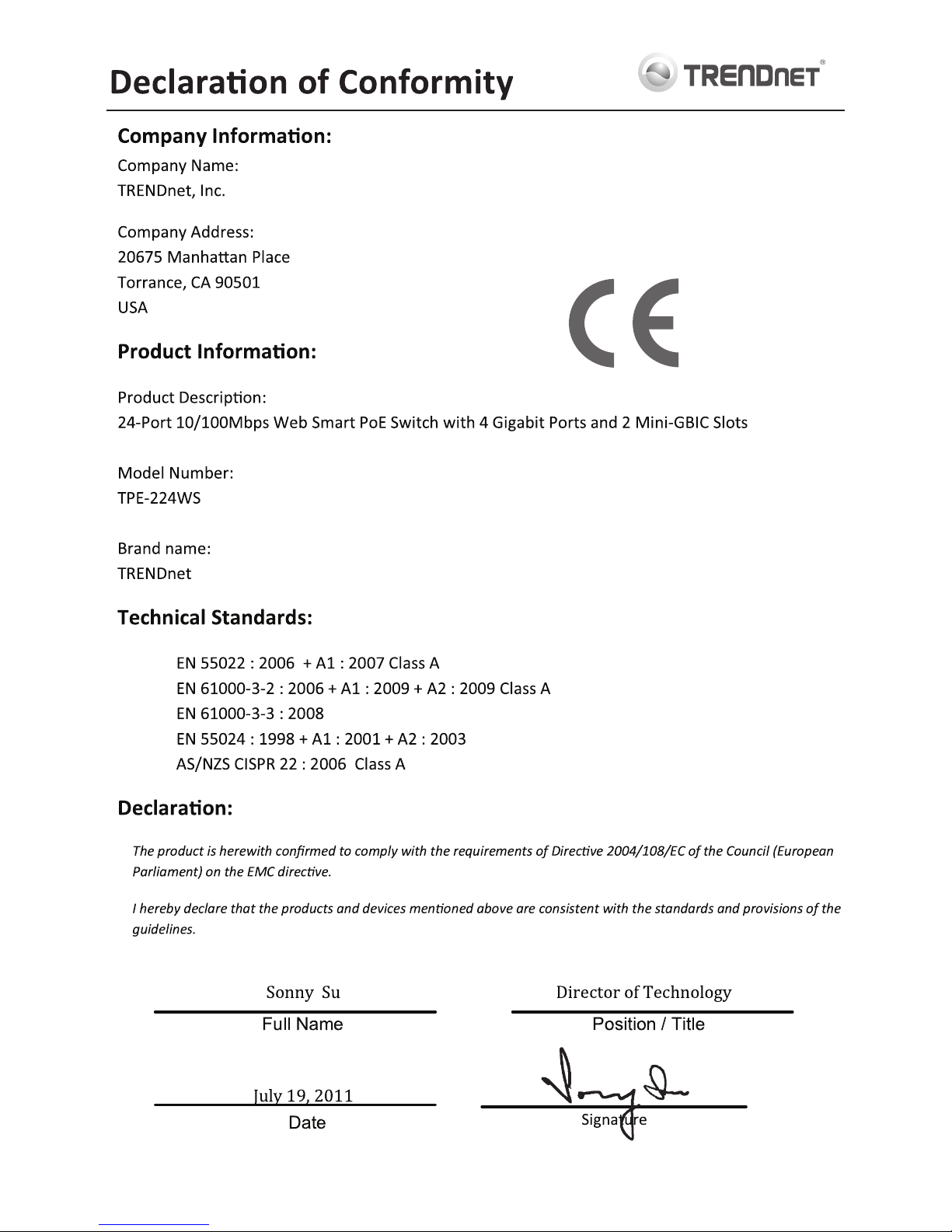

TRENDnet
20675 Manhattan Place
Torrance, CA 90501. USA
Copyright ©2011. All Rights Reserved. TRENDnet.
