TRENDnet TPE-224WS - Web Smart PoE Switch Manuale utente

The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports

and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a

12.8Gbps switching capacity with Power over Ethernet (PoE)

technology and managed layer 2 features at a reduced cost.

Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP

snooping, Broadcast Storm Control and port Trunking provide a cost

effective, scalable and secure backbone PoE switch solution for SMB

networks.

Power over Ethernet (PoE) technology reduces equipment and

installation costs by delivering data and power over existing Ethernet

cables. SNMP support enables the switch to provide valuable status

and event information, saving system administrators time and

resources. Access the Web-browser management interface and

segment up to 256 Virtual Local Area Networks, manage network

priority with 802.1p support and dedicate bandwidth with port-based

Trunking.

TPE-224WS [B1.11R]

24-Port 10/100Mbps Web Smart PoE Switch

w/4 Gigabit Ports and 2 Mini-GBIC Slots

TPE-224WS

rev: 09.24.2009

FEATURES

• 24 x 10/100Mbps Auto-MDIX Fast Ethernet PoE RJ-45 ports

• 4 x 10/100/1000MbpsAuto-MDIX Gigabit ports

• 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports)

• 12.8GBps switching capacity

• IEEE 802.3af Power over Ethernet (PoE) compliant

• PoE power of up to 15.4 watts for each PoE port

• Maximum PoE power of up to 170 watts for all PoE ports

• IEEE 802.3x Full Duplex Flow Control and Back Pressure

• IEEE 802.3ad Port Trunk

• IEEE 802.1D Spanning Tree Protocol IEEE 802.1p QoS

• IEEE 802.1X Authentication and SNMP v1 support

• Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN

• Supports Auto-recognition of PoE Powered Device (PD) signature

• Full Wire-Speed Non-Blocking reception and transmission

• Store and Forward switching method

• Integrated address look-up engine with an 8K absolute MAC address table

• Supports 128KBytes RAM for data buffering

• Easy configuration via Web browser

• Front panel diagnostic LEDs

• Standard 1U (19”) rackmount size (rackmount kit included)

• 5-Year Limited Warranty

Network Media

Power Consumption

Protocol / Topology

LAN Ports

Data Transfer Rate

Address Table

Switch Fabric

Dimensions (W x D x H)

Weight

Humidity

Temperature

Power over Ethernet

• IEEE 802.3z 1000Base-SX/LX (Mini-GBIC) • IEEE 802.3x Flow Control and Back Pressure • IEEE 802.3ad Port Trunk

• IEEE 802.1D Spanning Tree Protocol • IEEE 802.1p QoS • IEEE 802.1Q VLAN Tag • IEEE 802.1X Authentication • SNMP v1

• 100~240V AC, 50/60Hz, internal universal power supply

• Ethernet UTP/STP Cat. 3, 4, 5 up to 100m • Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m

• 26.5 watts (no Powered Device (PD) connected)

• Operating: 0° ~ 40° C (32° ~ 104°F); storage: -10° ~ 70° C (14° ~ 158°F)

• Up to 15.4 watts per Port; Max 170W for all PoE ports • PD classification Identify; Manual setting for PoE power limitation

• Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m • PoE: 4-pair UTP Cat. 5, 5e up to 100m

• CSMA/CD, Star

• 24 x 10/100Mbps Auto-MDIX PoE Ports • 4 x 10/100/1000Mbps Auto-MDIX Gigabit Ports

• Ethernet: 10/20Mbps (Half/Full Duplex) • Fast Ethernet: 100/200Mbps (Half/Full Duplex) • Gigabit: 2000Mbps (Full Duplex)

• 440 x 310 x 44 mm (17.3 x 12 x 1.73 in.)

• 8K entries

• 12.8Gbps forwarding capacity

• 128KBytes

• RJ-45 PoE power (pin 3,6 for power+ and pin 1,2 for power-)

• 4.4kg (9.75lbs)

• 10%- 90% (non-condensing); storage: 5% ~ 90% RH (non-condensing)

• Supports PoE priority setting; PoE over current protection and PoE short circuit protection

Data RAM Buffer

Power Supply

Diagnostic LEDs

PoE

Standard

Hardware

SPECIFICATIONS

TPE-224WS

• 2 x 1000Base-SX/LX Mini GBIC slots (shared with Gigabit ports)

• Per Unit: Power, System

24-Port 10/100Mbps Web Smart PoE Switch w/4 Gigabit Ports and 2 Mini-GBIC Slots

• IEEE 802.3af Power over Ethernet • IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX • IEEE 802.3ab 1000base-T

TPE-224WS

• Per Port: Link/Activity, Speed • PoE: PoE Status

• 170 watts max. power to PoE ports (11 x 15.4 watts PoE PD connected)

• 196.5 watts max. power total consumption

Certifications • CE, FCC

rev: 09.24.2009

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

PACKAGE CONTENTS

TPE-80WS

TPE-112GS Gigabit Power over Ethernet (PoE) Splitter

• Rack Mount Kit

• CD-ROM (Utility & User's Guide)

8-Port Gigabit Web Smart PoE Switch

• TPE-224WS

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

TPE-224WS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

• Power Cord

24-Port 10/100Mbps Web Smart PoE Switch w/4 Gigabit Ports and 2 Mini-GBIC Slots

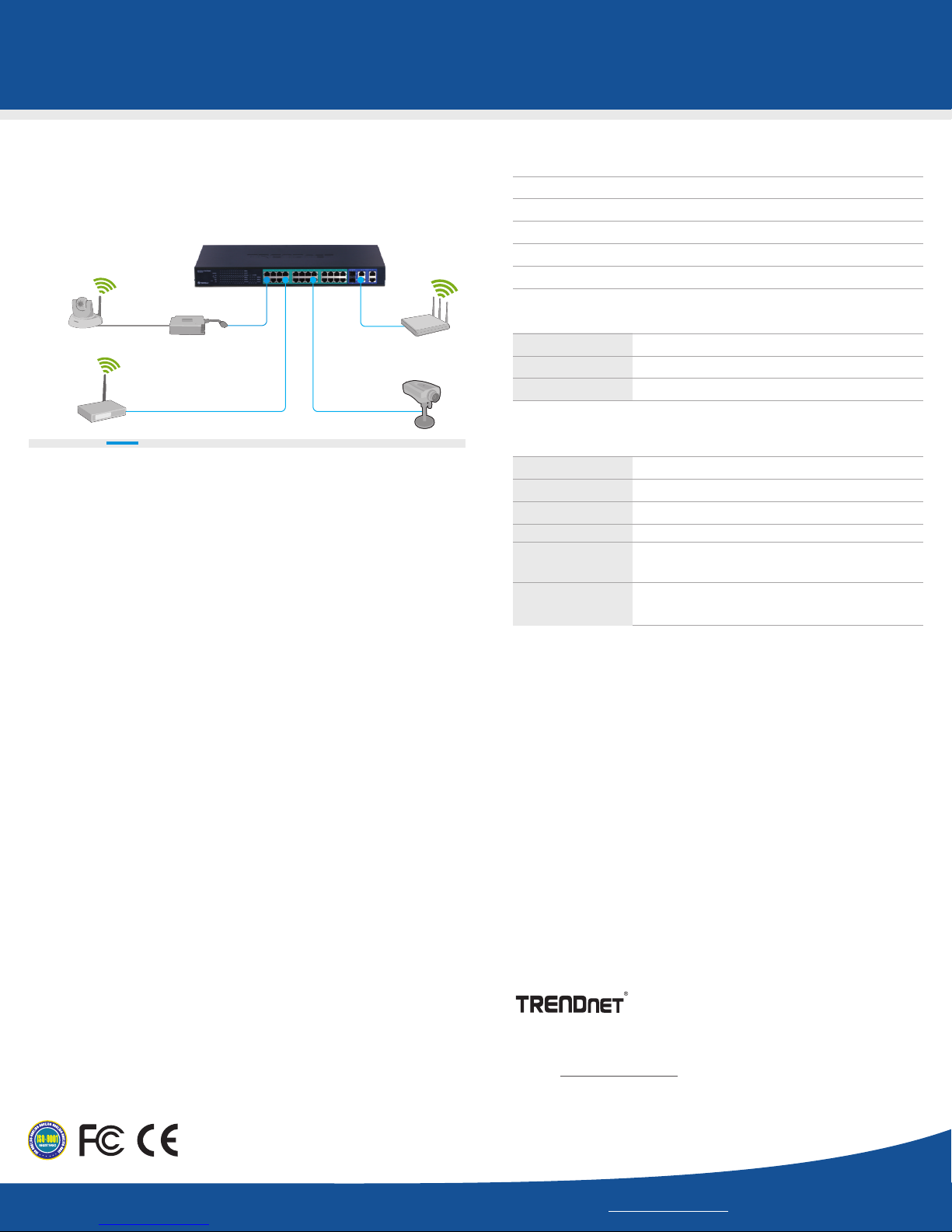

NETWORKING SOLUTIONS

Power + Ethernet Data

24-Port 10/100Mbps Web Smart PoE Switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

(TPE-224WS)

54Mbps Wireless G PoE Access Point

(TEW-434APB)

300Mbps Wireless N Gigabit Router

(TEW-633GR)

Advanced Wireless Pan & Tilt

Internet Camera Server

(TV-IP400W)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

PoE Internet Camera Server with Audio

(TV-IP201P)

Optional Module

TEG-MGBS10

TEG-MGBSX Mini-GBIC Multi-Mode SX Module

Mini-GBIC Single-Mode LC Module

TEG-MGBS80

TEG-MGBS40

TEG-MGBS40D35

TEG-MGBS10D35

Mini-GBIC Single-Mode LC Module

Power over Ethernet (PoE) Splitter

Mini-GBIC Dual Wavelength Single-Mode LC Module

1310/1550 Pair

Mini-GBIC Dual Wavelength Single-Mode LC Module

1310/1550 Pair

TV-IP512P PoE Internet Camera Server with 2-Way Audio
