TRENDnet TEW-636APB Manuale utente

Quick Installation Guide

TEW-636APB

H/W: V1.0R

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation ..........................................................................

.................................................................................

3. Configure the Access Point ...............................................................

Table of Contents

Version 03.24.2008

Troubleshooting ........................................................................................ 6

Installation Requirements

Application

Package Contents

1. Before You Start

English

?Quick Installation Guide

TEW-636APB

User's Guide CD-ROM

AC Power Adapter (12V DC, 1A)

1 RJ-45 cable

?A computer with a network adapter or wireless adapter properly installed

?A network Switch or Hub with an available network LAN port

?A RJ-45 network cable

?TEW-621PC version 2 or TEW-623PI version 2 (Optional)

Web Browser: Internet Explorer (5.5 or higher)

10/100Mbps

300Mbps

300Mbps Wireless N

HotSpot Access Point

(TEW-636APB)

Workstation with 300Mbps

Wireless N PCI Adapter

(TEW-623PI)

Notebook with 300Mbps

Wireless N PC Card

(TEW-621PC)

4-Port Gigabit Firewall Router

(TWG-BRF114)

Workstation with 300Mbps

Wireless N USB Adapter

(TEW-624UB)

Cable/DSL

Modem

Internet

2. Hardware Installation

English

Note: Locate an optimum location for the Access Point. The best place for the

Access Point is usually at the center of your wireless network. Please connect

the computer configuring the TEW-636APB to the same switch/hub.

1. Connect a RJ-45 cable from the

Switch/Hub to the LAN port of the

Access Point.

3. Verify that the following panel lights

are on: Power and WLAN.

2. Connect the AC Power Adapter to

the Access Point and then to a

power outlet.

English

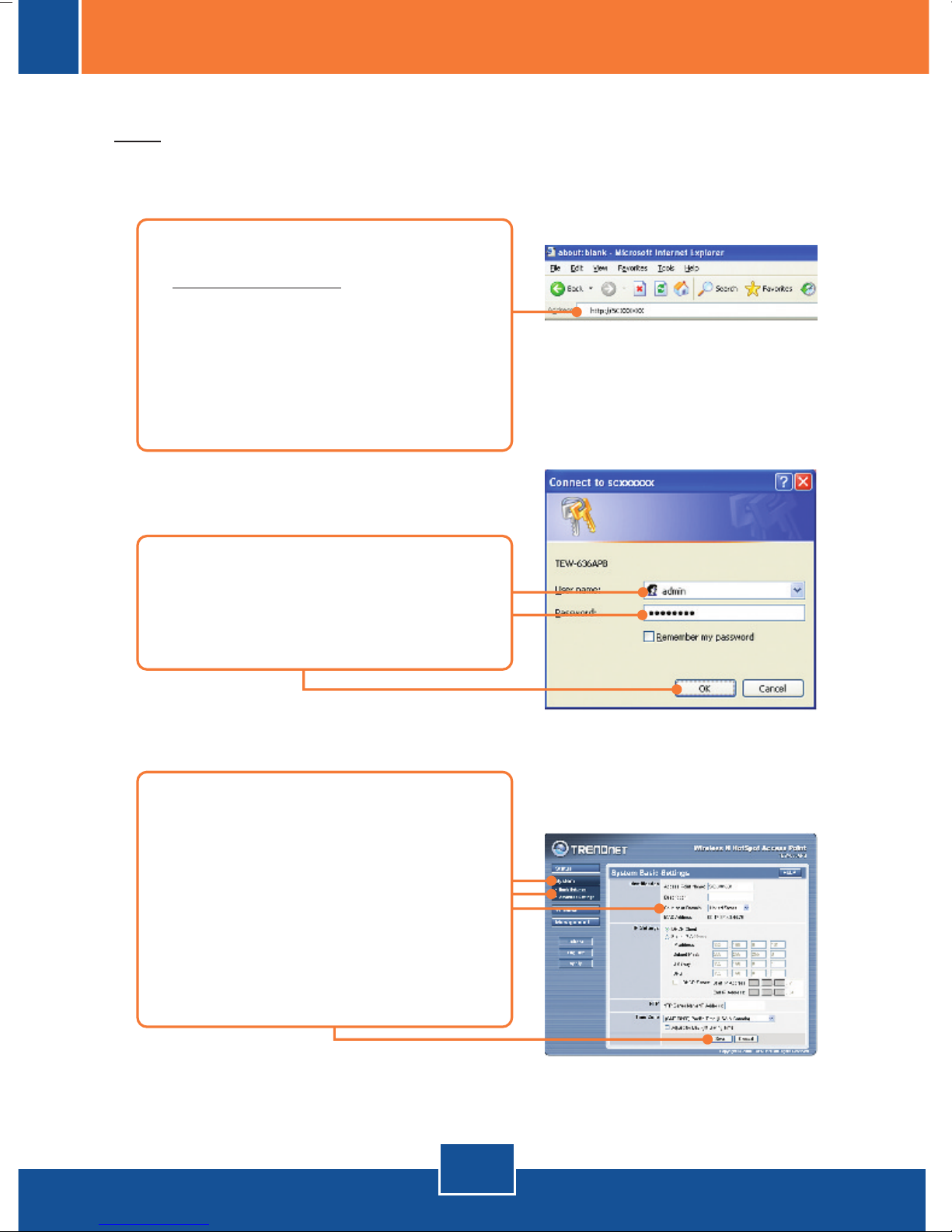

3. Configure the Access Point

1. Open your web browser, type

http://SCXXXXXX, in the Address

bar, and then press Enter.

XXXXXX represents the last 6

digits of the Mac Address. You can

find the Mac Address on the bottom

of the router.

2. Enter the User name and

Password, and then click OK.

User Name: admin

Password: password

3. Click System and then click Basic

Settings. Select your country or

domain from the drop down menu,

click Fixed IP Address, and type in

an IP address, Subnet Mask,

Gateway, and DNS to match your

current network settings. Click

Save.

Note: It is recommended that you configure the Access Point from a wired

computer.

English

7. Repeat step 5 and 6 for each

subsequent Virtual AP.

8. Click Management and then click

Admin Login.

5. Click Virtual APs. Select a Virtual

AP, click Enable and then click

Configure.

4. Click Wireless and then click

Basic Settings. Select the desired

Wireless Mode, select Access

Point for Operating mode and then

click Save.

Note: The example below is for WPA-PSK security. If your wireless adapters

do not support WPA-PSK, then select WEP.

6. Enter a SSID, select the desired

Security System, enter the

Network Key, click Save and then

click Back.

English

10. Click Apply and then click

Reboot.

Note: If you skip this step, any

settings that you changed will

NOT be saved.

9. If desired, enter a new user name,

check Change Admin Password,

enter a new password, retype the

new password and then click Save.

By default:

User Name: admin

Password: password

Your installation is now complete.

For detailed information regarding the TEW-636APB’s configuration and

advanced settings, please refer to the User's Guide included on the Driver CD-

ROM or TRENDnet's website at www.trendnet.com

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Troubleshooting

Q1:

A1:

A2:

I typed http://SCXXXXXX in my Internet Browser's Address Bar, but an error

message says “The page cannot be displayed.” How can I get into the TEW-

636APB's web configuration page?

First, check your hardware settings again by following the instructions in

section 2. Second, make sure the LAN and WLAN lights are lit. Third, verify the

Mac Address of the access point. Look at the bottom of the access point. Copy

the last six digits of the Mac Address. Then open up your browser and type in

http://SCXXXXXX (XXXXXX represents the last six digits of the Mac Address) and

then Enter. Fourth, perform a factory reset. Take a pin or paperclip, press on the

reset button for 15 seconds, and then let go.

: All the settings are correct, but I can not make a wireless connection to the

Access Point.

First, double check that the WLAN light on the Access Point is lit. Second,

power cycle the Access Point. Unplug the power to the Access Point. Wait 15

seconds, then plug the power back in. Third, contact the manufacturer of your

wireless network adapter. Make sure the wireless network adapter is configured

with the proper SSID. The default SSID of the Access Point is wireless 0. If you

have enabled any encryption on the Access Point, make sure to configure the

wireless network adapter with the same Pre-shared key. If you do not remember

the encryption key, log on to the access point configuration page from a wired

computer. Click Wireless -> Virtual AP. Click on the desired Virtual AP and then

click Configure.

If you still encounter problems or have any questions regarding the TEW-636APB,

please contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

20675 Manhattan Place

Torrance, CA 90501

USA

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

Customer Support

[email protected]

Email:

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

Visit www.trendnet.com/support
