TRENDnet TEW-450APB - Wireless Super G Access Point Manuale utente

Contents

1. Overview ....................................................................................................1

1.1 Product Feature ................................................................................1

1.2 System Requirements ......................................................................1

2. Getting Start...............................................................................................2

2.1 Know the Wireless Super G Access Point ........................................2

2.2 Connect to the Wireless Super G Access Point................................2

2.3 Quick Setup with Wizard...................................................................3

2.3.1 Access the Setting Menu .......................................................3

2.3.2 Setup with Wizard ..................................................................4

3. Configuration through WEB Browser......................................................7

3.1 Status................................................................................................7

3.2 Basic Setting.....................................................................................8

3.3 IP Setting ........................................................................................12

3.4 Advanced Setting............................................................................13

3.5 Security...........................................................................................16

3.6 Tools ...............................................................................................17

Glossary..........................................................................................................19

1. Overview

1.1 Product Feature

●Compliance with IEEE 802.11g and 802.11b standards

●Highly efficient design mechanism to provide unbeatable performance

●Achieves data rates up to 54Mbps for 802.11g and 11Mps for 802.11b with

wide range coverage; high performance to deliver up to 108Mbps raw data

rate for 802.11g

●Strong network security with WEP, WPA and 802.1X encryption

●Quick and easy setup with Web-based management utility

1.2 System Requirements

●Windows 98, 98SE, Millennium Edition (ME), 2000, XP and Vista operating

systems

●Microsoft Internet Explorer 6 or higher

●At least one RJ-45 Ethernet network adapter installed.

2. Getting Start

2.1 Know the Wireless Super G Access Point

Ports:

●Power Receptor

●Reset Button

●RJ-45 Ethernet Port

LEDs:

●Power LED: ON when the unit is powered up

●LAN LED: ON indicates LAN connection; BLINK indicates LAN activity

●WLAN LED: ON indicates WLAN is working; BLINK indicates wireless

activity.

2.2 Connect to the Wireless Super G Access Point

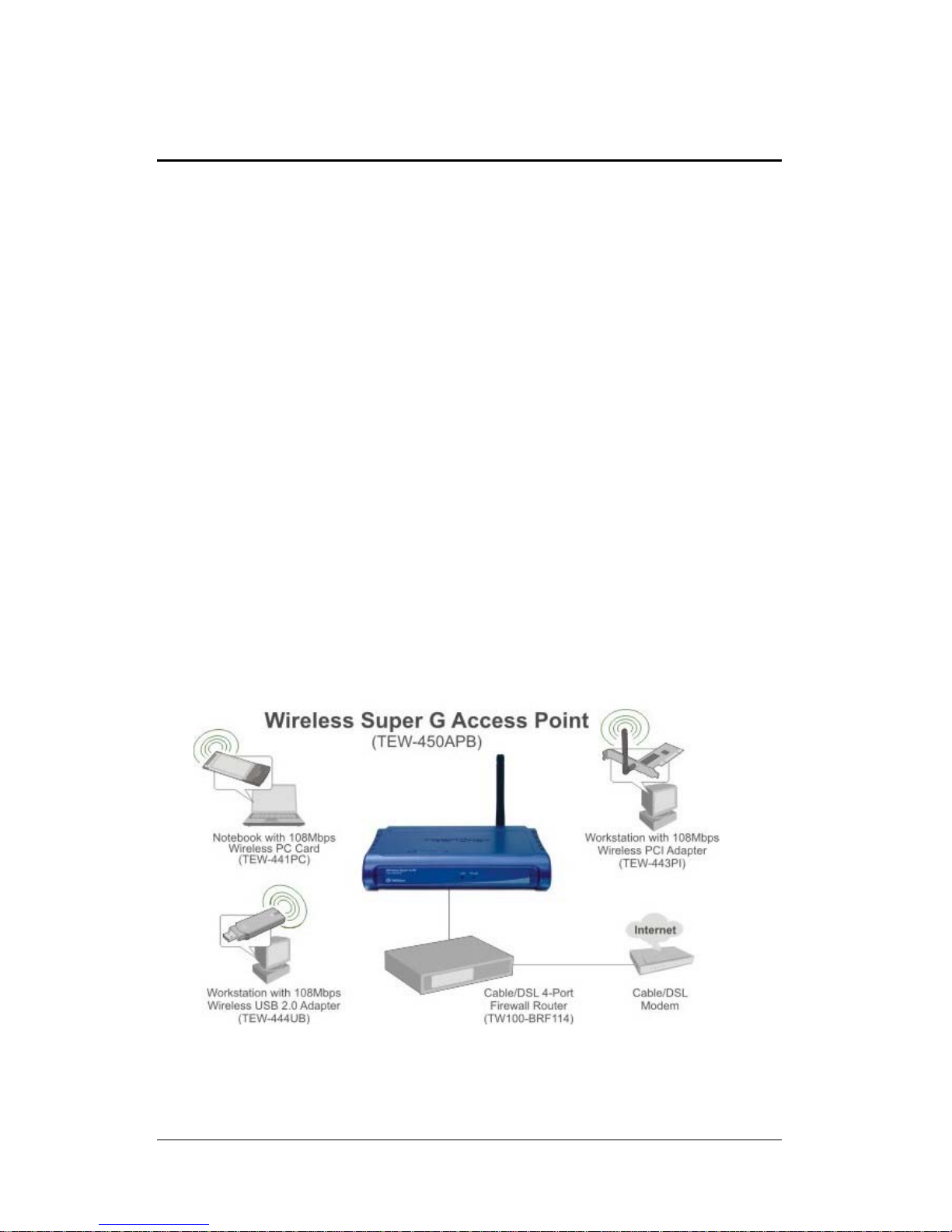

Build the Infrastructure Mode

In order to setup an Infrastructure wireless network such as the example shown

above, you will need the following:

1. A broadband Internet connection.

2. ADSL or Cable modem provided by your ISP as part of the broadband

connection installation.

3. A Router that connects to the ADSL/Cable modem for Internet connection

sharing.

4. An Access Point to connect with the Router to form a wireless infrastructure

network.

5. Wireless clients equipped with wireless networking devices such as wireless

PC Card for wireless connection.

2.3 Quick Setup with Wizard

2.3.1 Access the Setting Menu

To access the configuration menu open a web browser window and type the IP

address of this access point. The default IP is 192.168.10.100.

The below window will popup. Please enter the user name and password.

The default User name and Password is “admin.”

Now, the main screen appears

2.3.2 Setup with Wizard

Setup wizard is provided as the part of the web configuration utility. Follow the

step-by-step process to configure your Access Point by clicking on the “Wizard”

button on the function menu. The following screen will appear. Please click

“Next” to continue.

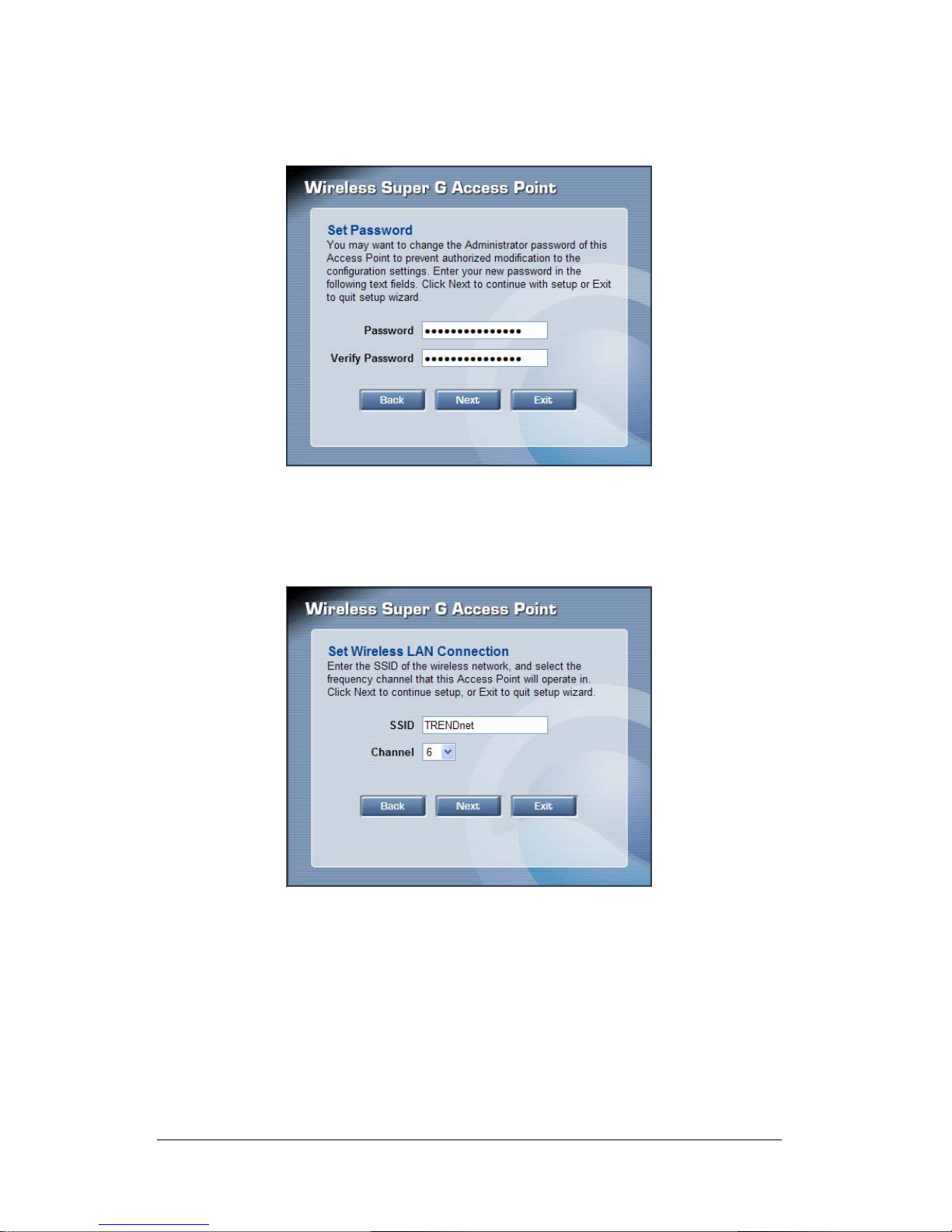

Step 1: Set Password

Set a desired password and then click “Next” to continue.

Step2: Set WLAN Connection

Enter an SSID for your access point and select a channel. Then, click “Next” to

continue. The default SSID is TRENDnet.

Step 3: Set WEP Encryption

If you like to enable WEP, please click “Enabled”. Then, select the key size of

WEP encryption and enter the key value in the key text box. Then click “Next”

to continue.

Step 4: Restart

The Setup wizard is now completed. The new settings will be effective after the

Access Point restarted. Please click “Restart” to reboot the Access Point. If

you do not want to make any changes, please click “exit” to quit without any

changes. You also can go back to modify the setting by clicking “Back”.

3. Configuration through WEB Browser

3.1 Status

The status page shows you the following information.

Firmware Version: Shows the current firmware version.

LAN: Shows the Mac address, IP address (default: 192.168.10.100), Subnet

Mask, Gateway Address. The current LAN traffic calculated in terms of number

of packets sent and received by AP through wired connection is also displayed.

Wireless: Shows the Mac address, current ESSID, the status of Encryption

Function (Enable or Disable), the current using channel. The current wireless

traffic calculated in terms of number of packets sent and received by AP through

wireless communication is also displayed.

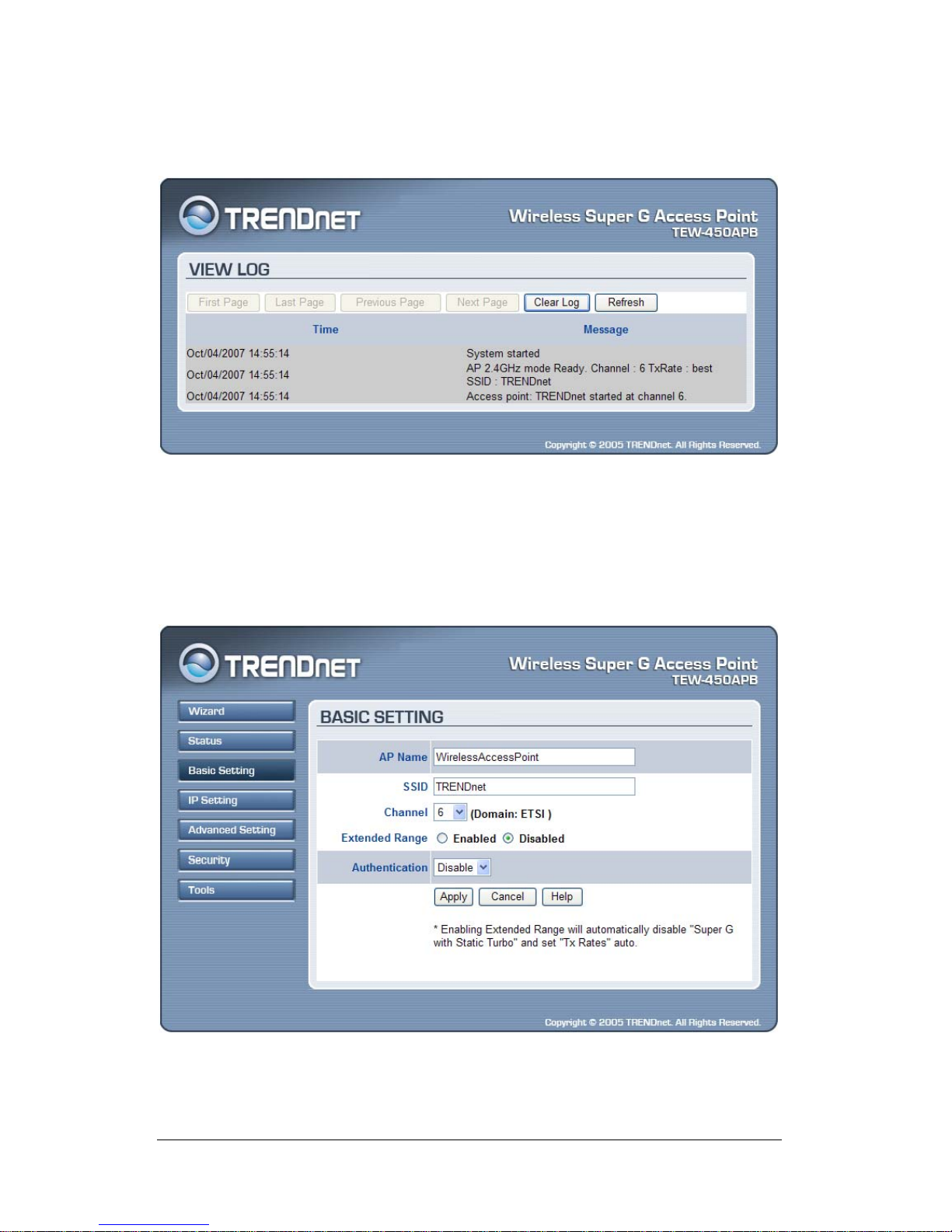

View Log: Upon clicked, the page will change to log page. The log page records

every event and the time that it happens.

You may clear the entries recorded in the log by clicking the “Clear Log” button,

and refresh the screen to show the latest log entries by clicking the “Refresh”

button.

3.2 Basic Setting

This page allows you to change the wireless settings.
