TRENDnet TEW-450APB - Wireless Super G Access Point Manuale utente
TEW-450APB
Quick Installation Guide
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
3
6
1. Before You Start
2. Install Hardware .................................................................................
3. Configure the Access Point ................................................................
.................................................................................
Table of Contents
Version 09.18.2007
Installation Requirements
Application
Package Contents
1. Before You Start
English
1
?
?
?
?
?1 x 2dBi Detachable Antenna
T 450APB
Quick Installation Guide
External Power Adapter
User’s Guide CD-ROM
EW-
?
Netscape Navigator (4.7 or higher)
?A computer with a network adapter properly installed
?A network Switch or Hub with an available network LAN port
?A RJ-45 network cable
A web browser such as Internet Explorer (5.5 or higher) or
Notebook with 108Mbps
Wireless PC Card
(TEW-441PC)
Cable/DSL
Modem
Internet
Workstation with 108Mbps
Wireless PCI Adapter
(TEW-443PI)
Workstation with 108Mbps
Wireless USB 2.0 Adapter
(TEW-444UB)
Cable/DSL 4-Port
Firewall Router
(TW100-BRF114)

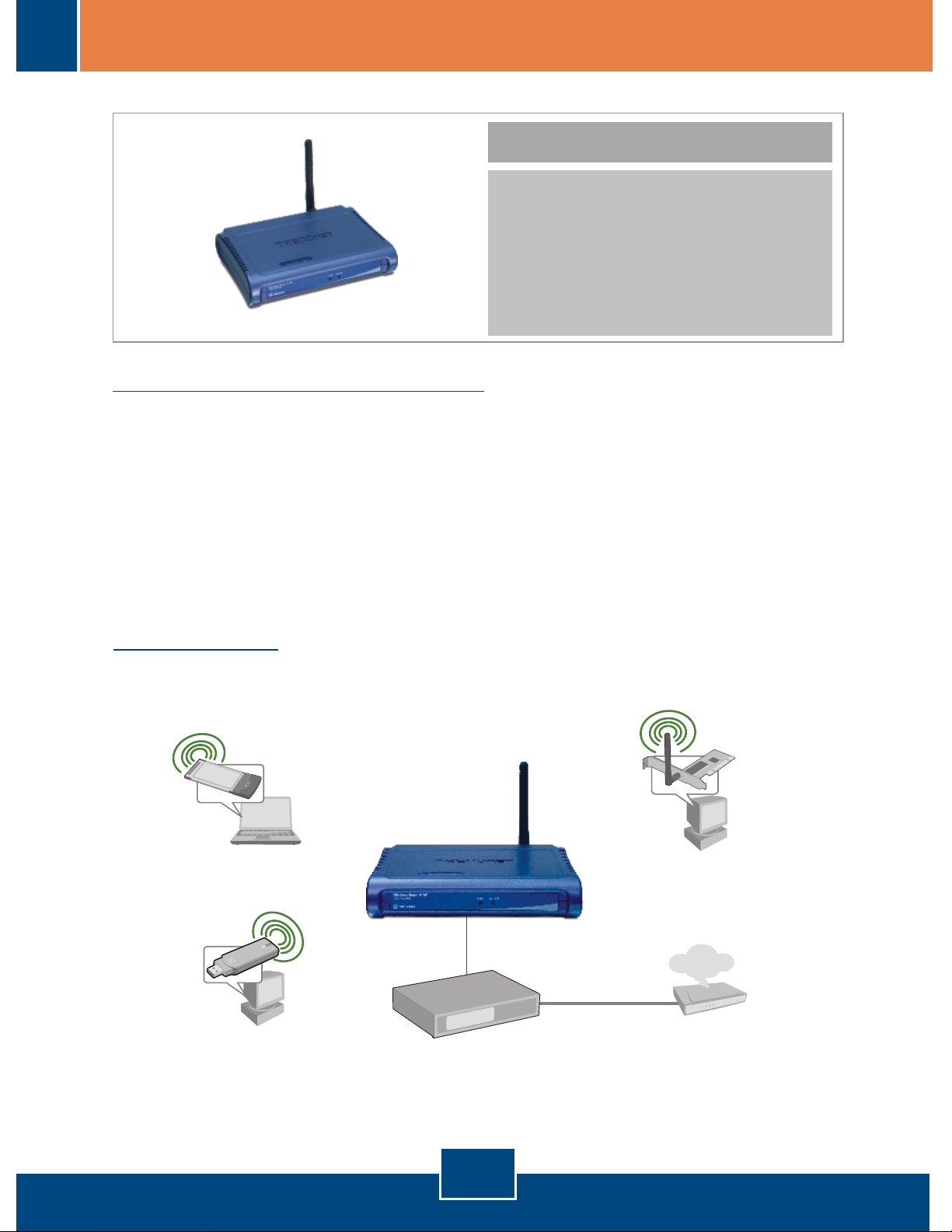

Wireless Super G Access Point
(TEW-450APB)
2. Install Hardware
English
2
2. Connect the AC Power Adapter to
the Access Point and then to a
power outlet.
Note: Locate an optimum location for the Access Point. The best place for the
Access Point is usually at the center of your wireless network. Please connect
the computer configuring the TEW-450APB to the same switch/hub.
1. Connect a RJ-45 cable from the
Switch/Hub to the LAN port of the
Access Point and then connect the
2dBi Detachable Antenna.
3. Verify that the following front panel
lights are on: LAN and WLAN.
English
3
3. Configure the Access Point
Note: It is recommended that you configure the Access Point from a wired
computer. Before the Access Point can be configured, a Static IP address
must be assigned to your computer's network adapter in the subnet of
192.168.10.x. Since the Access Point's default IP address is 192.168.10.100,
make sure no other network devices are assigned an IP address of
192.168.10.100. (Refer to the Troubleshooting section on how to configure
TCP/IP settings on your PC)
For a Wired Computer
2. Enter User name and Password,
and then click OK. By default,
User name: admin
Password: admin
1. Open your web browser, type
http://192.168.10.100 in the
Address bar, and press Enter.
3. Click Wizard.
English
4
5. Enter a new password for your
Access Point, verify the new
password, and then click Next. (If a
new password is not entered, the
default password admin will be
used.
4. Click Next.
6. Enter a SSID for your Access
Point and then click Next.
English
5
8. Click Restart.
7. Enable Encryption if needed and
then click Next.
9. Click Close.
Your installation is now complete.
For detailed information regarding the TEW-450APB's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or Trendnet's website at http://www.trendnet.com.
Q2:
A2:
Q3:
A3:
I specified the IP address http://192.168.10.100 in my Internet Browser's
Address Bar, but an error message says "The page cannot be displayed". How
can I get into the TEW-450APB's web configuration page?
First, check your hardware settings again by following the instructions in
section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure
the TCP/IP settings are configured properly (see Q1). Fourth, since the Access
Point's default IP address is 192.168.10.100, make sure that no other network
devices are assigned an IP address of 192.168.10.100.
If my network's IP is different than the Access Point's range, what should I
do?
You should still configure the Access Point first. After all the settings are
applied, go to the Access Point's configuration page, click on TCP/IP settings and
change the IP address of the Access Point to match your network's IP.
6
Troubleshooting
Q1: How do I configure TCP/IP settings on my computer?
1. Go into the Control Panel and double-
click the Network Connections icon,
right-click the Local Area Connection
icon and then click Properties.
2. Click Internet Protocol (TCP/IP) and
then click Properties. Then click on
Use the following IP address, and
make sure you assign your network
adapter an IP address in the subnet of
192.168.10.x.
7
Q4:
A4:
Q5:
A5:
After I successfully configured the Access Point to meet my network settings,
I can not connect to my network using wireless computers.
If you have a DHCP server in your network, you need to go into TCP/IP
settings again and re-select "Obtain an IP address automatically" to allow the PC
to regain an IP address from your DHCP server.
All the settings are correct, but I can not make a wireless connection to the
Access Point.
First, double check that the WLAN light on the Access Point is lit. Second,
power cycle the Access Point by unplugging the power to the Access Point. Wait
15 seconds, then plug the power back in. Third, contact the manufacturer of your
wireless network adapter. Make sure the wireless network adapter is configured
with the proper SSID. The default SSID of the Access Point is TRENDnet.
If you still encounter problems or have any questions regarding the TEW-450APB,
please contact TRENDnet's Technical Support Department.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
7898431242716
