TRENDnet TEW-635BRM - Wireless Router Manuale utente

Quick Installation Guide

TEW-635BRM

2.01

English 1

Wireless Tips 11

1. Before You Start 1

2. Hardware Installation 3

3. Configure The Modem 4

4. Setting up Encryption 7

Tõrkeotsing

Table of Contents

Version 01.04.2010

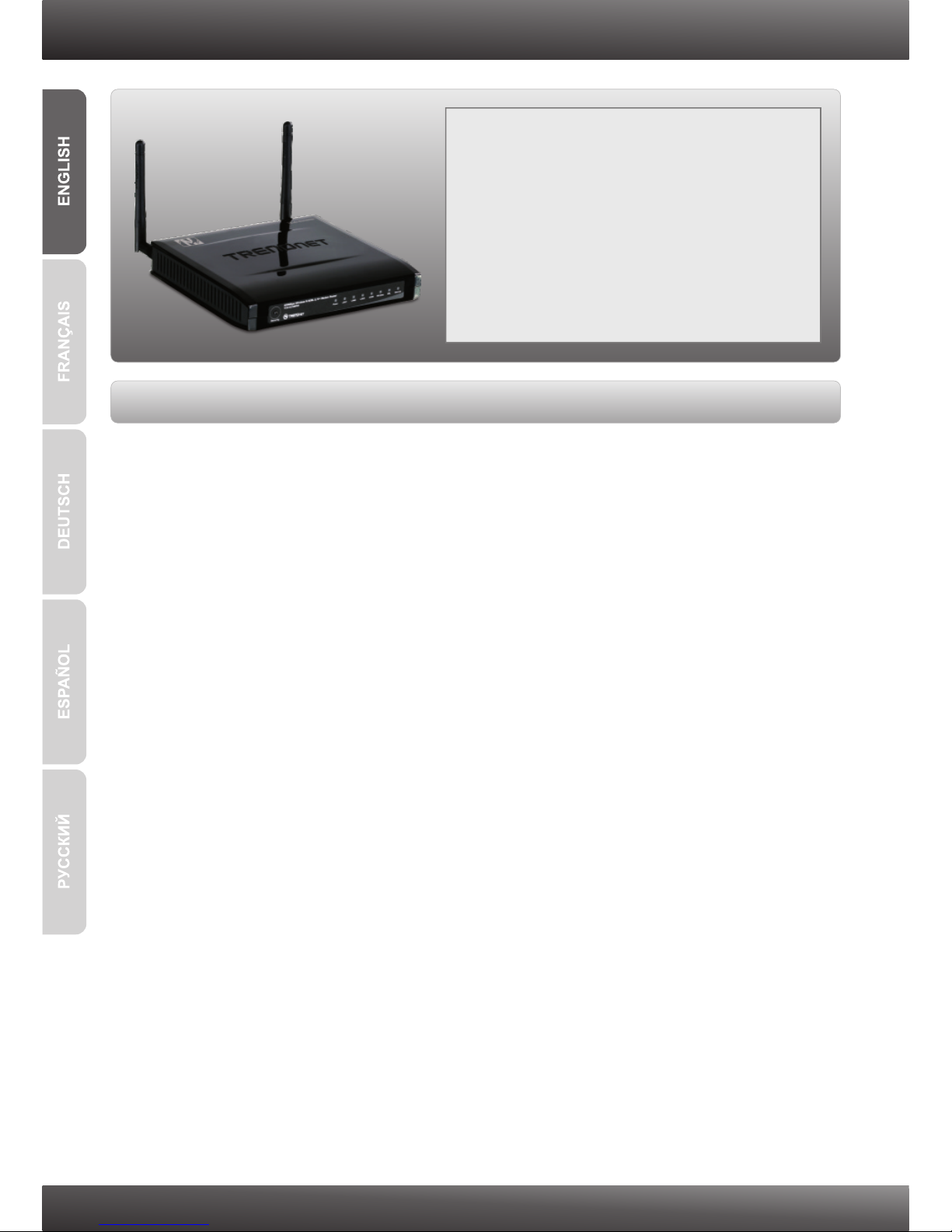

1. Before You Start

Package Contents

System Requirements

?Multi-Language Quick Installation Guide

?2 x 2dBi Detachable Antenna

?1 x RJ-45 Ethernet Cable

?1 x RJ-11 Telephone Cable

?Power Adapter (12V DC, 1A)

CD-ROM (User’s Guide)

TEW-635BRM

?A computer with a wired or wireless network adapter properly installed

A working ADSL Internet Connection

Web Browser: Internet Explorer (5.0 or above)

Collect Internet Service Provider (ISP) Information

During the installation of your Wireless ADSL Modem Router, the Setup Wizard will

automatically detect your ISP connection type. If the router cannot detect your ISP

connection type, you can manually specify the connection type. Please verify your DSL

Internet broadband connection type with your ISP and ensure you have all the

information for one of the following connection types:

A. Dynamic IP connection

ADSL Modem parameters (VPI and VCI) and multiplexing method type

(LLC or VC) , if it cannot be detected automatically.

ISP may require you to use a particular Hostname or Domain name.

B. Static or Fixed IP connection

Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____

ADSL Modem Parameters (VPI and VCI), if it cannot be detected

automatically.

C. PPPoE or PPPoA Dynamic IP connection

Password: ________________

ADSL Modem Parameters (VPI and VCI), if it cannot be detected

automatically.

D. IPoA Static or Fixed (IP over ATM) connection

Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____.

ADSL Modem Parameters (VPI and VCI), if it cannot be detected

automatically.

ADSL

Terminator

To PCs

Power

LAN1

LAN2

LAN3

LAN4

ADSL

2. Hardware Installation

2. Connect one end of the RJ-45 cable to one of

the TEW-635BRM's LAN ports. Connect the

other end of cable to the computer's Ethernet

port.

4. Connect the AC Power Adapter to the TEW-

635BRM and then to a power outlet.

3. Connect one end of the RJ-11 cable to the

TEW-635BRM's ADSL port. Connect the other

end of the cable to the phone jack.

RESET

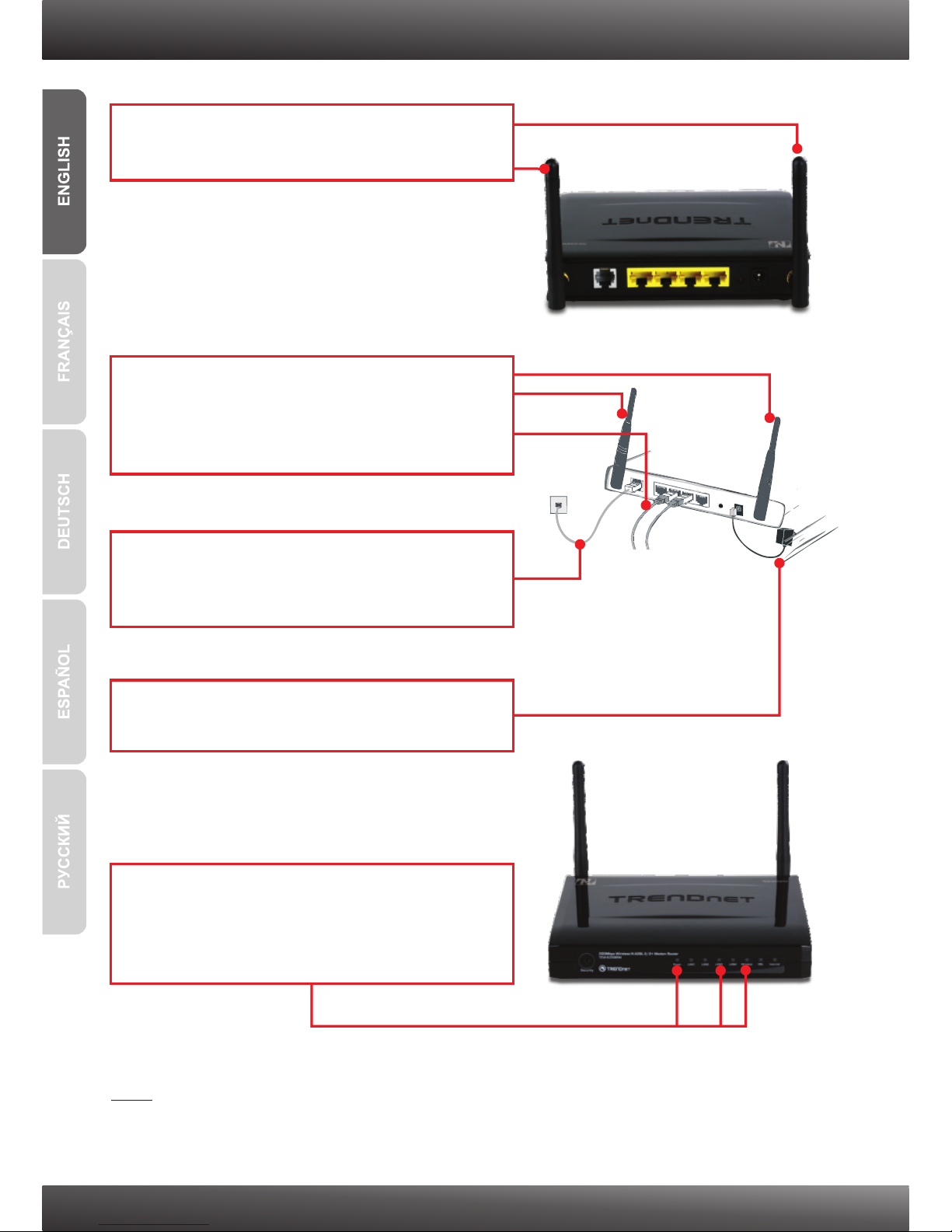

1. Connect the detachable antennas to the

TEW-635BRM.

5. Verify that the following panel lights are on:

Power(solid Green), LAN (solid to blinking

Blue), Wireless (Solid Blue), DSL (solid Green)

and Internet (blinking Orange).

Note: If the DSL light is not solid Green (blinking), the device would not detect the DSL

signal. The Internet light may take up to 5minutes to detect, please wait.

3. Configure the Modem

Note: It is recommended that you configure the Modem from a wired computer.

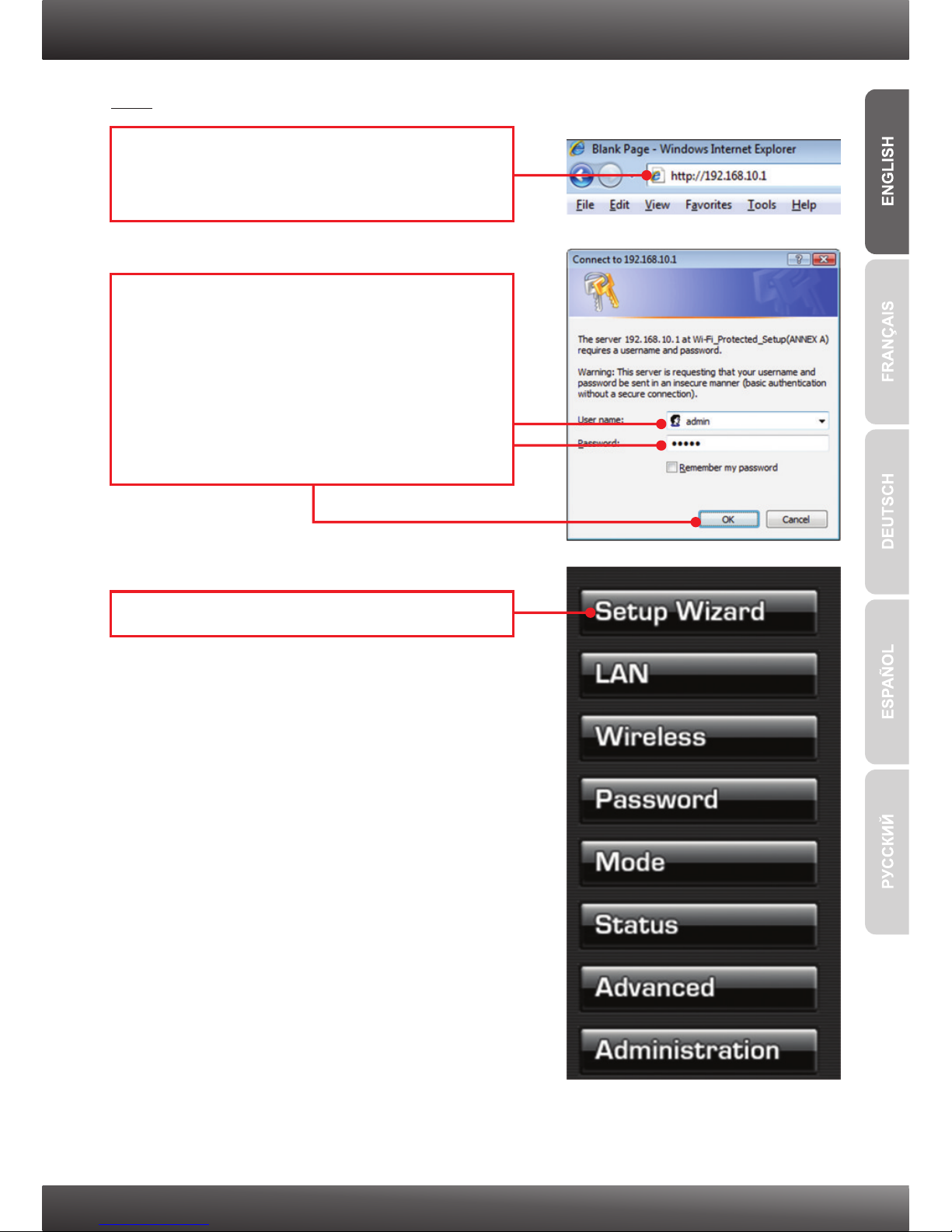

1. Open your web browser, type

http://192.168.10.1 in the Address bar, and

then press Enter.

3. Click Setup Wizard.

2. Enter the User Name and

password and then click OK. By default:

User name: admin

Password: admin

Note: User name and Password is case

sensitive.

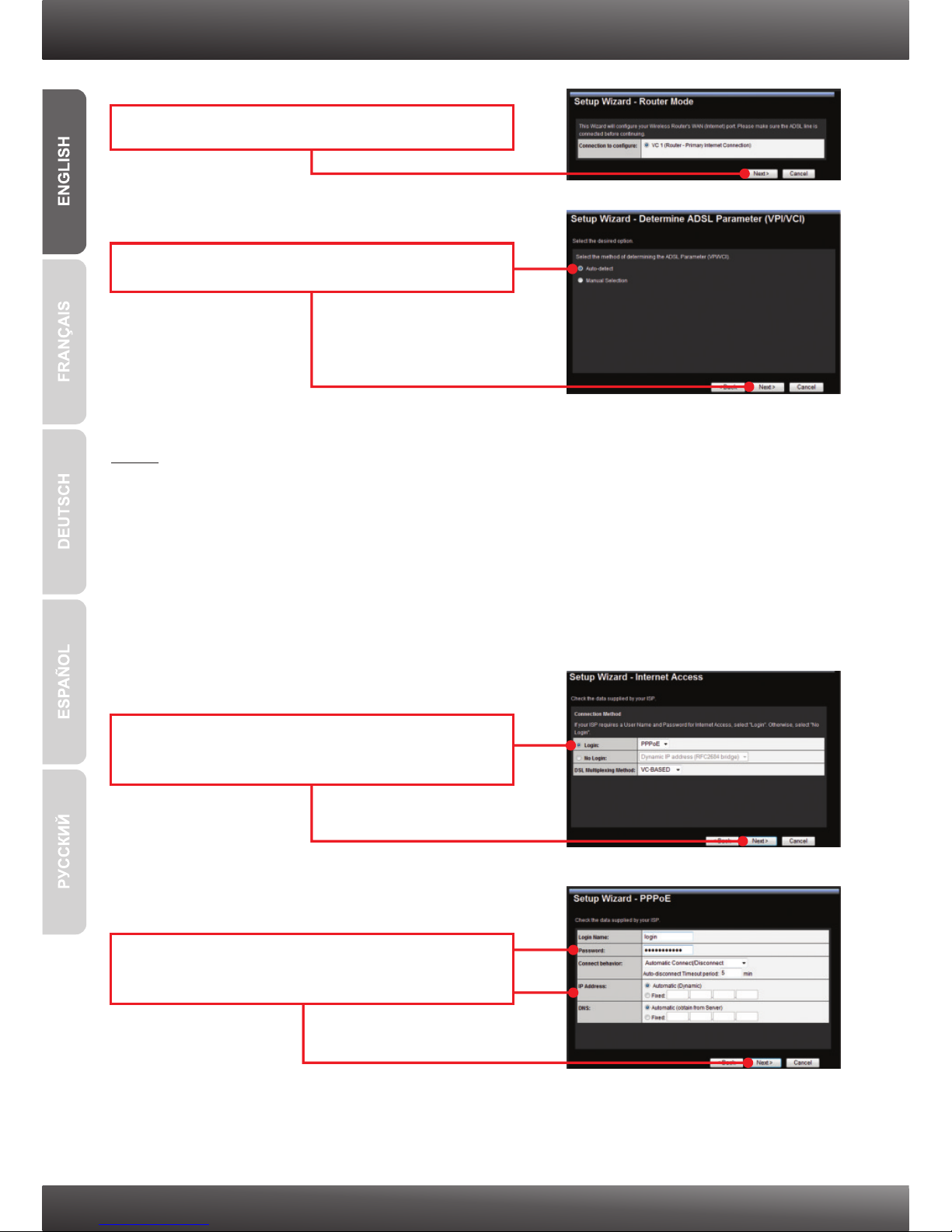

4. Click Next.

5. Select Auto-detect and then click Next.

6. Configure the settings based on information

provided by your ISP. Then click Next.

7. Configure the settings based on information

provided by your ISP. Then click Next.

Note:

1. The example below is for Auto-detect. If the Setup Wizard could not automatically

detect your Internet connection, select Manual Selection and input the information

using the information provided by your ISP.

2. In the example below, the ADSL connection is PPPoE requiring username and

password login information. Please see step 8 for Dynamic IP address (RFC2684

bridge) is selected.

Note: For other connection methods, follow the on screen instructions after you select

auto-detect.

9. Please wait while the TEW-635BRM reboots.

10. Check the LEDs and then click OK.

11. Check Test Internet Connection, and then

click Finish.

12. Verify that the test has completed

successfully. Check that the ADSL and

Internet LEDs are lit. Then click Close.

13. Open up your browser and enter in a URL

(e.g. www.trendnet.com) to verify that you

have Internet connection.

8. For Dynamic IP address click Copy from PC to

enter your PC's MAC address or enter the MAC

address of your previous ADSL modem.Then

click Next.

4. Setting up Encryption

1. Click Wireless

Note: To protect your network from any unauthorized access it is recommended to

enable wireless encryption.

2. Select the Region, enter the desired SSID and

then click Save.

3. Click Configure SSID1 to set up Wireless

Security.

Your Configuration is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-635BRM’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website

at http://www.trendnet.com.

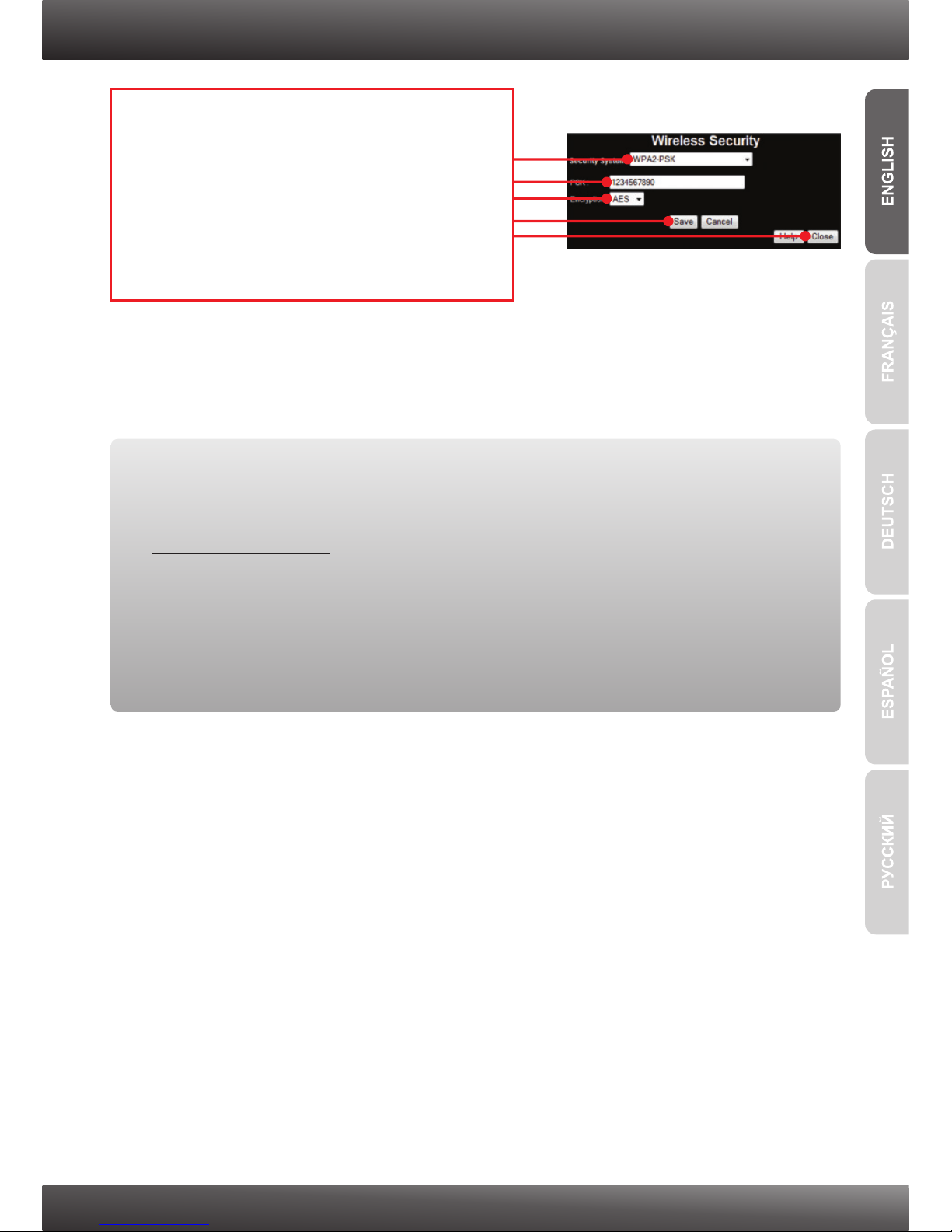

4. This example below is WPA2-PSK. Select a

Security System and enter an encryption key

in the PSK field. Keep the Encryption value

as AES, click Save and then click Close. For

WPA-PSK or WPA2-PSK, the Pre-Shared Key

must be between 8 and 63 ASCII or 64 HEX

characters. Make sure to copy down the

encryption key.
