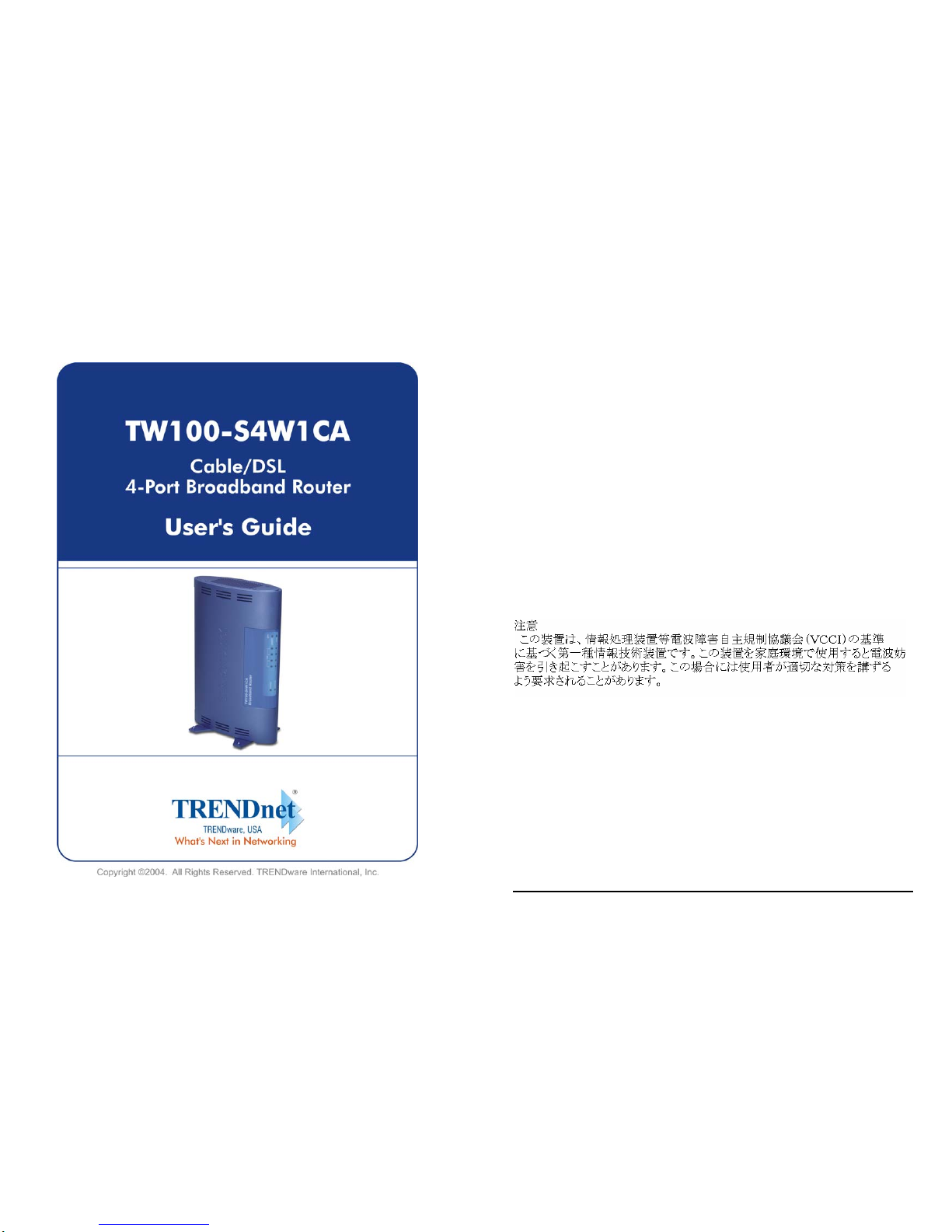

TRENDnet TW100-S4W1CA Manuale utente

FCC Warning

This equipment has been tested and found to comply with the regulations

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with this user’s guide, may

cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own

expense.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.

VCCI Warning

P/N:

Rev.A1-01

TABLE OF CONTENTS

About This Guide...................................................................................... 1

Purpose.................................................................................................. 1

Overview of this User’s Guide.............................................................. 1

Introduction............................................................................................... 3

Applications: ......................................................................................... 3

Features:................................................................................................ 4

Unpacking and Setup................................................................................. 5

Unpacking ............................................................................................. 5

Setup...................................................................................................... 5

Hardware Installation ................................................................................ 7

Front Panel............................................................................................ 7

Rear Panel ............................................................................................. 8

Hardware connections........................................................................... 9

Connect the Internet Broadband Router............................................ 9

Check the installation...................................................................... 10

PC Network TCP/IP Setting.................................................................... 11

Windows 95/98/ME ............................................................................ 11

Windows 2000..................................................................................... 13

Windows NT4.0.................................................................................. 14

Windows XP ....................................................................................... 14

Internet Broadband Router Configuration............................................... 17

Quick Setup......................................................................................... 18

Advanced Setup................................................................................... 23

Technical Specifications.......................................................................... 36

ABOUT THIS GUIDE

Congratulations on your purchase of this 4-port Broadband Router. This

device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network

capabilities in a highly flexible desktop package. A complete solution for

sharing the Internet and other office resources, this router is easy for both

beginners and novices to operate.

Purpose

This manual discusses how to install the 4-port Broadband Router.

Overview of this User’s Guide

Introduction. Describes the Broadband Router and its features.

Unpacking and Setup. Helps you get started with the basic installation of

the Router.

Identifying External Components. Describes the front panel, rear panel,

and LED indicators of the Router.

Connecting the Router. Explains how you connect the Router to your

xDSL/Cable Modem.

Technical Specifications. Lists the technical (general, physical and

environmental, performance and Routers settings) specifications of the

Broadband Router.

INTRODUCTION

With the explosive growth of the Internet, accessing information and

services at any time, day or night, has become standard fare for most

people. The era of the standalone PC is waning. Networking technology is

moving out of the exclusive domain of corporations and into homes with

at least two computers.

Broadband network access is also gaining ground. Allowing more than

two computers to access the Internet at the same time, however, has

typically entailed significantly higher costs. Thus, there is a great demand

for technology that enables users to share a legal IP address over a single

Internet connection to provide an entire home network with Internet

access.

Employing a single IP address to share an Internet connection through an

Internet sharing device solves the problem of high network access costs.

Using such a device, each networked computer is able to make full use of

broadband capabilities.

This device not only comes equipped with a wide range of features but

also can be installed and configured right out of the box. This device

supports a simple local area network and Internet access sharing.

A local area network connects home computers and enables users to

access the Internet, share resources, and play online games – the essentials

of the family computing lifestyle.

Applications:

Broadband Internet access sharing:

Enable several computers to share a single high-speed broadband Internet

connection (LAN and WAN-Internet).

Resource sharing:

Share printers, scanners, and other peripherals.

File sharing:

Exchange data, messages, and files -- thus making good use of hard disk

space.

Online gaming:

Your local area network allows you to play online games and use e-

commerce services.

Firewall:

A built-in firewall function protects against hackers.

Features:

¾High speed data transfer rate, FTP up to 40Mbps

¾Supports NAT (sharing one IP address with all LAN users)

¾Supports PPPoE and PPTP protocol for Dial-Up ADSL

¾Supports DHCP Server / Client

¾Supports UPnP (Universal Plug and Play)

¾Supports virtual server mapping

¾Supports packet filtering

¾Simple Firewall protection

¾Upgradeable firmware for future functions

¾Simple Installation using Quick Setup

¾Easy configuration via Web Browser.

UNPACKING AND SETUP

This chapter provides unpacking and setup information for the Broadband

Router.

Unpacking

Open the box of the Broadband Router, and carefully unpack it. The box

should contain the following items:

One Cable/DSL Broadband Router

Quick Installation Guide

CD-ROM (User’s Guide)

One Ethernet Cable

Power Adapter

If any item is found missing or damaged, please contact your local reseller

for replacement.

Setup

The setup of the Broadband Router can be performed using the following

steps:

The power outlet should be within 1.82 meters (6 feet) of the

Broadband Router.

Visually inspect the DC power jack and make sure that it is fully

secured to the power adapter.

Make sure that there is proper heat dissipation from and adequate

ventilation around the Broadband Router. Do not place heavy

objects on the Broadband Router.

HARDWARE INSTALLATION

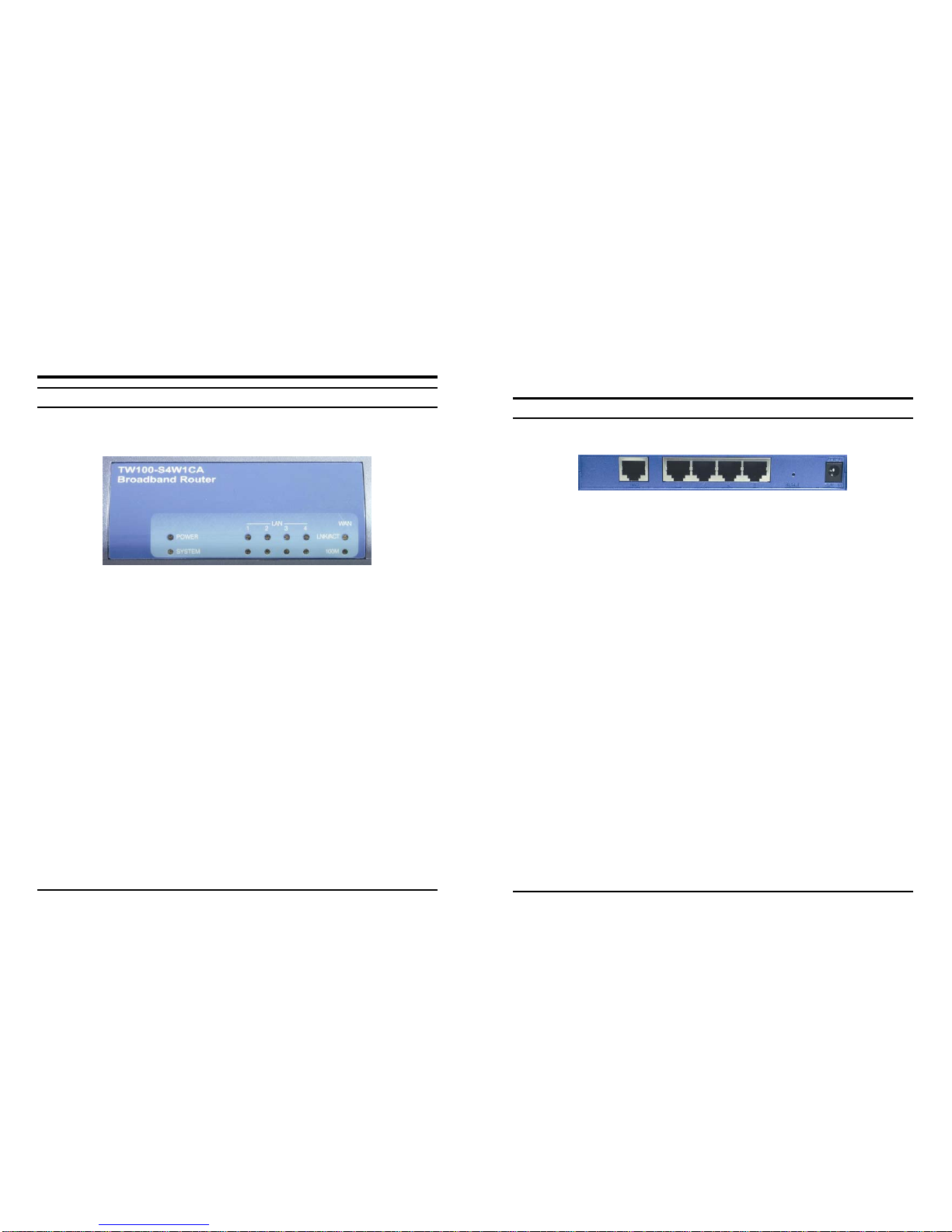

Front Panel

The figure below shows the front panel of the Broadband Router.

4-Port 10/100Mbps Ethernet Broadband Router Front Panel

POWER

This indicator lights green when the hub is receiving power. Otherwise, it

is off.

SYSTEM

This indicator blinks green when the Internet Broadband Router is

working successful. If the indicator is either always on or off, the Internet

Broadband Router is not working properly.

WAN (Link/ACT)

This indicator lights green when the WAN port is connected to an

xDSL/Cable modem successfully.

This indicator blinks green while the WAN port is transmitting data to or

receiving data from the xDSL/Cable modem.

LAN (Link/ACT)

The port 1 - port 4 indicators light green when they’re connected to a

100Mbps Fast Ethernet station. If the indicator blinks green, the

corresponding LAN port is transmitting or receiving data on the 100Mbps

Fast Ethernet or 10Mbps Ethernet network.

Rear Panel

The figure below shows the rear panel of the Broadband Router.

4 Port 10/100Mbps Ethernet Broadband Router Rear Panel

WAN

On the 4 port broadband router, there is an RJ-45 10/100Mbps Auto-

MDIX WAN port that allows you to connect to your xDSL/Cable modem.

LAN (1-4)

Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either

10Mbps or 100Mbps Ethernet connections.

RESET

Use a pin-shaped object to reset this device to factory default settings.

Resetting the device will also reset the login password to the default.

Hardware connections

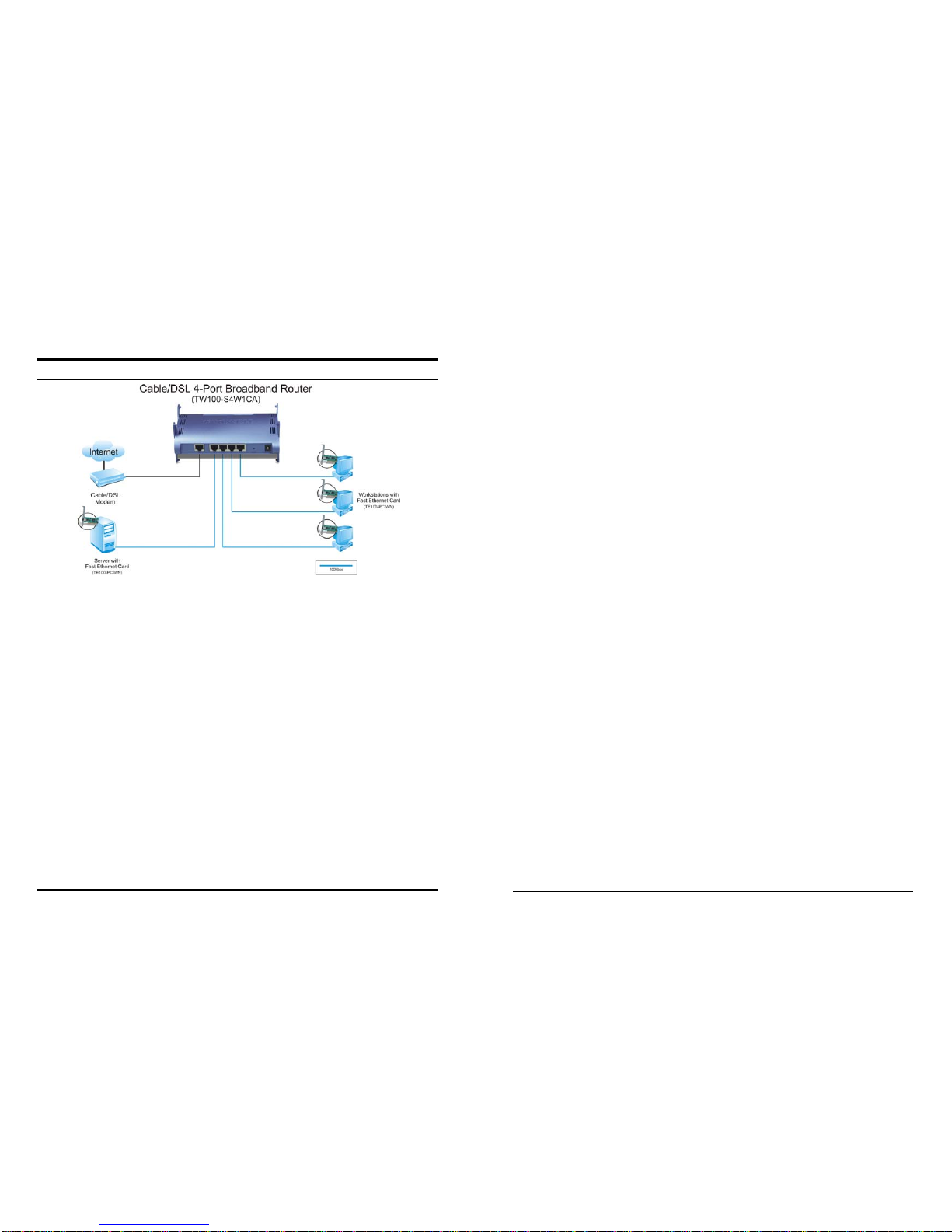

Connect the Internet Broadband Router

1. Connect one end of the network cable to the WAN port of the 4-port

Internet Broadband Router.

2. Connect the other end of the network cable to the Ethernet port of the

xDSL or Cable modem.

3. Connect one end of another network cable to the computer’s Ethernet

card and the other end of the cable to one of the Router’s LAN ports.

Since the Internet Broadband Router has four ports, you can connect

up to four computers directly to the unit. You do not have to buy a

switch to connect these computers since the Internet Broadband

Router functions both as a connection-sharing unit and as a switch.

Check the installation

The control LEDs of the Internet Broadband Router are clearly visible and

the status of the network link can be seen immediately:

1. Once the device is connected to the broadband modem and the Power

is connected, the Power, CPU, LAN and WAN port link LEDs of the

Internet Broadband Router will light up, indicating a normal status.

2. If the WAN port is linked to the ADSL/Cable modem, the WAN

port’s Link/ACT LED will light up.

3. If the LAN port is linked to the computer system, the LAN port’s

Link/ACT LED will light up.

PC NETWORK TCP/IP SETTING

The network TCP/IP settings differ based on the computer’s operating

system (Win95/98/ME/NT/2000/XP) and are as follows.

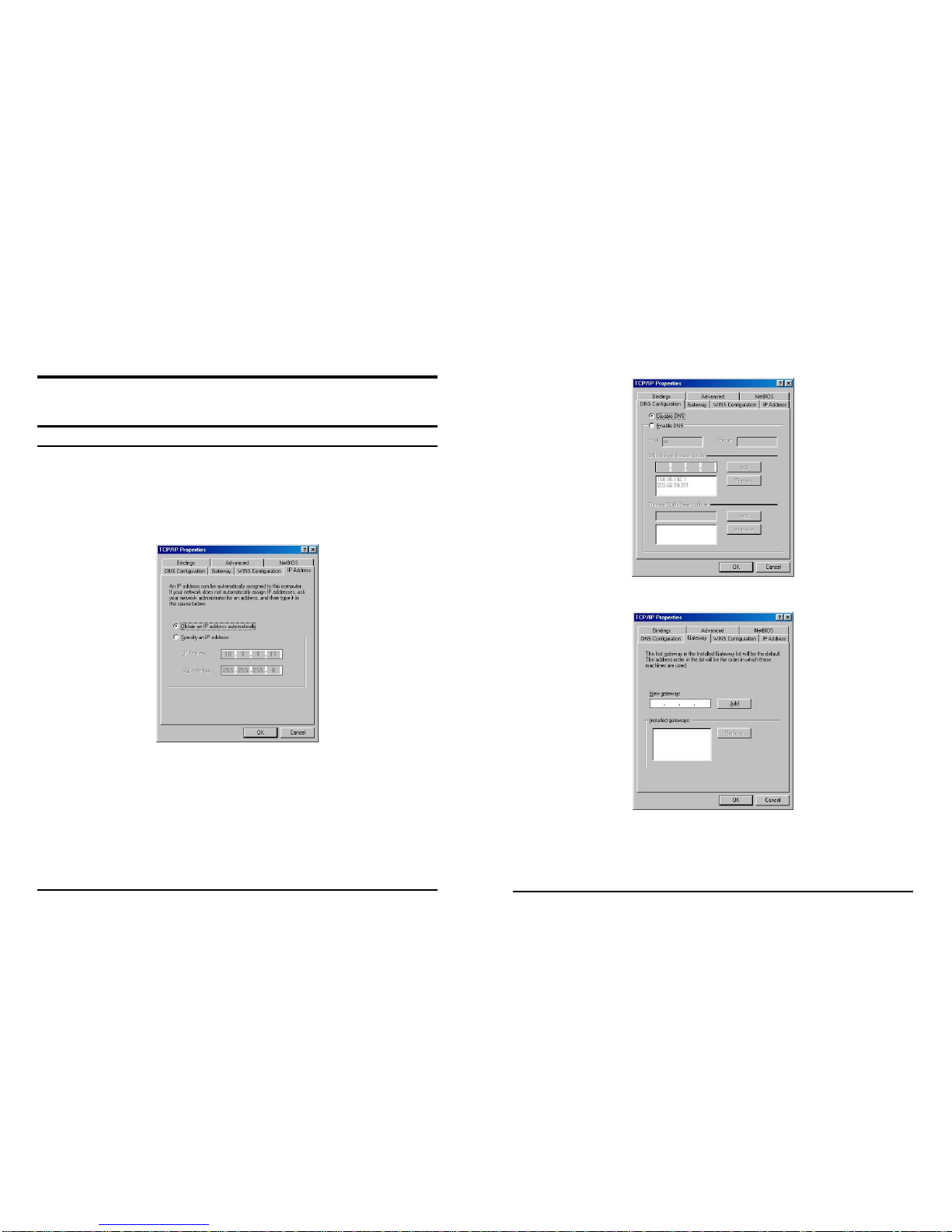

Windows 95/98/ME

1. Click on the “Network neighborhood” icon found on the desktop.

2. Right-click on it, and a context menu will appear.

3. Select “Properties” to enter the TCP/IP settings screen.

4. Select “Obtain an IP address automatically” on the “IP address”

field.

5. Select “Disable DNS” in the “DNS” field.

6. Select “None” for the “Gateway address” field.

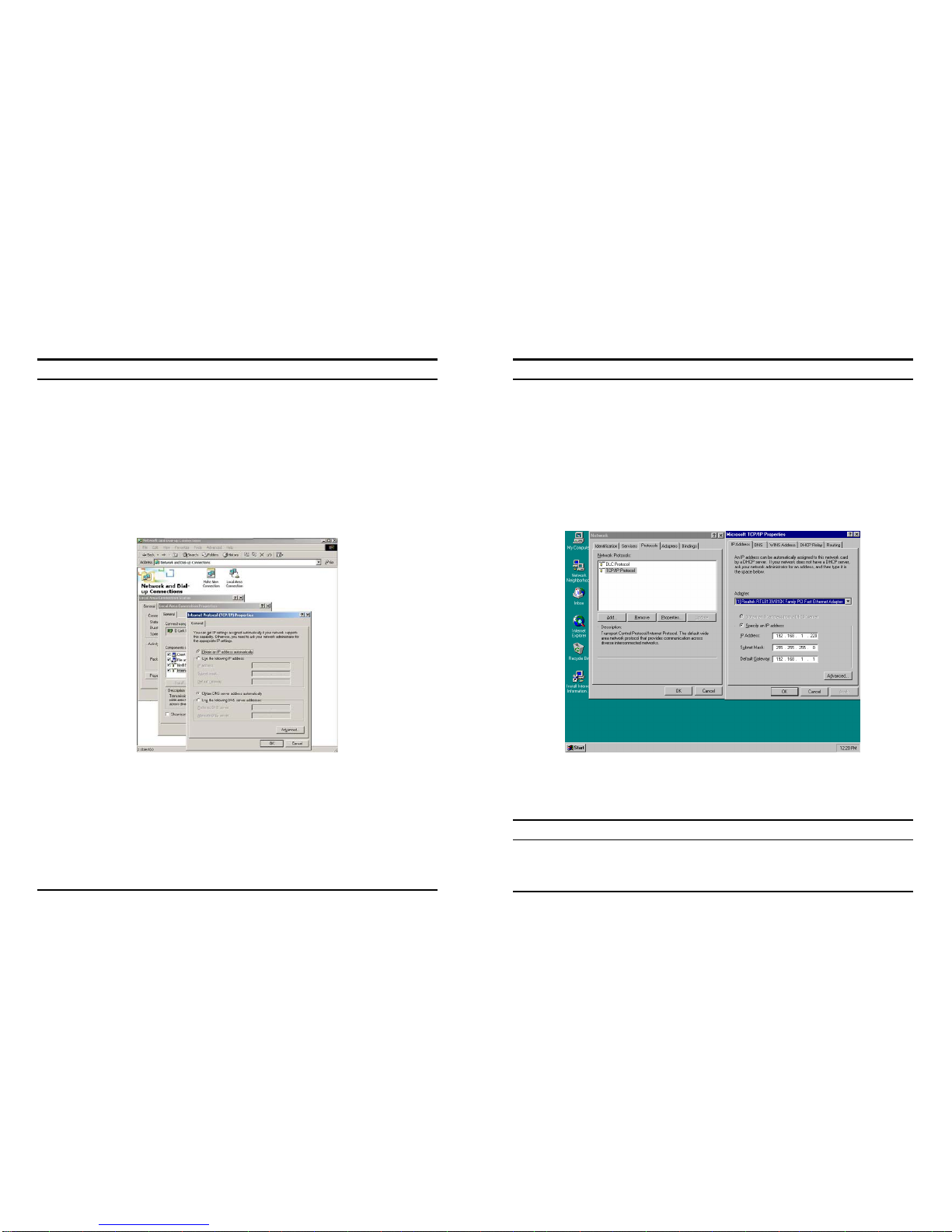

Windows 2000

Double-click the “My computer” icon on the desktop. When the “My

computer” window opens, open the “Control panel” and then open the

“Network dialup connection” applet. Double click on the “Local area

network connection” icon. Select “Properties” to enter the TCP/IP setting

window.

1. In the “Local area network status” window, click “Properties.”

2. In the “Local area network connection” window, select TCP/IP

settings, then select “Properties.”

3. Set both “IP address” and “DNS” to Automatic configuration.

Windows NT4.0

Click on the “Start” button located on the lower left corner of the menu

bar.

Select “Settings” and then “Control panel.”

In the “Control panel” window, select “Network” to enter the TCP/IP

settings window.

1. Set “IP address” to “Obtain an IP address automatically.”

2. Set “DNS” to “Disable DNS.”

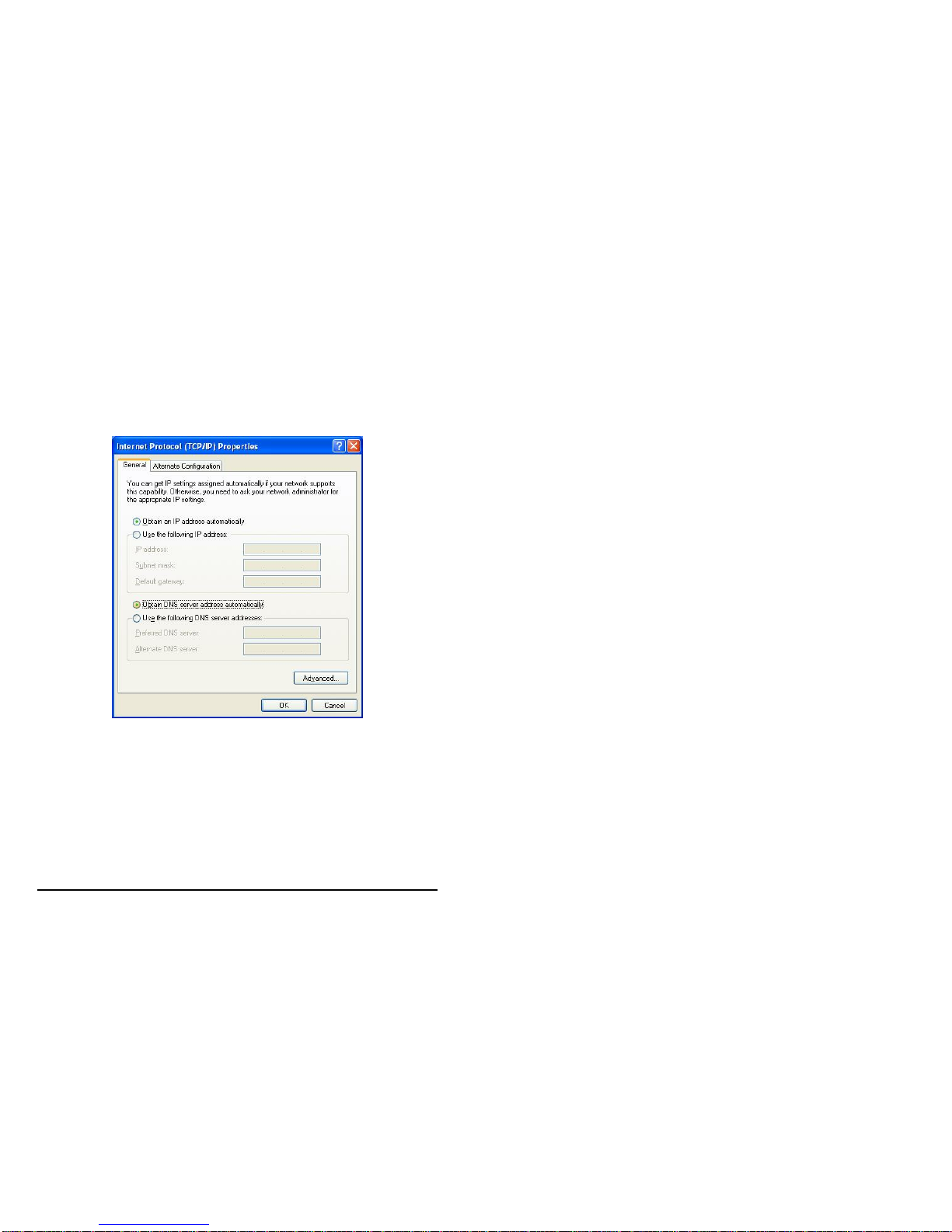

Windows XP

Right-click the “My Network Places” icon.

Select “properties” to enter the TCP/IP setting window.

1. Set “IP address” to “Obtain an IP address automatically.”

2. Set “DNS” to “Obtain DNS server address automatically.”

Altri manuali per TW100-S4W1CA

Indice

Altri manuali TRENDnet Router wireless

TRENDnet

TRENDnet TEW-654TR - 300Mbps Wireless N Travel Router Manuale utente

TRENDnet

TRENDnet TEW-752DRU Manuale utente

TRENDnet

TRENDnet TEW-713RE Manuale utente

TRENDnet

TRENDnet TEW-432BRP - Wireless Router Manuale utente

TRENDnet

TRENDnet TEW-633GR - Wireless Router Manuale utente

TRENDnet

TRENDnet TEW-659BRV Manuale utente

TRENDnet

TRENDnet TEW-715APO Manuale utente

TRENDnet

TRENDnet TEW 632BRP - Wireless Router Manuale utente

TRENDnet

TRENDnet TEW-737HRE Manuale utente

TRENDnet

TRENDnet TEW-715APO Manuale utente

TRENDnet

TRENDnet TEW-432BRP - Wireless Router Manuale utente

TRENDnet

TRENDnet TEW-652BRU Manuale utente

TRENDnet

TRENDnet TEW-805UB Manuale utente

TRENDnet

TRENDnet TEW-732BR Manuale utente

TRENDnet

TRENDnet TEW-637AP - 300Mbps Wireless Easy-N-Upgrader Manuale utente

TRENDnet

TRENDnet TEW-652BRP Manuale utente

TRENDnet

TRENDnet TEW-637AP - 300Mbps Wireless Easy-N-Upgrader Manuale utente

TRENDnet

TRENDnet TEW-654TR - 300Mbps Wireless N Travel Router Manuale utente

TRENDnet

TRENDnet TEW-690AP Manuale utente

TRENDnet

TRENDnet TEW-673GRU Manuale utente

TRENDnet

TRENDnet TEW-432BRP - Wireless Router Manuale utente

TRENDnet

TRENDnet TW100-S4W1CA Manuale utente

TRENDnet

TRENDnet TEW-726EC Manuale utente

TRENDnet

TRENDnet TEW-817DTR Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
