Triad PDX Series Manuale utente

PDX Series

Architectural Speakers

Install Guide

Message From Triad

Thank you for purchasing a Triad loudspeaker. We design and engineer each

loudspeaker with pride in the United States of America with the utmost attention

to quality, décor-friendly design, and high-performance sound—eliminating costly

frills and features that add nothing to sound quality. We trust that you will hear the

beneﬁts of this engineering each time you play them.

Thanks again, and happy listening.

Setup

New Construction Install

Triad speaker installations can be simpliﬁed by using Triad new construction

brackets (sold separately). Install them prior to drywall to allow for precise

placement of the speaker.

Secure the wiring within reach of the bracket for easy access.

Existing Construction Install

Make a cutout for the speaker using the supplied template. Allow space for the

bezel if installing near adjacent objects, or cut the hole in two steps as shown

below.

Obstruction

Plug

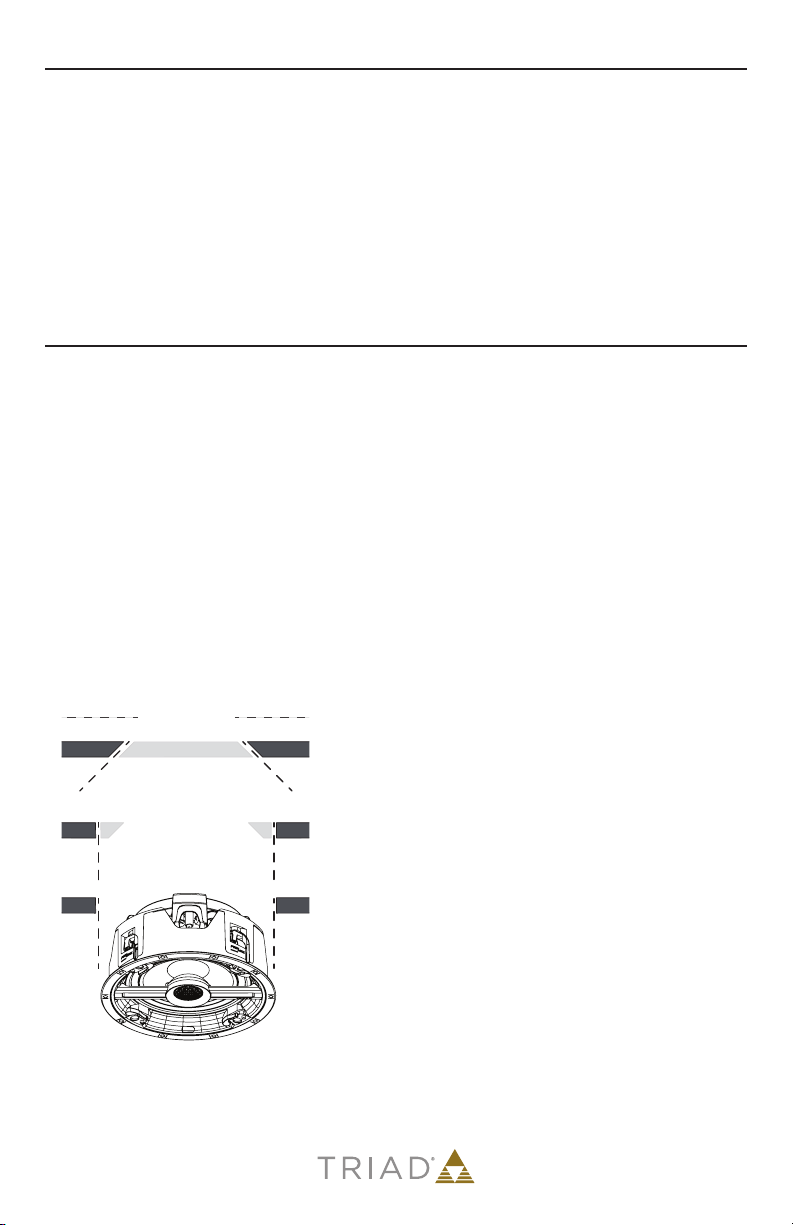

1. Cut the drywall at a 45° angle so

that if the speaker is too close to an

obstruction, you can easily ‘plug’ the

hole.

2. If there are no obstructions, cut the

drywall again, this time at a 90° angle.

3. Insert the speaker into the cutout.

Cutout Dimensions

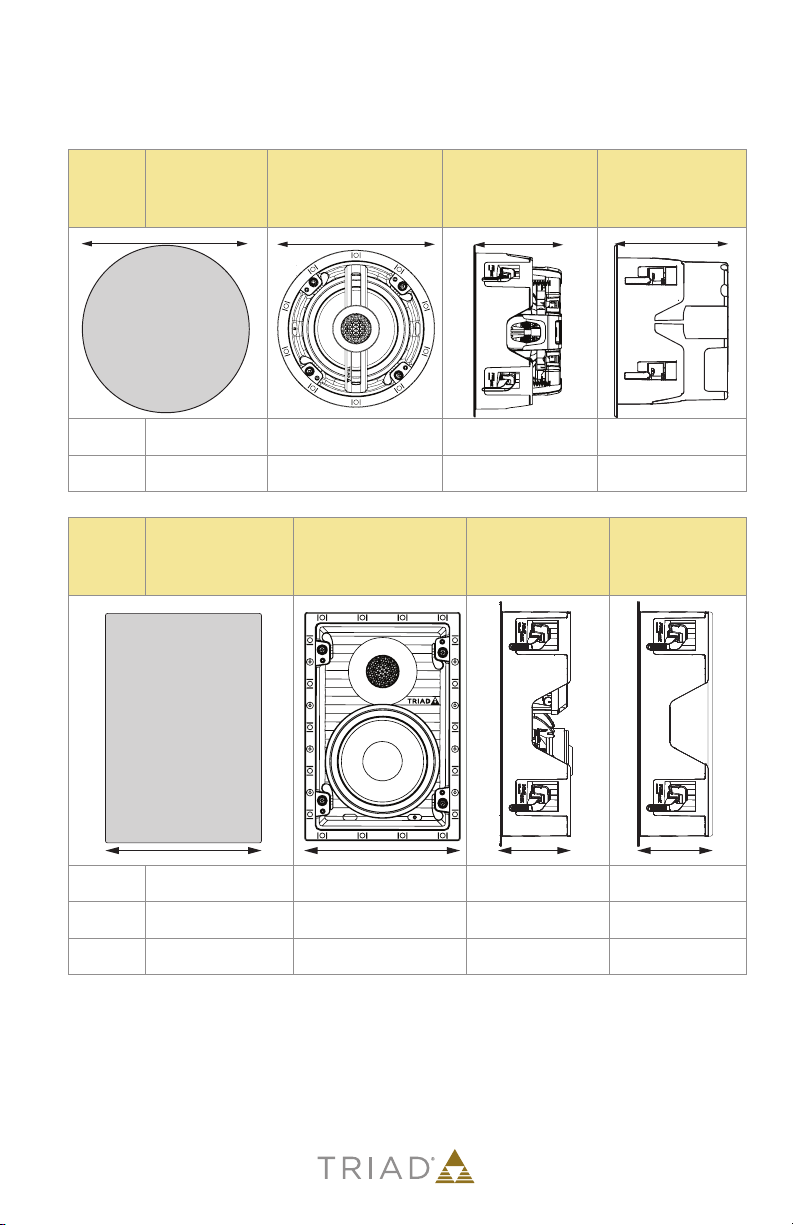

Refer to the chart below to verify the correct dimensions prior to cutting drywall.

Model Finished

Dimension Cutout Dimension

Mounting

Depth Without

Enclosure

Mounting

Depth With

Enclosure

IC-6* 9.26"8.3"4.97"6.2"

IC-8 10.64"* 9.7" 5.2" 6.6"

Model Finished

Dimension Cutout Dimension

Mounting

Depth Without

Enclosure

Mounting

Depth With

Enclosure

IW-6 12.6"× 8.56"11.7 × 7.6 3.6"3.8"

IW-8 14.67"× 9.97"13.7"× 9.0"3.8"3.8"

LCR 15.32"× 8.56"14.4"× 7.6"3.6"3.8"

Connect

Strip the insulation on each conductor approximately ¼"and

insert into the speaker terminals. Ensure no strands of wire

protrude from the connectors.

Observe proper polarity for each speaker to the ampliﬁer (+ to +

and – to – ).

Dual Voice Coil / Surround (DTS) Selector Switch (Select Models)

There are two options for DTS (Dual Voice Coil / Surround) models, selected by the

selector switch on the network tray cover: DVC (default) and SURR.

Visit https://tech.control4.com/s/contactsupport or contact customer support for

help with impedance, system design ideas, or wiring recommendations.

Secure

Engage

Insert the speaker or cradle into

the opening and press the grey

button at each of the PushLock

dog locations to engage the

spring-loaded dog mechanism

and secure the speaker in

place. This frees up your hands

so that you may tighten the

dogs safely.

R Input / SURR

L Input

Amp

R Input / SURR

L Input

Amp

R Input / SURR

L Input

Amp

Single Voice Coil

For DVC installs, wire the left channel

to either of the two connections and

wire the right channel to the other.

For surround installs, wire the

surround channel to R Input / SURR.

Caution: Do not use stereo inputs

while in surround mode.

Tighten

While the speaker can be installed without

tightening, the PushLock dog system allows

the speaker to be cinched tight to the

surface up to 6mm.

Secure the PushLock by tightening the screw

on the front of the speaker. Only tighten the

PushLock dog when it is fully seated.

Disengage and Remove

1. Apply inward pressure on the screw of the

PushLock from the front of the speaker and the

PushLock dog should retract.

Pro Tip: The PushLock may require additional pressure inward while

moving the screw driver back and forth to release.

2. Once the PushLock is retracted, turn the screws

counter clockwise to lock the dog back in the

parked position.

Note: If the PushLock was tightened, the screw continues to spin counter-

clockwise until it is completely loose and the dog rotates into the

parked position.

Back Box and Grille Installation with Cradle

The Triad cradle allows for optional installs with Triad back boxes

and grilles. Both of these options can be done with or without the

speaker installed in the cradle.

The Triad cradle allows for quick, tool-free installation, when

mounted to the back box.

Caution: There is a grey protective plug on the quick

connection on the back of the speaker. Remove

this prior to install.

The installed Triad cradle allows for all respective Triad grilles

to magnetically secure over the speaker opening. All Triad PDX

speakers and cradles include protective covers. Grilles can be

placed over the protective covers or removed at any point prior

to installing the grille. Protective covers should be removed

prior to playing the speaker.

Inserting and Removing the Speaker from the Cradle

Triad PDX speakers can be installed as a one or two piece system, but are shipped

as a single, assembled unit for easy one-step installs. If needed, the speaker can be

separated from the cradle before the install.

To remove the speaker from the cradle, rotate the grey levers counterclockwise and

pull the speaker out by the levers.

To insert a speaker in the cradle, push the speaker in using the rim of the speaker to

apply pressure, then rotate the grey levers clockwise.

Fine Tuning

Adjust the Tweeter

Remove the protective cover before playing the speaker. The protective cover is in

place to protect the speaker from paint and dust during the install process.

Pivot the tweeter to direct sound where you prefer.

Adjust the Sound

Use the treble/bass switches on the

face of the speaker to adjust the sound

+2dB or -2dB. Switches may vary by

model.

In furnished or overly damped rooms,

it is recommended to set the treble/

bass switch to +to increase response by

+2dB.

In more open spaces, it is recommended

to set to -to decrease response by -2dB.

Sound / Dual Voice Coil Switch (DTS Models Only): Select SURR or DVC on the rear

of the speaker.

DTS models can be conﬁgured as a Surround speaker or DVC (Dual Voice Coil

Speaker). To use as a Surround speaker set the switch to SURR and to use as a DVC

Speaker set the switch to DVC.

Dialogue Enhancement Switch (LCR Only): Select on or o on the face of the

speaker.

Select on for enhanced dialogue and clear speech.

Technical Support

For chat and telephone, visit https://tech.control4.com/s/contactsupport

• Email: Service@TriadSpeakers.com

Visit tech.control4.com/technician for discussions, instructional videos, news, and more.

Warranty and Legal Notices

Find details of the product’s Limited Warranty and other resources such as regulatory notices and patent

and safety information, at snapone.com/legal or request a paper copy from Customer Service at

866.424.4489.

trademarks or trademarks of Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the

United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, and Triad are

also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as

the property of their respective owners. Snap One makes no claim that the information contained herein

covers all installation scenarios and contingencies, or product use risks. Information within this speciﬁcation

subject to change without notice.

220124

Part # 200-00757X1
