SETTING UP G10 COMMUNICATOR WITH PROTEGUS
Note: The G10 communicator will be delivered with preset parameters to operate with PROTEGUS
1. Connect G10 communicator to security control panel
1.1. Disconnect the security control panel from power supply.
1.2. Using one of the wiring diagrams below connect the G10 communicator to control panel.
1.3. (Optional) if you want to remotely arm/disarm system:
1.3.1. Connect G10 output to the panel's keyswitch zone input (one wire, no resistors).
1.3.2. Program alarm panel`s zone as momentary keyswitch zone (see security control panel`s programming
manual).
1.4. Connect the security control panel to a power supply.
Note: You can find more information on how to connect and program G10 series communicators here:
http://www.trikdis.com/en/products/alarm-transmitting-devices/gsm-gprs/gsm-communicator-g10
1.1. Wiring diagrams
PARADOX®
GE® CADDX
PYRONIX®
Wiring diagram to DSC®Power Series control panels:
PC1616, PC1832, PC1864 PC585, PC1565, PC5020.
Wiring diagram to Pyronix®Matrix Series control
panels: MATRIX 424, MATRIX 832, MATRIX 832+,
MATRIX 6, MATRIX 816
Wiring diagram to GE®Caddx control panels: NX-8, NX-
8v2
Wiring diagram to Paradox®security control panels:
SPECTRA SP5500, SP6000, SP7000, 1727, 1728, 1738;
MAGELLAN MG5000, MG5050;
DIGIPLEX EVO48, EVO192, EVO96, NE96, EVOHD;
ESPRIT E55, 728ULT, 738ULT.
DSC®
www.PROTEGUS.eu
The following settings have to be programmed for Caddx control panels:
In order for communicator G10 to work with Caddx security control panels NX-4v2, NX-6v2, NX-8v2, NX-8e, control panels`
locations 23 and 37 must be set as shown in the table below. When there are more than one partition in NX-8v2, NX-8e, also
program locations 90, 93, 99, 102, 105, 108.
To enter program mode by default:
1. Press [*8 9713] and enter device number (by default 0).
2. Using control panel`s installation manual, set locations and features of segment.
If you want to select all eight features of a segment, press 1, 2, 3, 4, 5, 6, 7, 8. Symbol * shows that feature is turned off.
Location
Segment
Features of segment
23
3
12345678
37 (optional, system events)
3
12345678
4
1234567*
90
3
12345678
93
3
12345678
99
3
12345678
102
3
12345678
105
3
12345678
108
3
12345678

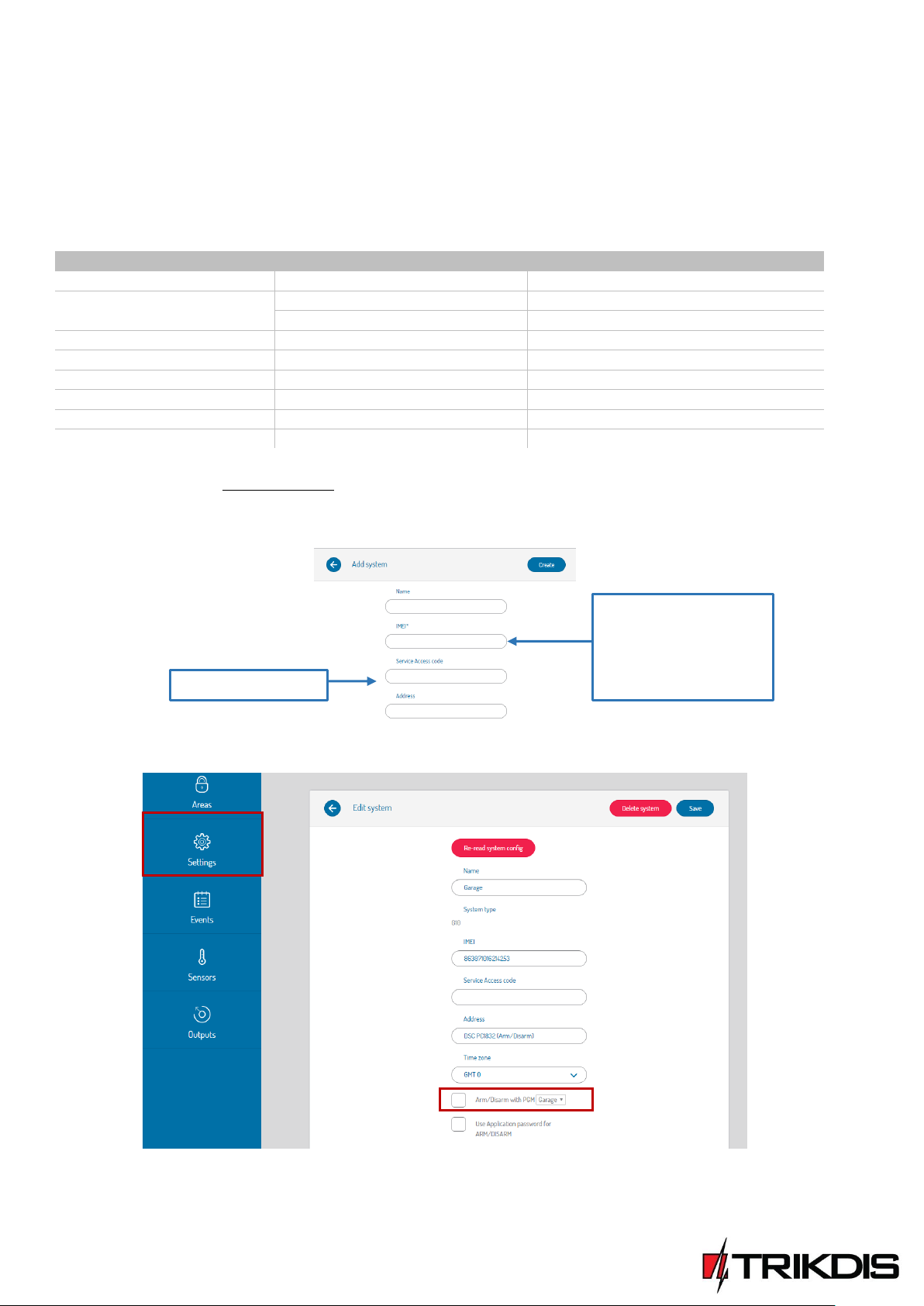

2. Register G10 communicator in Protegus service
2.1. Log in or sign in to www.protegus.eu.
2.2. Add the system to Protegus: press “Select system”; next “Add new system +”, and enter the required data as shown
below (you can skip fields “Name”, “Address” and fill it later).
2.3. If you will use remote arm/disarm feature, in Protegus main window, choose “Settings” tab and then tick the
checkbox: “Arm/Disarm with PGM”.
Enter IMEI (it can be found:
on packing box;
back of communicator`s
housing;
in G10config status bar).
Leave this field empty.
