TRINITY Pro TLSF-7211 Manuale utente
OWNER’S MANUAL
Important / Important / Importante
DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA
Directives intelligentes
Instrucciones Inteligentes
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
TRINITY PRO 72” STAINLESS STEEL ROLLING
WORKBENCH W/ ADJUSTABLE TOP
Model # TLSF-7211
Your TRINITY PRO 72in Stainless Steel Rolling Workbench w/ Adjustable Top should include the following
parts. Please inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online
via our “Contact Us” section at www.trinityii.com.
You will need 14mm wrench for caster assembly which is NOT included.
ABC
CASTER
BOLT (16)
M10
D
LINER (11)
E G H
LOCKING
CASTER (2)
F
NON-LOCKING
CASTER (2)
KEY (4)
WORKBENCH
w/Adjustable top (1)
PARTS LIST
SHELF (1)
CRANK (1)
© 2020 TRINITY - 800.985.5506 1
I
SHELF SUPPORT (4)
ASSEMBLY INSTRUCTIONS
STEP 1
Location of parts:
1) KEYS (H) are hooked to key leash mounted
inside TOP MIDDLE Drawer.
2) LINERS (G) are inside BOTTOM RIGHT Drawer.
3) CASTERS (B/C), CASTER BOLTS (D), SHELF
SUPPORTS (F) and CRANK (I) are boxed inside
BOTTOM LEFT Drawer.
4) SHELF (E) is inside bottom Cabinet.
12
© 2020 TRINITY - 800.985.5506
2
3
4
STEP 2
Lay WORKBENCH (A) on its backside. Lift
workbench by side handles. Do NOT lift
workbench by wood top. Two people are needed.
Do NOT attempt this alone.
Position LOCKING CASTERS (B) on side of
WORKBENCH (A) of your choice and align holes to
pre-installed nuts on underside of WORKBENCH
(A). Use a 14mm socket wrench to fully tighten
CASTER BOLT (D) to WORKBENCH (A).
Repeat above steps to install NON-LOCKING
CASTERS (C).
Notes:
* Make sure to install both LOCKING CASTERS (B)
on same side of workbench.
** For ease of use, place LOCKING CASTERS (B) on
side you will regularly push or pull.
*** If you plan to push workbench against a wall,
place LOCKING CASTERS (B) on front long side for
ease of access.
B
D
C
A
B (2) C (2) D (16) 14mm
ASSEMBLY INSTRUCTIONS
STEP 3
E (1)
Place LINERS (G) inside each drawer and Cabinet.
STEP 4
EF
G (11)
G
© 2020 TRINITY - 800.985.5506 3
F (4)
Carefully lift Workbench upright. Two people
are needed. Do NOT attempt this alone.
SHELF (E) is shipped inside the bottom cabinet.
Tilt SHELF (E) diagonally and remove it from
cabinet.
Attach SHELF SUPPORT (F) by hooking it over
position tab at desired height. Make sure all
four SHELF SUPPORTS (F) are at same level. Tilt
SHELF (E) diagonally to move it inside cabinet.
Place SHELF (E) on top of all four SHELF
SUPPORTS (F).
You can adjust shelf height position by
removing shelf, re-locating shelf supports and
replacing shelf.
Position Tab

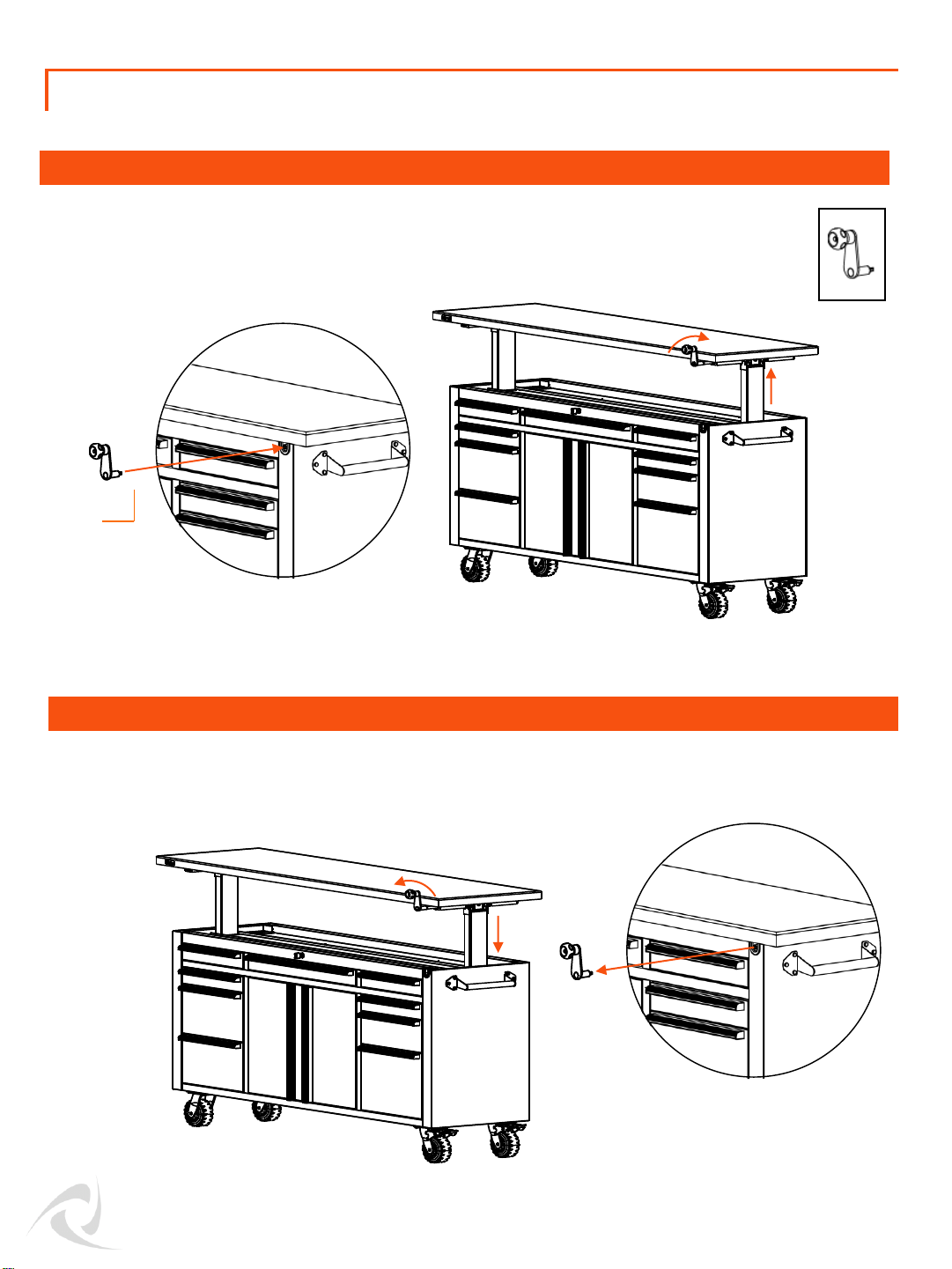

USAGE INSTRUCTIONS
I (1)
I
4
RAISE WOOD TOP
LOWER WOOD TOP
© 2020 TRINITY - 800.985.5506
Insert CRANK (I) into receiver on Workbench. Turn
CRANK (I) clockwise to raise wood top. Remove
CRANK (I) and store inside drawer after wood top is
raised to desired position.
Turn CRANK (I) counterclockwise to lower wood top.
Remove CRANK (I) and store inside drawer after
wood top is lowered to desired position.
USAGE INSTRUCTIONS
DRAWER REMOVAL
DRAWER REPLACEMENT
Pull drawer out so that it is almost fully extended. On RIGHT-hand side, push black release lever DOWN.
On LEFT-hand side, pull black release lever UP. While holding levers as instructed, pull drawer forward
until released from slides attached to Workbench (“Workbench Slides”).
Note: Slides attached to drawer (“Drawer Slides”) are an integral part of drawer and must be removed
along with drawer itself.
To replace drawer, pull slides out completely. Insert brackets on each side of Drawer Slides into
corresponding slots on Workbench Slides, making sure they are properly positioned. Once brackets are
inserted into slots, completely close drawer to set all slides in their proper positions.
© 2020 TRINITY - 800.985.5506 5

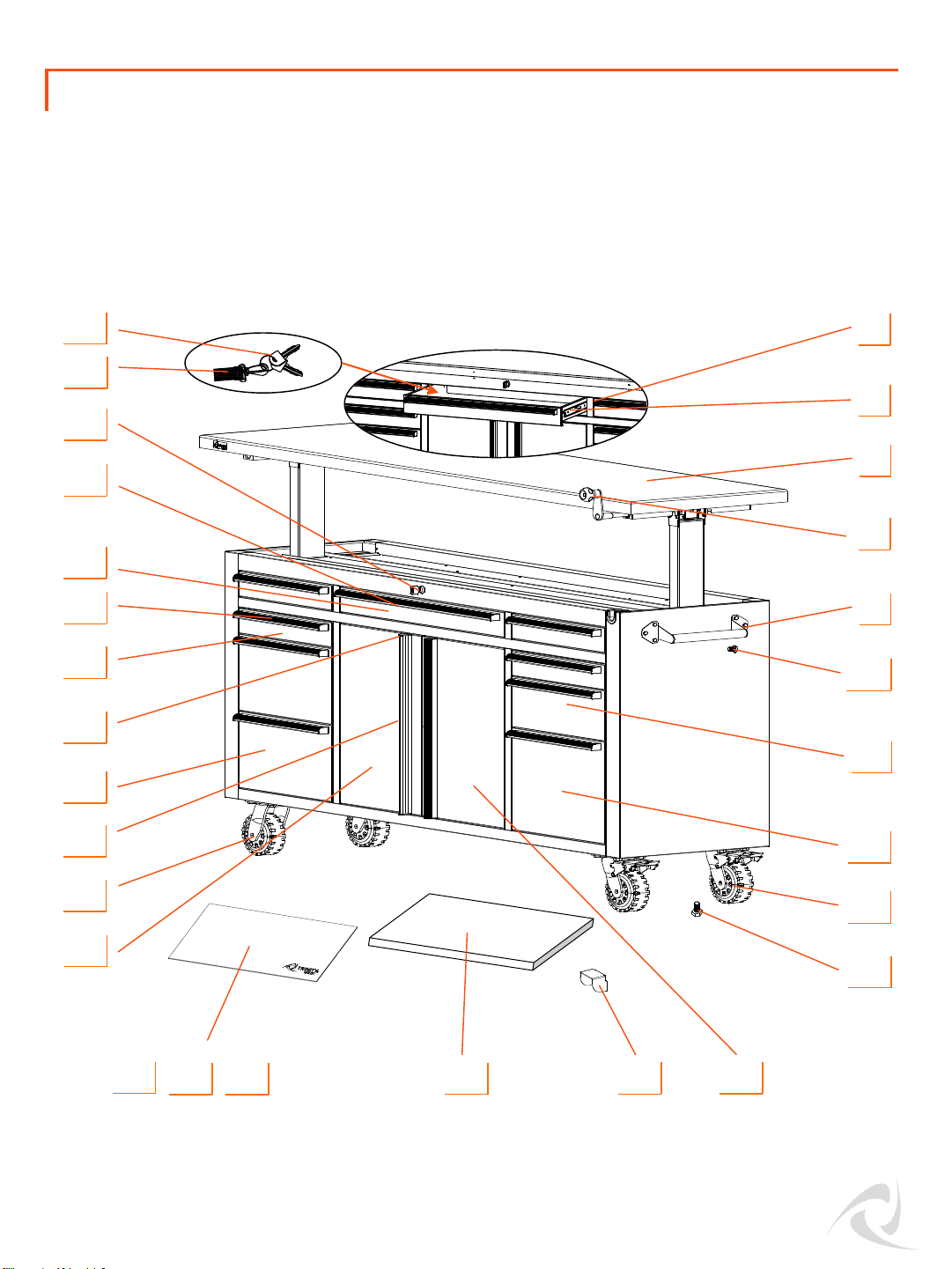

SERVICE PARTS LIST –TLSF-7211
Part Number Description Part Number Description
1) ZSV-12-015-1575 Slide (workbench side) 15) XBK-22-006-2615 27” Drawer Liner
2) ZSV-12-001-1575 Slide (drawer side) 16) XBK-22-006-1727 Shelf Liner
3) LNA-06-016-7219 Wood Top 17) XBS-08-017-1421 Right Door
4) XSV-05-029-0001 Crank 18) ZSV-99-028-5020 Non-locking Caster
5) XSV-05-001-0900 Side Handle 19) AMA-05-007-3000 Door Handle
6) ZSV-01-001-0612 Handle Bolt 20) XBS-07-009-1509 15” 2nd Medium Drawer
7) XBS-07-009-1506 15” 1st Medium Drawer 21) XBK-23-010-3012 End cap
8) XBS-07-009-1512 15” Large Drawer 22) XBS-07-009-1503 15” Small Drawer
9) ZSV-99-027-5020 Locking Caster 23) AMA-05-007-1400 15” Drawer Handle
10) ZSV-01-001-1020 Caster Bolt 24) XBS-07-009-2703 27” Drawer
11) XBS-08-016-1421 Right Door 25) AMA-05-007-2600 27” Drawer Handle
12) XSV-02-017-0001 Shelf Support 26) CSV-11-005-0XXX Lock
13) PBK-03-084-2615 Shelf 27) XBK-02-047-0001 Key leash
14) XBK-22-006-1415 15” Drawer Liner 28) XBK-10-003-0XXX Key
TRINITY Customer Service provides the following replacement parts:
© 2020 TRINITY - 800.985.5506
6
2
3
5
15
18
8
20 7
4
1
6
9
12
19
10
11
14
21
23
22
SERVICE PARTS LIST –TLSF-7211
13
24
25
26
7
28
27
TRINITY Customer Service provides the following replacement parts:
NOTE: Replacement keys may be ordered using the code shown on the face of the lock.
© 2020 TRINITY - 800.985.5506
16
17
WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in
injury and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of their
environment and ensure that they use the product in a safe and responsible manner.
3. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product.
4. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a
damaged part.
5. Do NOT overload the product. Below capacity is based on evenly distributed weight.
6. Lock the casters when leaving workbench in stationary position.
7. Lock the drawers and cabinet before moving the workbench.
8. Remove all items from wood top and lower the wood top before moving the workbench.
9. Always move workbench with two people. Roll slowly and constantly check surroundings
to ensure enough clearance. Heavy weight workbench can be hard to stop if moving too
fast, causing serious injury or damage.
10. Do NOT open more than one drawer at a time. Tipping can occur.
11. Do NOT step or lean on open drawers. Tipping can occur.
12. Do NOT lift workbench by wood top. Wood top may separate causing injury.
13. Do NOT hang on the wood top. Tipping can occur
14. Be careful of areas under the wood top when it is being lowered. Lower slowly and stop
immediately if sensing resistance. Crushing of items or body parts can occur.
Weight capacity per drawer w/ 1 pair of slides 45.4 kg / 100 lb
Weight capacity per drawer w/ 2 pairs of slides 90.7 kg / 200 lb
Weight capacity of wood top when raised 136.1 kg / 300 lb
Total weight capacity of workbench when wood top lowered 997.9 kg / 2200 lb
8© 2020 TRINITY - 800.985.5506
