Tripp Lite U442-DOCK16-B Manuale utente
1
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR surge protector in our monthly drawing!
tripplite.com/warranty
Owner’s Manual
USB-C™Triple Display
Docking Station
4K HDMI & Mini DP, VGA, GbE, 60W PD 3.0
Model: U442-DOCK16-B
USB Type-C and USB-C are trademarks of USB Implementers Forum
Español 13 • Français 24 • Русский 35
2
Product Features
• Multi-Stream Transport (MST) lets you connect up to three
displays simultaneously and extend across all displays (up to
three)
• Supports HDMI and DisplayPort video resolutions up to
4096 x 2160 @ 30 Hz
• Supports VGA video resolutions up to 1920 x 1080 @ 60 Hz
• Ethernet port supports true 10/100/1000 Mbps network
speeds
• USB-C PD/Data port supports power input up to 20V/3A (60W
PD 3.0) and data transfer rates up to 5 Gbps
• Built-in USB-C cable stores safely and conveniently underneath
the unit
• Plug-and-play design – no external power or drives are needed
3
Optional Accessories
Package Includes
• N201-Series Cat6 Gigabit Snagless Patch Cables
• P502-Series High Resolution VGA Cables
• P569-Series High Speed HDMI Cables
• U322-Series USB 3.0 A/B Device Cables
• U428-Series USB 3.1 Gen 1 A/C Cables
• U420-Series USB 3.1 Gen 1 Type-C Cable
• P584-Series Mini DisplayPort Cables
• U442-DOCK16-B
• Owner’s Manual
4

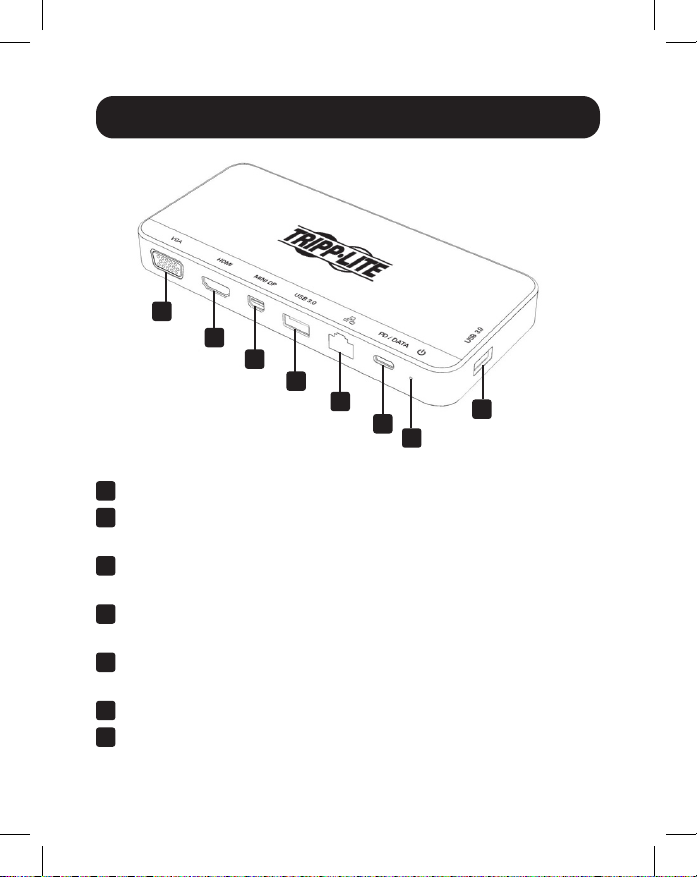

Product Overview
1USB 3.0 Type-A: Supports data transfer rates up to 5 Gbps
2USB 3.1 Gen1 Type-C: Supports PD 3.0 charging up to 60W
(20V/3A) and data transfer speeds up to 5 Gbps
3Mini DisplayPort: Supports video resolutions up to 4K x 2K
(4096 x 2160) @ 30 Hz
4HDMI: Supports video resolutions up to 4K x 2K
(4096 x 2160) @ 30 Hz
5VGA: Supports video resolutions up to 1920 x 1080 @
60 HZ
6RJ45: Provides 10/100/1000 Mbps Ethernet speeds
7LED: Illuminates white to indicate power
1
1
4
3
6
5
7
2
5
Installation
1. Pull out the self-storing cable beneath the docking station and
connect it to a laptop, tablet or any other USB-C compatible
device.
2. Connect an HDMI-compliant display to the docking station
with a user-supplied HDMI cable, such as Tripp Lite’s P569-
Series (sold separately).
3. Repeat Step 2 for the Mini DisplayPort and VGA ports
compatible user-supplied cables.
Note: The following Table depicts the maximum resolution achieved on
each video port based on the connected displays.
• Mac sources allow only one monitor to be extended while the other
one or two displays will always be mirrored
• Windows sources allow you to extend across all three screens.
• Only one 4K display @ 30 Hz can be extended in an application.
If both HDMI and Mini DisplayPort are being extended, the HDMI
resolution will automatically drop to 1080p.
Windows Source
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3
(4K @ 30 Hz)
1
(4K @ 30 Hz) *2
(4K @ 30 Hz)
3
(4K @ 30 Hz)
No image 1
(1080p @ 60 Hz)
2
(4K @ 30 Hz)
3
(4K @ 30 Hz)
* = Port not in use
6
Installation
Mac Source
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3
(4K @ 30 Hz)
1
(4K @ 30 Hz) *2
(4K @ 30 Hz)
3
(4K @ 30 Hz)
1
(1080p @ 60 Hz)
2
(1080p @ 60 Hz)
3
(1080p @ 60 Hz)
4
(1080p @ 60 Hz)
* = Port not in use
4. Connect Ethernet through the RJ45 port to achieve speeds up
to 10/100/1000 Mbps.
5. Connect up to two USB 3.0 peripherals or devices.
6. Charge your source, up to 60W, using the available USB-C
port or transfer data up to 5 Gbps.
7
Specifications
Input Connector
USB USB Type-C (x1)
Output Connectors
USB USB 3.0 Type-A (x2)
USB-C Data/Charge (x1)
USB-A
Ethernet RJ45
Video HDMI
Mini DisplayPort
VGA
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Relative Humidity 10% to 90% RH,
Non-Condensing
Physical
Unit Dimensions 6.5 x 3 x 0.81 in.
(165 x 75 x 20.5 mm)
Unit Weight 0.33 lb. (0.15 kg)
8
Specifications
Specifications
HDMI Specification 1.4
HDCP Specification 1.4
DisplayPort Specification 1.2
Max. Supported
Video Resolutions
HDMI (4096 x 2160 @ 30 Hz)
Mini DisplayPort
(4096 x 2160 @ 30 Hz)
VGA (1920 x 1200 @ 60 Hz)
Network Speed 10/100/1000 Mbps or 1 Gbps
Supported Color Depth (HDMI)
36 bit (12 bits per channel)
Chroma Subsampling (HDMI) YCbCr: 4:4:4, 4:2:2, 4:2:0
PD Charging Specification PD 3.0 (60W)
9
Troubleshooting
Why am I not able to display resolutions of 4096 x 2160 @
30 Hz?
A. Click [Display Setting] > [Advanced Display Settings], then
choose the desired resolution manually.
B. Ensure the device, display and cable all support 4096 x 2160
@ 30 Hz HD.
Why does my PD charging time vary?
The upstream device (laptop) will auto-adjust the power input
based on the battery level at that current time.
Why won’t my HDMI, Mini DisplayPort and VGA displays
show different screens?
Most MacBook laptops do not support MST, allowing you to
extend only one screen and mirror the other.
10
Warranty and
Product Registration
3-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in materials
and workmanship for a period of three (3) years from the date of
initial purchase. Tripp Lite’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite
service center. Products must be returned to Tripp Lite or an authorized
Tripp Lite service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit
limitation or exclusion of implied warranties; therefore, the aforesaid
limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp
Lite is not liable for any costs, such as lost profits or revenue, loss of
equipment, loss of use of equipment, loss of software, loss of data, costs
of substitutes, claims by third parties, or otherwise.
