Switched Rack PDU

• 208/230V, 50/60Hz AC Input and Output

Important Safety Instructions 2

Installation 2

Features 8

Technical Support 11

1111 W. 35th Street • Chicago, IL 60609 USA

(773) 869-1234 • www.tripplite.com

Configuration and Operation 10

Warranty and Warranty Registration 11

Español 12

Français 23

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 1

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be

followed during the installation, operation, and storage of this product.

Failure to heed these instructions and warnings will void the product

warranty.

Important Safety Instructions

• The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise

protection for connected equipment.

• The PDU is designed for indoor use only in a controlled environment away from excess moisture,

temperature extremes, conductive contaminants, dust or direct sunlight.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate

the connection to ground.

• The power requirement for each piece of equipment connected to the PDU must not exceed the

individual outlet’s load rating.

• The total power requirement for equipment connected to the PDU must not exceed the maximum

load rating for the PDU.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to modify the PDU, including the input plugs and power cables.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Never attempt to install electrical equipment during a thunderstorm.

• Use of this equipment in life support applications where failure of this equipment can reasonably

be expected to cause the failure of the life support equipment or to significantly affect its safety or

effectiveness is not recommended. Do not use this equipment in the presence of a flammable

anesthetic mixture with air, oxygen or nitrous oxide.

1-1 C

Installation

Mounting the PDU

The PDU supports five primary mounting configurations: 1U Rack, 0U Rack (Vertical), Wall, Under-

Counter and Reduced-Depth.

Note: Regardless of configuration, the user must determine the fitness of hardware and procedures before mounting. The PDU and

included hardware are designed for common rack and rack enclosure types and may not be appropriate for all applications. Exact

mounting configurations may vary. Screws for attaching the mounting brackets and cord retention shelf to the PDU are included. Use

only the screws supplied by the manufacturer, or their exact equivalent (#6-32, ¼" flat head).

1-1 1U Rack Mounting: Use 4 screws to

attach each of the 2 longer mounting brackets

to the PDU as shown. You can mount the PDU

in a recessed position by attaching the mounting

brackets so they extend beyond the front panel

of the PDU. (If you plan to use the cord

retention shelf, attach the mounting brackets in a

recessed position.) Mount the PDU in the rack

by inserting 4 user-supplied screws through

the mounting brackets and into the mounting

holes of the rack rails.

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 2

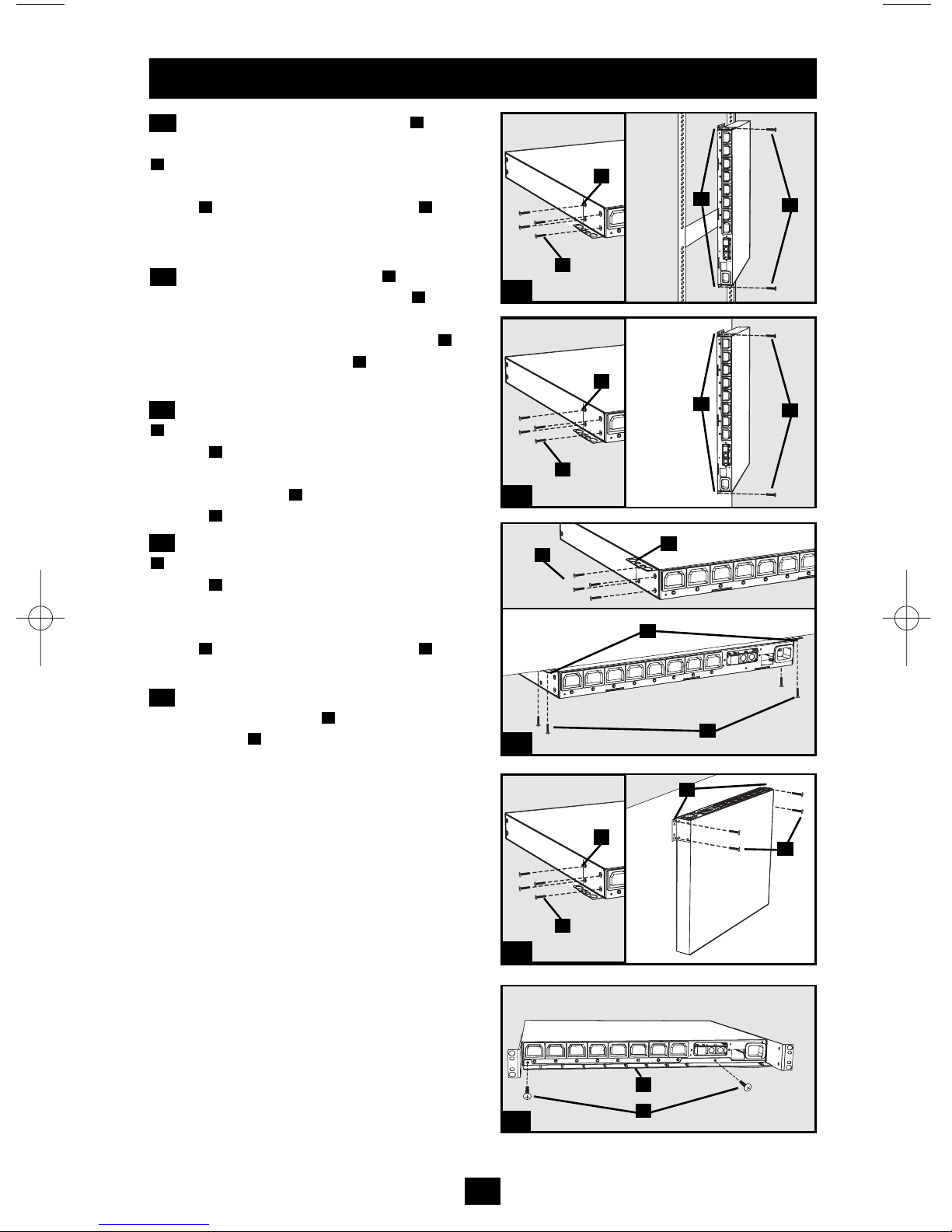

1-2 0U Rack Mounting: Use 4 screws to

attach each of the 2 shorter mounting brackets

to the PDU as shown. Mount the PDU

vertically by inserting 2 or more user-supplied

screws through the mounting brackets

and into mounting points in the rack or rack

enclosure.

1-3 Wall Mounting: Use 4 screws to attach

each of the 2 shorter mounting brackets to

the PDU as shown. Mount the PDU to the wall

by inserting 2 or more user-supplied screws

through the mounting brackets and into

secure mounting points.

1-4 Under-Counter Mounting: Use 4 screws

to attach each of the 2 shorter mounting

brackets to the PDU as shown. Mount the

PDU under the counter by inserting 2 or more

user-supplied screws through the mounting

brackets and into secure mounting points.

1-5 Reduced-Depth Mounting: Use 4 screws

to attach each of the 2 shorter mounting

brackets to the PDU as shown. Mount the

PDU to a stable surface with the outlets facing

upward by inserting 2 or more user-supplied

screws through the mounting brackets and

into secure mounting points.

1-6 Cord Retention Shelf Attachment

(Optional): Use 2 screws to attach the cord

retention shelf to the front panel of the PDU.

1-2

Installation

continued

1-3

1-4 C

1-6

1-5

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 3

Connecting the PDU

2-1 NEMA Adapter Connection (Optional -

PDUMH20HVNET Only): The

PDUMH20HVNET includes a plug adapter that

adds a NEMA L6-20P plug to the input power

cord. Use this adapter only if you will be

connecting the PDUMH20HVNET to a NEMA

L6-20R outlet. Insert the IEC 60320 C19

connector of the adapter into the IEC 60320

C20 connector of the input power cord.

Secure the connection with the retention

bracket by using the included bolts to fasten

the two halves of the bracket around the

connection as shown. Caution: To avoid the

risk of electric shock, ensure that the Neutral

(L2) conductor has been identified before

connecting the PDU.

2-2 Input Power Cord Connection: Insert the

IEC 60320 C19 (PDUMH20HVNET) or IEC

60320 C13 (PDUMH15HVNET) connector

of the input power cord into the IEC 60320 C20

(PDUMH20HVNET) or IEC 60320 C14

(PDUMH15HVNET) inlet of the PDU.

Connect the other end of the input power cord

to a compatible source of AC power, such as

a UPS system, PDU or utility outlet. The PDU

should be provided with over-current

protection: PDUMH20HVNET should be

provided with a maximum 20A branch-rated

over-current protection device;

PDUMH15HVNET should be provided with a

maximum 15A branch-rated over-current

protection device.

Note: The AC power source should not share a circuit with a

heavy electrical load (such as an air conditioner or

refrigerator).

2-3 Equipment Power Cord Connection:

Insert the IEC 60320 C14 connectors of the

equipment power cords into the IEC 60320 C13

output receptacles of the PDU. The LED

near each output receptacle illuminates when

the receptacle is ready to distribute live AC

power. The digital load meter will display

the total connected equipment load in amps.

2-4 Cord Retention (Optional): If you

attached the cord retention shelf in step ,

tie the input power cord and each equipment

power cord to the retention shelf. Attach each

cord to the retention shelf by looping the cord

and securing it to an attachment point with one

of the included cable ties. Make sure that each

cord can be unplugged from the PDU without

removing the cable tie.

1-6

Installation

continued

2-1

PDUMH15HVNET

2-2 PDUMH20HVNET

2-3

2-4

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 4

Installation

continued

Networking the PDU

Note: The MAC address of the PDU (a 12-digit string in this format: 000667xxxxxx) is printed on a label attached to the PDU

enclosure. The MAC address is also printed on a label attached to the internal network card.

If your network's DHCP server will assign a dynamic IP address to the PDU automatically, go to Step

. If you will assign a static IP address to the PDU manually, go to Step . If you are uncertain

which method to use, contact your network administrator for assistance before continuing the

installation process.

Dynamic IP Address Assignment

4-1 Connect PDU to Network: While the PDU

is powered, connect a standard Ethernet patch

cable to the RJ-45 Ethernet port on the PDU.

Note: This port is not compatible with PoE

(Power over Ethernet) applications. The PDU

will attempt to obtain an IP address via DHCP.

This may take as long as several minutes,

depending on your network environment.

4-2 Discover IP Address: Contact your network administrator to determine which dynamic IP

address has been assigned to the PDU by the DHCP server. The PDU can be identified on the DHCP

server by referring to its MAC address. (The MAC address is a 12-digit string in this format:

000667xxxxxx. Refer to the MAC address label attached to the PDU.) You may wish to request a

long-term lease period for the IP address, depending on your application. After you have discovered

the IP address, skip Steps through and proceed directly to Step .

Static IP Address Assignment

5-1 Determine IP Information: Before

assigning a static IP address, you'll need to know

the IP address, gateway address and subnet

mask. If you do not have this information,

contact your network administrator for

assistance.

5-2 Configure Terminal Emulation Program:

Open a VT100-compatible terminal emulation

program (such as the HyperTerminal program

bundled with Microsoft®Windows®) on a

computer with an available DB9 serial port. (A

notebook computer may be the most convenient

choice.) Set the terminal emulation program to

use the COM port that corresponds to the

computer’s DB9 serial port. Specify the

parameters required to communicate with the

PDU terminal interface:

Bits per second: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

If the terminal emulation program supports

multiple emulation modes, you may also need

to specify VT100 emulation .

6-15-65-1

5-14-1

4-1

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 5

Installation

continued

Networking the PDU

continued

5-3 Connect PDU to Computer: Use the mini-

DIN to DB9 serial cable (part number 73-1025)

included with the PDU to connect the PDU to

the computer. The circular connector at one

end of the cable attaches to the 8-pin mini-DIN

serial port on the PDU. (Align the connector

carefully to avoid damaging the pins.) The DB9

connector at the other end of the cable

connects to the computer's serial port .

5-4 Connect PDU to Network: While the PDU

is powered, connect a standard Ethernet patch

cable to the RJ-45 Ethernet port on the PDU.

Note: This port is not compatible with PoE (Power over

Ethernet) applications.

5-5 Configure PDU in Terminal Mode: After a

brief pause, an initialization page should appear

in the terminal emulation program. Press any

key on the keyboard within 10 seconds to

change the PDU settings. (If the 10-second

period has elapsed, you can reboot the PDU by

powering down completely and then restoring

power.)

Follow the sequence of responses below in order

to assign an IP address to the PDU. The default

terminal mode root password is TrippLite.

Sample IP settings are shown - supply your own

IP information when you configure your PDU.

Press A to Accept the settings, or M to Modify? M

Enter the root password: *********

Reset configuration to default values (Y/N)? N

For each of the following questions, you can press <Return> to select the value shown in

braces, or you can enter a new value.

NETWORK INTERFACE PARAMETERS:

Should this target obtain IP settings from the network?[N] N

Static IP address [192.168.1.19]? 192.168.0.123

Static IP address is 192.168.0.123

Subnet Mask IP address [255.255.0.0]? 255.255.255.0

Subnet Mask IP address is 255.255.255.0

Gateway address IP address [192.168.1.1]? 192.168.0.1

Gateway address IP address is 192.168.0.1

You can also change the root password, real-time clock and other settings. (Tripp Lite recommends

against changing the default settings unless you are an advanced user with a specific purpose.) After

you have finished entering settings, the PDU will save changes to memory and reboot (this may take

several minutes). After the PDU reboots, the initialization page should display the new static IP

settings.

5-6 Remove Serial Cable: Remove the serial cable from the PDU and proceed to Step .

6-1

5-5

5-3

5-4

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 6

Installation

continued

Networking the PDU

continued

Testing Network Connection

6-1 Access PDU with Web Browser: After an

IP address has been assigned to the PDU,

attempt to access it with a Web browser that

supports frames, forms and Java™. Open a Web

browser on a computer connected to the LAN

and enter the IP address assigned to the PDU.

You should be prompted for a password . The

user name is admin and the default password is

admin. After you enter the user name and

password, the PowerAlert Status page will

appear in the browser window. For more

information about configuration and operation of

the PDU via the PowerAlert interface, refer to

the SNMPWEBCARD User's Guide, included

on the CD-ROM bundled with the PDU.

Note for Network Management System Users Only: Two MIB

files - Tripplite.mib and RFC1628.mib - must be loaded on each

Network Management Station that will monitor the PDU via

SNMP. The files are provided on the CD-ROM included in the

product package.

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 7

Features

AC Input Power Inlet (Model PDUMH15HVNET): The IEC

60320 C14 inlet connects to the detachable AC Input Power Cord.

AC Input Power Inlet (Model PDUMH20HVNET): The IEC

60320 C20 inlet connects to the detachable AC Input Power Cord.

AC Input Power Cord (Model PDUMH15HVNET): The

detachable cord has an IEC 60320 C13 connector and an IEC

60320 C14 connector .

AC Input Power Cord (Model PDUMH20HVNET): The

detachable cord has an IEC 60320 C19 connector and an IEC

60320 C20 connector .

AC Input Adapter (Model PDUMH20HVNET): The adapter

converts the AC input power cord to a NEMA L6-20P plug. The

included retention bracket (not shown) secures the connection.

IEC 60320 C13 Output Receptacles: During normal operation,

the output receptacles distribute AC power to connected

equipment. When an outlet is live, the associated LED

illuminates.

Digital Load Meter (Ammeter): The total electrical current

drawn by connected equipment is displayed on the meter in

amperes.

Cord Retention Shelf: When it is attached to the PDU, the cord

retention shelf provides secure attachment points for the input

cord and connected equipment cords. Use the included cable ties

to secure the cords to the shelf.

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 8

Longer Mounting Brackets: Use these brackets to mount the

PDU horizontally in a standard rack or rack enclosure. The

mounting depth can be adjusted by attaching the brackets to

different positions on the PDU.

Shorter Mounting Brackets: Use these brackets to mount the

PDU in a 0U rack, wall or under-counter configuration.

Factory Port: The port is reserved for configuration by factory

authorized personnel only. Do not connect anything to the port.

PS/2 Port: Use this port to connect a Tripp Lite ENVIROSENSE

environmental sensor to provide remote temperature/humidity

monitoring and a dry contact interface to control and monitor

alarm, security and telecom devices. Contact Tripp Lite Customer

Support at (773) 869-1234 for ordering information. Note: Do not

connect a keyboard or mouse to this port.

Mini-DIN Serial Port: Use this port to provide a direct terminal

connection to a computer with a terminal emulation program. A

serial cable (part number 73-1025) is included with the PDU. If

you need to order a replacement cable, contact Tripp Lite

Customer Support at (773) 869-1234.

Ethernet Port: Use this RJ-45 jack to connect the PDU to the

network with a standard Ethernet patch cable. The Link LED

and Status LED indicate several operating conditions, as shown

in the table below. This port is not compatible with PoE (Power

Over Ethernet) applications.

Network Operating Conditions

Link LED Color

Off No Network Connection

Flashing Amber 100 Mbps Network Connection

Flashing Green 10 Mbps Network Connection

Status LED Color

Off Card Not Initialized

Steady Green Card Initialized and Operational

Flashing Amber Error - Card Not Initialized

Features

continued

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 9

Configuration and Operation

Remote Monitoring and Control

The PDU provides remote monitoring , outlet

control and more via Web browser, telnet

and SNMP-based Network Management

Systems. For more information about

configuration and operation of the PDU via the

PowerAlert Web browser interface, refer to the

SNMPWEBCARD User's Guide, included on

the CD-ROM bundled with the PDU.

200707133 93-2718 PDUMH15-20HVNET OM.qxd 9/7/2007 11:13 AM Page 10

Altri manuali per PDUMH20HVNET

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tripp Lite Unità di distribuzione dell'energia

Tripp Lite

Tripp Lite AGPD7897 Series Manuale utente

Tripp Lite

Tripp Lite PDUMH15AT Manuale utente

Tripp Lite

Tripp Lite PDU3V6H50 Manuale utente

Tripp Lite

Tripp Lite PDUMV15-ISO Manuale utente

Tripp Lite

Tripp Lite PDUMH15ATNET Manuale utente

Tripp Lite

Tripp Lite 200904140 Manuale utente

Tripp Lite

Tripp Lite Power Distribution Modules SUPDM Series Manuale utente

Tripp Lite

Tripp Lite PDU3VN-Series Manuale utente

Tripp Lite

Tripp Lite PDU1215 Manuale utente

Tripp Lite

Tripp Lite PDUMV30-ISO Manuale utente

Tripp Lite

Tripp Lite PDUMH15-ISO Manuale utente

Tripp Lite

Tripp Lite PDUMV15-24 Manuale utente

Tripp Lite

Tripp Lite PDU3VN3L2120 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SUPDMB20KHW Manuale utente

Tripp Lite

Tripp Lite PDUMH20HVL66 Manuale utente

Tripp Lite

Tripp Lite PDU3VN10L2120 Manuale utente

Tripp Lite

Tripp Lite PDU15NETLX Manuale utente

Tripp Lite

Tripp Lite PDUV30-36 Manuale utente

Tripp Lite

Tripp Lite PDUMH30HV Manuale utente

Tripp Lite

Tripp Lite PDUMV30HVNET Manuale utente

Tripp Lite

Tripp Lite PDU12IEC Manuale utente

Tripp Lite

Tripp Lite AGIB6098 Series Manuale utente

Tripp Lite

Tripp Lite PDU330AT6L15 Manuale utente

Tripp Lite

Tripp Lite PDUMH20 Manuale utente

Manuali Unità di distribuzione dell'energia popolari di altre marche

hager

hager SP 015 Manuale utente

Pakedge

Pakedge PowerPak 9 Manuale utente

Pts

Pts 9042 Series Manuale utente

Shure

Shure WA405 Manuale utente

CORNING

CORNING CCH 4U Manuale utente

Panamax

Panamax M4LT-EX Manuale utente

PANCONNECT

PANCONNECT FLAT 3M Manuale utente

Raytheon

Raytheon 138-118 Manuale utente

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuale utente

Botex

Botex PSA 322-6 DL Manuale utente

GE QuiXtra 4000 Guida rapida

RDL

RDL EZ Series Manuale utente

StarTech.com

StarTech.com RKPW161915 Manuale del sistema

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuale utente

ABB

ABB PSBS0065 Manuale

Baumuller

Baumuller BFN 3-1-0007-001 Manuale

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuale

GE GEK-45404F Manuale utente
