Tripp Lite B321-4X1-HDVC Manuale utente

1111 W. 35th Street, Chicago, IL 60609 USA

tripplite.com/support

Owner’s Manual

WARRANTY REGISTRATION

win an ISOBAR®surge protector in our monthly drawing!

tripplite.com/warranty

4-Port Presentation Switch,

4K 60 Hz (4:4:4) HDMI, DP,

USB-C and 1080p VGA to HDMI

with Built-In Cables

Model: B321-4X1-HDVC

USB Type-C®and USB-C®are registered trademarks of USB

Implementers Forum.

Español 9 • Français 16

Русский 23 • Deutsch 30

• B321-4X1-HDVC 4-Port Presentation Switch

• Owner’s Manual

• U420-Series USB 3.1 Gen 1 or Gen 2 USB-C

Cables

• U038-Series USB-A to USB-C Cables

• Connects up to 4 sources to a single HDMI display

with the built-in 8 ft. cable

• Switches between 4 sources using the front-panel

push button

• Supports HDMI, DisplayPort, USB-C and VGA video

formats

o HDMI: HDMI 2.0, HDCP 1.4/2.2, HDR, up to

4096 x 2160 @ 60 Hz (4:4:4)

o DisplayPort: DisplayPort 1.2a, up to 4096 x 2160

@ 60 Hz (4:4:4)

o USB-C: USB 3.1 Gen 1, 90W PD 3.0 Charging,

up to 4096 x 2160 @ 60 Hz (4:4:4)

o VGA: up to 1920 x 1080 @ 60 Hz

Package Contents

Optional Accessories

Product Features

• Green and orange LED indicators signal active input

and power

• Supports 3D and EDID

• Built-in USB-C PD 3.0 cable supports up to 100W

(20V 5A) and provides 90W of charging power to

the USB-C source*

• Plug-and-play operation with no software required

for easy, immediate installation

*10W is reserved for the functionality of the USB Type-C

chipset system.

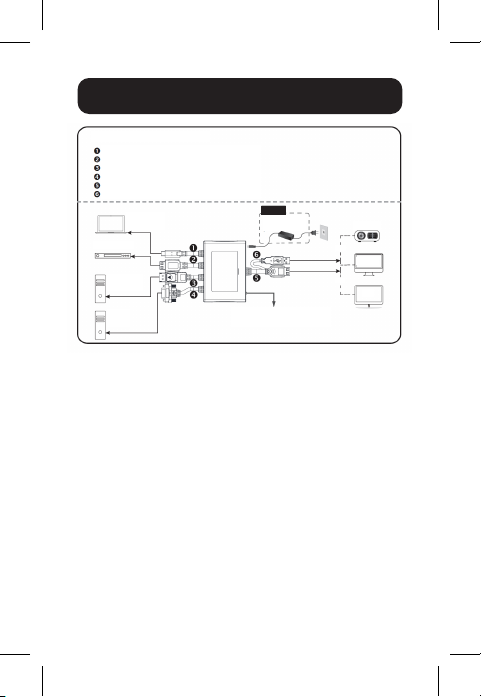

Installation

B321-4X1-HDVC

Up to 1 ft. (0.3 m) USB Type-C pigtail at 4K @ 60 Hz

Up to 1 ft. (0.3 m) HDMI pigtail at 4K @ 60 Hz

Up to 1 ft. (0.3 m) DisplayPort pigtail at 4K @ 60 Hz

Up to 1 ft. (0.3 m) VGA pigtail at 1080p @ 60 Hz

Up to 8 ft. (2.4 m) HDMI pigtail at 4K @ 60 Hz

Up to 3 ft. (0.9 m) Power USB cable at 4K @ 60 Hz

USB Type-C

Source Projector

Monitor

Type-C source

power cord

HDMI Source

DisplayPort

Source

VGA

Source

Easily switch sources by pressing

a switch button manually

Optional

Speciﬁcations

Input

Connections

(Male)

HDMI, DisplayPort, USB-C, VGA

Output

Connections

HDMI (Male), USB-A (Male),

USB-C (Female)

Maximum

Resolution

HDMI, DisplayPort, USB-C:

4096 x 2160 @ 60 Hz (4:4:4)

VGA: 1920 x 1080 @ 60 Hz

Unit Dimensions

(H x W x D)

4.25 x 3 x 0.9 in. /

10.8 x 7.5 x 2.4 cm

Unit Weight 0.77 lb. / 0.35 kg

Operating

Temperature 32° to 104°F / 0° to 40°C

Storage

Temperature 5° to 122°F / -15° to 50°C

Relative Humidity 0 to 85%, Non-Condensing

PD 3.0 Charging 20V 5A (90W)

Warranty and

Product Registration

1-Year Limited Warranty

Seller warrants this product, if used in accordance with all

applicable instructions, to be free from original defects in

material and workmanship for a period of one (1) year from the

date of initial purchase. If the product should prove defective in

material or workmanship within that period, Seller will repair or

replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR

TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE

OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES

OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,

ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF

MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION

TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS

WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND

CONSEQUENTIAL DAMAGES. (Some states do not allow

limitations on how long an implied warranty lasts, and some

states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions

may not apply to you. This warranty gives you speciﬁc legal

rights, and you may have other rights which vary from

jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine

prior to use whether this device is suitable, adequate or safe

for the use intended. Since individual applications are subject

to great variation, the manufacturer makes no representation

or warranty as to the suitability or ﬁtness of these devices for

any speciﬁc application.

Warranty and

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite

product. You’ll be automatically entered into a drawing for a

chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some

restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite

Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment

(WEEE) Directive and implementing regulations,

when customers buy new electrical and electronic

equipment from Tripp Lite, they are entitled to:

• Send old equipment for recycling on a one-for-one,

like-for-like basis (this varies depending on the

country)

• Send the new equipment back for recycling when

this ultimately becomes waste

Use of this equipment in life support applications where failure

of this equipment can reasonably be expected to cause the

failure of the life support equipment or to signiﬁcantly affect its

safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement.

Speciﬁcations are subject to change without notice. Photos

and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA

tripplite.com/support

21-01-166 • 93-3D5A_RevA

1111 W. 35th Street, Chicago, IL 60609, EE UU

tripplite.com/support

Manual del Propietario

Switch de Presentación de

4 Puertos, 4K @ 60 Hz (4:4:4)

HDMI, DP, USB C y VGA de 1080p

a HDMI con Cables Incorporados

Modelo: B321-4X1-HDVC

USB Type-C®y USB-C®son marcas comerciales registradas del

USB Implementers Forum

English 1 • Français 16

Русский 23 • Deutsch 30

• B321-4X1-HDVC – Switch de Presentación de 4

Puertos

• Manual del Propietario

• Cables USB 3.1 Gen 1 o Gen 2 USB-C de la Serie

U420

• Cables USB-A a USB-C de la Serie U038

• Conecta hasta 4 fuentes a una sola pantalla HDMI

con el cable de 2.44 m [8 pies] incorporado

• Alterna entre 4 fuentes usando el botón del panel

frontal

• Admite formatos de video HDMI, DisplayPort,

USB-C y VGA

o HDMI: HDMI 2.0, HDCP 1.4/2.2, HDR, hasta

4096 x 2160 @ 60 Hz (4:4:4)

o DisplayPort: DisplayPort 1.2a, hasta 4096 x 2160

@ 60 Hz (4:4:4)

o USB C: USB 3.1 Gen 1, Carga PD 3.0 de 90W,

hasta 4096 x 2160 @ 60 Hz (4:4:4)

o VGA: hasta 1920 x 1080 @ 60 Hz

Contenido del Empaque

Accesorios Opcionales

Características del Producto
