Tripp Lite U280-A04-A3C1 Manuale utente

Quick Start Guide

Portable Power Expansion

Hub for Apple USB-C

Power Adapter

Model: U280-A04-A3C1

USB Type-C™ and USB-C™ are trademarks of USB

Implementers Forum

WARRANTY REGISTRATION

win an ISOBAR surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA

tripplite.com/support

All trademarks are the property of their respective owners.

Español 9 • Français 17 • Русский 25

19-07-472-93-39CC.indb 1 10/18/2019 1:24:45 PM

Product Features

Package Includes

• Expand the charging capabilities of an Apple

USB-C PD Charger (61W/87W)

• Charge up to 4 USB devices simultaneously*

• Features (x1) USB-C PD 3.0 port with a

maximum power output up to 20V/2.25A

(45W), (x1) USB-A QC 3.0 port with

charging speeds 4x faster than conventional

methods, and (x2) USB-A BC 1.2 port

supplying up to 5V/2.4A power

• Non-slip grip padding provides a secure

connection to the power adapter

• Provides overcharging, overheating,

overvoltage and short circuit protection

*45W PD charging port takes priority over all other ports.

• U280-A04-A3C1

• Quick Start Guide

19-07-472-93-39CC.indb 2 10/18/2019 1:24:45 PM

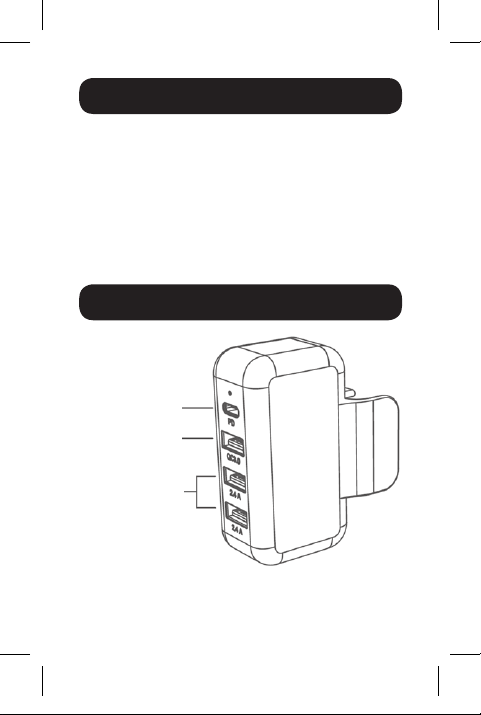

Feature Identiﬁcation

Optional Accessories

• U040-C03-C USB 2.0 Type-C to C Cable,

3A, USB-IF Certiﬁed (3 ft./0.9 m)

• M100-006-BK USB Sync/Charge Lightning

Cable (6 ft./1.8 m).

• U050-003-GY-MAX Heavy-Duty USB 2.0 A

to Micro-B Cable, (3 ft./0.9 m)

USB-C

PD 3.0 (45W)

USB-A

QC 3.0

USB-A 2.4A

19-07-472-93-39CC.indb 3 10/18/2019 1:24:45 PM

Operation

Notes:

• This product is recommended for use with Apple

MacBook Pro 61W/87W PD chargers.

• Current is equally distributed among all ports. In

instances where the full 45W is required from the

USB-C PD 3.0 port, the current will be renegotiated

to accommodate the USB-C PD 3.0 port ﬁrst.

1. Remove the existing USB-C cable on your

Apple USB-C PD charger.

2. Connect the U280-A04-A3C1 hub to the

Type-C port PD charger as shown in the

ﬁgure below. Then, reconnect the USB-C

cable to the hub’s USB-C PD port.

19-07-472-93-39CC.indb 4 10/18/2019 1:24:45 PM

Speciﬁcations

Input Port USB-C (Male)

Output Ports (x1) USB-C (Female)

(x3) USB-A (Female)

Operating

Temperature Range

41°F to 95°F

(5°C to 35°C)

Storage

Temperature Range

-4°F to 122°F

(-20°C to 50°C)

Relative Humidity 20% to 80% RH,

Non-Condensing

PD Charging

Speciﬁcation

PD 3.0

BC 1.2 Compliant

Ports

(x2) USB-A

Qualcomm

Quick Charge

Speciﬁcation

QC 3.0

Operation

3. The 4-port power expansion hub is now

ready to use. A white LED will illuminate to

indicate sufﬁcient power is being supplied.

19-07-472-93-39CC.indb 5 10/18/2019 1:24:45 PM

Warranty and

Product Registration

2-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in

materials and workmanship for a period of two (2) years

from the date of initial purchase. TRIPP LITE’s obligation

under this warranty is limited to repairing or replacing (at its

sole option) any such defective products. To obtain service

under this warranty, you must obtain a Returned Material

Authorization (RMA) number from TRIPP LITE or an authorized

TRIPP LITE service center. Products must be returned to

TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by

a brief description of the problem encountered and proof of

date and place of purchase. This warranty does not apply to

equipment, which has been damaged by accident, negligence

or misapplication or has been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Some states do not permit limitation or exclusion

of implied warranties; therefore, the aforesaid limitation(s) or

exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF

THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any

costs, such as lost proﬁts or revenue, loss of equipment, loss

of use of equipment, loss of software, loss of data, costs of

substitutes, claims by third parties, or otherwise.

19-07-472-93-39CC.indb 6 10/18/2019 1:24:45 PM

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new

Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some

restrictions apply. See website for details.

Regulatory Compliance Identiﬁcation Numbers

For the purpose of regulatory compliance certiﬁcations and

identiﬁcation, your Tripp Lite product has been assigned a

unique series number. The series number can be found on

the product nameplate label, along with all required approval

markings and information. When requesting compliance

information for this product, always refer to the series number.

The series number should not be confused with the marketing

name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers

and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment

(WEEE) Directive and implementing regulations,

when customers buy new electrical and electronic

equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one,

like-for-like basis (this varies depending on the

country)

• Send the new equipment back for recycling when

this ultimately becomes waste

Warranty and

Product Registration

19-07-472-93-39CC.indb 7 10/18/2019 1:24:45 PM

819-07-472 93-39CC_RevA

Warranty and

Product Registration

1111 W. 35th Street, Chicago, IL 60609 USA

tripplite.com/support

Tripp Lite has a policy of continuous improvement.

Speciﬁcations are subject to change without notice. Photos

and illustrations may differ slightly from actual products.

19-07-472-93-39CC.indb 8 10/18/2019 1:24:46 PM
