Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Mounting 3

Connection 5

Basic Operation 7

Storage and Service 10

SmartPro®RMX

1000-2000 VA

120V Input/Output UPS Systems

Intelligent • Line-Interactive • Industrial Cabinet

Specifications 10

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 1

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all 3U Rackmount

UPS systems, at least two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants,

dust or direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the

UPS into itself; this will damage the UPS.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the UPS’s

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support devices in which a malfunction

or failure of a Tripp Lite UPS System could cause failure or significantly alter the

performance of that device.

• Do not connect extension cords or surge suppressors to the output of your UPS. This

may damage your UPS and will void both the surge suppressor and UPS warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS for any reason

except battery replacement. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel. Because the

batteries present a risk of electrical shock and burn from high short-circuit current,

observe proper precautions. Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles, and take caution that the battery terminals

do not contact the metal housing of the UPS. Replace the existing batteries with the

same number and type of new batteries (Sealed Lead-Acid). Do not open the batteries.

Do not short or bridge the battery terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal requirements, or in

the USA only call 1-800-SAV-LEAD for recycling information. Do not dispose of the

batteries in a fire.

• Do not attempt to add external batteries to your UPS system.

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these

warnings will void your warranty.

Important Safety Instructions

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 2

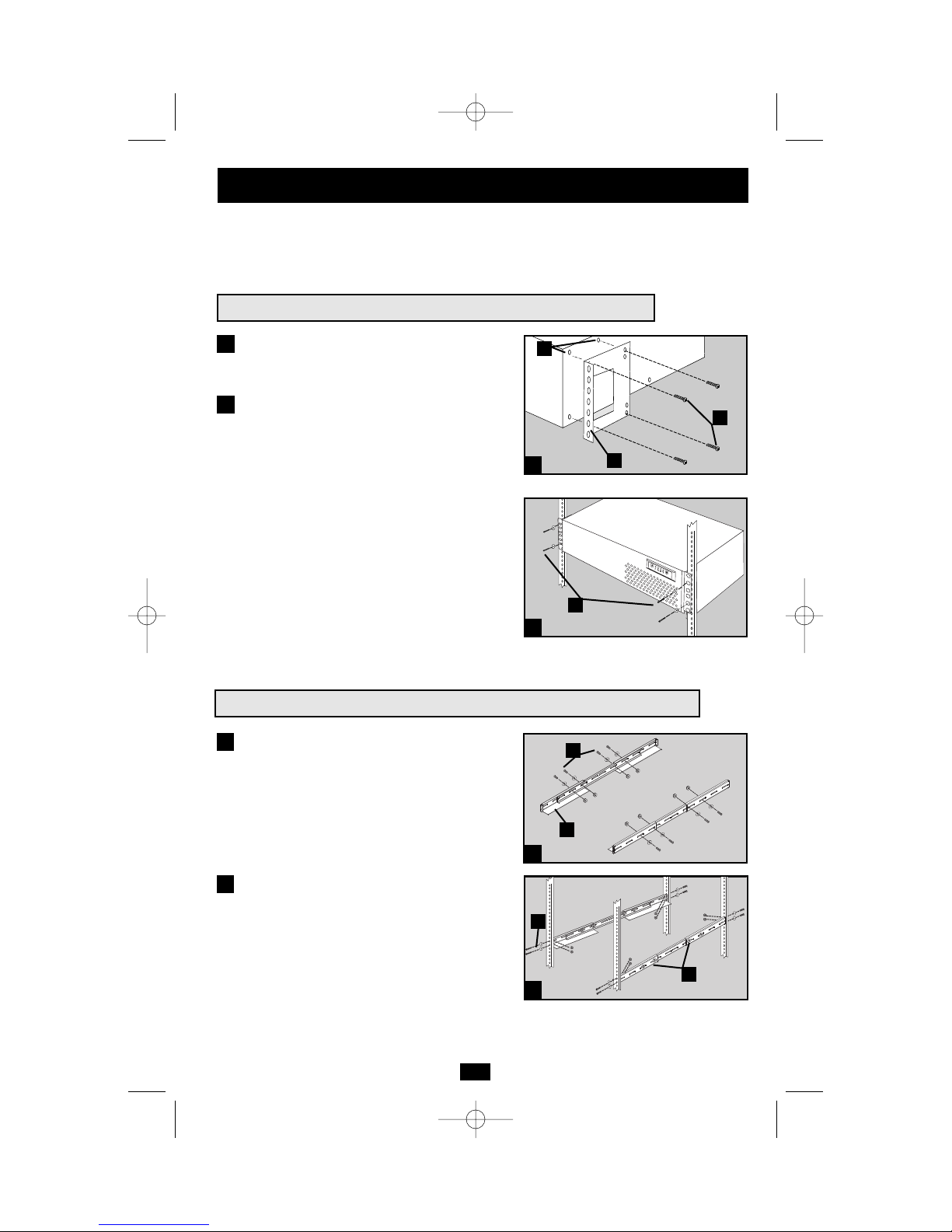

Your UPS may be rackmounted in 4- or 2-post racks using these suggested mounting procedures.

These procedures are for common rack types and may not be appropriate for all rack configurations.

User must determine the fitness of rackmount hardware and procedures before mounting.

Attach mounting ears (A) to the front mounting

holes of the UPS (B) using the screws pro-

vided (C).

Have an assistant lift the UPS and hold it in

position with the mounting ears flush against

the rack’s side supports. Mount the UPS by

screwing user-supplied rack bolts (D) through

its mounting ears, and into the rack’s side

supports.

Suggested Rackmount Installation for the SM1000RMX

Mounting

Suggested 4-Post Rackmount Installation for the SM2000RMX

1Connect the three segments of each shelf (A)

using the included screws, nuts and washers

(B). Leave the screws slightly loose so that

the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount

them in the lowest available space of your

rack with with the screws, nuts and washers

provided (C). Note that the support ledges

should face inward. Tighten the screws that

connect the shelf segments (B).

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 3

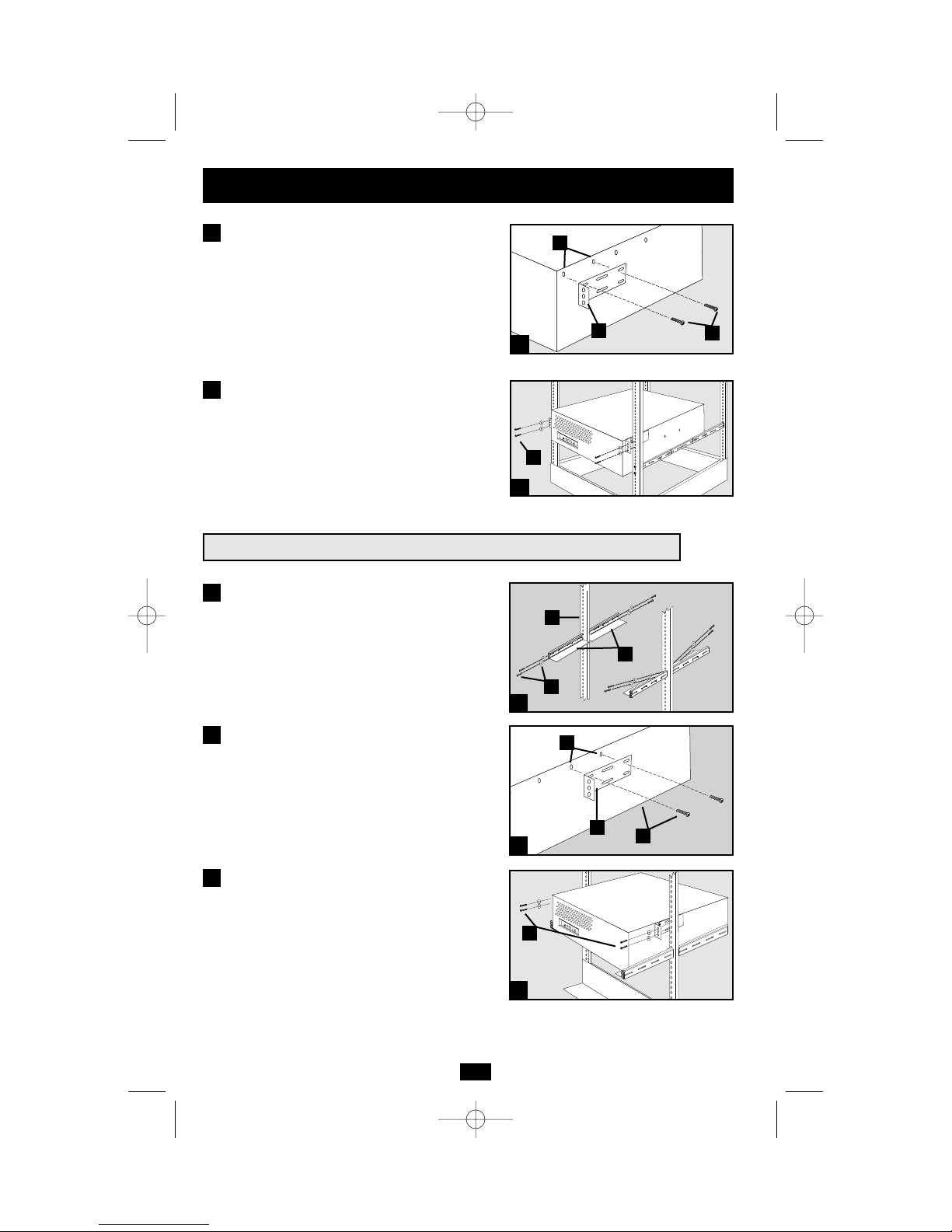

Mounting

continued

Suggested 2-Post Rackmount Installation for the SM2000RMX

Attach mounting ears (D) to the front mounting

holes of your UPS (E) using the screws provided

(F). Do not attach the mounting ears to your

equipment’s middle holes.

Using an assistant if necessary, lift your

equipment and slide it onto the mounting

shelves. Attach your equipment to the rack by

passing the user-supplied screws, nuts and

washers (G) through its mounting ears and

into the rack rails.

1Attach the four mounting shelf segments

shown (A) to both rack posts (B) with the

screws, nuts and washers provided (C). Note

that the side supports should face inward.

Attach mounting ears (D) to the middle mounting

holes of your UPS (E) using the screws and

washers provided (F). Do not attach the

mounting ears to your equipment’s front holes.

Using an assistant if necessary, lift your UPS

and slide it onto the mounting shelves. Attach

your UPS to the rack by passing the user-sup-

plied screws, nuts and washers (G) through

its mounting ears and into the rack rails.

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 4

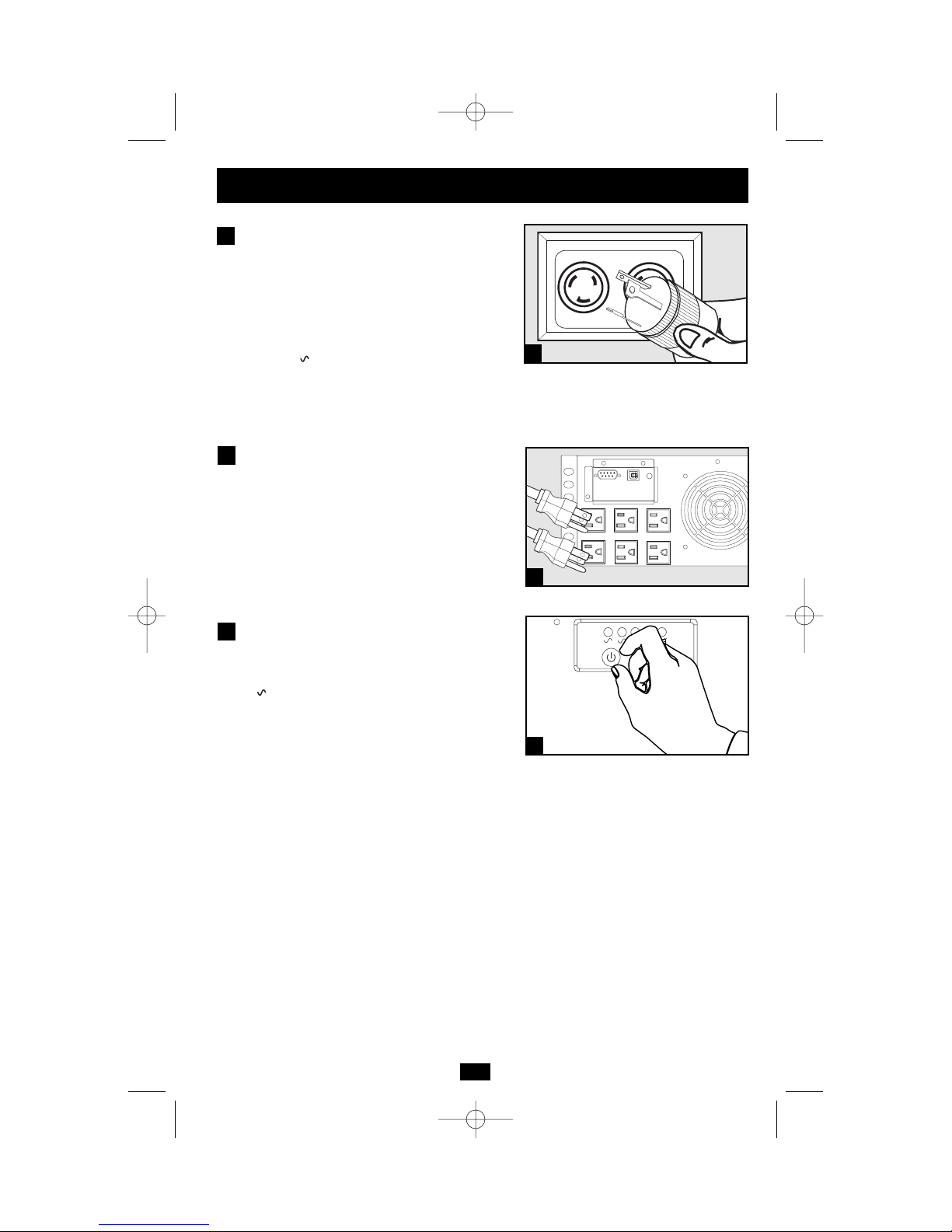

Plug your UPS’s line cord into an

electrical outlet.

Your UPS must be connected directly to a 3-

wire grounded AC receptacle. Do not use

extension cords with your UPS.

Once your UPS is plugged in, the UPS will

enter STANDBY mode. The fan will activate

and the “ ” LED will begin flashing. The

UPS system’s outlets will not be active until

the UPS is turned ON.

Plug your equipment into your UPS.

Your UPS is designed to support only computer

equipment. You will overload your UPS if you

connect household appliances, laser printers

or surge suppressors to the UPS’s outlets.

Turn your UPS ON

• Press the “POWER” button

• Hold the button for a moment, until the

“ ” LED stops flashing and illuminates

constantly

• Release the button

Your UPS is now ON and its AC outlets

are active.

Connection

SM2000RMX plug (NEMA L5-20P) shown

SM1000RMX shown

SM2000RMX shown

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 5

Connection

optional

Your UPS will function properly without these

connections.

DB9 Port Connection

Using the DB9 cable provided, connect a DB9

port on your computer to a DB9 port on your

UPS. Install the Tripp Lite power protection

software appropriate to its operating system.

If your UPS has two DB9 ports, a second

computer with a DB9 port may be connected

if desired.

USB Port Connection

Using the USB cable provided, connect a USB

port from a computer to a USB port on your

UPS. Install the Tripp Lite power protection

software appropriate to its operating system.

If your UPS has two USB ports, a second

computer with a USB port may be connected

if desired.

EPO Port Connection

(Select Models Only)

Using the RJ11 cable provided, connect the

Emergency Power Off (EPO) port of your

UPS to a user-supplied normally closed or

normally open switch according to the circuit

diagram below. The EPO port is not a phone

line surge suppressor; do not connect a phone

line to this port.

EPO Circuit Diagrams

(UPS will turn off if EPO cord is cut or EPO plug is disconnected)

SM1000RMX shown

SM2000RMX shown

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 6

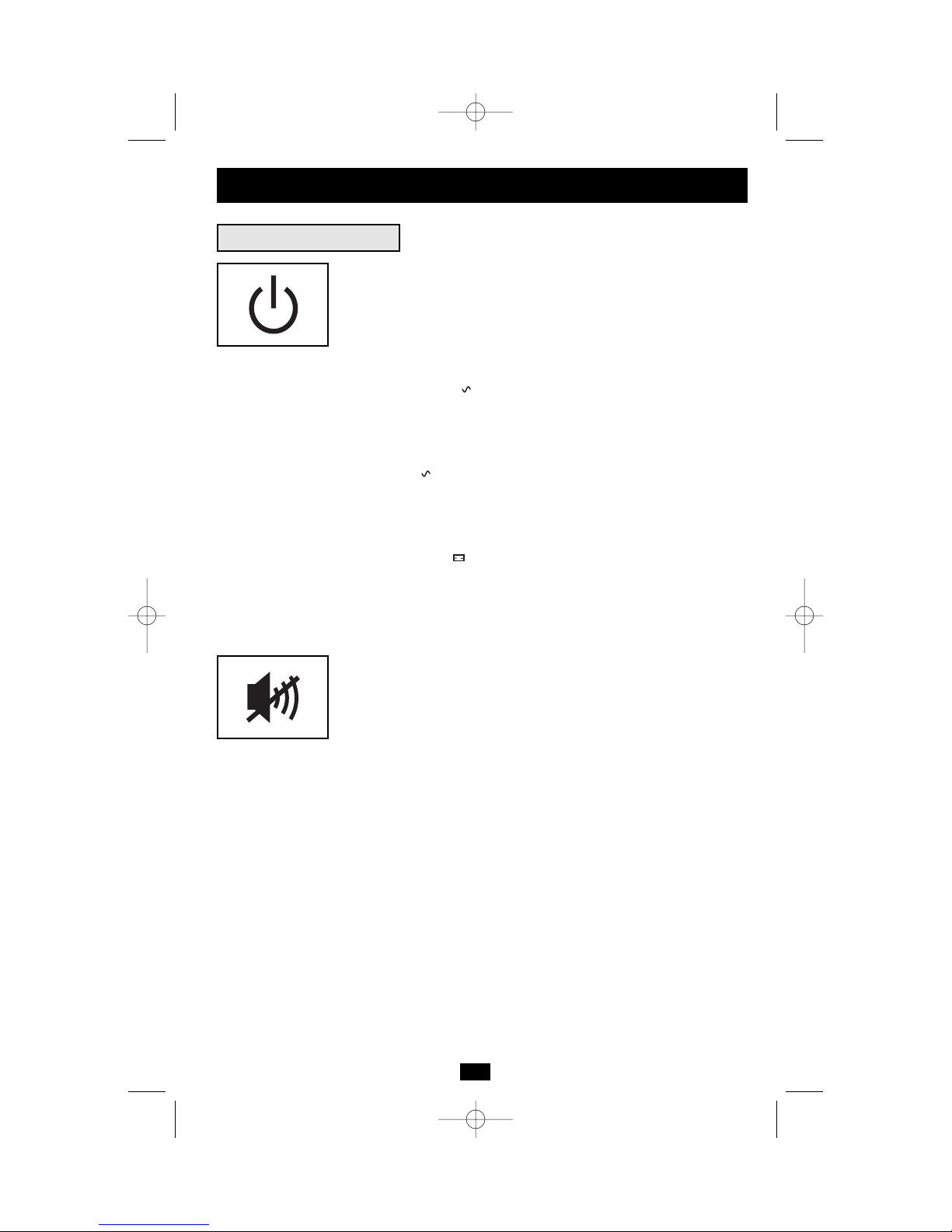

Use the POWER button to switch your UPS between its four modes

of operation.

OFF: No indicator lights are on. The UPS is completely shut down for

storage or shipping. If the UPS is connected to AC power, it will start up in

STANDBY mode. If the UPS is not connected to AC power and the

POWER button is pressed for two seconds, the UPS will “cold start”

into INVERT mode.

STANDBY: The “ ” light is flashing. The UPS is receiving AC power

and using it to charge its batteries, but its outlets are not active. Pressing

the POWER button while the UPS is in STANDBY mode will put the

UPS in the ON mode. Unplugging the UPS or cutting AC power while

the UPS is in STANDBY mode will put the UPS in the OFF mode.

ON: The “ ” light is on. The UPS is receiving AC power, charging

its batteries and delivering power to connected equipment. If AC

power is lost while the UPS is ON (i.e. a blackout occurs), the UPS

will switch into INVERT mode. Pressing the POWER button while

the UPS is ON will put the UPS in STANDBY mode.

INVERT: The “ ” light is flashing. The UPS is powering connected

equipment from battery backup. If AC power is restored, the UPS will

switch to the ON mode. Pressing the POWER button while the UPS

is in INVERT will put the UPS into the OFF mode. If the UPS is in

INVERT mode and its batteries are drained, the UPS will switch to the

OFF mode until AC power is restored, then switch to the ON mode.

Use the MUTE/TEST button to do two things:

SILENCE ALARM: Your UPS has three alarms. The first, the

INVERT alarm, emits four short beeps every ten seconds when the UPS is

in INVERT mode, to warn you that AC power has failed. The second, the

OVERLOAD alarm, emits short, rapid beeps when the UPS is in

INVERT mode if the total power draw of connected equipment exceeds

the UPS’s output capacity, to warn you to reduce the load. The third, the

Low Battery alarm, emits a constant beep when the UPS is in INVERT

mode and its batteries are very nearly depleted, to warn you that connected

equipment must be shut down. To silence the INVERT or OVER-

LOAD alarms, press the MUTE/TEST button. The LOW BATTERY

alarm will only stop when the UPS switches to the OFF or ON mode.

SELF-TEST BATTERIES AND ALARMS: If your UPS is in the

ON mode and has a load connected, you may test its batteries by

pressing the MUTE/TEST button for two seconds. The UPS will

switch to INVERT mode for several seconds. Normally, the INVERT

alarm (four short beeps) will sound, indicating that the system is

working properly. If the OVERLOAD alarm (short, rapid beeps)

sounds, reduce the load on the UPS. If the LOW BATTERY alarm (a

constant beep) sounds, your UPS’s batteries may need replacing or the

batteries may simply be less than fully charged. Let the UPS charge for 12

hours, then perform a second self-test. If the LOW BATTERY alarm

sounds again, contact Tripp Lite for service. Do not unplug your UPS to

test its batteries, or you will remove safe electrical grounding and may

introduce a damaging surge into your network connections.

Basic Operation

Buttons (Front Panel)

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 7

Basic Operation

continued

Indicator Lights (Front Panel)

POWER: Lights green when the UPS is receiving AC power.

Illuminates constantly when the UPS is in the ON mode, indicating

that batteries are charging and connected equipment is receiving filtered

AC power. Flashes while in STANDBY mode to indicate that batteries

are charging but connected equipment is not receiving power.

VOLTAGE CORRECTION: Lights green whenever your UPS is

automatically correcting high or low AC line voltage. The UPS will

also click. These are normal, automatic UPS operations, and no

action is required on your part.

BATTERY CHARGE: This multicolored light displays 7 separate

UPS battery charge conditions. It will turn from red (low) to yellow

(medium) to green (full) to show you the level of battery charge. If

the light is constant, your UPS is in the ON or STANDBY mode,

operating from line power, and the battery is charging. If the light is

flashing, your UPS is in the INVERT mode, operating from battery,

and the battery is discharging. If the light is flashing red, your UPS is

in INVERT and is nearly out of power: you should save files and shut

down your equipment immediately.

OUTPUT LOAD: This multicolored light shows how heavy your

UPS’s load is. Steady green indicates a light load, steady yellow a

medium load. When the light is red, your UPS is supporting a load

above 85% of its capacity. If the red light begins flashing, then your

UPS is severely overloaded. Immediately remove load from the UPS

until the light stops flashing.

BATTERY WARNING: Lights red if your UPS’s self-test (initiated

with the Mute/Test Switch) reveals a low battery charge or internal

fault. If this light turns on, let the UPS charge for 12 hours then perform

a second self-test. If the light stays on, contact Tripp Lite for service.

AC Receptacles:Your UPS has 15-amp outlets that provide 120V AC

power. These output receptacles supply your connected equipment

with AC line power during normal operation and battery power during

blackouts and brownouts. The UPS protects equipment connected to

these receptacles against damaging surges and line noise. If you have

a DB9 or USB connection to your UPS, you can remotely reboot con-

nected equipment by turning the UPS OFF and ON using Tripp Lite’s

PowerAlert Software. See software instructions for details.

Other UPS Features (Rear Panel)

15 amp NEMA 5-15R

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 8

Basic Operation

continued

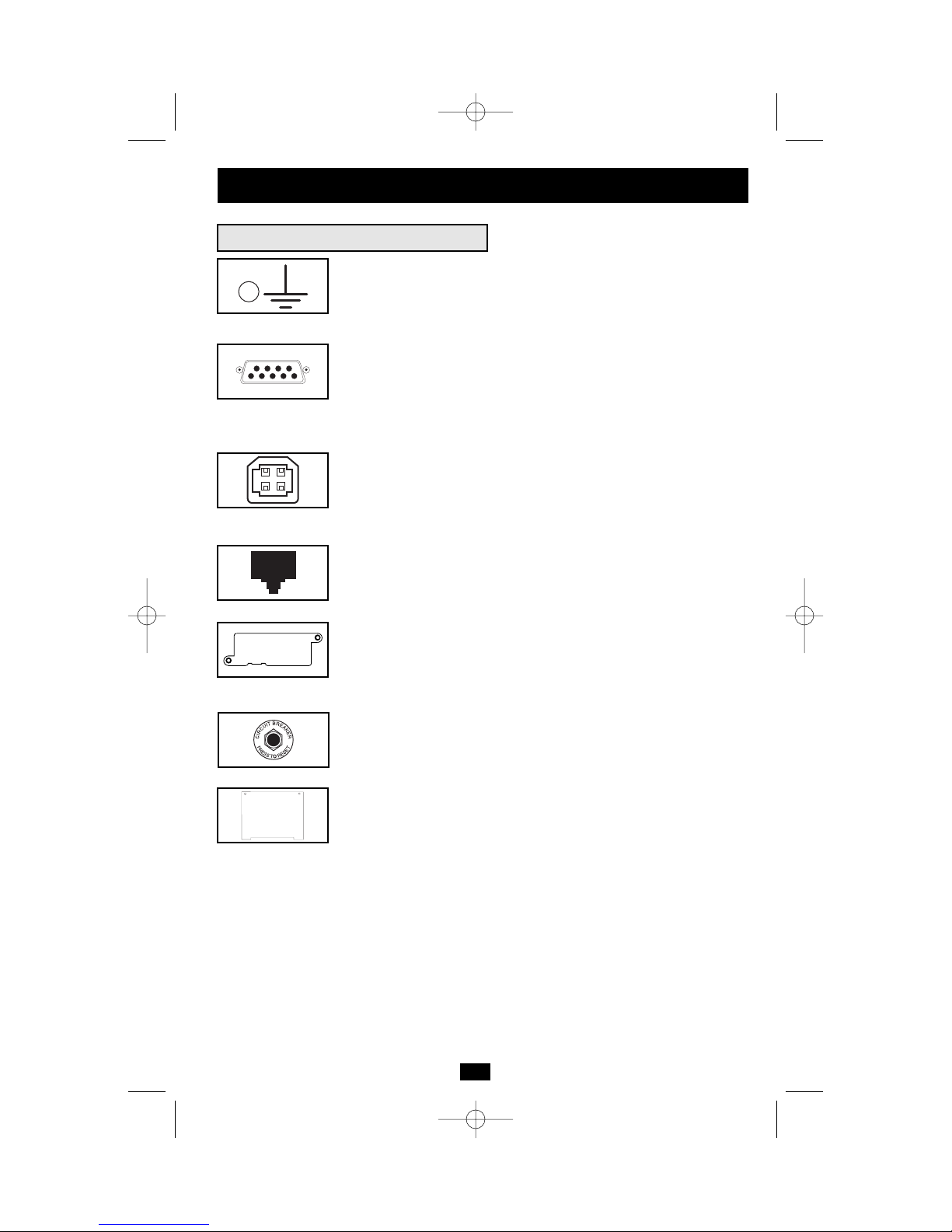

Other UPS Features (Rear Panel)

Ground Screw (Select Models Only): Use this to connect any equip-

ment that requires a chassis ground.

Smart DB9 Ports: Your UPS has one or two DB9 ports that may be

used to connect the UPS to a DB9 port on any workstation or server.

Use with Tripp Lite cabling and PowerAlert Software to monitor and man-

age network power and automatically save open files and shut down

equipment during a blackout (see Connection.) The DB9 port labeled

“SNMP Config” is also used to configure Tripp Lite SNMP Adapters.

Smart USB Ports: Your UPS has one or two USB ports that may be

used to connect the UPS to a USB port on any workstation or server.

Use with Tripp Lite cabling and PowerAlert Software to monitor and

manage network power and automatically save open files and shut

down equipment during a blackout (see Connection, page 5).

EPO (Emergency Power Off) Port (Select models only): Your UPS

may have an EPO port that can be used to connect the UPS to a con-

tact closure switch to enable emergency inverter shutdown (see

Connection, page 5).

Accessory Slot (Select models only): Remove the small cover panel

from this slot to use optional accessories to remotely monitor and

control your UPS. Contact Tripp Lite at (773) 869-1234 for more

information, including a list of available SNMP, network management

and connectivity products.

Input Breaker: Your UPS has an input breaker that protects your

UPS from overload. If the breaker button trips, remove some of the load

from the UPS’s receptacles and allow the unit to cool before resetting the

breaker button by pressing it.

Battery Door: Qualified service personnel can remove this plate to

remove and replace the UPS batteries. All Battery Warnings must be

observed (see Important Safety Warnings, page 2).

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 9

Storage & Service

Before storing your UPS, disconnect all equipment to avoid battery drain, then place the UPS in

the OFF mode by putting it in STANDBY mode, then unplugging it (see Basic Operation, page 7).

If you store your UPS for an extended period of time, recharge the UPS batteries once every three

months by following Steps 1 and 2 in the Connection section (page 5) and allowing the UPS to

charge its batteries for 4-6 hours before placing it back in storage. If you leave your UPS

batteries discharged for an extended period of time, they will suffer a permanent loss of capacity.

If returning your UPS for service, contact your local Tripp Lite dealer or distributor. They will

refer you to a service center. Please carefully pack the UPS using the ORIGINAL PACKING

MATERIAL that came with the unit. Enclose a letter describing the symptoms of the problem.

If the UPS is within the 2 year warranty period, enclose a copy of your sales receipt.

Model SM1000RMX SM2000RMX

Series AGSM1000IG30 AGSM2200Y2U29

Output Capacity (VA/Watts): 1000/750 2000/1300

Battery Runtime in Minutes (Half Load/Full Load): 33/13 53/23

Battery Recharge Time: 2-4 hrs. 2-4 hrs.

Approvals: UL, cUL UL, cUL

Input Voltage (120V); Input Frequency (60 Hz); Online Input Voltage Range (79-147 volts); Voltage-Regulated

Output Voltage Range (120 ±9%); On-Battery Output Voltage Range (120 ±5%); Output Waveform Line Mode

(filtered sinewave); Output Waveform Battery Mode (PWM sine wave); AC Surge Suppression (exceeds IEEE

587 Cat. A & B standards); AC Noise Attenuation (>40 dB); AC Surge Protection Modes (H to N, H to G, N to G).

This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his own expense.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change.

Specifications

Storage

Service

200208099 93-2040 SM1000RMX Owner’s Manual.qxd 9/12/2002 3:53 PM Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SU2200RTXL2UN Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U2TF Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000RTXL2U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000XLA Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1500SLTXL Manuale utente

Tripp Lite

Tripp Lite OmniPro 675 Manuale utente

Tripp Lite

Tripp Lite BC350 Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART2200RMXLN Guida alla configurazione

Tripp Lite

Tripp Lite SMART1000LCDTAA Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU5000RT3UHV Manuale utente

Tripp Lite

Tripp Lite AGBC6650 Manuale utente

Tripp Lite

Tripp Lite SMART1200LCD Manuale utente

Tripp Lite

Tripp Lite SMX Series Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UN50 Manuale utente

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuale utente

Tripp Lite

Tripp Lite SmartPro AGSM152DRTi2U Manuale utente

Tripp Lite

Tripp Lite SMART1500LCDT Manuale utente

Tripp Lite

Tripp Lite OmniSmart OMNI1500LCD Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manuale utente

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Guida alla configurazione

Tripp Lite

Tripp Lite OmniSmart OMNISMART500 Manuale utente

Tripp Lite

Tripp Lite BCPRO1050 Manuale utente

Tripp Lite

Tripp Lite SmartOnline AGPS8294 Series Manuale utente

Tripp Lite

Tripp Lite 1250-3000 VA Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
