Troy-Bilt 1924 Guida all'installazione

Illustrated Parts List

Printed in USA Manual No. 193354A Revision 0 (09/17/2004)

Portable Generator

Model 01924

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Troy-Bilt® is a registered trademark of Troy-Bilt, LLC and is used under license to Briggs & Stratton Power Products.

Troy-Bilt® es una marca registrada de Troy-Bilt, LLC y se usa abajo licencia a Briggs & Stratton Power Products.

Section Exploded Views and Parts Lists

EXPLODED VIEW - MAIN UNIT

Section 1: Exploded Views and Parts Lists

Item Part # Description

1 P194779GS CRADLE

2 194396GS KIT,Vibration Mount

4 186058AGS HOUSING, Engine Adapter

5 NSP ASSY,Alternator (see page 6)

6 194151GS KIT, Hardware Mounting Adapter

8 96796GS WASHER

10 * HHCS, 5/16-24 x 3/4, SEMS

11 24823GS HHCS, 5/16-24 x 7-7/8" Lg

14 195206GS KIT, Muffler Bracket w/ Hardware

15 697815 GASKET, Exhaust

17 188301GS MUFFLER

18 * SHCS, M6 - 1.0 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT,Vibration Mount

23 193646GS KIT, Grounding Hardware

24 J191790GS SHIELD, Heat

26 74908GS TAPTITE, M5-0.8 x 10 Lg.

31 191436GS DECAL, Caution Hot Muffler

34 186347GS COVER, Bearing Carrier

37 B2153GS HHCS, 12 - 14 x 7/8" Self Driller

40 194398GS KIT, Fuel Tank Hardware

41 192980GS KIT,Valve,Tank Fuel Service

44 193645GS ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52)

45 B4363GS GAUGE, Fuel

48 14353621GS WIRE, Ground

50 188333GS DECAL, Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Operating Instructions

55 191435GS DECAL, Fuel Shut Off

58 191743AGS ASSY, Control Panel (see page 4)

59 * NUT, Palnut

900 NSP ENGINE

Parts Not Illustrated

193354GS MANUAL, Owner’s

43483GS PLUG, 250V, 20A

MS5242 MANUAL, Engine

BB3061GS BOTTLE, Oil

193644GS KIT, Decals Service

* - Items shown without part numbers are common fasteners found at your local hardware store.

PARTS LIST - MAIN UNIT

Item Part # Description

1 195112GS KIT, Cover Control Panel

2 188889AGS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20Amp, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Circuit Breaker

9 75207DGS BREAKER, Circuit

10 68867GS OUTLET, 120/240V Locking, 20A

11 * NUT, Palnut, Pushnut, 3/16

12 * PPPHS, M3 - 0.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 * SCREW, 3 x 18,Tapping

16 22694GS HOUSING, Receptacle

17 * SCREW, 3.5 x 14,Tapping

* - Items shown without part numbers are common

fasteners found at your local hardware store.

Section 1: Exploded Views and Parts Lists

AC CONTROL PANEL EXPLODED VIEW & PARTS LIST

Section 1: Exploded Views and Parts Lists

WHEEL KIT EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 189715GS ASSY, Handle

2 B1764GS LEG, Mounting

3 52858GS NUT, Lock

4 39287GS SCREW

5 191267NGS AXLE

6 B4966GS WHEEL

7 191265GS E-RING

8 22247GS WASHER

9 42907GS SCREW

Section 1: Exploded Views and Parts Lists

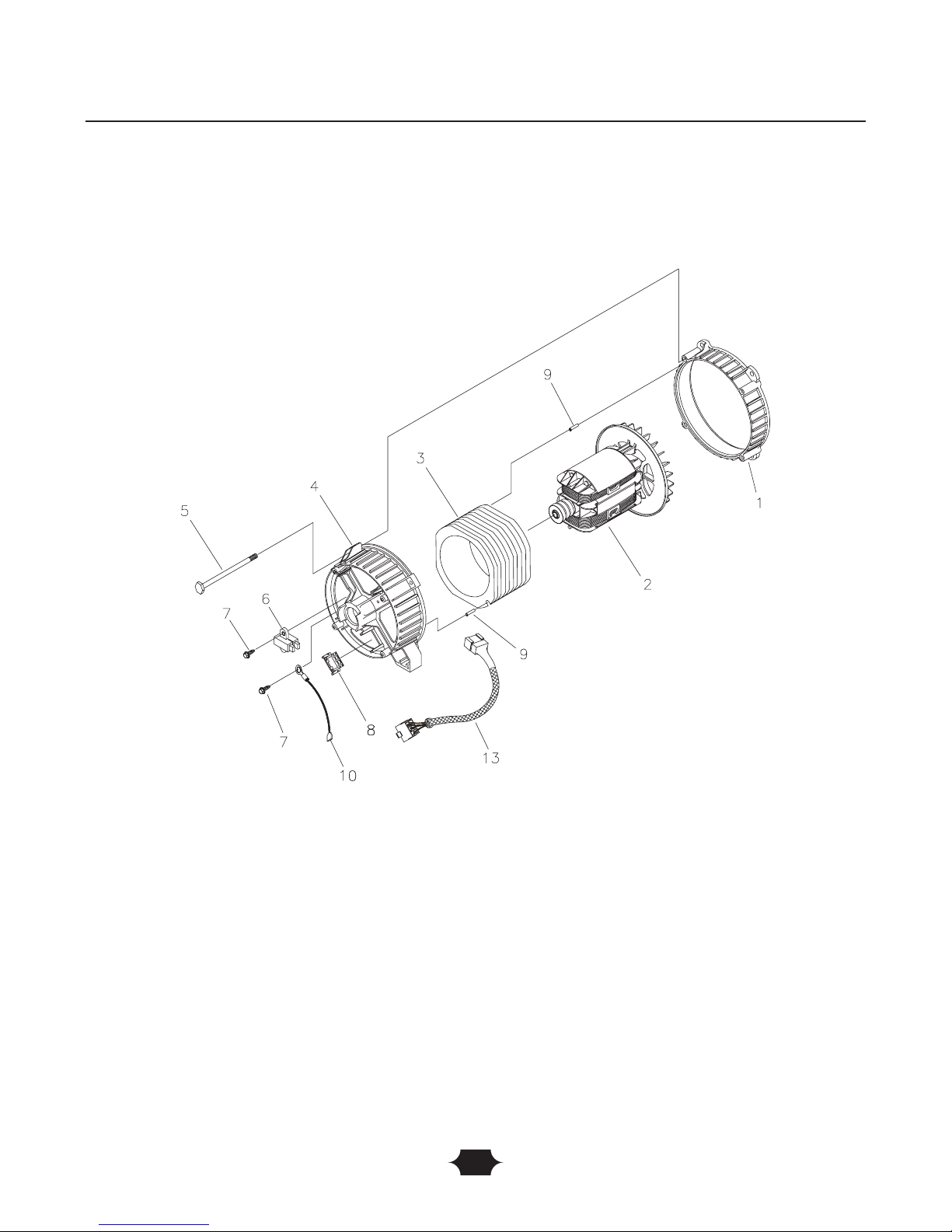

ALTERNATOR EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 191685GS ROTOR

3 191686AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308GS SCREW

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS SCREW

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll

10 193428AGS ASSY,Wire, Ground

13 190356GS HARNESS,Wire, Power
