Troy-Bilt 1924 Manuale utente
Owner’s Manual / Manual del Propietario
Questions? Preguntas?
Helpline - 1-888-611-6708 M-F 8-5 CT
Manual No. 192372GS Revision 2 (02/12/2003)
Portable Generator / Generador Portátil
Model / Modelo 01924
Printed in USA
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
IMPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDAMENTE
Troy-Bilt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products.
Troy-Bilt® es una marca registrada registrada de MTD y se usa abajo licencia a Briggs & Stratton Power Products.
14
8
Section Schematic and Wiring Diagram

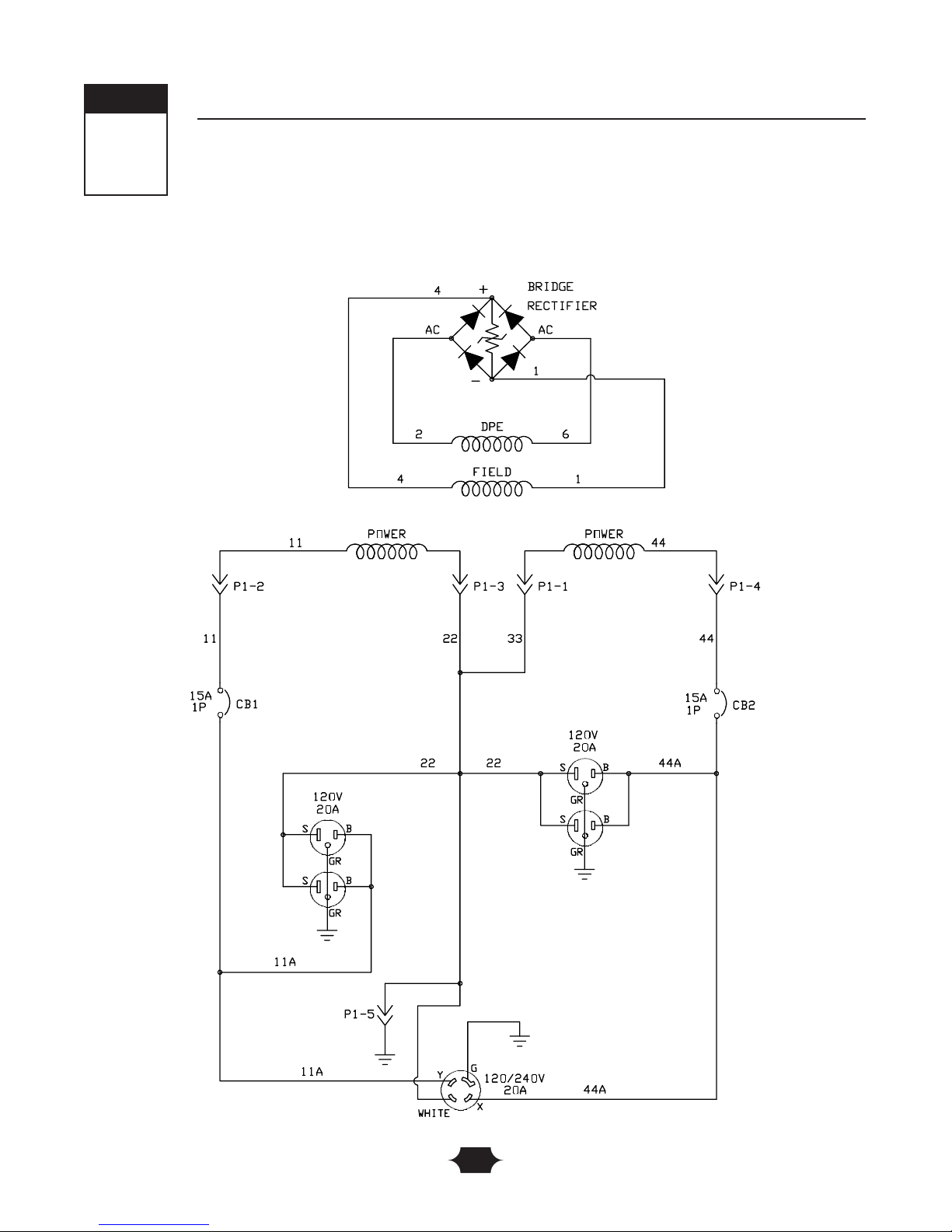

SCHEMATIC
15
Section 8: Schematic and Wiring Diagram
WIRING DIAGRAM
16
9
Section Exploded Views and Parts Lists
EXPLODED VIEW - MAIN UNIT
17
Section 9: Exploded Views and Parts Lists
Item Part # Qty. Description
1 P191719GS 1 CRADLE
2 70642GS 2 MOUNT,Vibration
3 76222GS 3 SCREW
4 186058AGS 1 HOUSING, Engine Adapter
5 191745GS 1 ASSY,Alternator (see page 18)
6 43107GS 4 SCREW
7 22129GS 4 WASHER, Lock
8 96796GS 1 WASHER
9 186347GS 1 COVER, Bearing Carrier
10 86307GS 4 SCREW
11 24823GS 1 SCREW
12 191436GS 1 DECAL, Caution Hot Muffler
13 45771GS 4 NUT
14 191785GS 1 BRACKET, Muffler
15 275015 1 GASKET, Exhaust
16 66476GS 2 SCREW
17 188301GS 1 MUFFLER
18 36781GS 2 SCREW
19 83083GS 1 SCREEN, Spark Arrest
20 B4986GS 1 DECAL, Ground
21 67989GS 9 NUT
22 85652GS 2 MOUNT,Vibration
23 192373GS 1 DECAL, Control Panel
24 191743GS 1 ASSY, Control Panel (see page 19)
25 189164GS 4 NUT
26 74908GS 4 SCREW
27 J191790GS 1 SHIELD, Heat
Item Part # Qty. Description
28 192374GS 1 DECAL, Heat Shield
29 77395GS 4 NUT, Lock
30 48031CGS 2 CLAMP, Hose, Band
31 191795GS 1 HOSE, Fuel, Formed
32 26850GS 2 WASHER
33 14353621GS 1 WIRE, Ground
34 191435GS 1 DECAL, Fuel Shut Off
35 23762GS 1 WASHER
36 86494GS 1 SCREW,Wing
37 B2153GS 4 SCREW
38 88325GS 1 ASSY,Tank, Fuel
(Includes Items 41 & 42)
39 B4363GS 1 GAUGE, Fuel
40 92982GS 1 DECAL, Danger
41 80270GS 1 VALVE,Tank
42 78299GS 1 BUSHING, Plastic Tank
43 83465GS 4 GROMMET,Tank
44 78831AGS 4 SCREW
45 189235GS 1 DECAL, Operating Instructions
46 188333GS 1 DECAL, Fuel Level
47 192372GS 1 MANUAL, Owners
48 43483GS 1 PLUG, 250V, 20A
49 192523GS 1 DECAL, Recoil
50 86292GS 1 SCREW
51 192375GS 1 DECAL,Air Cleaner
52 MS5242 1 MANUAL, Engine
900 NSP 1 ENGINE
PARTS LIST - MAIN UNIT
18
ALTERNATOR EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 186059GS 1 ADAPTER, Mounting,Alternator
2 191685GS 1 ROTOR
3 191686AGS 1 STATOR
4 186060GS 1 RBC, with O-Ring (p/n 189197GS)
5 86308GS 4 SCREW
6 91825GS 1 ASSY, Holder, Rectifier/Brush
7 66849GS 2 SCREW
8 22694GS 1 RECEPTACLE, 6 pin
9 81917GS 2 PIN, Roll
10 191051AGS 1 ASSY,Wire, Ground
11 74908GS 1 SCREW
12 23762GS 1 WASHER
13 190356GS 1 HARNESS,Wire, Power
Section 9: Exploded Views and Parts Lists
19
Section 9: Exploded Views and Parts Lists
CONTROL PANEL EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 188914GS 1 COVER, Lid, Control Panel
2 188889AGS 1 CONTROL PANEL, Compact
3 189167GS 2 CLIP, Hinge Pin Retainer
4 189182GS 2 SPRING, Hinge, Pin
5 189166GS 2 PIN, Hinge, Cover, Compact
6 68759GS 2 OUTLET, 120V, 20A, Duplex
7 189165GS 4 NUT
8 84198GS 2 CAP, Circuit Breaker
9 75207DGS 2 BREAKER, Circuit
10 68867GS 1 OUTLET, 120/240V Locking, 20A
11 189164GS 2 NUT
12 84543CGS 2 SCREW
13 93857GS 1 BAR, Retaining
14 188890GS 1 COVER, Back, Control Panel
15 82308GS 2 SCREW
16 22694GS 1 HOUSING, Receptacle
17 192241GS 4 SCREW
20
Section 9: Exploded Views and Parts Lists
WHEEL KIT EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 189715GS 1 ASSY, Handle
2 B1764GS 1 LEG, Mounting
3 52858GS 4 NUT, Lock
4 39287GS 2 SCREW
5 191267NGS 1 AXLE
6 B4966GS 2 WHEEL
7 191265GS 2 E-RING
8 22247GS 2 WASHER
9 42907GS 2 SCREW
