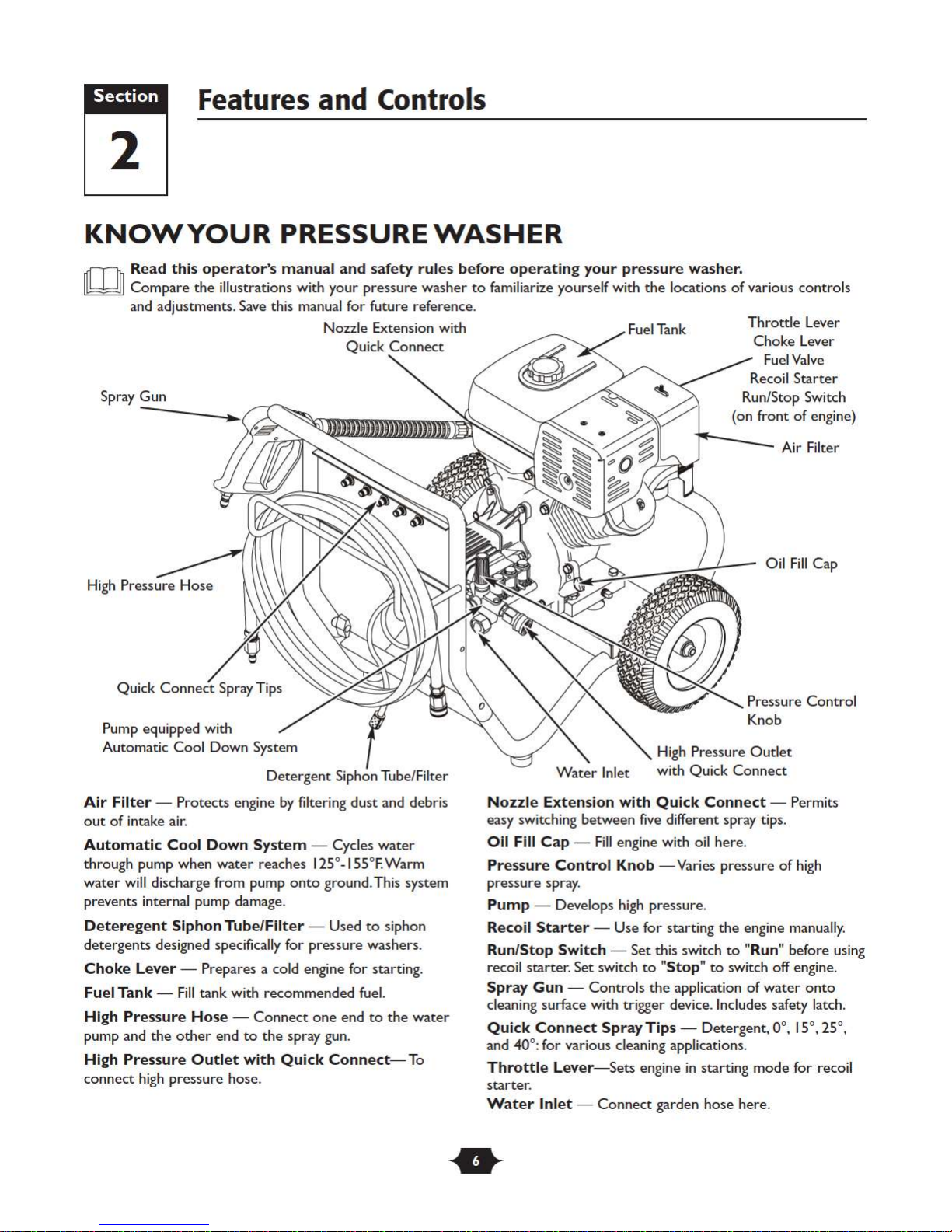

Troy-Bilt 20287 Manuale utente

8

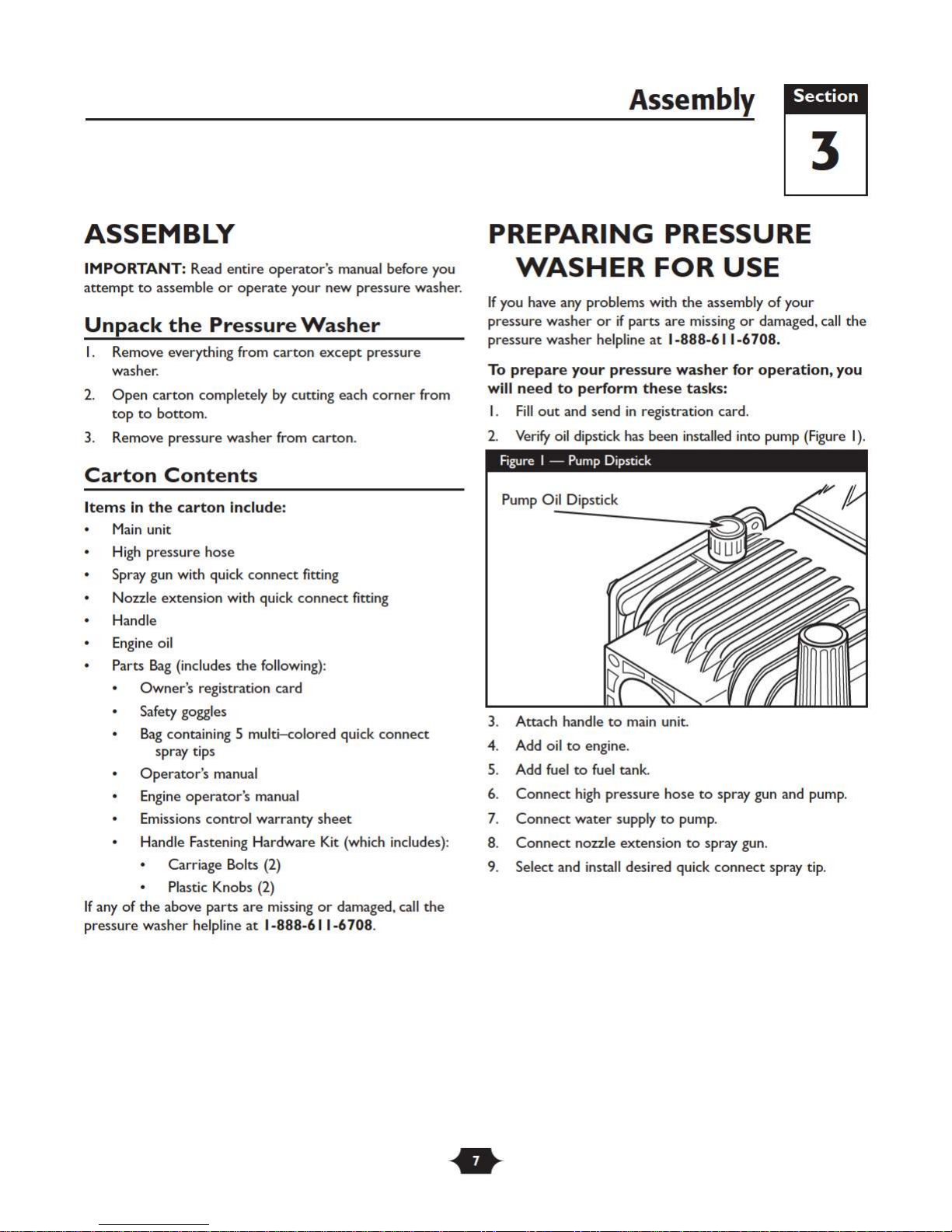

Section 3: Assembly

Attach Handle

1. Place handle assembly onto handle supports connected

to main unit. Make sure holes in handle align with holes

on handle supports (Figure 2).

NOTE: It may be necessary to move the handle supports

from side to side in order to align the handle so it will slide

over the handle supports.

2. Insert carriage bolts through holes from outside of unit

and attach plastic knob on inside of handles (Figure 3).

Tighten by hand.

3. Insert multi–colored spray tips in spaces provided in

handle.

Add Engine Oil and Fuel

• Place pressure washer on a level surface.

• Refer to engine operator’s manual and follow oil and fuel

recommendations and instructions.

NOTE: Check oil often during engine break–in. Refer to

engine operator’s manual for recommendations.

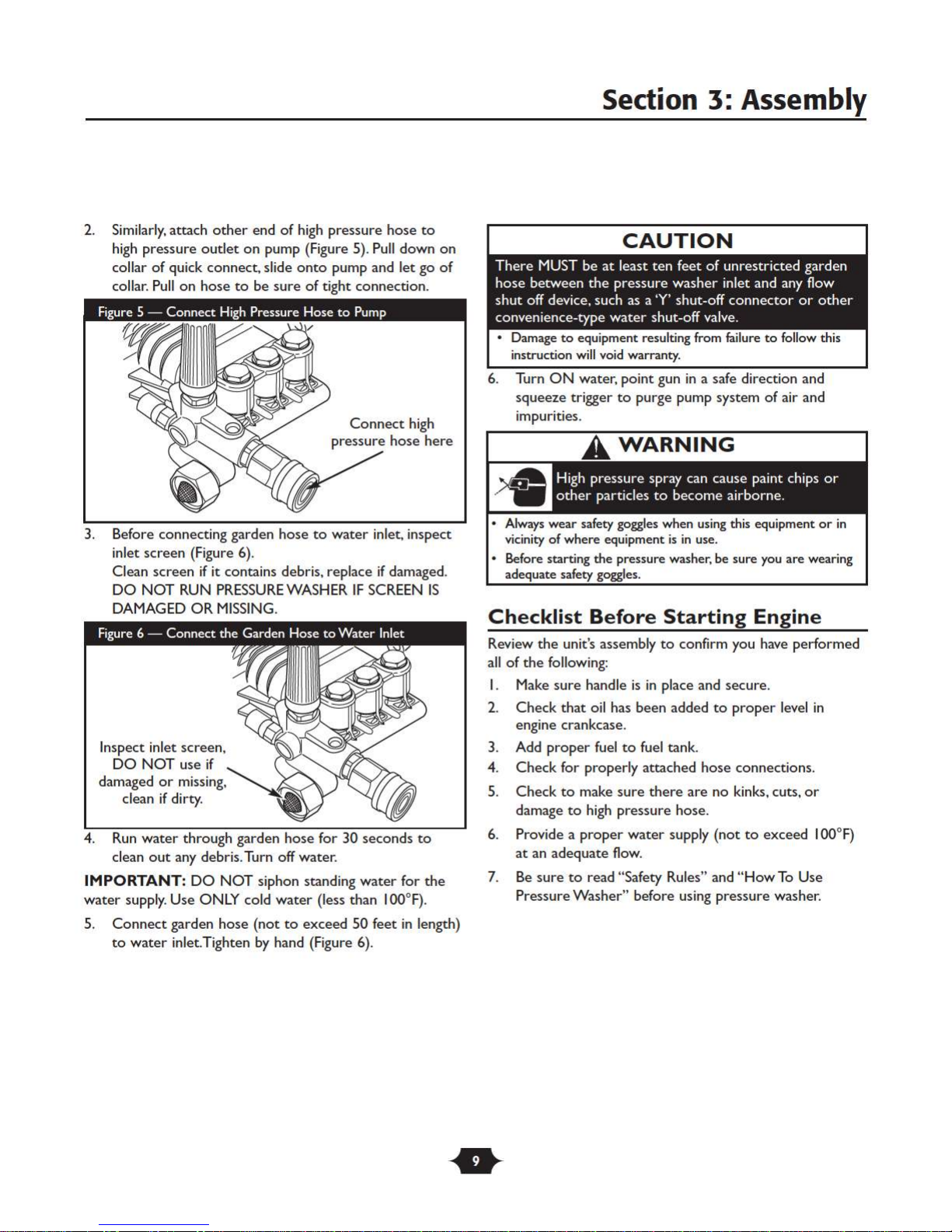

Connect Hose and Water Supply to

Pump

IMPORTANT: To avoid pump damage, you must assemble

the nozzle extension to the spray gun and attach all hoses

before you start the engine.

1. Uncoil high pressure hose and attach quick connect

end of hose to base of spray gun (Figure 4). Pull down

on collar of quick connect, slide onto spray gun and let

go of collar.Tug on hose to be sure of tight connection.

NOTE: Remove and discard all pump shipping caps before

attaching hoses.

Figure 3 — Secure Handle

Connect high

pressure hose

here.

Figure 4 — Connect High Pressure Hose to Spray Gun

CAUTION

• Refer to engine operator’s manual for oil and fuel fill

information.

• Damage to equipment resulting from failure to follow this

instruction will void warranty.

Any attempt to crank or start the engine before it has

been properly filled with the recommended oil will result

in equipment failure.

Align Holes

Handle

Handle

Supports

Figure 2 — Attach Handle to Base
