Included Equipment

1. Wire the HS-SUB-12 to channel 1on the amp.

2. Set all Acoustiscape speakers to 70V AS-1(15w), AS-2(25W)

3. Wire up Acoustiscape speakers in parallel to channel 2.

4. Wire the RCA's into the input section of the Crown amp as shown in illustration below.

5. Set left and right gains evenly at 95% - 2 clicks back from full.

Gains

6. Crown amp comes shipped at AS/HS preset. To change the preset press SET/ENTER twice

then use down/up button to select the right setting then press SET/ENTER button to load.

Sub-Terrain - CH 1

Acoustiscape - CH 2

Backyard Satellite View

Scan to view

install video

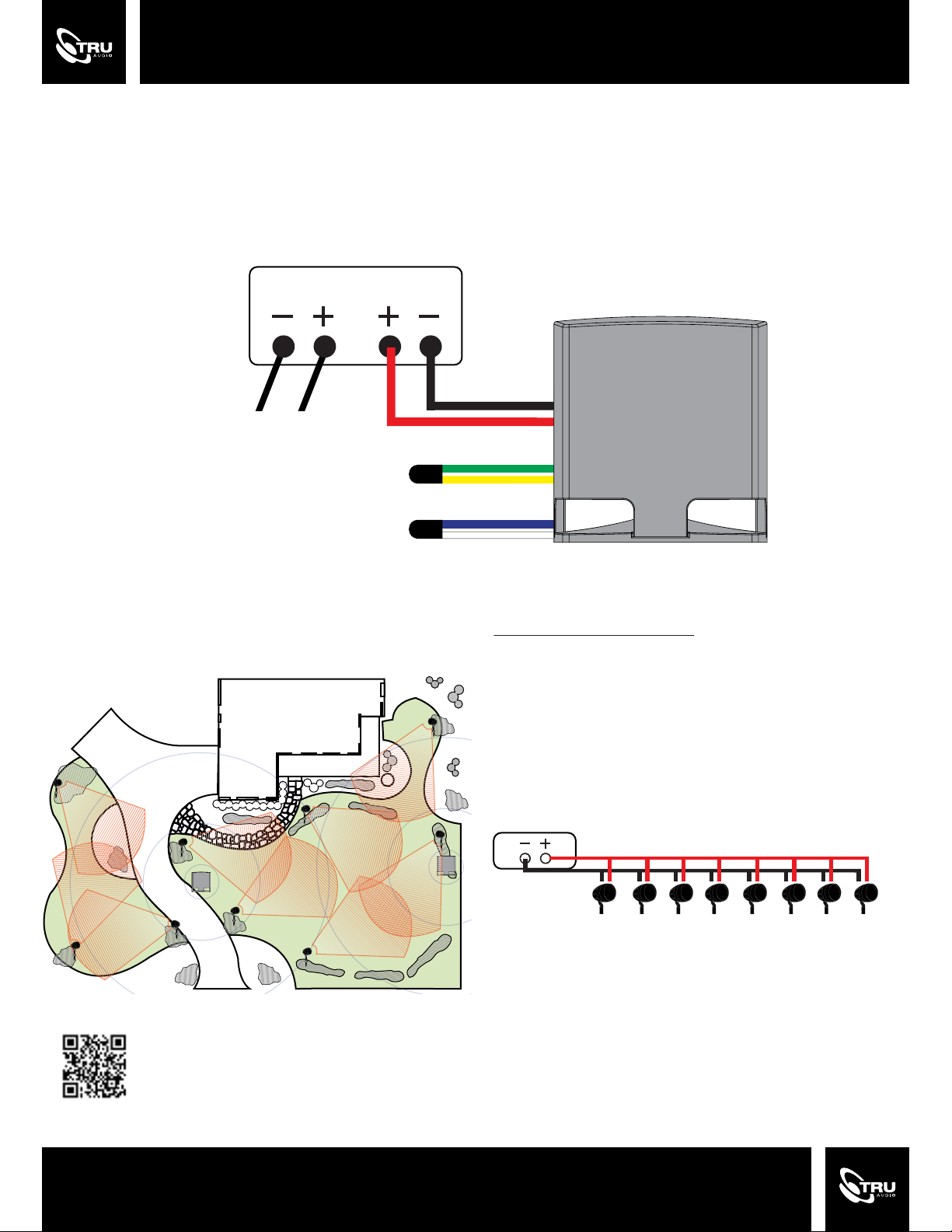

Wiring

70v Wiring from Crown Amplifier:

Connect the (red +) and the (black -) from the HS-SUB-12 to channel 1 on the Crown amplier.

CROWN AMP

RED +

TAP SETTING 50W + + + + + + +

=

50W 50W 50W 50W 50W 50W 50W

= 400W or 80% of the Amp’s Power

BLACK -

70V Installation Basics

Set taps to desired listening level. The tap settings

can be changed as long as the total speaker

wattage does NOT exceed 80% of the amp’s power.

The AS-2 tap setting dial can be found on the back

of the speaker.

NOTE: Lower tap settings allow for more speakers but a

lower maximum volume

Finding the Correct Tap Setting

Example:

AMP POWER x 80% = SAFE

500W x 80% = 400W

400W ÷ 50W (Tap setting) = 8 Speakers

OR

400W ÷ 30W (Tap setting) = 13 Speakers

HS-SUB-12

To 70v Acoustiscape

Speakers

CROWN AMPLIFIER

CH2 CH1

RED +

BLACK -

WHITE -

BLUE -

YELLOW +

GREEN +
