Turboair JUR-36 Manuale utente

Turbo Air Speed up the Pace of Innovation

Undercounter

Refrigerator

Service Manual

CAUTION!

PLEASE KEEP POWER

SWITCH ON BEFORE

OPERATING THIS EQUIPMENT

Please read this manual completely before attempting to install or operate this equipment!

www.turboairinc.com

JUR-36

JUR-48

JUR-60

JUR-72

TABLE OF CONTENTS

1. EXPLODED VIEW

1-1. JUR-36 EXPLODED VIEW

1-2. JUR-48 EXPLODED VIEW

1-3. JUR-60 EXPLODED VIEW

1-4. JUR-72 EXPLODED VIEW

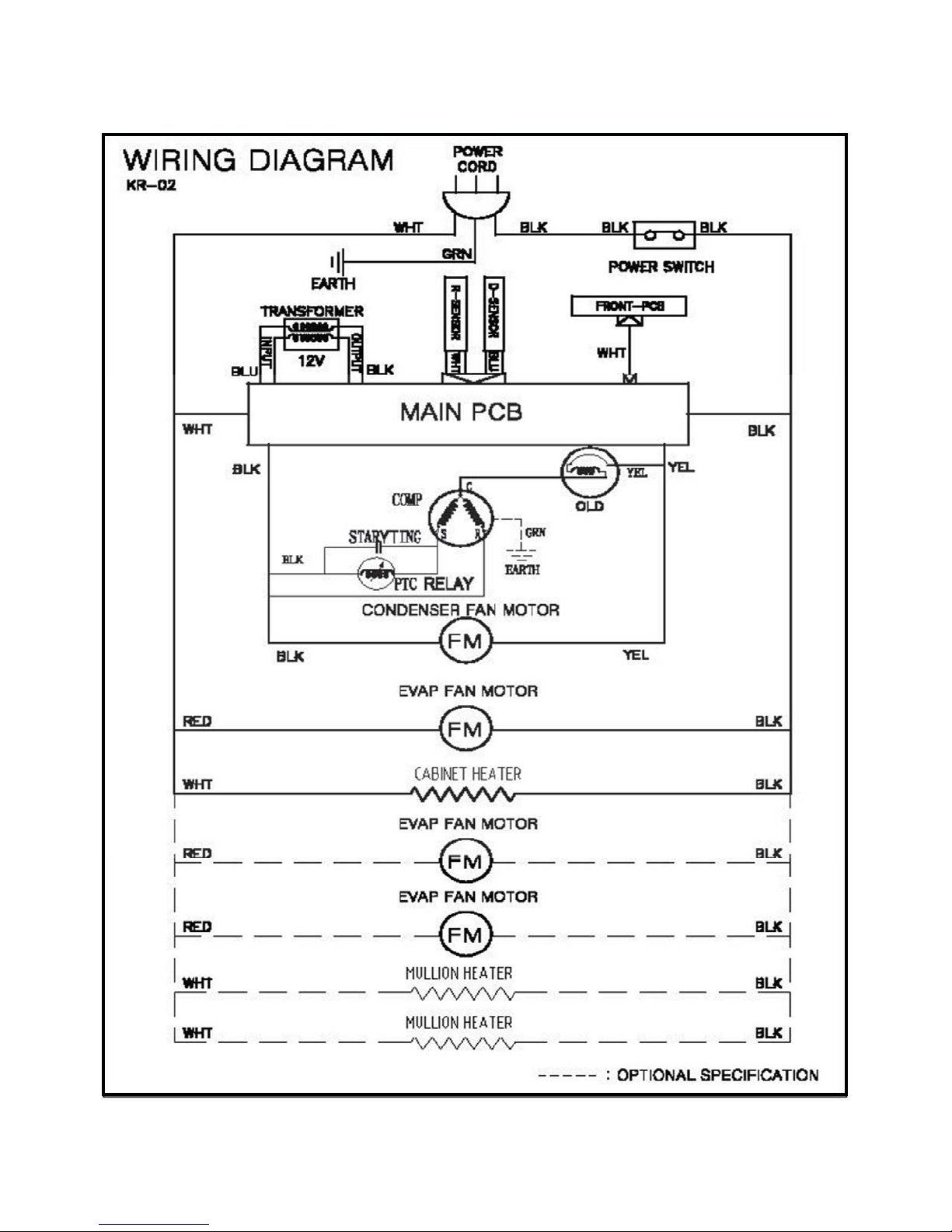

2. WIRING DIAGRAMS

3.MAIN PART

4. MAIN COMPONENTS

5. PARTS LIST

6. TEMPERATURE CONTROL INSTRUCTION

7. REPLACEMENT OF MAIN COMPONENTS

7-1. REPLACING DOOR

7-2. REFRIGERATION COMPARTMENT PARTS

7-3. COMPRESSOR COMPARTMENT PARTS

7-4.DISASSEMBLE Refrigerator Compartment

7-5 Replacing FRONT PCB

7-6 How to use Display PCB

7-7 Replace Main PCB

7-8 Replacing cabinet frame heater(and/or)mullion heater

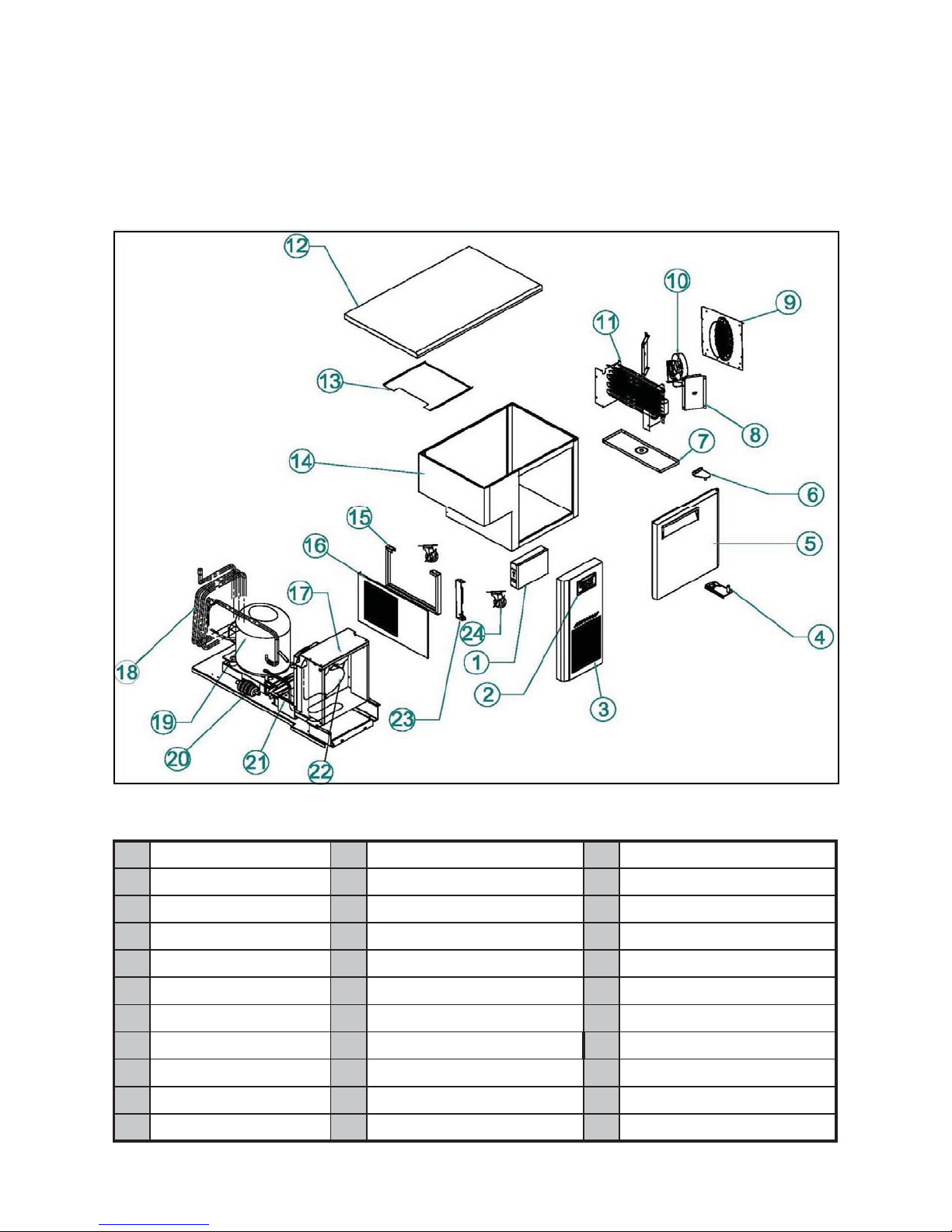

1. EXPLODED VIEW

CONDENSER ASSY

SUCTION PIPE

COMPRESSOR

EVA ASSY

DOOR(R)_900

TOP HINGE（R）

EVA DRAIN GUIDE

DRAIN PAN

DRYEREVA DUCT

EVA FAN MOTOR

UNIT BRACKET（A)

CASKET

AIR GUIDE(L/R)

MAIN PCB COVER

FRONT PCB

COUNTER TOP

EVA FAN AIR GUIDE

UNIT FRONT COVER CABINET ASSY

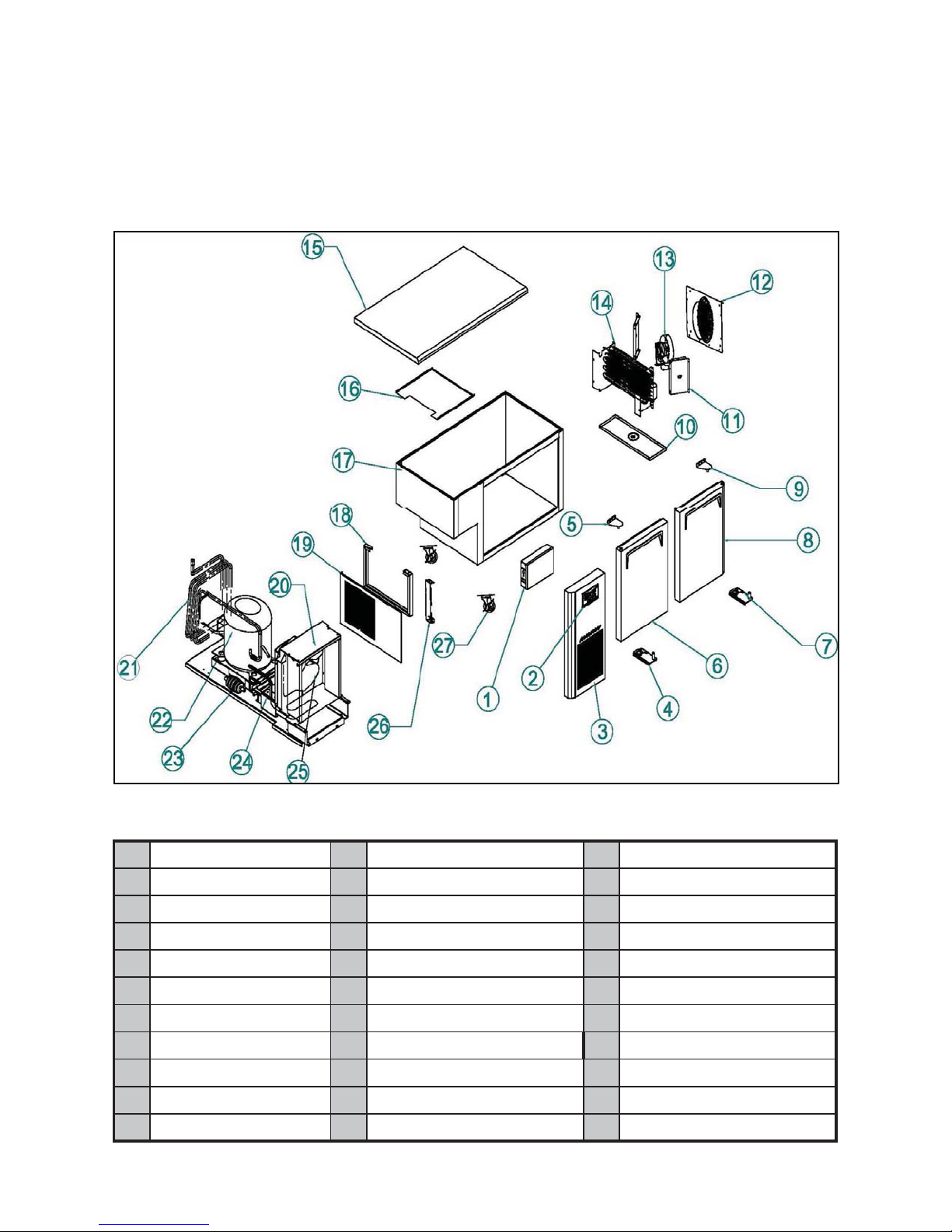

1-1. JUR-36 EXPLODED VIEW

PART NAME

CONDENSER FAN MOTOR

UNIT BRACKET

UNIT SIDE COVER

BOTTOM HINGE（R）

CONDENSER ASSY

SUCTION PIPE

COMPRESSOR

EVA ASSY

DOOR(L)_1200

DOOR(R)_1200

EVA DRAIN GUIDE

DRAIN PAN

DRYER

EVA DUCT

EVA FAN MOTOR

UNIT BRACKET（A)

CASKET

AIR GUIDE(L/R)

MAIN PCB COVER

FRONT PCB

COUNTER TOP

EVA FAN AIR GUIDE

UNIT FRONT COVER

CABINET ASSY

1-2. JUR-48 EXPLODED VIEW

PART NAME

CONDENSER FAN MOTOR

UNIT BRACKET

UNIT SIDE COVER

BOTTOM HINGE（L）

BOTTOM HINGE（R）

TOP HINGE（L）

TOP HINGE（R）

CONDENSER ASSY

SUCTION PIPE

COMPRESSOR

EVA ASSY

DOOR(L)_1500

DOOR(R)_1500

EVA DRAIN GUIDE

DRAIN PAN

DRYER

EVA DUCT

EVA FAN MOTOR

UNIT BRACKET（A)

CASKET

AIR GUIDE(L/R)

MAIN PCB COVER

FRONT PCB

COUNTER TOP

EVA FAN AIR GUIDE

UNIT FRONT COVER

CABINET ASSY

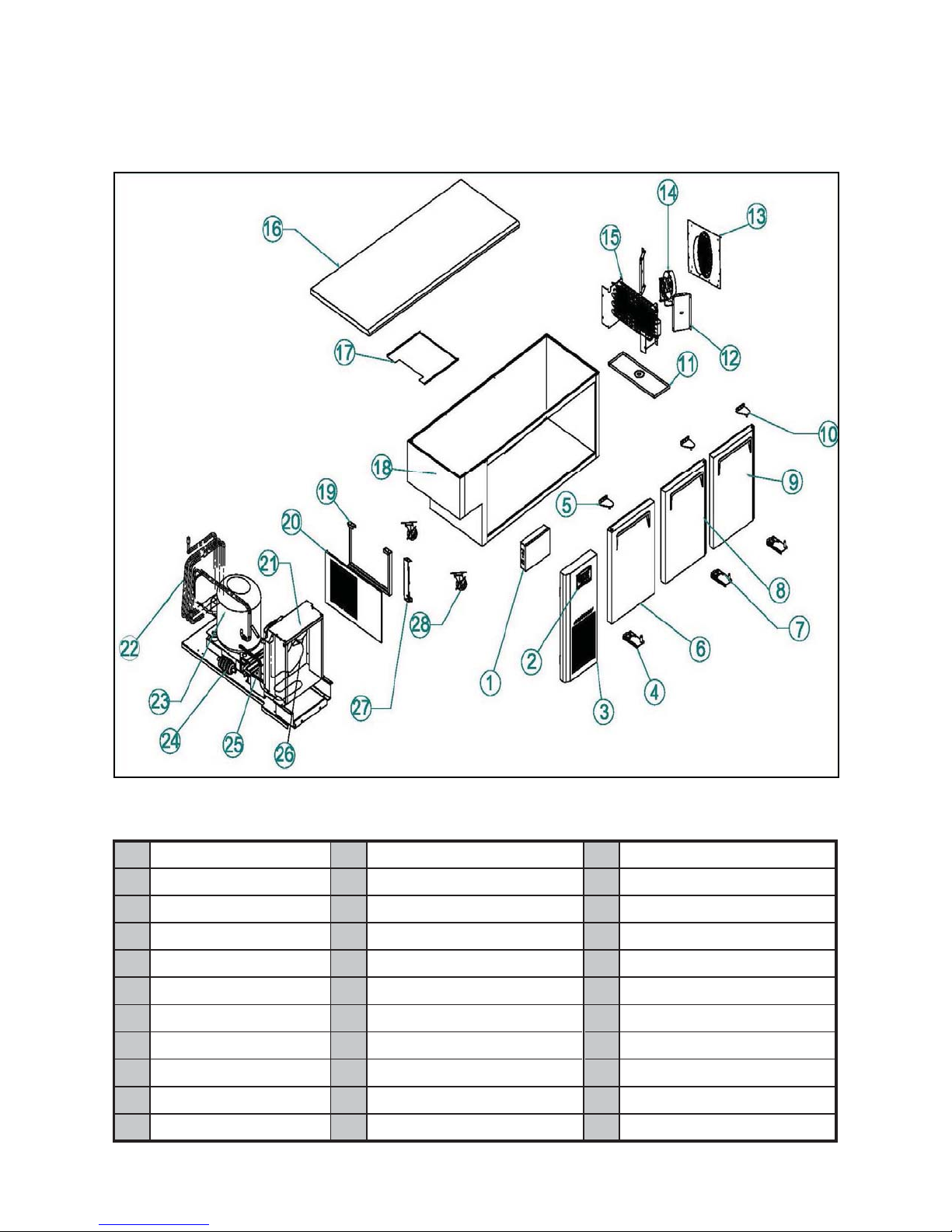

1-3. JUR-60 EXPLODED VIEW

PART NAME

CONDENSER FAN MOTOR

UNIT BRACKET

UNIT SIDE COVER

BOTTOM HINGE（L）

BOTTOM HINGE（R）

TOP HINGE（L）

TOP HINGE（R）

CONDENSER ASSY

SUCTION PIPE

COMPRESSOR

EVA ASSY

DOOR(L)_1800

DOOR(M)_1800

DOOR(R)_1800

EVA DRAIN GUIDE

DRAIN PAN

DRYER

EVA DUCT

EVA FAN MOTOR

UNIT BRACKET（A)

CASKET

AIR GUIDE(L/R)

MAIN PCB COVER

FRONT PCB

COUNTER TOP

EVA FAN AIR GUIDE

UNIT FRONT COVER

CABINET ASSY

1-4. JUR-72 EXPLODED VIEW

PART NAME

CONDENSER FAN MOTOR

UNIT BRACKET

UNIT SIDE COVER

BOTTOM HINGE（L）

BOTTOM HINGE（R）

TOP HINGE（L）

TOP HINGE（R）

2. WIRING DIAGRAMS

3.MAIN PART

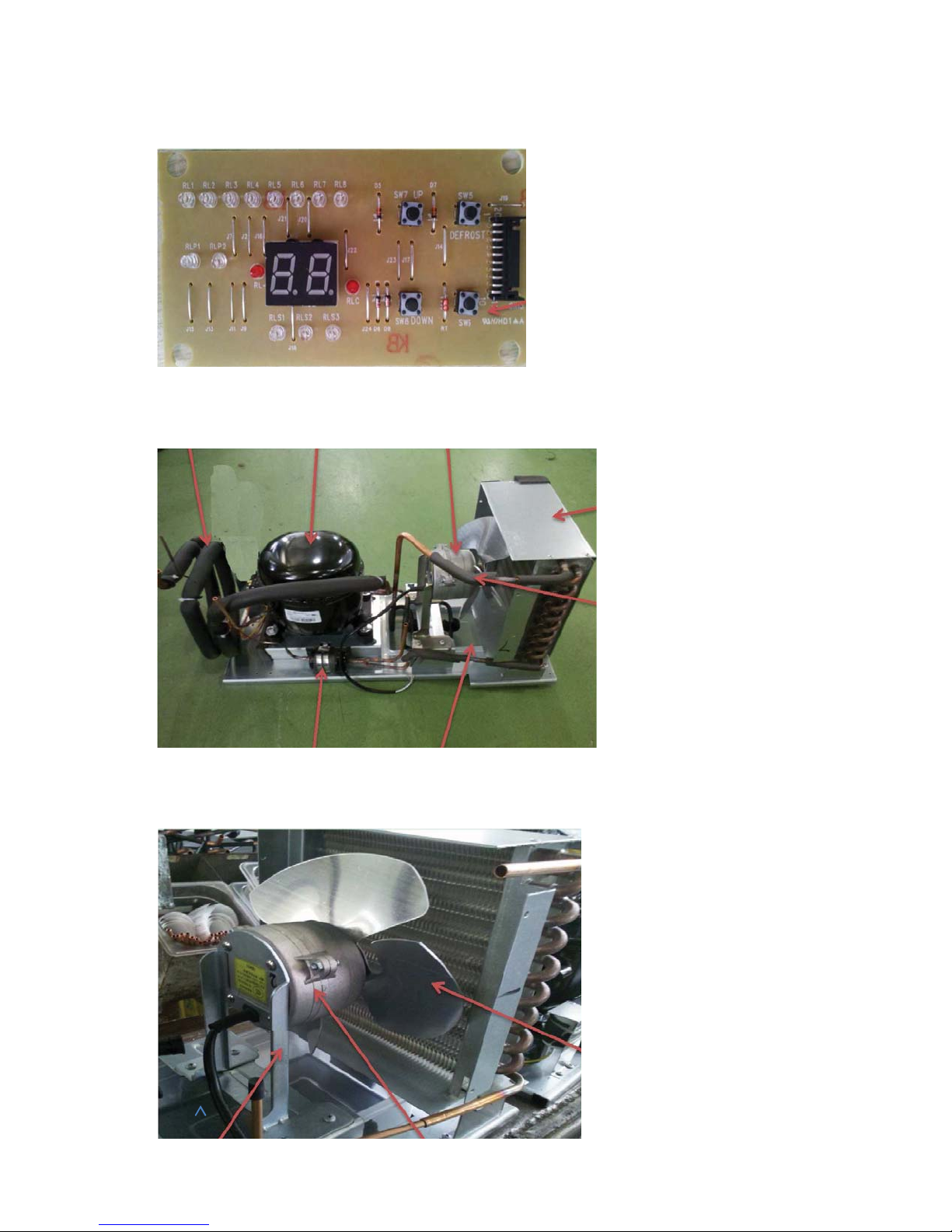

DISPLAY PCB

CONDENSER UNIT

SUCTION PIPE(B) COMP CONDENSER FAN MOTOR

CONDENSER

DRAIN PIPE

DRYER DRAIN PAN

CONDENSER FAN MOTOR ASSY

CONDENSER MOTOR FAN BLADE

CONDENSER MOTOR BRACKET CONDENSER MOTOR

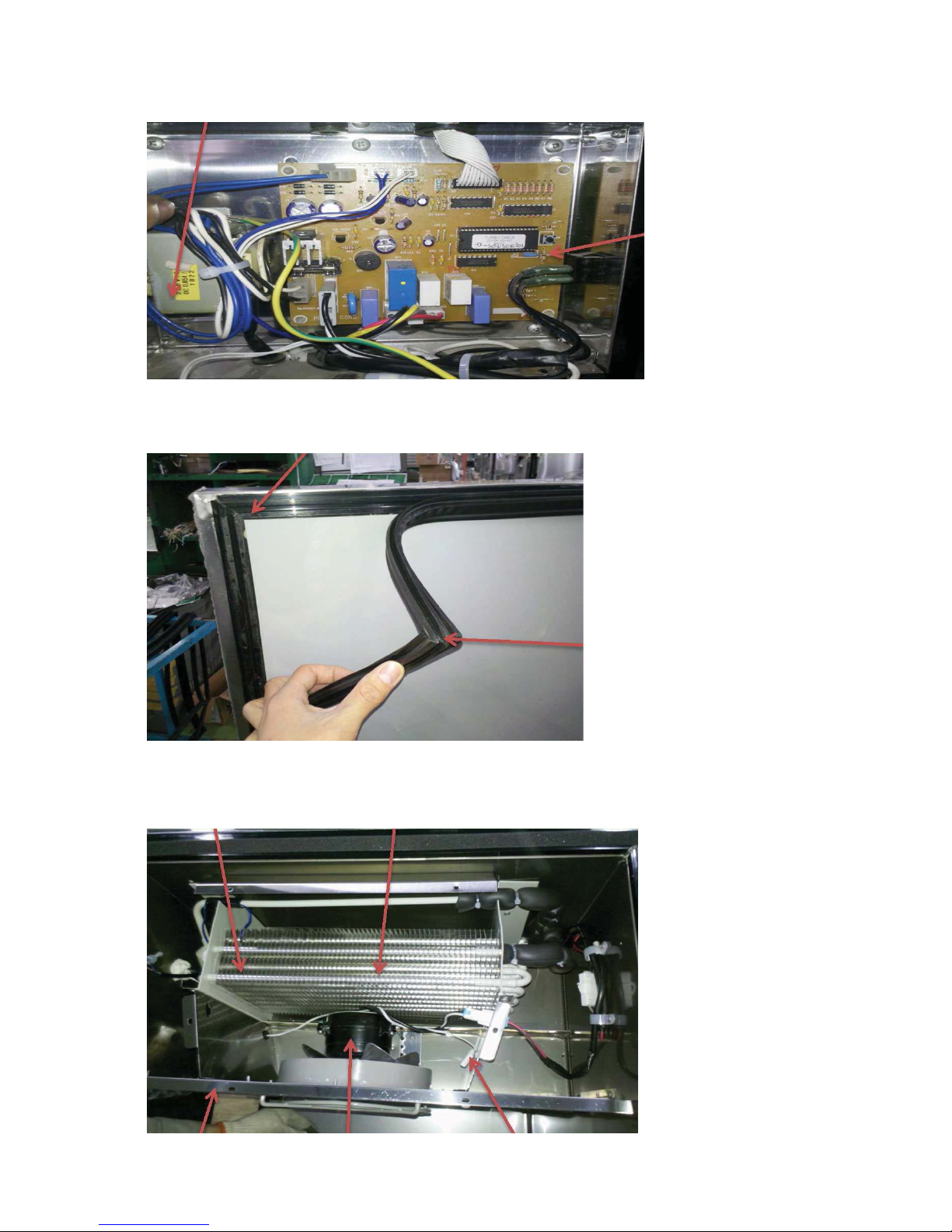

DISPLAY PCB

PCB BOX

DOOR GASKET

EVAP UNIT

TRANSFORMER

MAIN PCB

DOOR FRAME

DOOR GASKET

EVAPD-SENSOR

EVAP DUCT EVAP FAN MOTER R-SENSOR

2. COMPRESSOR RELAY , OVERLOAD

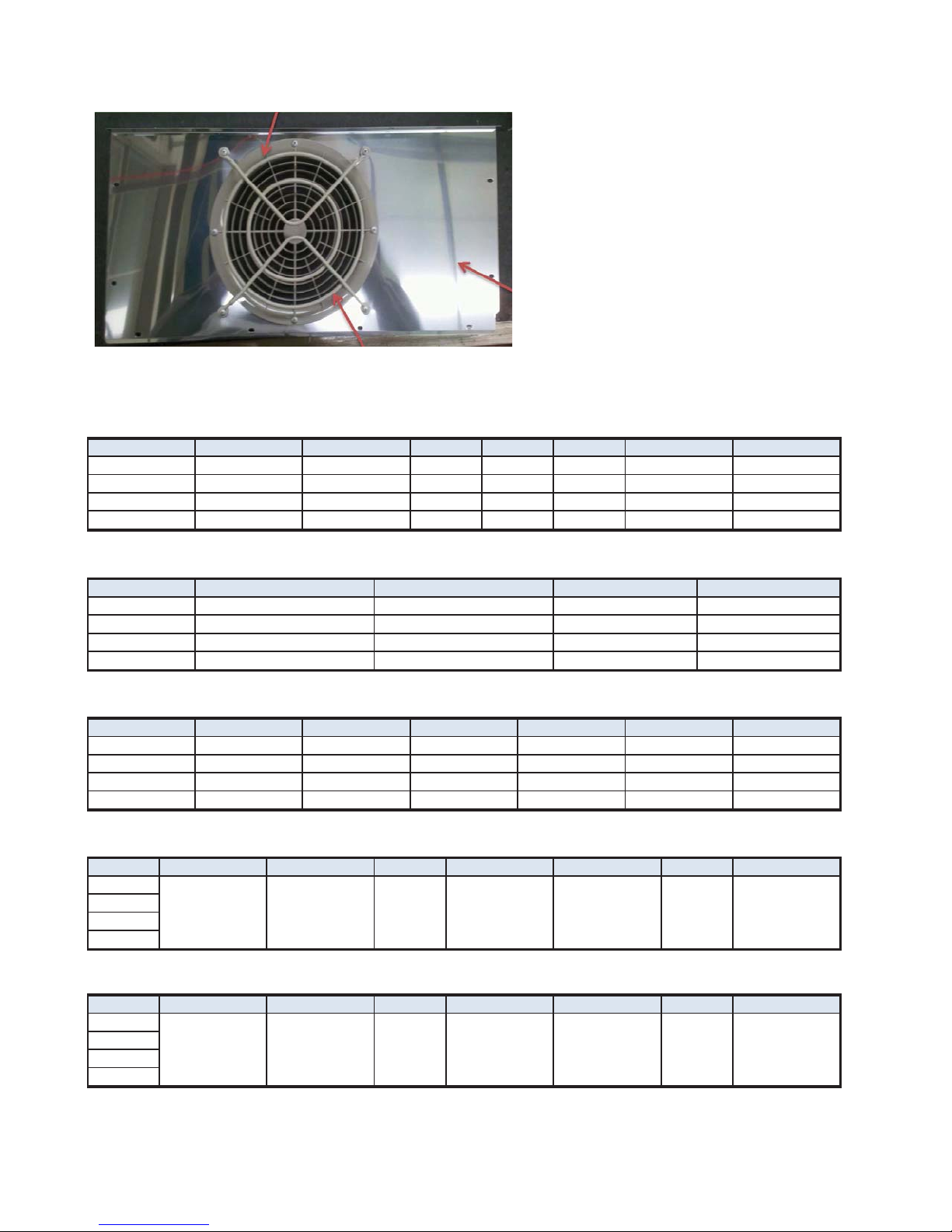

4. MAIN COMPONENTS

MODEL PART NAME PART NO. HP CAPACITY TYPE OF INPUT MAKER

JUR-36 HBL-27YE-1 M369700100 1/4 HP - RSCR 115V 60Hz DAEWOO

JUR-48 HBL-27YE-1 M369700100 1/4 HP - RSCR 115V 60Hz DAEWOO

JUR-60 HBL-27YE-1 M369700100 1/4 HP - RSCR 115V 60Hz DAEWOO

JUR-72

MODEL

-36

-48

-60

-72

MODEL

-36

-48

-60

-72

STARTING

200V/100µF

PART NO. RUNNING

230V/10µF

PART NO.

MAKER

NOTE

HBL-27YE-1 M369700100 1/4 HP - RSCR 115V 60Hz DAEWOO

NOTEMAKEROVERLOADRELAY

1.COMPRESSOR

SENSATA- 4TM314TFBYY-52

SENSATA

SENSATA- 4TM314TFBYY-52

BLADE MAKER

4. CONDENSER FAN MOTOR

TYPEPART NAME PART NO.

-72

-60

-36

-48

5. EVAPORATOR FAN MOTOR

PART NAME PART NO. POLE INPUT TYPE BLADE MAKERMODEL

3. COMPRESSOR CAPACITOR

- 4TM314TFBYY-52

INPUTMODEL POLE

SHADED POLE

INDUCTION SUNGSHIN

IS 4420DWSN-2A

3LAzH06,V511P40010066F8G1-GSWD0244SI

P8F6600100 4P 115V,60Hz SHADED POLE

INDUCTION AL4 SUNGSHIN

-72

-60

-36

-48

EVAP DUCT

FAN COVER

EVAP DUCT

FAN COVER(A)
