Turbosound IMPACT35 Manuale utente

Quick Start Guide

IMPACT series

IMPACT Quick Start Guide - Page - 1

Models covered by this Quick Start Guide

IMPACT35, IMPACT55T, IMPACT65T.

Thank you for choosing a TURBOSOUND IMPACT series loudspeaker product for your application. If you would like

further information about this or any other TURBOSOUND product, please contact us. A detailed user manual on this

product is available on our web site at www.turbosound.com

Unpacking the Impact Loudspeakers

After unpacking the loudspeakers please check carefully for damage. If damage is found please notify your supplier at

once. You, the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.

System Requirements

Low Impedance Systems

When used as part of a low impedance system Impact series loudspeakers require only one amplifier channel for correct

operation, the frequency splitting between the LF driver and the HF driver being accomplished by the internal passive

crossover network built into each enclosure. Select the 16Ωsetting on the voltage tap changer on the bottom of the

cabinet. Amplifiers should be capable of delivering long term broadband power equal to the loudspeaker’s program power

rating at its stated nominal impedance.

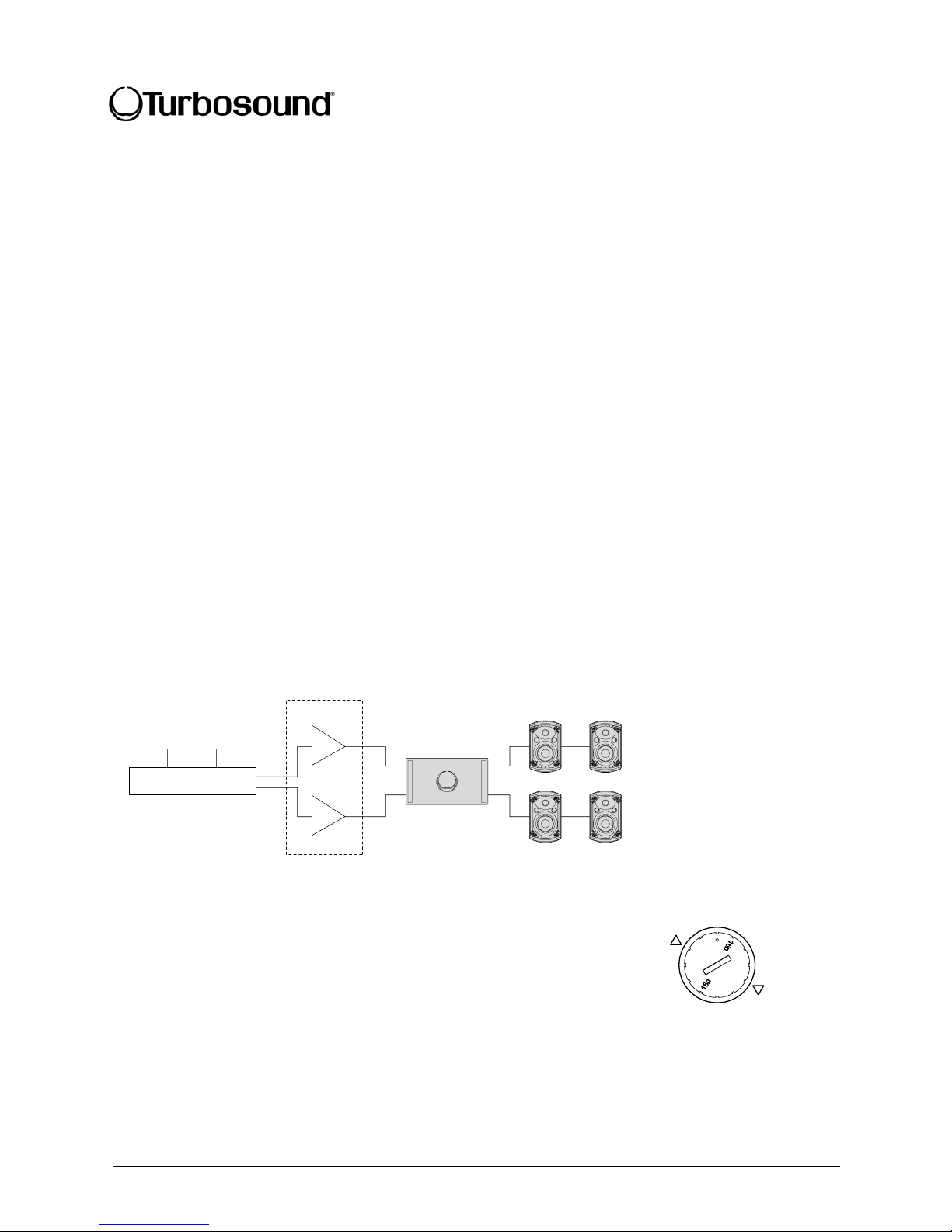

Use with Subwoofers

Passive subwoofers such as the TSB-110 can be added to increase low frequency performance without the need for

additional power amplifiers. The subwoofer’s internal crossover filters high frequency signals out of the subwoofer

cabinet to ensure a clean transition. Connect first to the subwoofer and then link out to the satellite speakers.

POWER AMPLIFIER

IMPACT 3

TSB-110

Distributed Systems

Impact loudspeakers can be used on 70 volt or 100 volt distributed systems. Connect

loudspeakers to a suitable distribution amplifier, making sure that the maximum sum of the

loudspeakers’ transformer taps do not exceed the distribution amplifier’s rated power

output. Adjust the voltage tap selector to provide the appropriate loudness level.

Loudspeaker Connections

Electrical connections to the IMPACT loudspeaker are provided as an integral part of the adjustable wall bracket supplied

with each loudspeaker. Simply follow the instructions in the Mounting and Fixing section following.

7.5

100V

70V

Quick Start Guide

IMPACT series

IMPACT Quick Start Guide - Page - 2

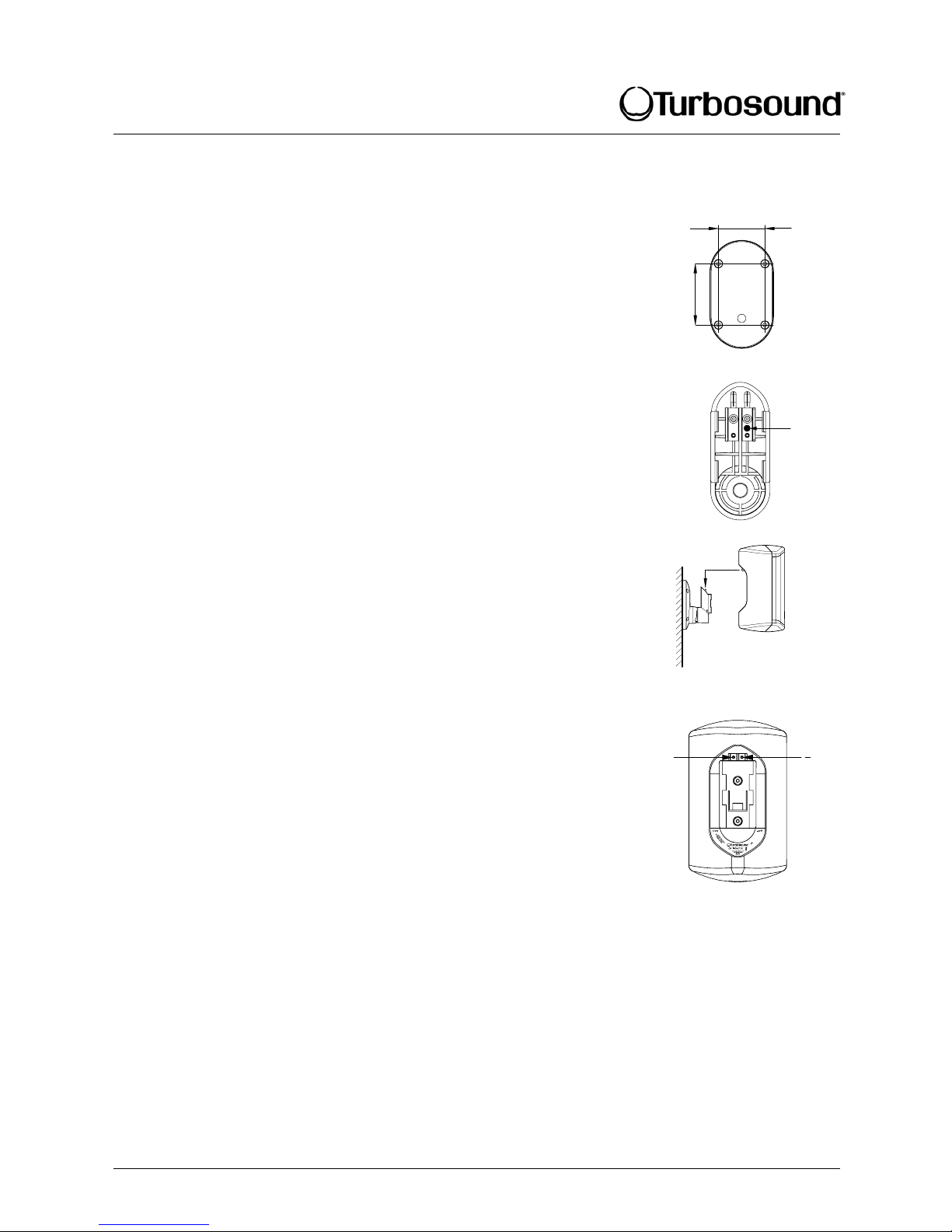

Mounting and Fixing

Installing the Loudspeaker with the Supplied Wall Bracket

•The loudspeaker connections are provided as an integral part of the wall bracket.

•Site the bracket on to the mounting surface, making sure there is sufficient free

travel vertically and horizontally to allow full angle adjustment of the loudspeaker,

and feed the speaker cables through the main bracket assembly from the rear.

•Fix the wall bracket securely to the mounting surface using appropriate fixings. The

correct hole spacing and bracket orientation are shown here.

•Terminate the speaker cable by stripping to length and connecting to the bracket

assembly, ensuring correct polarity. Use the smaller Allen key to tighten the grub

screws on to the cable. The right terminal is positive (+ve) and the left terminal is

negative (-ve).

•Offer the loudspeaker up to the bracket and lock into place with a downward motion.

This action automatically closes the electrical connections.

•Angle the loudspeaker as required and lock the bracket using the larger Allen key

provided.

Installing the Loudspeaker with other Wall and Ceiling Brackets

•When installing IMPACT loudspeakers with CB-10, WB-10 or OmniMount brackets

you will need to terminate the cables directly at the loudspeaker as shown.

•Unscrew the M6 countersunk bolts holding the bracket shoe. Leaving the bracket

shoe in place attach the wall or ceiling bracket directly to the loudspeaker’s M6 fixing

points using the screws provided with the bracket. Angle as necessary and tighten

all fixings.

Spares and Accessories

LS-35 3.5” low frequency driver for IMPACT35

LS-50 5” low frequency driver for IMPACT55T

LS-51 5” low frequency driver for IMPACT65T

TW-52 High frequency tweeter for IMPACT35/55T/65T

WB-5 Adjustable plastic wall bracket

WB-10 Adjustable steel wall bracket

CB-10 Adjustable steel ceiling bracket

Turbosound Ltd, Star Road West Sussex RH13 8RY, United Kingdom

tel: +44(0)1403 711447 fax: +44(0)1403 710155 www.turbosound.com

version 1.0

73mm [2.9"]

97mm

[3.8"]

+ve v

+ve

terminal
