T24 RIGGING DOCUMENTATION

page 2

• T24 RIGGING ELEMENTS page 3

• T24 RIGGING SETUPS page 6

1. Single Box rigging page 7

2. Two or more Boxes page 7

3. Cluster rigging page 10

4. Rigging clusters page 12

page 3

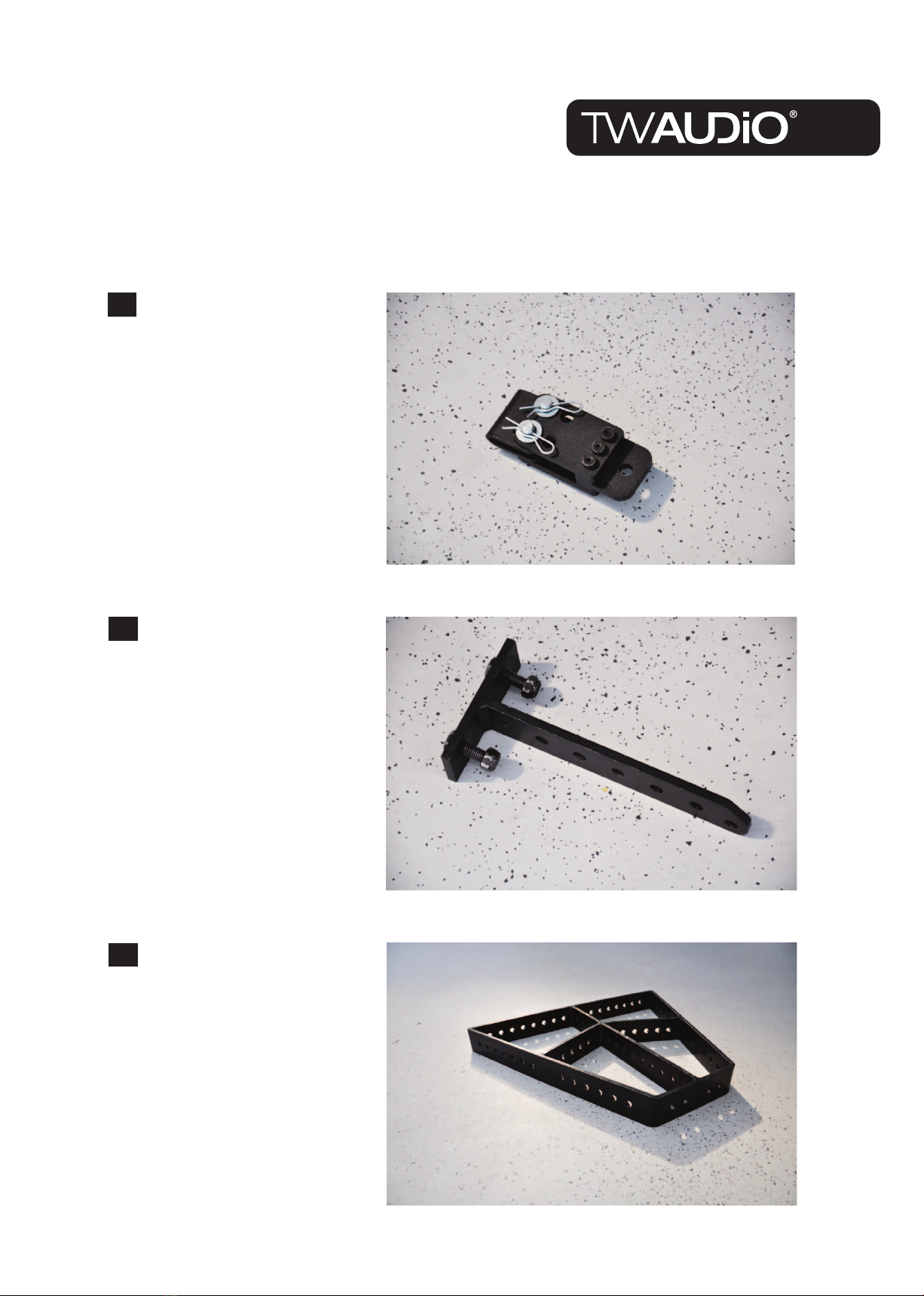

CBT24 – the Cradle Bar for the

T24. Mounted on top of the Box.

Please check the angling of the

Bar.

It has the same angling than the

T24 itself and can only be moun-

ted in one direction.

BBT24 – the Backbone of the

T24. This part gives you the

stability you need when moun-

ting two or more T24 on top of

each other.

T24 RIGGING ELEMENTS:

page 4

BCT24 – adapts the back-

bone (BBT24) to the cradle bar

(CBT24).

This element is used when rig-

ging two or more T24 w/out the

main cradle (MCT24).

The holes are also used as

pinpoints in the EASE FOCUS

simulation Data.

MCT24 – the main cradle.

Used for clustering 2 or more

T24 aside and underneath each

other.

You can interconnect multiple

MCTs for a larger cluster.

BAT24 – adapts the backbone

(BBT24) to the main cradle

(MCT24) when building a cluster

of 2 or more T24.

page 5

BLT24 - the Boxlinks. Used to

assemble T24s underneath each

other.

Now that we have gone through all the elements,

let’s take it step by step…

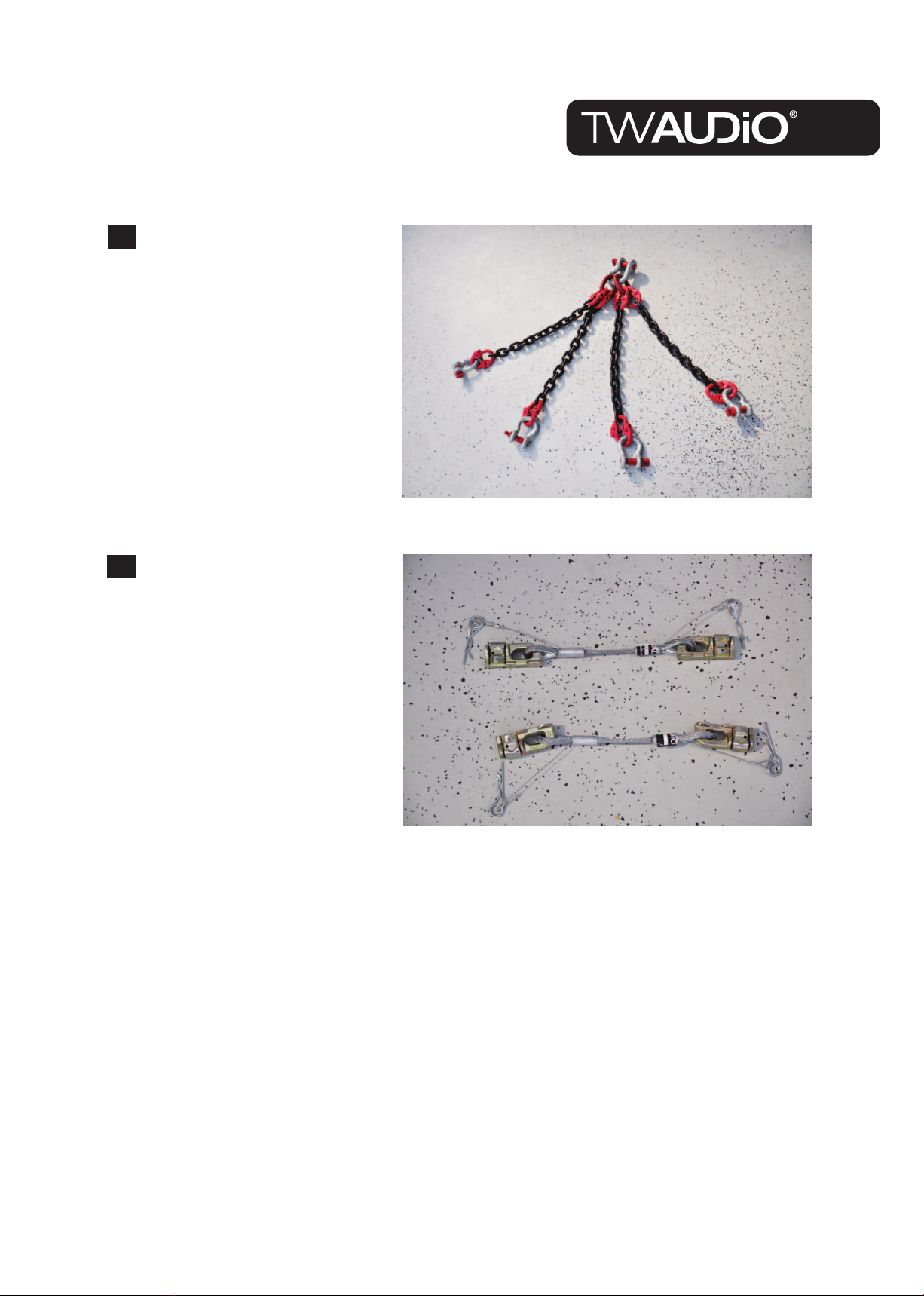

No – this is not a dead Octopus –

this is the ASK44.

The Rigging chain for the

MCT24.

page 6

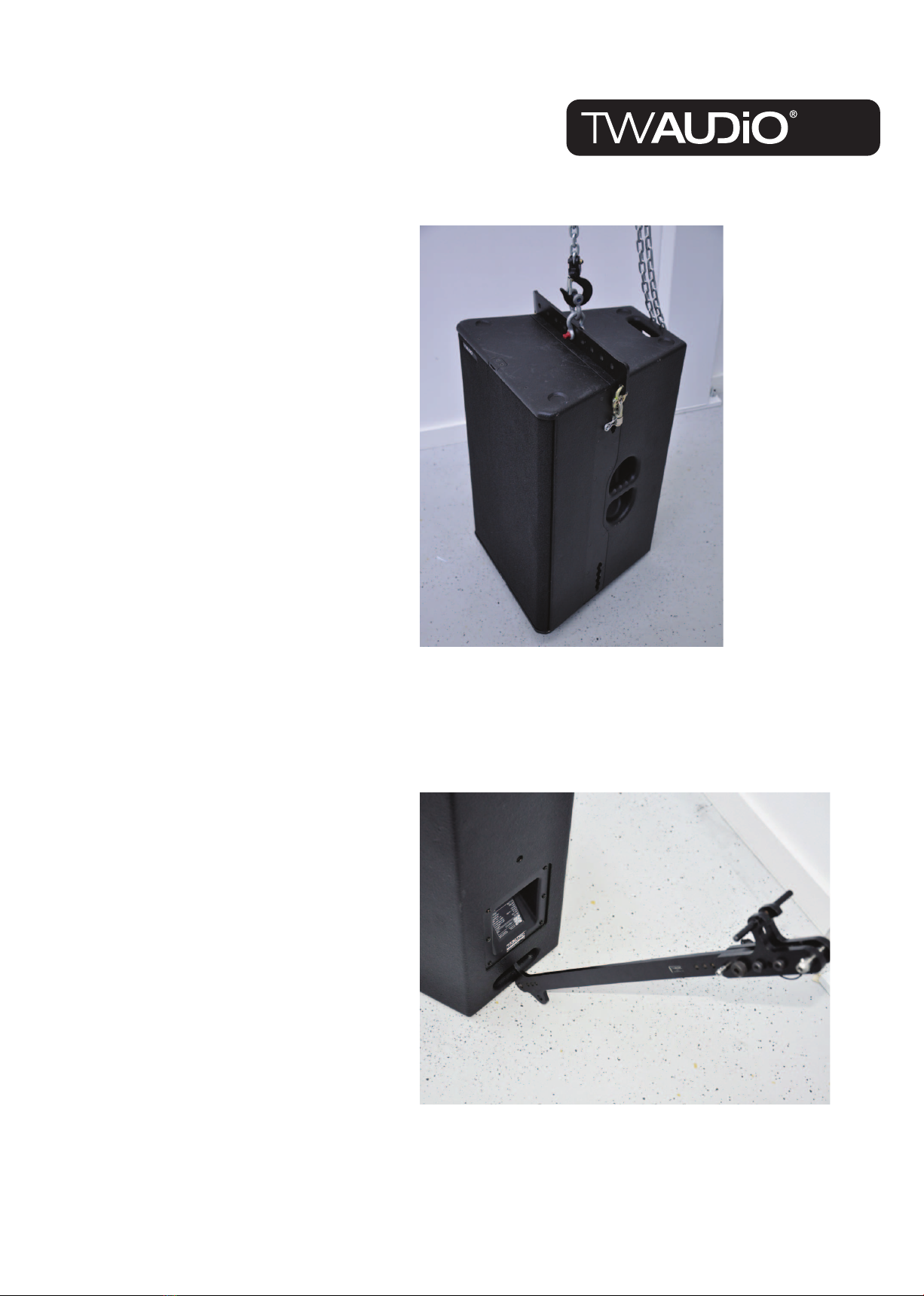

The basic element for all rigging setups is the CBT24.

The following pictures show the correct assembling to the T24.

T24 RIGGING SETUPS:

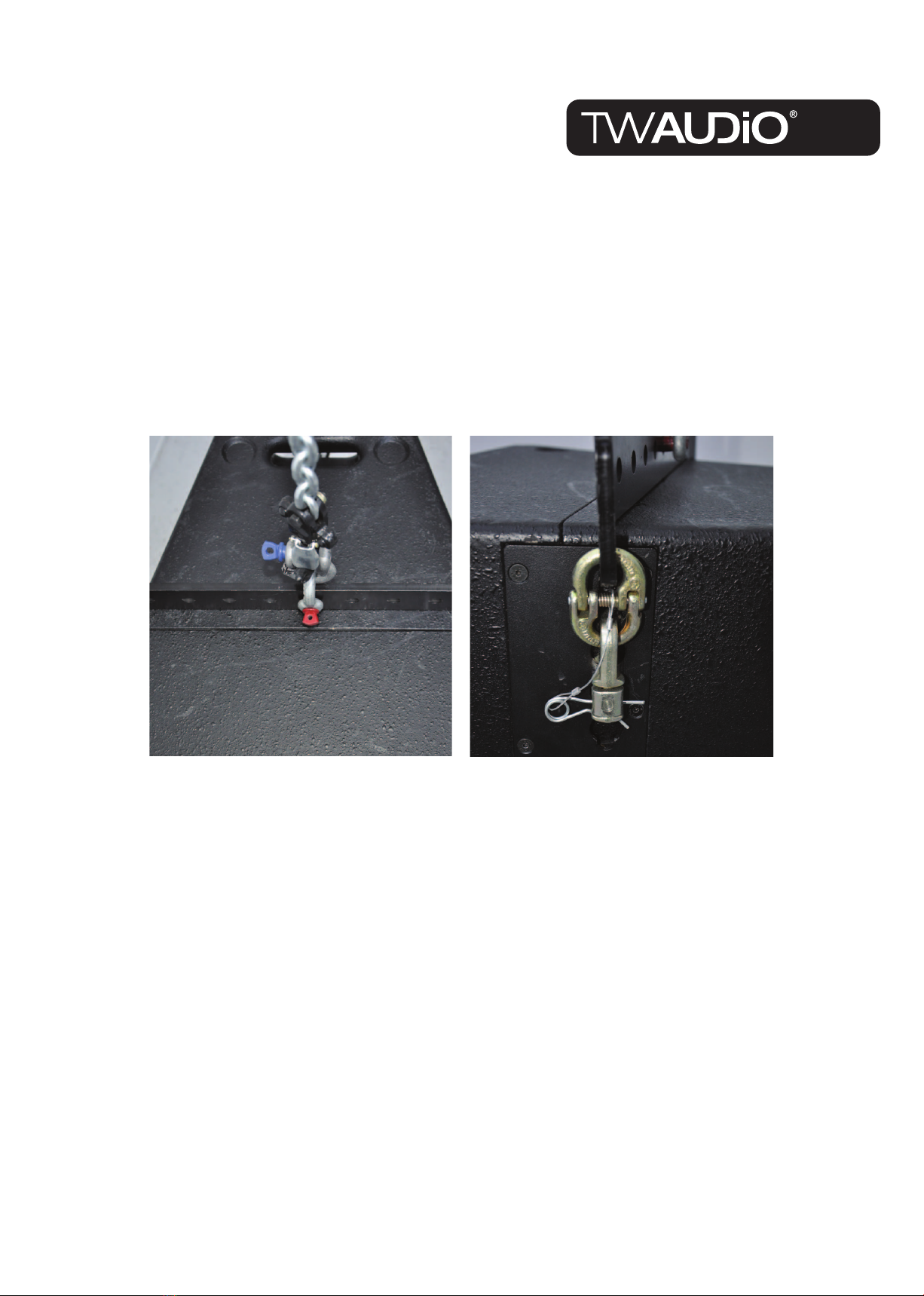

MAKE SURE THAT THE CARGO STUDS ARE LOCKED

SECURELY!!!

! !

page 7

This is the most simple way of rigging

the T24 with a CBT24. Just as the

picture shows – this is a very simple

way of rigging the T24. When using

this rigging option, you will not have

the possibility of dedicated angling.

The angling can only be done by

straps, etc...

• Attach the CBT24 to the Box

• Mount the BCT24 w i t h i t s s c r e w s

to the CBT24.

• Attach the BBT24 t o t h e B o x b y

starting on the lower handle.

1. Single Box rigging

2. Two or more Boxes

rigged underneath each

other:

page 8

Open the pin to tilt the top part of the

BBT24 to attach it to the upper handle.

Lock the upper part of the BBT in the

upper handle by re-inserting the pin.

Attach the BBT to the BCT – Already con-

fused? Just do it like the following picture!

This is how it should look like when eve-

rything was done correctly.

PLEASE CHECK ALL CONNECTIONS AFTER MOUNTING

THE RIGGING ELEMENTS

! !

a b

c d

page 9

Now you can easily add up to 6 boxes underneath eachother. Therefore you need the

BLT24. Pull up the Box you have already rigged up to the height where you can set one

more Box underneath it. Then connect the next Box BBT to BBT and use the Boxlinks

(BLT24) to angle them.

The angling is done by the holes of the BLT24s. Every left out hole gives you 6° of angle.

This picture shows you an angle of 12°

inbetween the speakers. The overall angling

is done by the choice of the pinpoint in the

BCT24. The simulation can be done in EASE

FOCUS.

PLEASE CHECK ALL CONNECTIONS AFTER

MOUNTING THE RIGGING ELEMENTS

page 10

To get a dedicated angling not

only in vertical position, but also in

horizontal position you can use the

MCT24. With the Main Cradle it

is possible to hang multiple Boxes

underneath and side a side of

each other.

Again-we need the CBT24 and

the BBT24. This time we need two

shakles connected to the CBT24.

We also need the BAT24. The

Adaptions for the BBT to the Main

Cradle. Setup your speakers like

this:

Here you can see the two BATs

prepared. They are simply at-

tached to the BBTs via the top

Pin.

3. Cluster rigging
