TYAN THUNDER K8HM Manuale utente

http://www.tyan.com

Thunder K8HM ///

S3892

Version 1.1

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro and Thunder K8HM are trademarks of TYAN Computer

Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 10

2.2 Block Diagram Page 11

2.3 Board Parts, Jumpers and Connectors Page 12

2.4 Installing the Processor(s) Page 22

2.5 Heatsink Retention Frame Installation Page 23

2.6 Thermal Interface Material Page 24

2.7 Heatsink Installation Procedures Page 25

2.8 Tips on Installing Motherboard in Chassis Page 28

2.9 Installing the Memory Page 29

2.10 Attaching Drive Cables Page 32

2.11 Installing Add-In Cards Page 34

2.12 Installing Optional SO-DIMM Modules Page 36

2.12 Connecting External Devices Page 37

2.13 Installing the Power Supply Page 38

2.15 Finishing Up Page 39

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 41

3.2 BIOS Menu Bar Page 42

3.3 BIOS Legend Bar Page 42

3.4 BIOS Main Menu Page 43

3.5 BIOS Advanced Menu Page 44

3.6 BIOS PnP/PCI Menu Page 65

3.7 BIOS Boot Menu Page 67

3.8 BIOS Security Menu Page 71

3.9 BIOS Chipset Menu Page 72

3.10 BIOS Exit Menu Page 81

Chapter 4: Diagnostics

4.1 Beep Codes Page 83

4.2 Flash Utility Page 83

4.3 AMIBIOS Post Code Page 84

Appendix I: SMDC Information Page 87

Appendix II: How to Make a Driver Diskette Page 89

Glossary Page 91

Technical Support Page 97

http://www.tyan.com

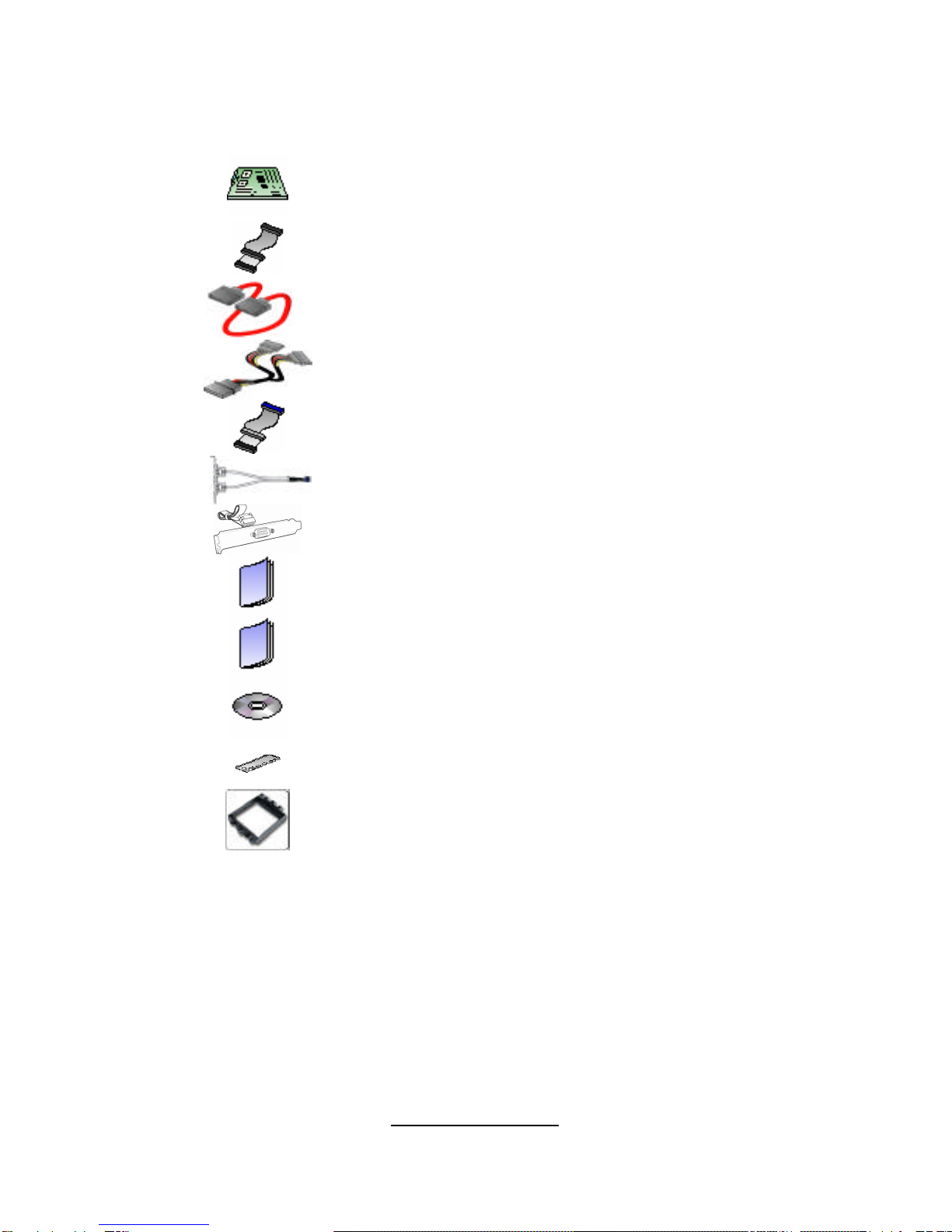

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8HM motherboard

1x 34-Pin floppy drive cable

4x SATA cable

2 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1x COM Port cable

1x Thunder K8HM User’s Manual

1x Thunder K8HM Quick Reference Guide

1x TYAN driver CD

1x I/O shield

2 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased one of the most powerful server solutions available. The

Thunder K8HM (S3892) is a high-end server motherboard, based on the

ServerWorks BCM5780 & BCM5785 chipsets. It also includes the NS PC87417

Super I/O and SMSC EMC6D 103S Hardware Monitoring chipsets.

This motherboard is designed to support up to two AMD Opteron™200 Series

processors and maximum 16GB/32GB of DDR266/333 memory. The S3892 is

ideal for CPU, memory, and network intensive applications required in the HPC

and clustering environments.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processors

•Two uPGA 940-pin ZIF sockets

•Supports up to two AMD OpteronTM

200 Series processors (including dual

core processors)

•Integrated 128-bit DDR memory

controller

Chipset

•ServerWorks BCM5780 + BCM5785

chipsets

•National PC87417 Super I/O chip

Memory

•128-bit dual channel memory bus

•Total sixteen (16) 184-pin 2.5V DDR

DIMM sockets (8 on CPU1 and 8 on

CPU2)

•Supports PC2100/2700/3200

•Registered, ECC/Non-ECC module

supported

Expansion Slots

•Two (2) PCI Express X16 slots (each

w/ x8 signal)

Integrated Video Controller

•ATI ES1000 controller

•32MB DDR frame buffer

Integrated Enhanced IDE

Controller

•Integrated Enhanced IDE Controller

•Single-channel master mode supports

up to two IDE devices

•Supports IDE drives and ATAPI-

compliant devices

Integrated SATA Controllers

•Supports four SATA-II ports at 3.0

Gb/s (BCM5785 Chipset)

•RAID 0/1/5 supported

Integrated LAN Controllers

•Dual GbE LAN (from BCM 5780)

-Embedded in BCM5780

-Two 10/100/1000 RJ-45 LAN ports

w/LED

•One Intel i82551 QM fast Ethernet

controller

-One 10/100 RJ-45 LAN port w/LED

http://www.tyan.com

•Two (2) PCI-X 133/100MHz slots

•One (1) PCI-X 100MHz slot

•One (1) PCI 32-bit/33MHz, v2.3

compliant slot

•One (1) TYAN “TARO”SO-DIMM

socket

System Management

•Two (2) EMC6D103S hardware

monitoring IC

•Eight (8) 3+1 fan headers support

tachometer monitoring, six (6) of them

with smart FAN control

•Temperature and voltage monitoring

•Watchdog timer support

Integrated I/O

•One floppy connector

•One IDE connector

•Four SATA connectors

•Four USB2.0 ports (2 at rear, 2 via

cable)

•Two COM ports (1 at rear, 1 via cable)

•Tyan 2 x9 front panel pin header

•Tyan 2 x6 front panel pin header for

LAN/ID LED

•2x25 connector for optional TYAN

IPMI SMDC

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked 2 USB ports and 1 10/100

RJ45 port

•One 9-pin COM port

•One 15-pin VGA connector

•Two side-by-side RJ-45 ports

Form Factor

•Extended ATX footprint (13”x 12”)

•EPS12V/SSI v3.51 (24+8) power

connectors

-Operating on 32bit/33MHz PCI bus

Optional Modules

•M3291, IPMI 2.0 Remote System

Mgmt card

-Renesas H8S2167 BMC controller

-BT, KCS, Logging support

-IPMI-over-LAN

-Remote power on/off and reset

•M7901/M7902, Ultra 320 SCSI TARO

card

-Adaptec AIC-7901/7902 single/dual-

channel Ultra 320 SCSI controller

-Adaptec Host RAID 0, 1, 10 supported

•M9000 SAS/SATA II TARO card

-Adaptec AIC-9405/9410 SAS

controller

-Supports up to 4-port (M9000-5) and

8-port (M9000-10) SAS & SATA running

at 3.0Gb/s

-Adaptec HostRAID 0, 1 & 10

supported

BIOS

•AMI BIOS on 8Mbit LPC Flash ROM

•Serial Console Redirect

•PXE via Ethernet, USB device boot

•SMBIOS 2.3.1, BBS 1.1 compliant

•Headless Operation via serial console

redirect

•48-bit LBA Support

Power

•Onboard dual 4-phase VRM

•EPS12V/SSI v3.51 (24+8) power

connectors

Regulatory

•FCC Class B (DoC), CE (DoC)

http://www.tyan.com

Chapter 2: Board Installation

Precautions: The Thunder K8HM supports SSI, EPS12V type power supplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 37.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right…the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

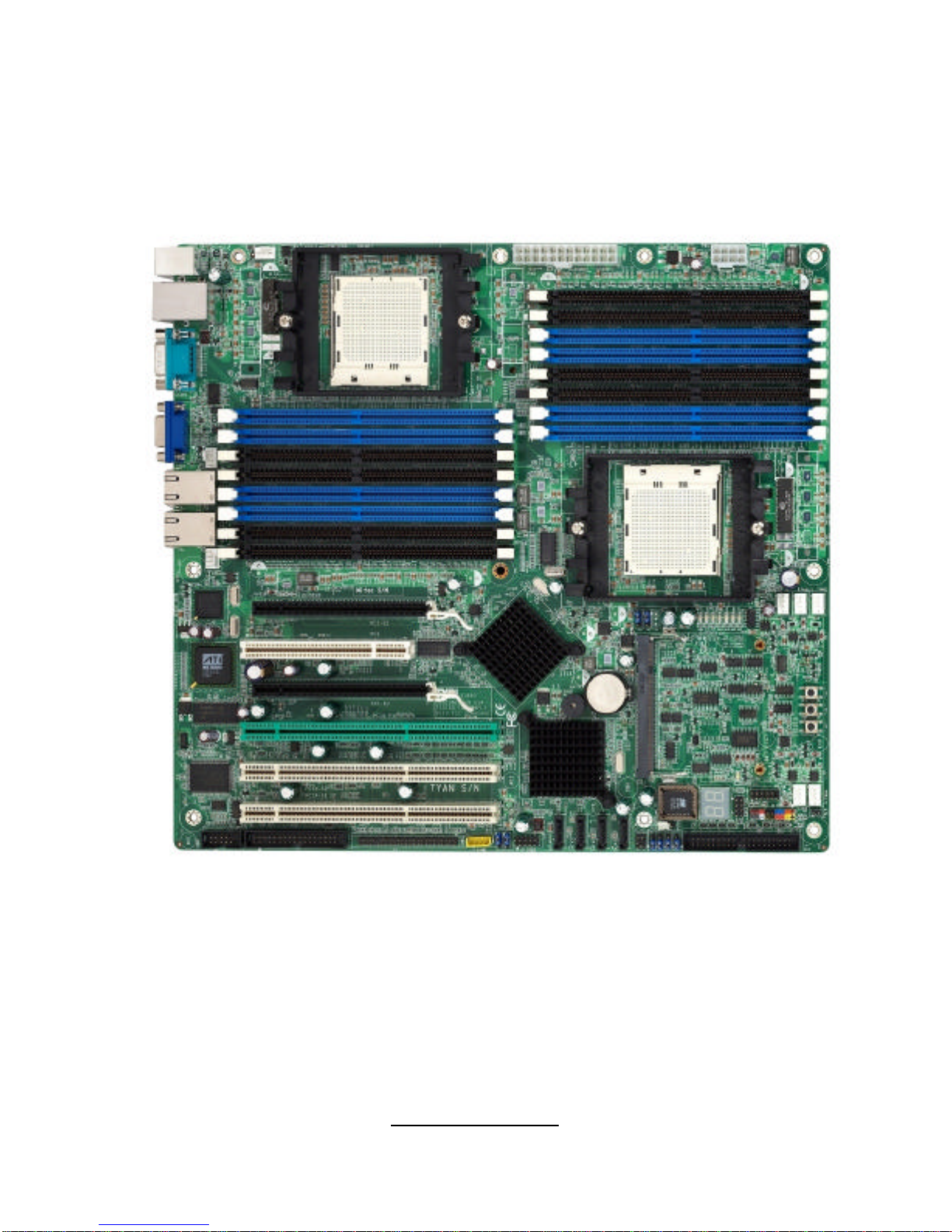

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.

http://www.tyan.com

2.2 -Block Diagram

Thunder K8HM (S3892) Block Diagram

http://www.tyan.com

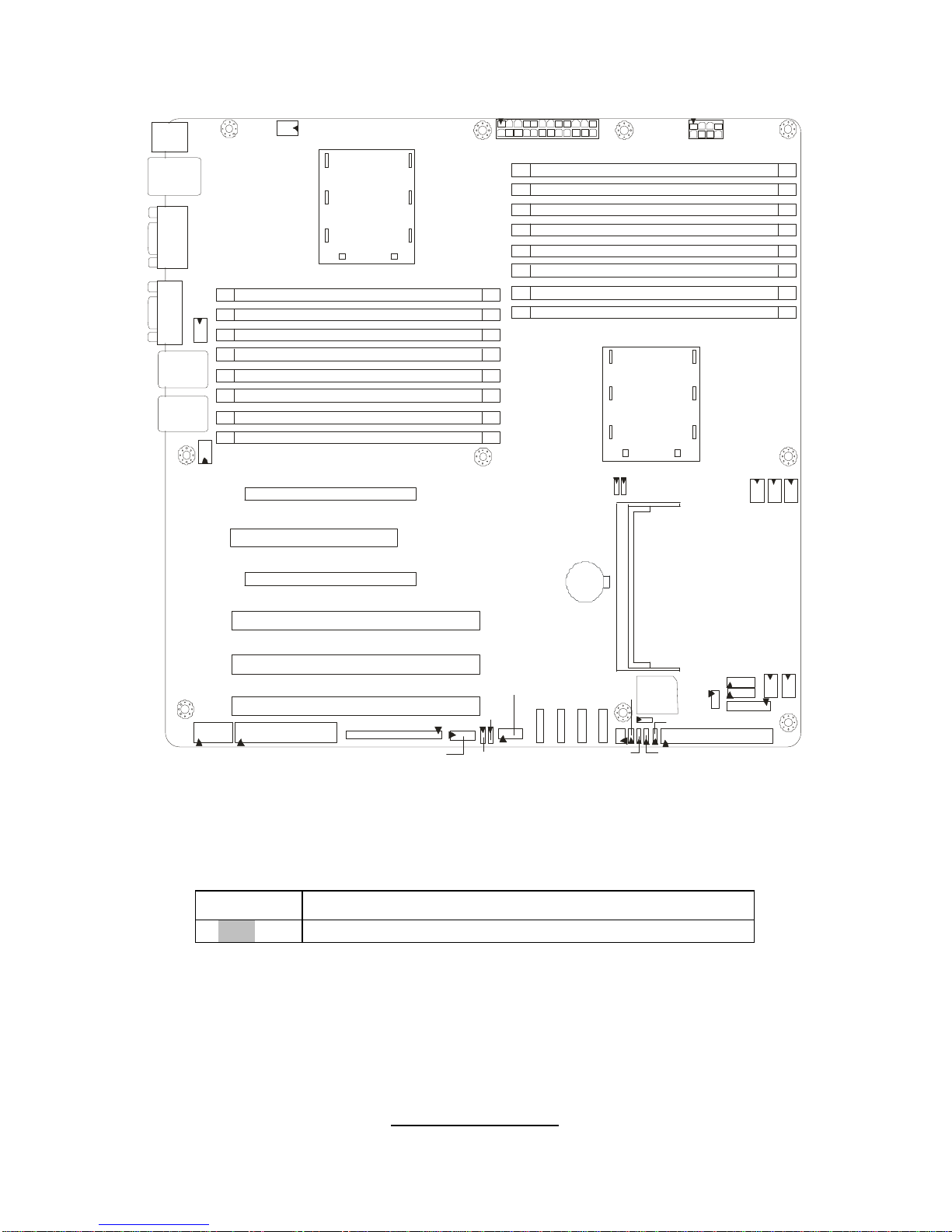

2.3 -Board Parts, Jumpers and Connectors

CPU1

KB/MS

LAN3

USB x 2

COM1

VGA

LAN2

LAN1

CPU2

PW2

PW1

CPUFAN2

CPU1_DIMMA0

CPU1_DIMMB0

CPU1_DIMMA1

CPU1_DIMMB1

CPU1_DIMMA2

CPU1_DIMMB2

CPU1_DIMMA3

CPU1_DIMMB3

CPU2_DIMMA0

CPU2_DIMMA1

CPU2_DIMMA2

CPU2_DIMMA3

CPU2_DIMMB0

CPU2_DIMMB1

CPU2_DIMMB2

CPU2_DIMMB3

PCI-E1

PCI-E2

PCI

PCIX-P1

PCIX-S2

PCIX-S1

COM2

(J9) FDD (J10) SMDC (J18)

SATA3

IPMB (J19)

J43

JP2

IDE (J44)

USB2 (J28) JP5 J47

J46 J49

CPUFAN1

FAN3

JP8

JP3

JP1

SATA2

SATA1

SATA0

JP7

JP9

FAN4 FAN1

FAN2

JP4

SO-DIMM Socket

JP10

FAN5 FAN6

J60

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN Tempest i5100T Manuale utente

TYAN

TYAN TEMPEST I5000XL Manuale utente

TYAN

TYAN THUNDER K8SR Manuale utente

TYAN

TYAN TEMPEST II Manuale utente

TYAN

TYAN TOMCAT I815T Manuale utente

TYAN

TYAN Toledo i965R (S5180AG2N) Manuale utente

TYAN

TYAN Toledo i3100 S5207 Manuale utente

TYAN

TYAN Thunder n4250QE-S4985G3NR-E Manuale utente

TYAN

TYAN S5512 Manuale utente

TYAN

TYAN S5517 Manuale utente

TYAN

TYAN TACOMA Manuale utente

TYAN

TYAN S7025 Manuale utente

TYAN

TYAN S1830 TSUNAMI AT Manuale utente

TYAN

TYAN Tomcat i945GM S3095 Manuale utente

TYAN

TYAN TOMCAT I915 Manuale utente

TYAN

TYAN TIGER I7501R Manuale utente

TYAN

TYAN S1686D Manuale utente

TYAN

TYAN Thunder n3600QX Manuale utente

TYAN

TYAN TOMCAT N3400B Manuale utente

TYAN

TYAN S1846 Tsunami ATX Manuale utente

TYAN

TYAN S8228 Manuale operativo e di manutenzione

TYAN

TYAN InterServe 90 Manuale utente

TYAN

TYAN TRINITY I845 Manuale utente

TYAN

TYAN S5530 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
