TYAN THUNDER K8QS Manuale utente

http://www.TYAN.com

Thunder K8QS /// S4880

Revision 1.00

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Thunder K8QS are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Phoenix BIOS is a trademark of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

LSI Logic, Fusion MPTTM, and LSI are trademarks of LSI Logic Corportation

Silicon Image is a trademark of Silicon Image, Inc.

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 4

Chapter 1: Introduction

Congratulations Page 5

Hardware Specifications Page 5

Software Specifications Page 6

Chapter 2: Board Installation

2.00 Board Image Page 8

2.01 Block Diagram Page 9

2.02 Board Parts, Jumpers and Connectors Page 10

2.03 Front Panel Connector (J6) Page 12

2.04 Clear CMOS Jumper (J8) Page 13

2.05 SMBus Connector (J11) Page 13

2.06 USB 1.1 Header (J12) Page 14

2.07 Chassis Intrusion Connector (J19) Page 14

2.08 Serial Port Internal Header (J23) Page 15

2.09 PCI-X Speed Select Jumper (J24) Page 15

2.10 Keyboard Lock Jumper (J42) Page 16

2.11 Gigabit LAN2 LED Header (J79) Page 16

2.12 Gigabit LAN1 LED Header (J80) Page 17

2.13 CPU FAN Connectors (J47, J5, J48, J44) Page 17

2.14 Chassis FAN Connectors

(J71, J70, J73, J72, J4, J3, J9, J74, J75) Page 18

2.15 SCSI ZCR Slot Page 18

2.16 OEM Reserved Connectors and Jumpers Page 18

2.17 Installing the Processors Page 19

2.18 Heatsink Retention Frame Installation Page 20

2.19 Thermal Interface Material Page 21

2.20 Heatsink Installation Procedures Page 22

2.21 Finishing Installing the Heatsink Page 23

2.22 Tips on Installing Motherboard in Chassis Page 24

2.23 Installing the Memory Page 26

2.24 Attaching Drive Cables Page 28

2.25 Installing Add-In Cards Page 30

2.26 PCI Riser Cards Page 31

2.27 Connecting External Devices Page 32

2.28 Installing the Power Supply Page 32

2.29 Finishing Up Page 33

Chapter 3: BIOS

3.00 BIOS Setup Utility Page 34

3.10 BIOS Menu Bar Page 35

3.20 BIOS Legend Bar Page 35

3.30 BIOS Main Menu Page 36

3.40 BIOS Advanced Menu Page 38

3.50 BIOS Security Menu Page 46

3.60 BIOS Power Menu Page 46

3.70 BIOS Boot Menu Page 47

3.80 BIOS Exit Menu Page 48

http://www.TYAN.com

Chapter 4: Diagnostics Page 50

Appendix I: Glossary Page 51

Appendix II: BIOS POST Code Page 56

http://www.TYAN.com

Before you begin…

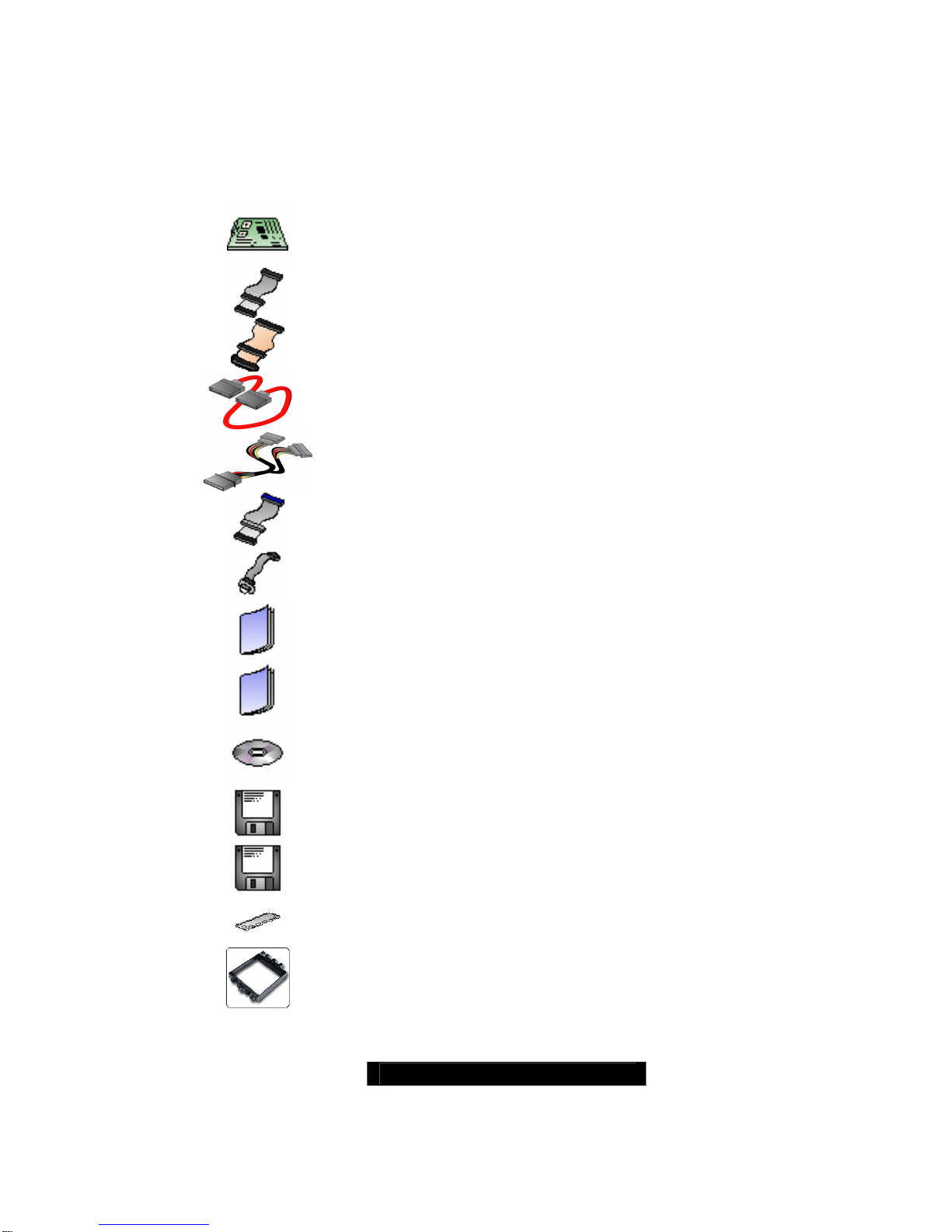

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8QS motherboard

1x 34-Pin floppy drive cable

1x LVD SCSI cable

4 x SATA cable

2x SATA Drive Power Adapter

1x Ultra-DMA-100/66 IDE cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1x Thunder K8QS user’s manual

1x Thunder K8QS Quick Reference guide

1x TYAN driver CD

1x LSI SCSI driver diskette

1x Silicon Image SiI3114 SATA RAID driver diskette

1x I/O shield with 2 LAN ports

4 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You are now the owner of the ideal solution for rackmount servers, large computer

clusters, or pedestal server needs. The Tyan Thunder K8QS features support for Quad

AMD Opteron processors, dual channel Gigabit Ethernet, Serial ATA (SATA) RAID,

and dual channel U320 SCSI.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

Quad µPGA 940-pin ZIF sockets

Supports up to four AMD OpteronTM 800

series processors

Four onboard 3-phase VRMs

Integrated 128-bit DDR Memory

Controller

Chipset

AMD-8131TM HyperTransport PCI-X

Tunnel

AMD-8111TM HyperTransport I/O Hub

Winbond W83627HF Super I/O chip

Total five Hardware Monitoring IC:

One ADM1027 and four LM63

Memory

128-bit dual channel memory bus

Total ten 184-pin 2.5-Volt DDR DIMM

sockets (4 on CPU 0 and 2 each on

CPU1, CPU2,CPU3 respectively)

Supports up to 20 GB Registered DDR

Supports ECC and ECC with Chipkill

type memory modules

Supports PC1600, PC2100, PC2700 &

PC3200 DDR

Expansion Slots

Two independent PCI-X buses

Two 64-bit 66/33 MHz (3.3-Volt) PCI-X

slots from PCI-X bridge A

Two 64-bit 133/100/66/33 MHz (3.3-Volt)

PCI-X slots from PCI-X bridge B

One legacy 32-bit 33MHz (5-Volt) PCI

slot

Integrated Enhanced IDE

Controller

Provides two IDE dual-drive ports

for up to four EIDE devices

Supports for UDMA 33/66/100/133

IDE drives and ATAPI compliant

devices

Integrated I/O

One floppy connector supports one

device

Two 9-pin serial ports (one

connector and one header) and One

25-pin parallel port pin-header

PS/2 mouse and keyboard

connectors

Two USB v1.1 front panel headers

Two USB v2.0 connectors

System Management

Total nine 3-pin fan headers with

tachometer monitoring

Four fan headers with (PWM) speed

control

One 2-pin Chassis Intrusion header

Temperature, voltage and fan

monitoring

Integrated PCI Graphics

ATIRageTM XL PCI graphics

controller

8MB Frame Buffer of video

memory

http://www.TYAN.com

Integrated Dual Channel SCSI (Mfg.

option)

LSI 53C1030 U320 SCSI controller

Dual-channel Ultra320 SCSI

Connects to PCI-X Bridge A

Supports LSI ZCR (Zero Channel RAID)

Integrated SATA Controller (Mfg.

option)

One Silicon Image SI3114 controller

Four SATA 1.0 ports

Supports up to Four SATA drives

Supports RAID 0,1,0+1

Intelligent Platform Management

Interface Header

Tyan Server Management Daughter

cards (optional); supports features

listed below via IPMI header

QLogic™ Zircon Baseboard

Management Controller (BMC) based

on powerful ARM7 technology

Tailored for IPMI highest 1.5 Spec.

Supports KCS and BT styles

Flexible Windows or Linux

Management Solution

Supports RMCP and SNMP protocols

Supports ASF standard and EMP

I2C serial multi-master controllers and

UARTs

Built-in IPMB connector

Remote power on/off and reset support

(IPMI-over-LAN)

Integrated LAN Controllers

Broadcom®BCM5704C dual-

channel Gigabit Ethernet

controller

Two RJ-45 LAN connectors with

LEDs

Connected to PCI-X Bridge A

Two Front Panel LED headers

BIOS

Phoenix BIOS

4Mbit LPC Flash ROM

Watchdog timer

USB boot support

48-bit LBA Support

Supports PXE via Ethernet

Form Factor

SSI MEB footprint (13” x 16” /

330.2mm x 406.4mm)

EPS12V power connectors

One serial port and one VGA port

Stacked USB 2.0 (two) connectors

Stacked PS/2 keyboard and

mouse connectors

Two RJ-45 side-by-side LAN

connectors with LEDs

Regulatory

FCC Class B (Declaration of

Conformity)

European Community CE

Software Specifications

OS (Operating System) Support

Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows Server 2003

SuSE Server 8.0 for AMD-64

Turbo linux 8.0 for AMD-64

Red Hat 7.3, 8.0, and 9.0

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution: The Thunder K8QS supports EPS12V power supplies (24-pin/8-pin) and will

not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

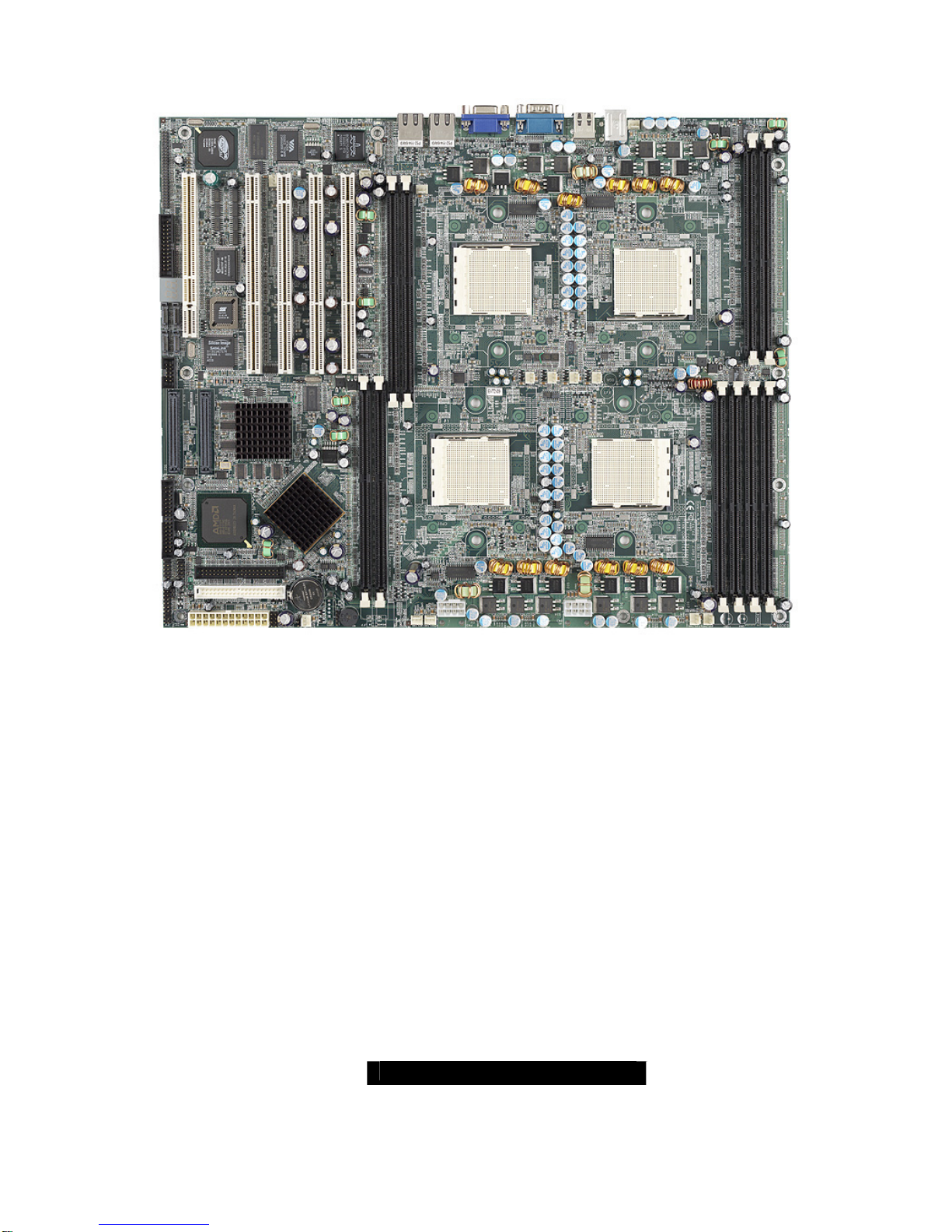

2.00 – Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

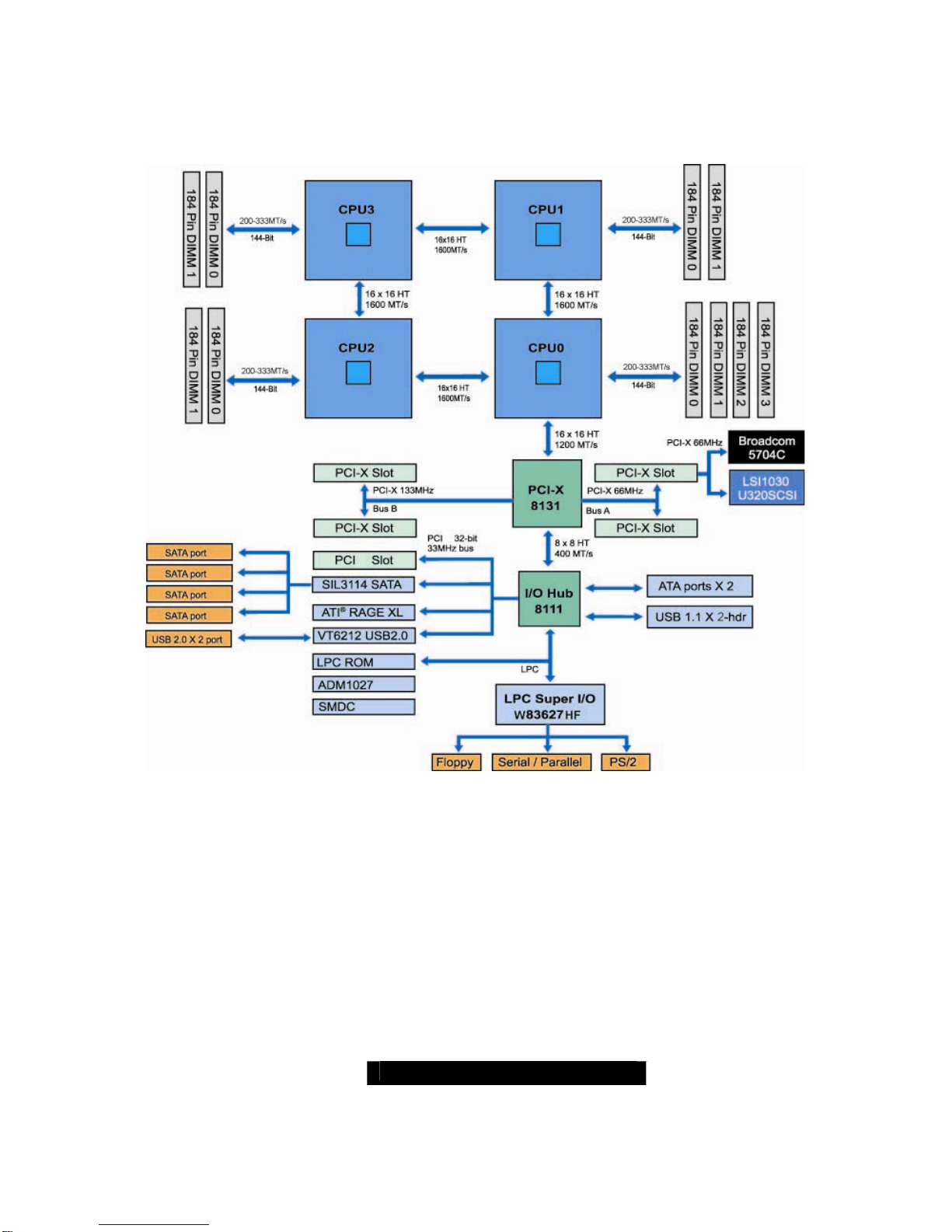

2.01 – Block Diagram

S4880 Thunder K8QS Block Diagram

http://www.TYAN.com

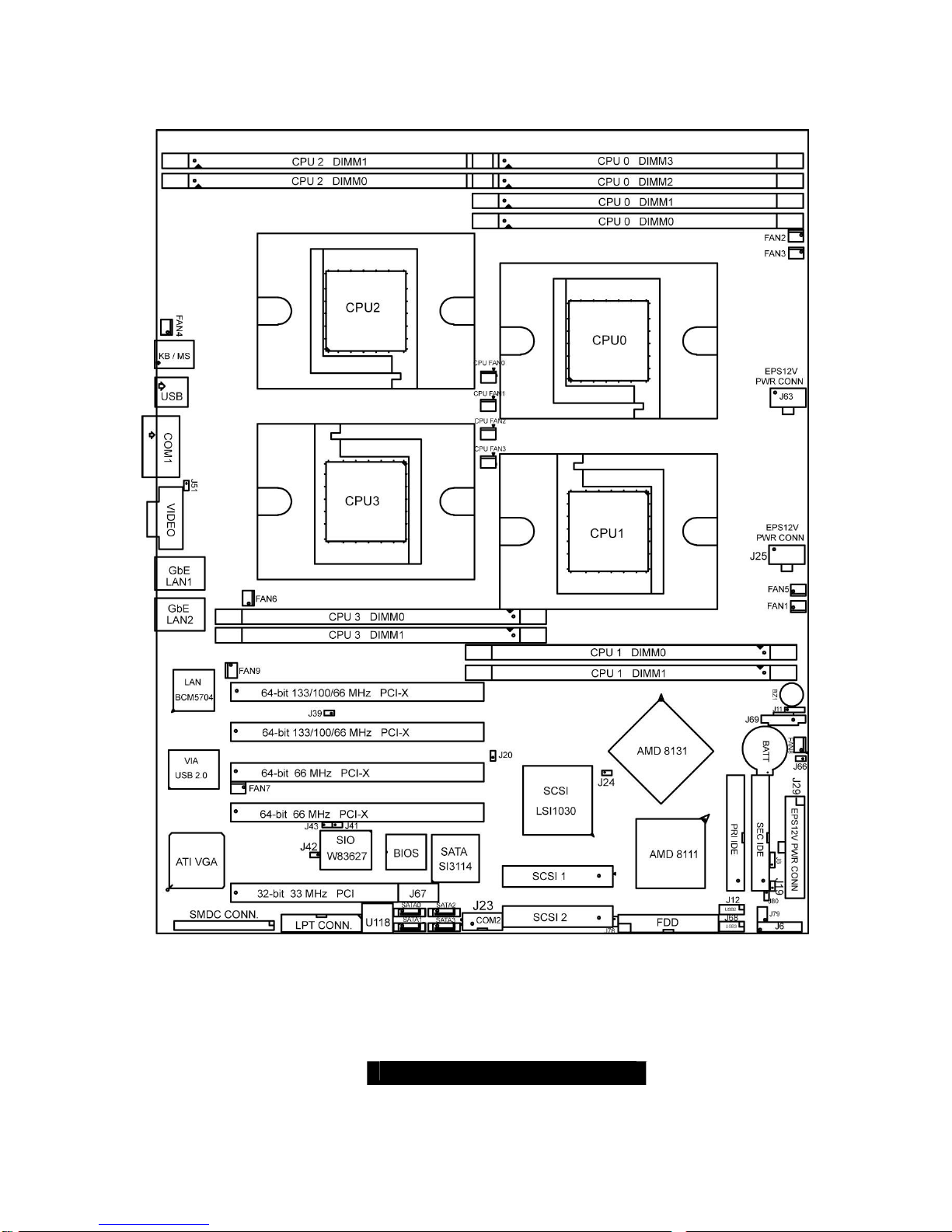

2.02 – Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.
