UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

1/23

UniFi AP AC Pro Mounting Bracket Ceiling Backing Plate

Flat Head Screws (Qty. 4) Keps Nuts (Qty. 4) Screws (Qty. 4)

Screw Anchors (Qty. 4) Cable Feed Plug Gigabit PoE* (48V, 0.3A)

with Mount Bracket

Power Cord*

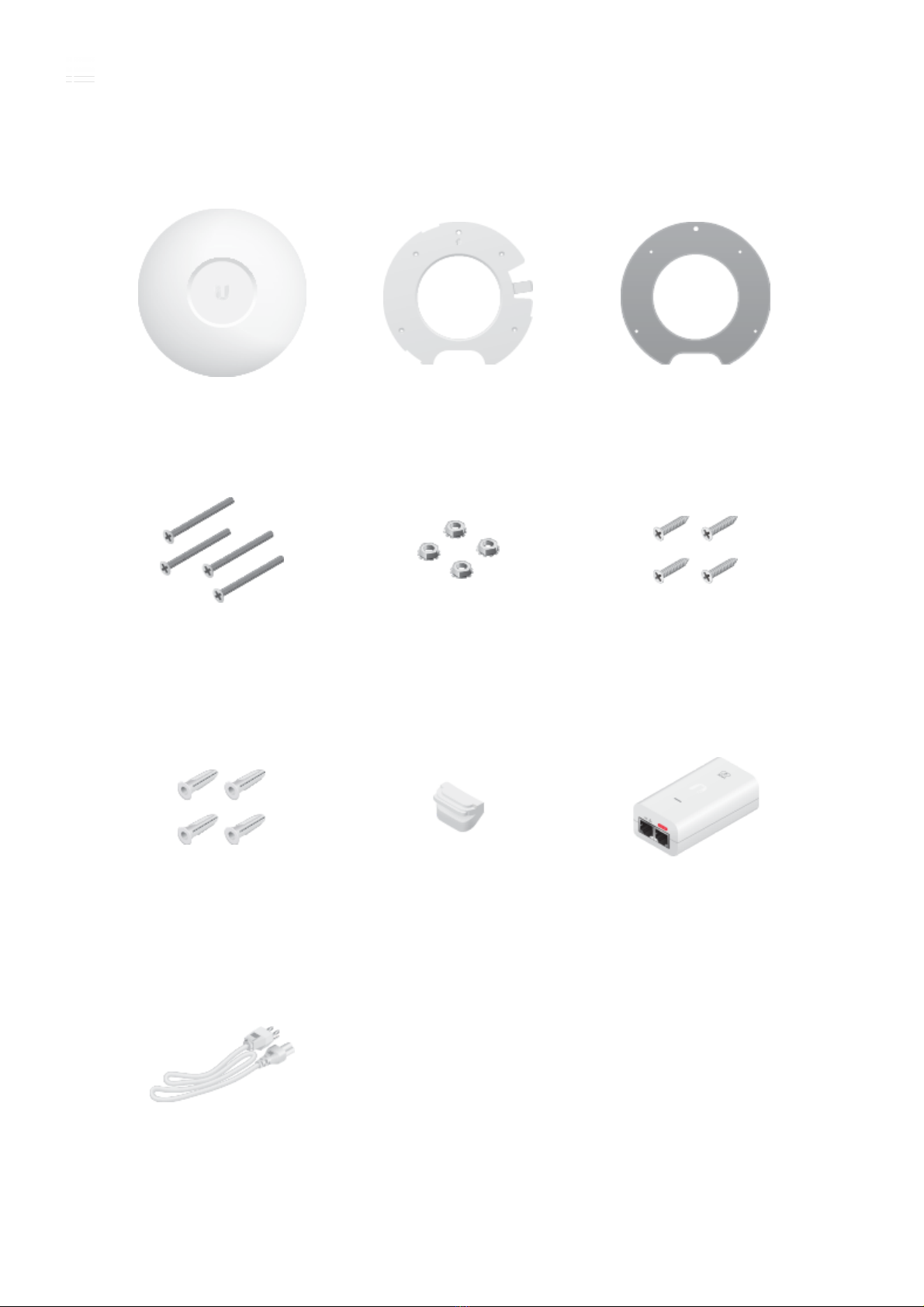

Package Contents

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

2/23

* Included only in the single-pack of the UAP-AC-PRO

Installation Requirements

Phillips screwdriver

Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting)

Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed)

Cat5/6 UTP cable for indoor installations

IMPORTANT: The UAP-AC-PRO requires the UniFi Network Application

v5.4 or higher, available at: ui.com/download/unifi

Outdoor Installation Requirements

IMPORTANT: The UAP-AC-PRO may be installed outdoors under an eave

or other protected location. Do not install the UniFi AP in an open

environment.

Mounting location should be at least 60 cm (2 ft) from the edge of the eave or

ceiling.

Cable feed opening must be directed away from the open environment.

Cable feed must be pointed downwards when wall-mounted.

Shielded Category 5 (or above) cabling with drain wire should be used for all

outdoor wired Ethernet connections and should be grounded through the AC

ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Network Application v5.4 or newer (available at: ui.com/download/unifi)

Hardware Overview

LED

Ports

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

3/23

Security Slot

Secondary

Reset

USB

Main

If you need to remove the UniFi AP from the Mounting Plate, insert a flat, thin

object like a zip tie or large paper clip in the Security Slot to release the Lock

Tab and turn the UniFi AP counterclockwise.

The Secondary port is a Gigabit Ethernet port used for bridging.

The Reset button serves two functions for the UniFi AP:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for

more than five seconds.

The USB port is reserved for future use.

The Main port is a Gigabit Ethernet port used to connect the power and should

be connected to the LAN and DHCP server.

Hardware Installation

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

4/23

The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the

appropriate installation:

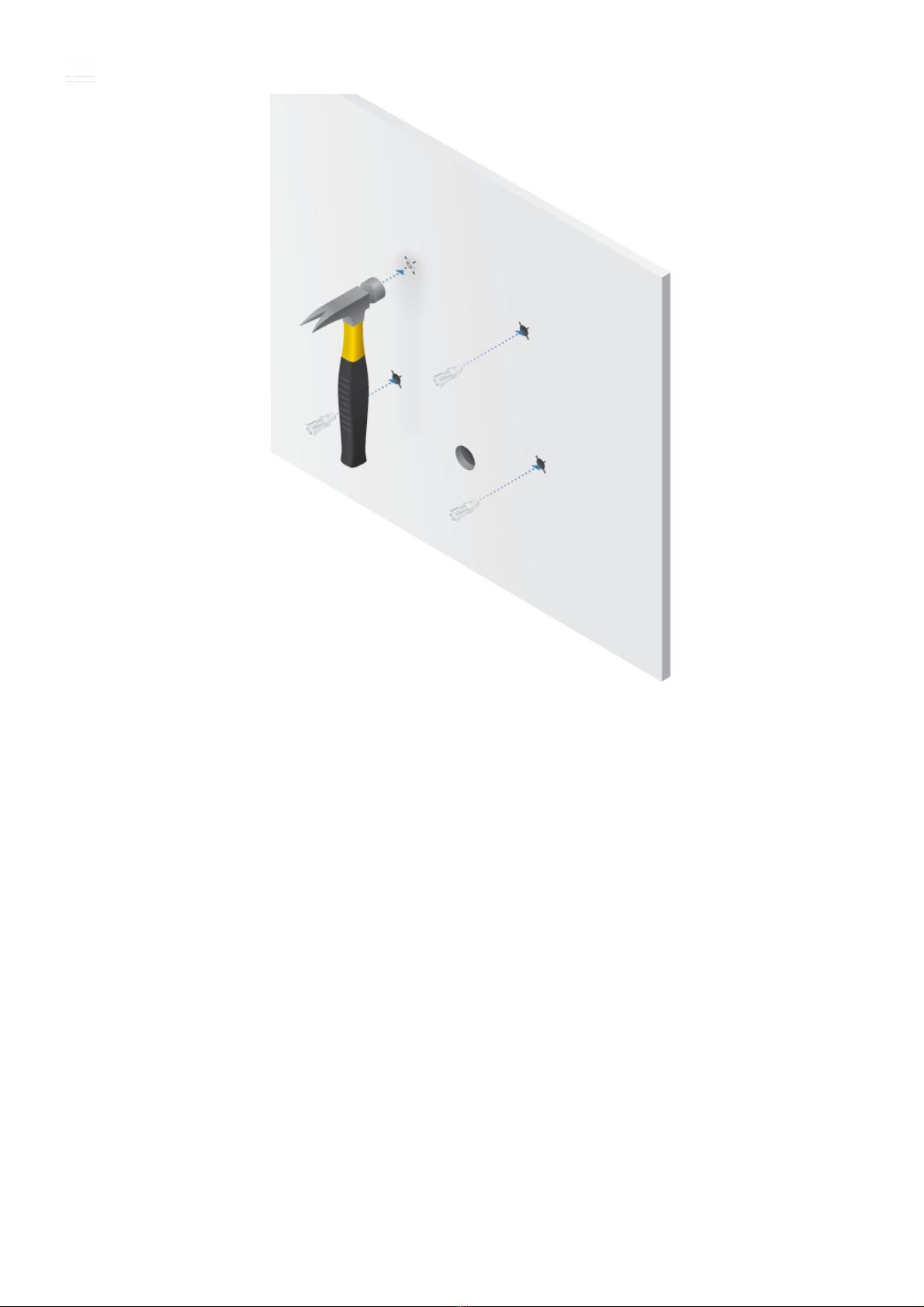

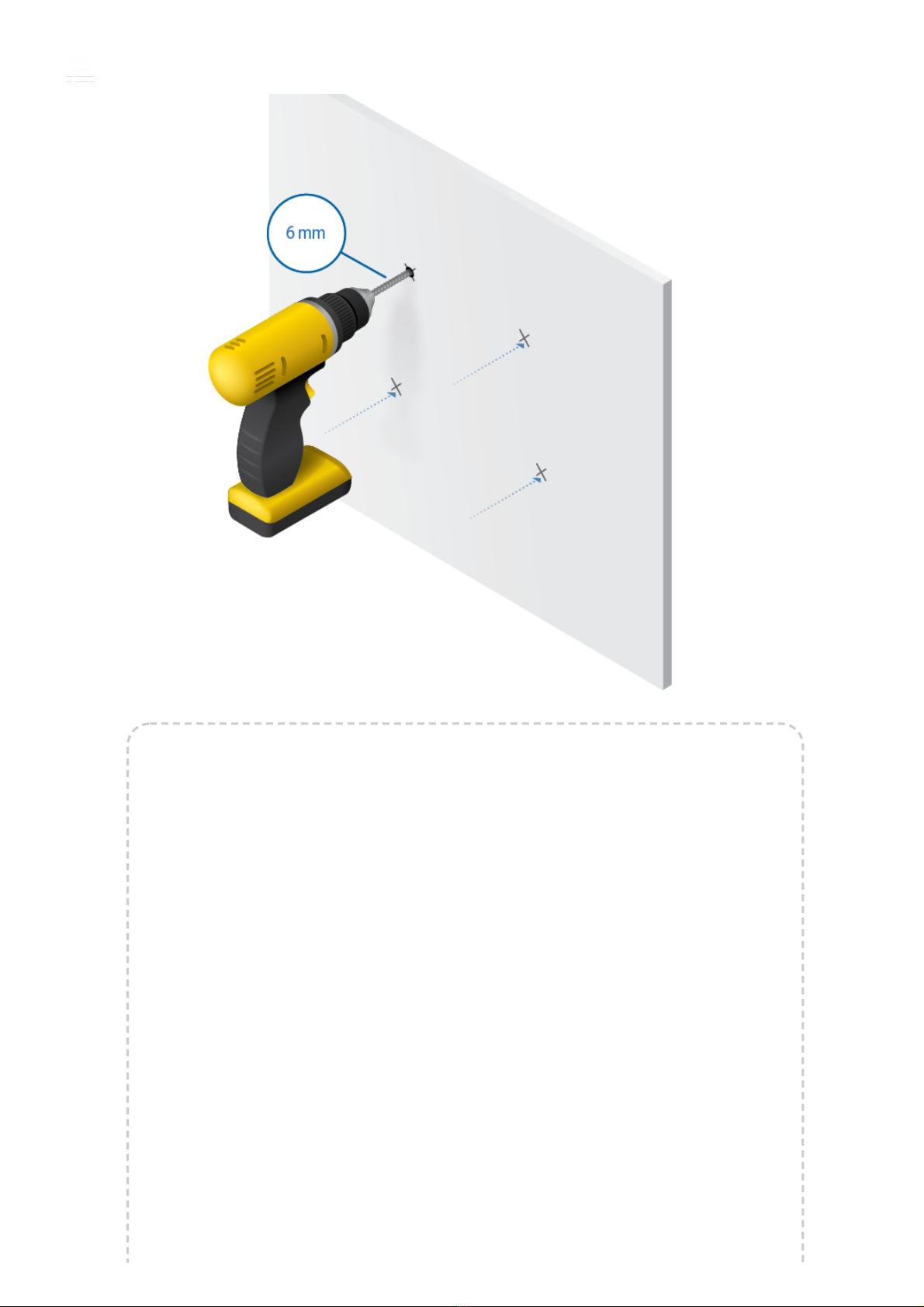

Wall Mount

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

5/23

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

6/23

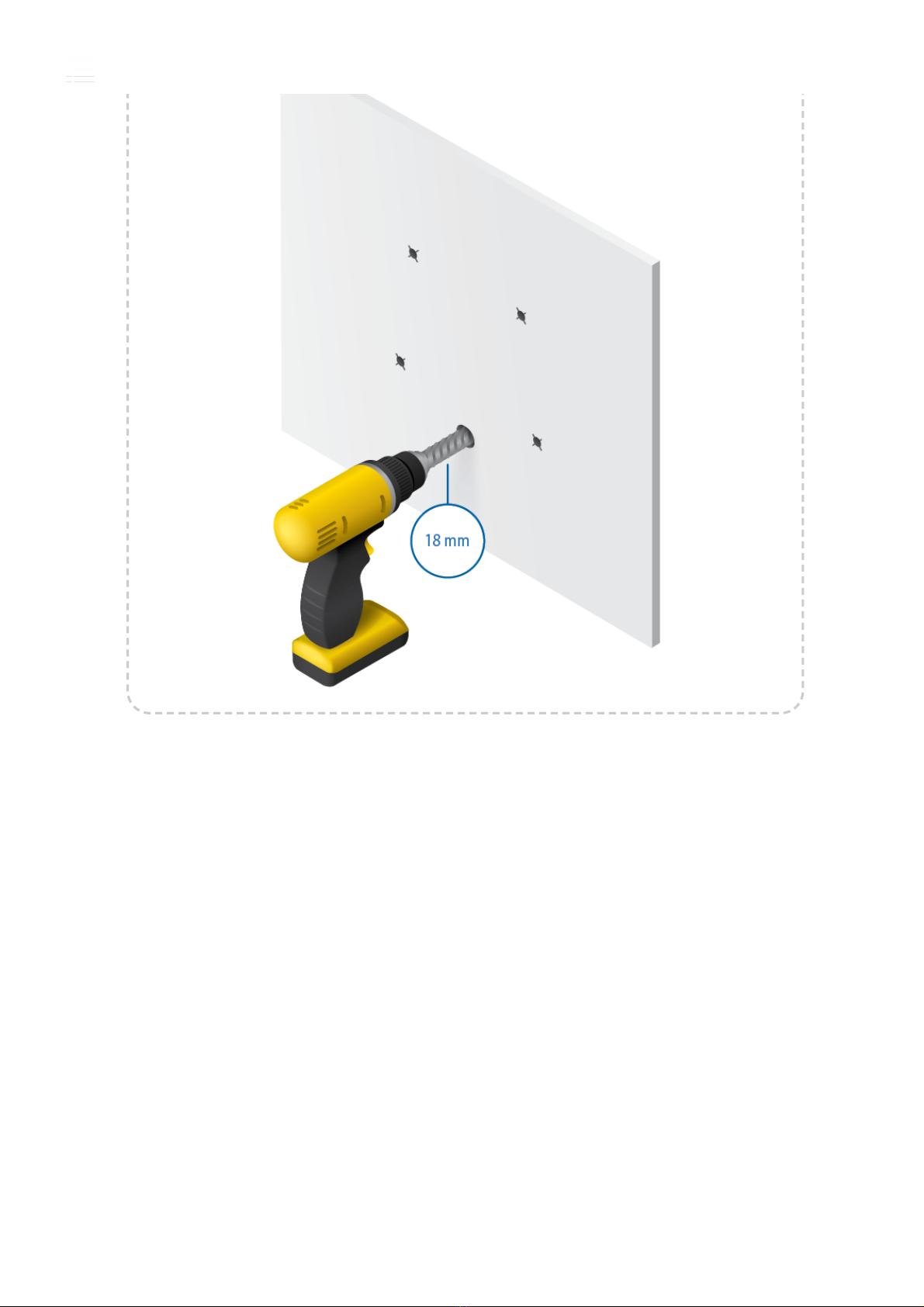

Optional

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

7/23

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

8/23

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

9/23

UAP-AC-PRO Quick Start Guide

2022/09/01 23:52

UAP-AC-PRO Quick Start Guide

https://dl.ui.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html

10/23

UAP-AC-PRO Quick Start Guide
