Ubiquiti TS-16-CARRIER Manuale utente
Rackmount
Power over Ethernet
Managed Switches
Model: TS-16-CARRIER
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks™TOUGHSwitch™
PoE CARRIER, which is part of the TOUGHSwitch series:
Name Model Description
TOUGHSwitch PoE TS-5-POE 5-port managed switch
featuring 24V PoE
TOUGHSwitch PoE PRO TS-8-PRO 8-port managed switch
featuring 24V/48V PoE
TOUGHSwitch PoE CARRIER TS-16-CARRIER Two TOUGHSwitch PoE
PROs mounted in a rack
This Quick Start Guide is designed to guide you through the
installation and show you how to access the Configuration
Interface. This Quick Start Guide also includes the warranty
terms, and is for use with the TOUGHSwitch PoE CARRIER, model
TS-16-CARRIER.
The TOUGHSwitch PoE CARRIER functions as two separate
switches. To daisy-chain the switches, refer to page 7. You can also
uplink the switches to an independent core switch; for details, refer
to the User Guide.
For more information, visit
www.ubnt.com/toughswitch
Package Contents

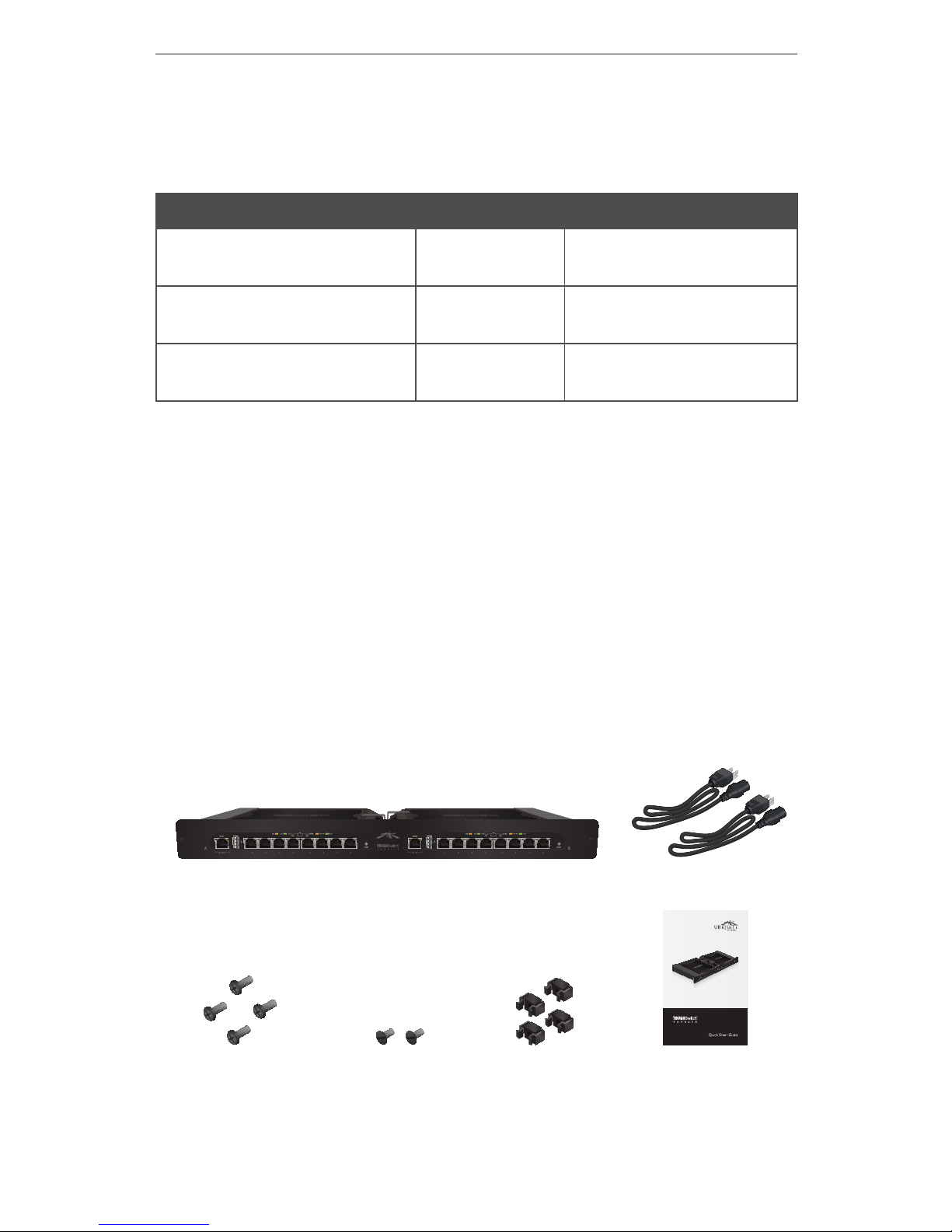

TOUGHSwitch PoE CARRIER Power Cords (Qty. 2)
Rackmount
Power over Ethernet
Managed Switches
Model: TS-16-CARRIER
#10-32 x 5/8" Phillips
Screws (Qty. 4)
M3x8 Flathead
Screws (Qty. 2)
#10-32 x 5/8"
Cage Nuts (Qty. 4)
Quick Start Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s responsibility to
follow local country regulations, including operation within legal frequency channels, output power,
indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.
2
TOUGHSwitch™PoE CARRIER Quick Start Guide
Hardware Overview
A and B designate the two 8-Port TOUGHSwitch PoE PROs housed
in the rack. This may be useful for the Location setting on the
Device tab in the Configuration Interface.

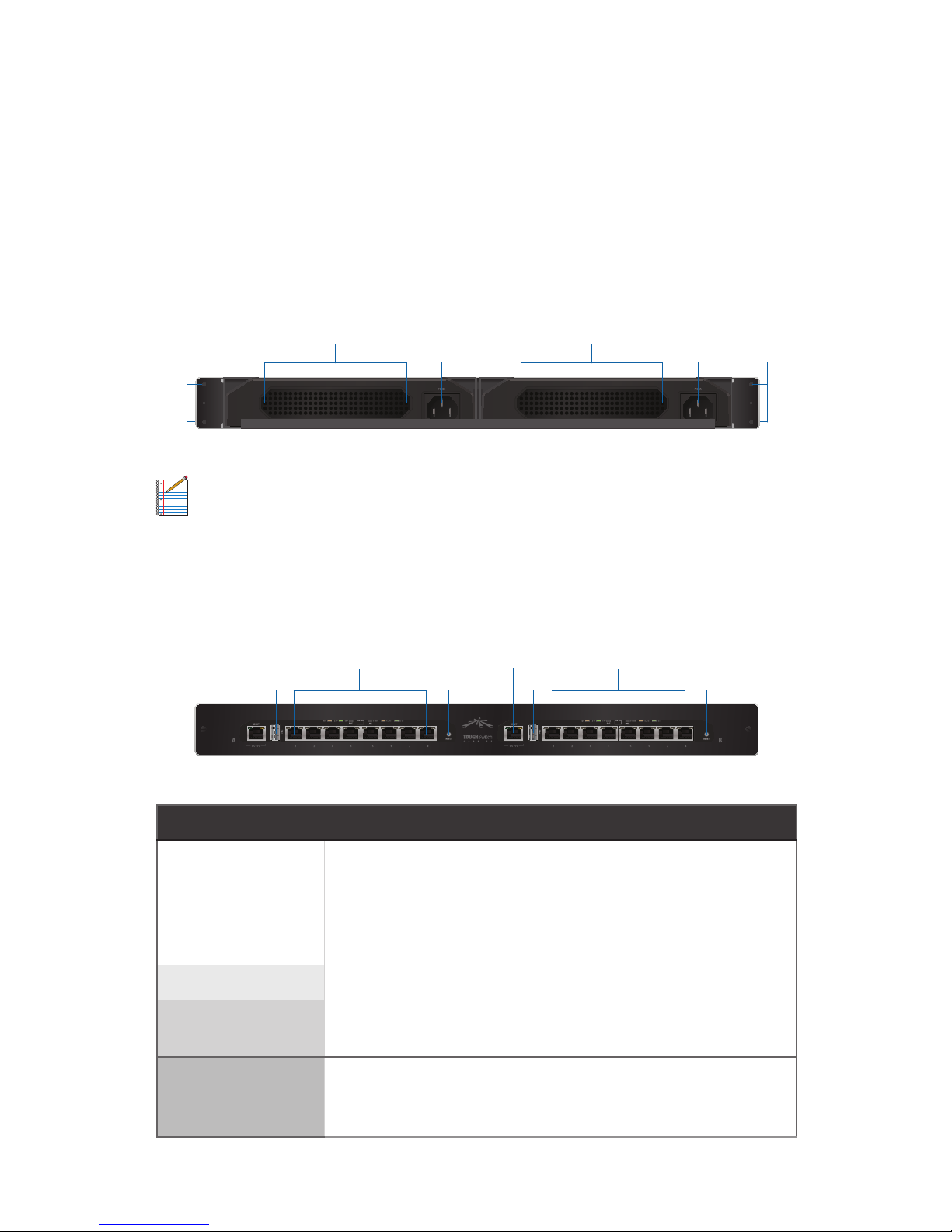

Back Panel
TOUGHSwitch B TOUGHSwitch A
Mounting
Screws
Mounting
Screws
Power Power
Ventilation Holes Ventilation Holes
Note: There are additional ventilation holes on the top and
sides of each TOUGHSwitch.
Front Panel Ports
TOUGHSwitch A TOUGHSwitch B
Management
Reset
Ports 1-8
ResetUSB USB
Ports 1-8
Management
Interface Description
Management
10/100 Mbps port for management. Traffic between
the Management port and numbered ports will
be limited to 10/100 Mbps and, under heavy
load, may cause performance degradation of the
TOUGHSwitch.
USB Reserved for future use.
1-8 10/100/1000 Mbps ports for switching and PoE (also
available for management by default).
Reset
To reset to factory defaults, press and hold the Reset
button for more than 10 seconds while the unit is
already powered on.
3
Hardware Overview

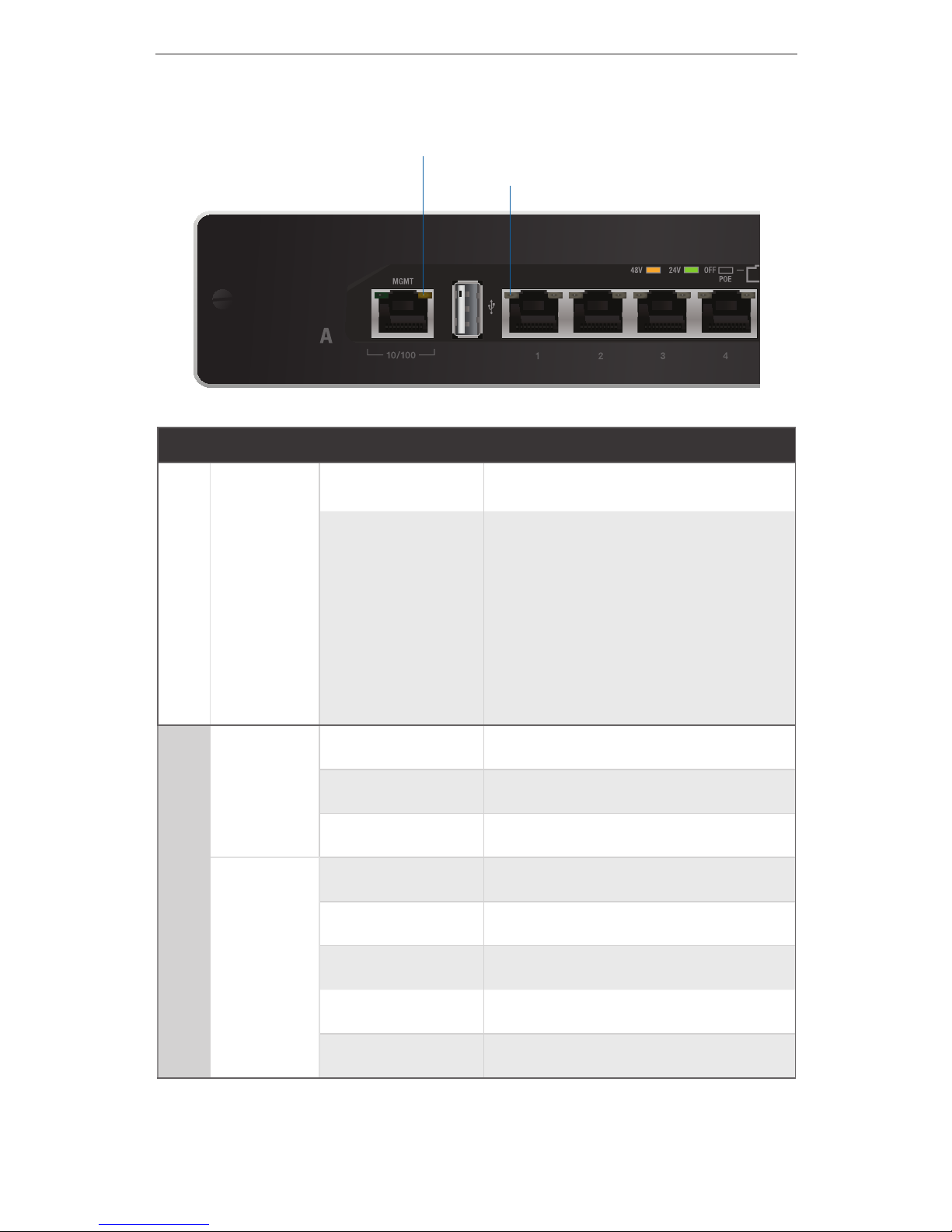

Front Panel LEDs
Power/Link
PoE
Speed/Link/Act
LED State Status
Management
Power/
Link
Off No Power/No Link
Amber
After bootup, the LED indicates
power. After an initial link is
established, the LED indicates a
10/100 Mbps connection. If the
link terminates, the LED turns
off until a link is re-established.
If the unit reboots, the LED will
again indicate power until a link is
established.
1-8
PoE
Off No Power over Ethernet
Green 24V Power over Ethernet
Amber 48V Power over Ethernet
Speed/
Link/Act
Off No link
Amber Link established at 10/100 Mbps
Amber Flashing Link activity at 10/100 Mbps
Green Link established at 1000 Mbps
Green Flashing Link activity at 1000 Mbps
4
TOUGHSwitch™PoE CARRIER Quick Start Guide
Installation Requirements
• Phillips and flathead screwdrivers
• Standard-sized, 19" wide rack with a minimum of 1U height
available
• For indoor applications, use Category 5 (or above) UTP cabling
approved for indoor use.
• For outdoor applications, shielded Category 5 (or above) cabling
should be used for all wired Ethernet connections and should
be grounded through the AC ground of the power supply.
We recommend that you protect your outdoor networks from
the most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks™. For more details, visit: www.ubnt.com/toughcable
Note: Although the cabling can be located outdoors,
the TOUGHSwitch PoE CARRIER itself should be housed
inside a protective enclosure.
Hardware Installation

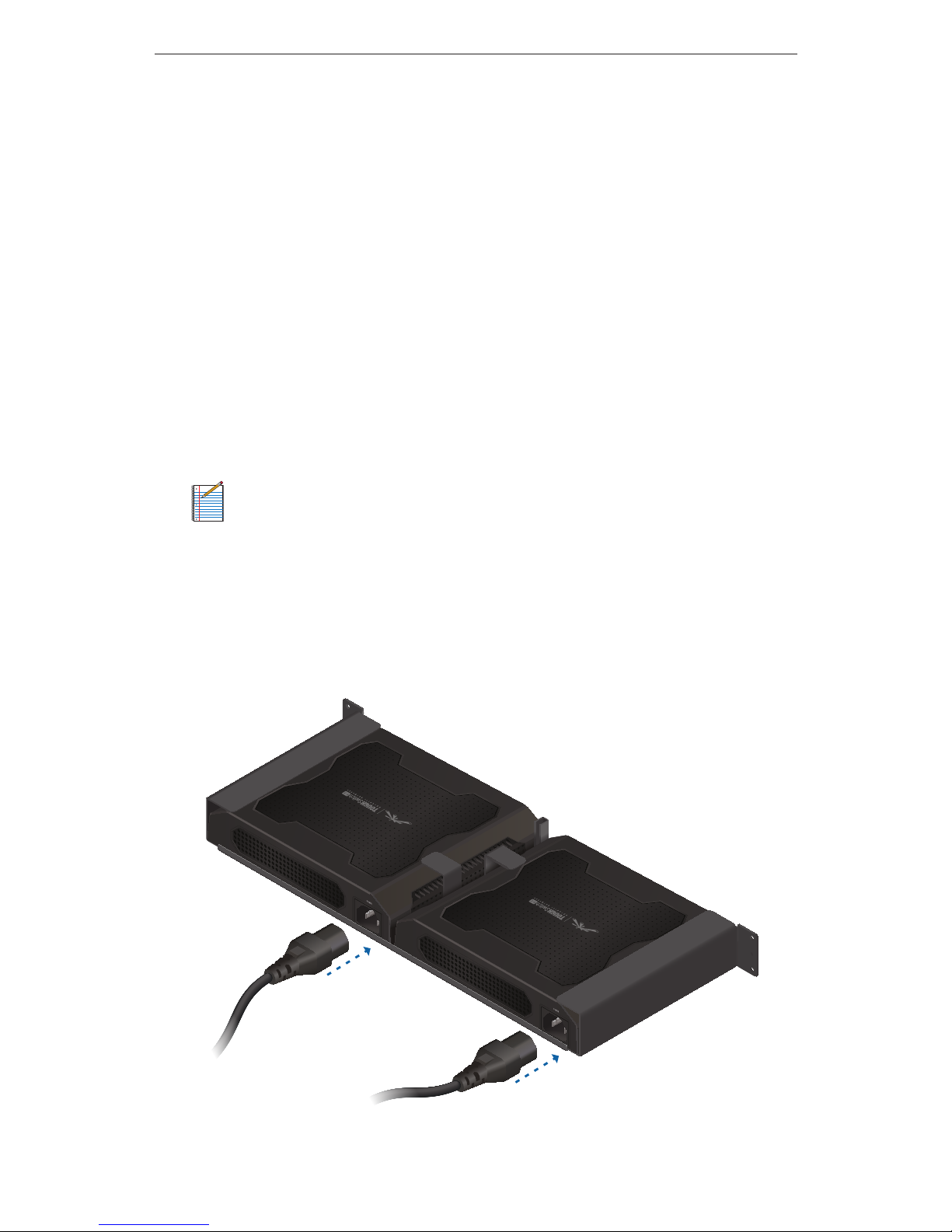

1. Connect the Power Cord to the Power port of each
TOUGHSwitch.
5
Hardware Installation

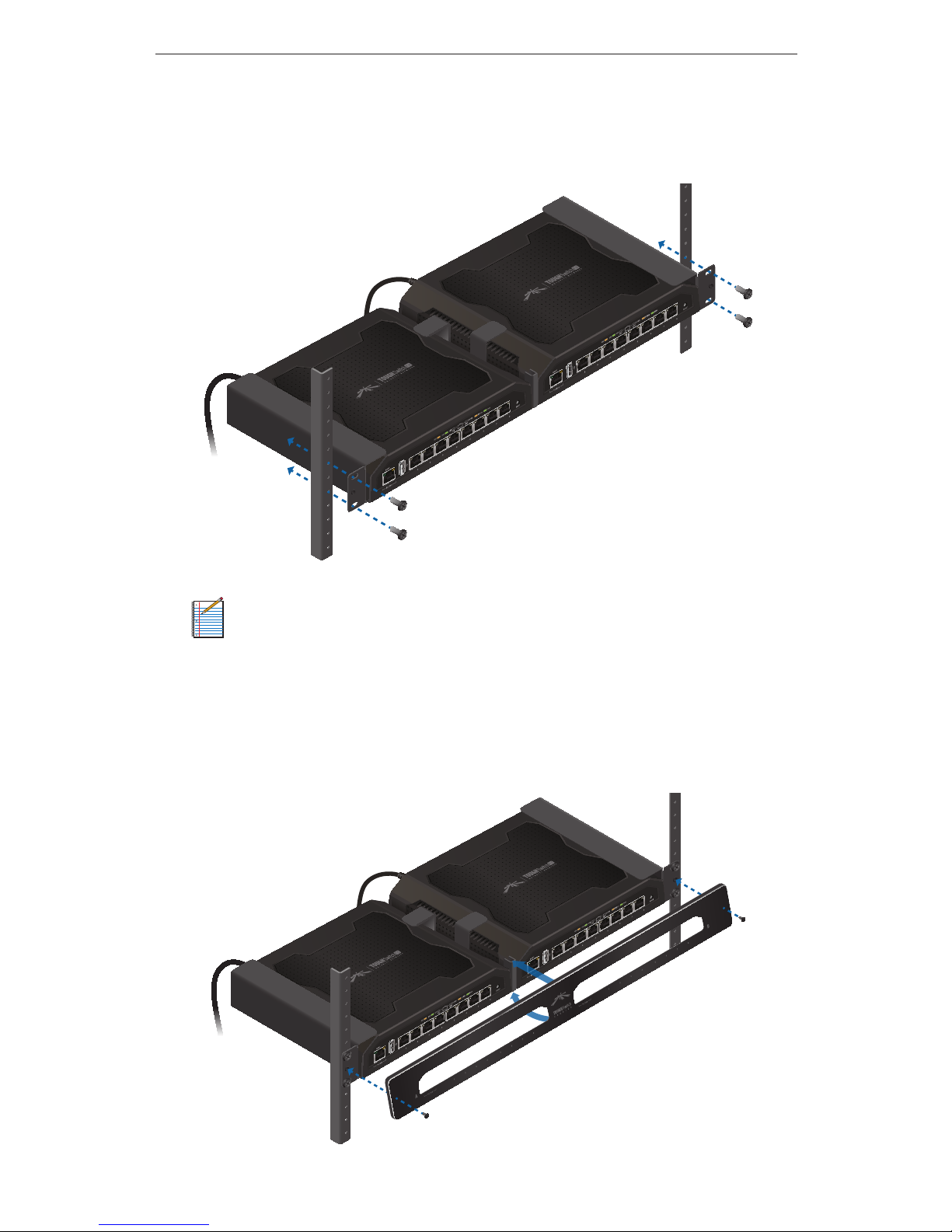

2. Attach the TOUGHSwitch PoE CARRIER to the rack using the
four #10-32 x 5/8" Phillips Screws. (If the rack has square slots,
then use the #10-32 x 5/8" Cage Nuts with the Phillips Screws.)
Note: Keep 20 mm of clearance next to the ventilation
holes for adequate airflow.
3. Attach the top portion of the faceplate at a slight angle,
and then snap on the bottom portion. Secure the faceplate
to the TOUGHSwitch PoE CARRIER using the two M3x8
FlatheadScrews.
6
TOUGHSwitch™PoE CARRIER Quick Start Guide

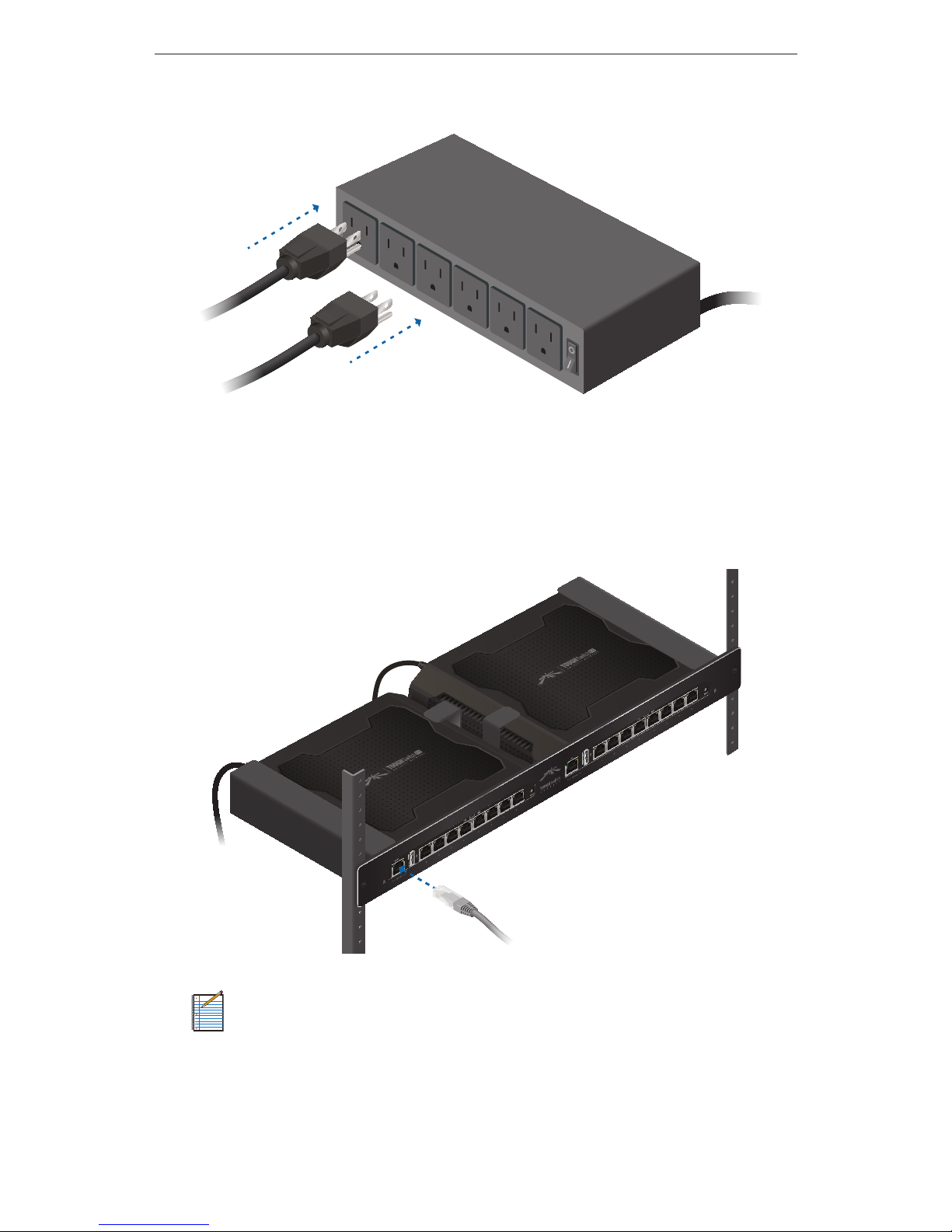

4. Connect the other end of each Power Cord to a power outlet.
Connecting Ethernet
1. Connect an Ethernet cable from your computer or host system
to the Management port of TOUGHSwitch A.
Note: By default, you can configure the TOUGHSwitch
via any port; however, we recommend the Management
port. (Access to the Configuration Interface can be
limited to the Management port only. You can configure
this setting on the Device tab.)
7
Daisy-Chain (Optional)
2. Connect Ethernet cables from the Ethernet ports of your
devices to the numbered ports of each TOUGHSwitch.
Note: PoE is disabled by default on all numbered ports
and is not available on the Management port. To enable
PoE, use the Ports tab in the Configuration Interface.

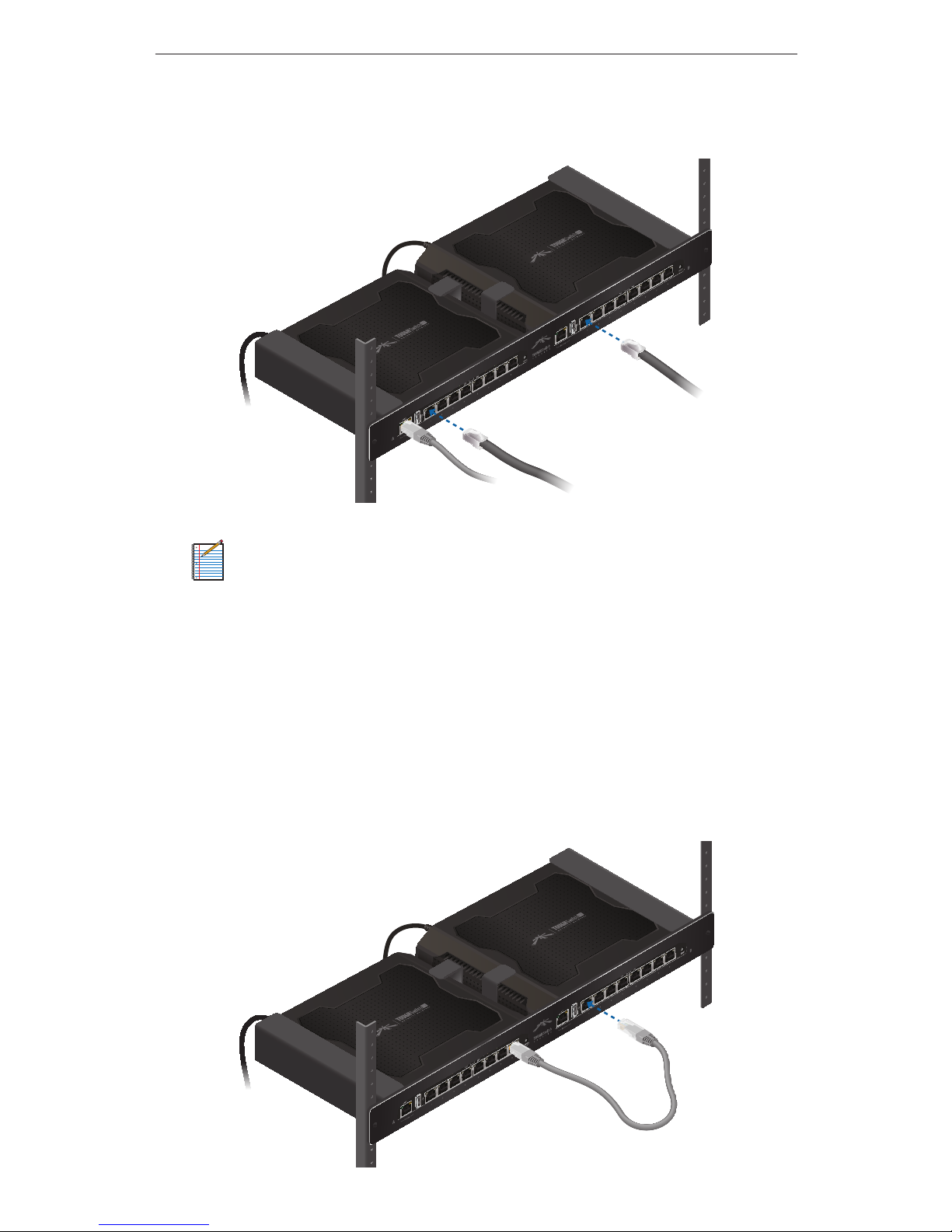

Daisy-Chain (Optional)
All data ports are available as uplink ports. If you want to
daisy-chain TOUGHSwitch A and B, we recommend that you
connect an Ethernet cable from port 8 of TOUGHSwitch A to port1
of TOUGHSwitch B. (For clarity, the other cables are not shown in
the illustration.)
8
TOUGHSwitch™PoE CARRIER Quick Start Guide
Accessing the Configuration Interface
ToughSwitch A and B have the same default IP address,
192.168.1.20, so you will need to change the IP address of
at least one TOUGHSwitch. Follow the instructions in this
section to configure one TOUGHSwitch at a time, starting with
TOUGHSwitchA.
1. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100).

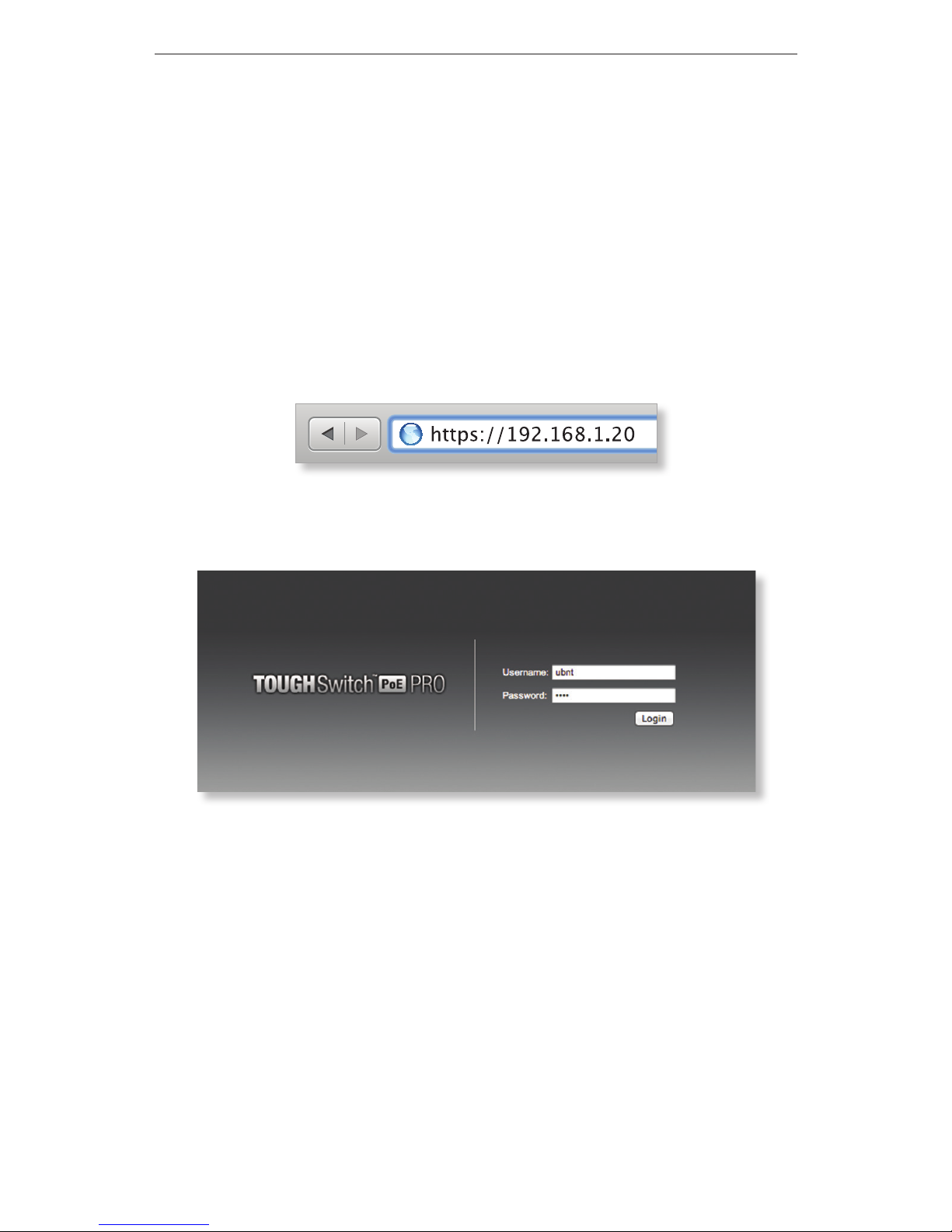

2. Launch your web browser. Type https://192.168.1.20 in the
address field. Press enter (PC) or return (Mac).
3. The login screen will appear. Enter ubnt in the Username and
Password fields. Click Login.
