Ubiquiti US-XG-6POE Manuale utente

UniFi Switch Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter

Power Cord Cable Clip

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.8.x (or newer), available at:

ui.com/download/uni

Hardware Overview

US-XG-6POE Quick Start Guide

System LED

RJ45 PoE LED (Ports 1 - 4)

RJ45 Link/Speed/Activity LED (Ports 1 - 4)

Flashing White Initializing.

Steady White Factory defaults, waiting for adoption.

Alternating White/Blue Device is busy; do not touch or unplug it. This usually

indicates that a process such as a rmware upgrade is

taking place.

Steady Blue Successfully adopted by a network and working properly.

Flashing Blue

This is used to locate a device.

When you click Locate in the UniFi Controller software,

the System LED will ash blue. The software will also

display the location of the UniFi Switch on the map.

Oﬀ PoE Disabled

White 802.3af/at/bt PoE

Oﬀ No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

US-XG-6POE Quick Start Guide

SFP+ Link/Speed/Activity LED (Ports 5 - 6)

RJ45 Console Port

RJ45 (Ports 1 - 4)

SFP+ (Ports 5 - 6)

USB Console Port

Reset Button

DC Input

White Link Established at 10 Gbps

Flashing Indicates Activity

Oﬀ No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-

DB9, serial console cable, also known as a rollover cable, to connect the Console port to

your computer. Then congure the following settings as needed:

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

RJ45 ports support 100 Mbps or 1/2.5/5/10 Gbps Ethernet connections and 802.3af/at/bt

PoE output.

Hot-swappable SFP+ ports support 1/10 Gbps connections.

USB Type C console port for Command Line Interface (CLI) management.

This button serves two functions for the UniFi Switch:

Restart

Press and release the Reset button quickly.

Restore to Factory Default Settings

Press and hold the Reset button for more than ve

seconds.

Optional DC input for connecting a stand-alone or redundant DC power source (not

included) with minimum power: 40W, 44 to 57VDC.

Note:

Ensure the polarity is correct: red is positive (+) and black is negative (-).

US-XG-6POE Quick Start Guide

Power Port

Ground

You can use the redundant DC power source as a hot spare; if there is no longer power

through the Power port, the UniFi Switch will switch to the DC power source without

interrupting its operation.

Connect the included Power Adapter to the Power port.

Ancillary grounding point for enhanced ESD protection.

Hardware Installation

The UniFi Switch can be mounted on a horizontal or vertical surface.

WARNING:

The US-XG-6POE must not be stacked. Do not place it on top of another

switch. Do not place anything on top of the US-XG-6POE.

Grounding (Recommended)

The UniFi Switch is grounded through the Power Adapter; however, you can add optional ESD

grounding for enhanced ESD protection.

Note:

You also have the option to use the Cable Clip to secure the cord of the Power

Adapter. For instructions, proceed to

"Using the Cable Clip (Optional)"

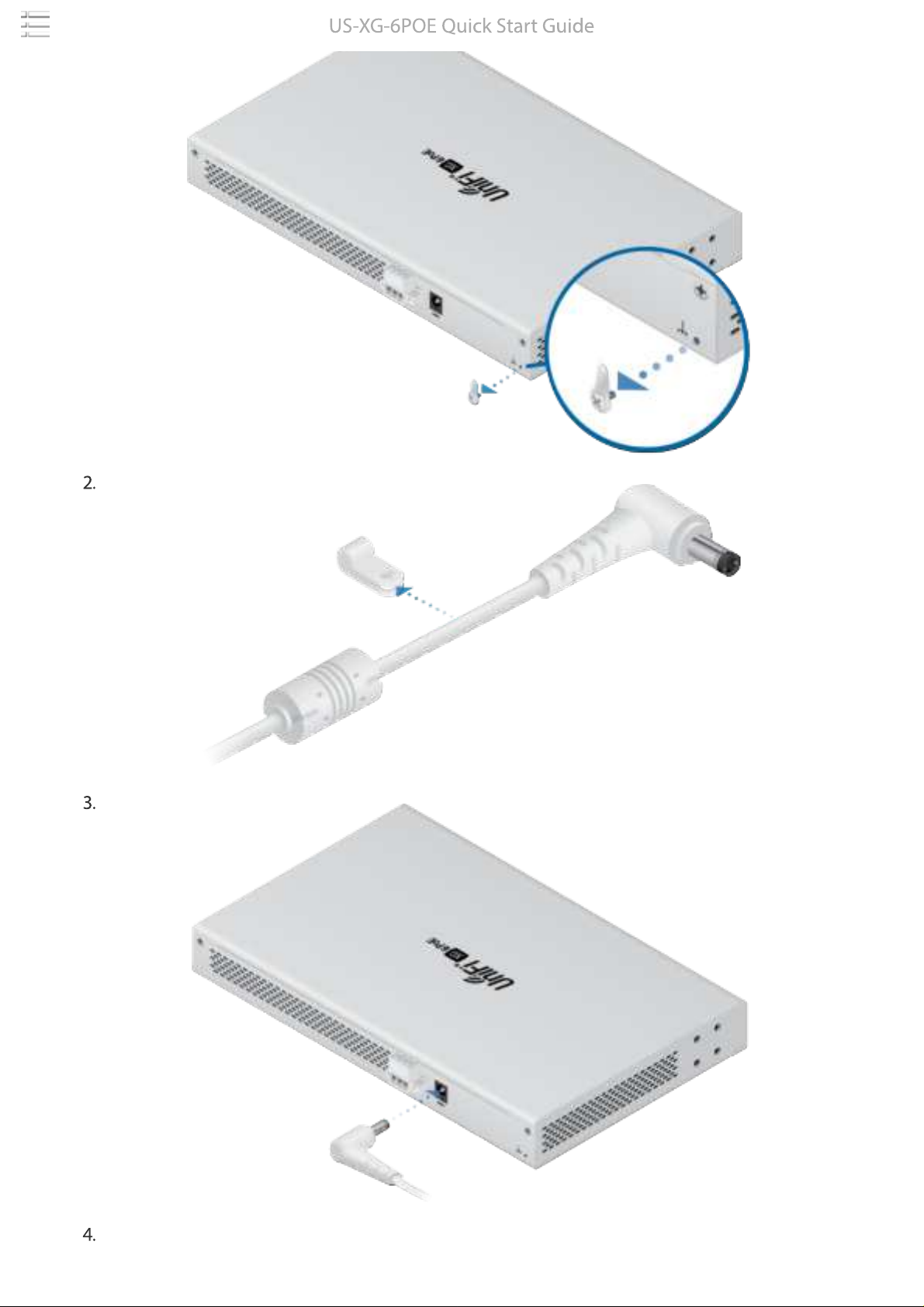

Using the Cable Clip (Optional)

US-XG-6POE Quick Start Guide

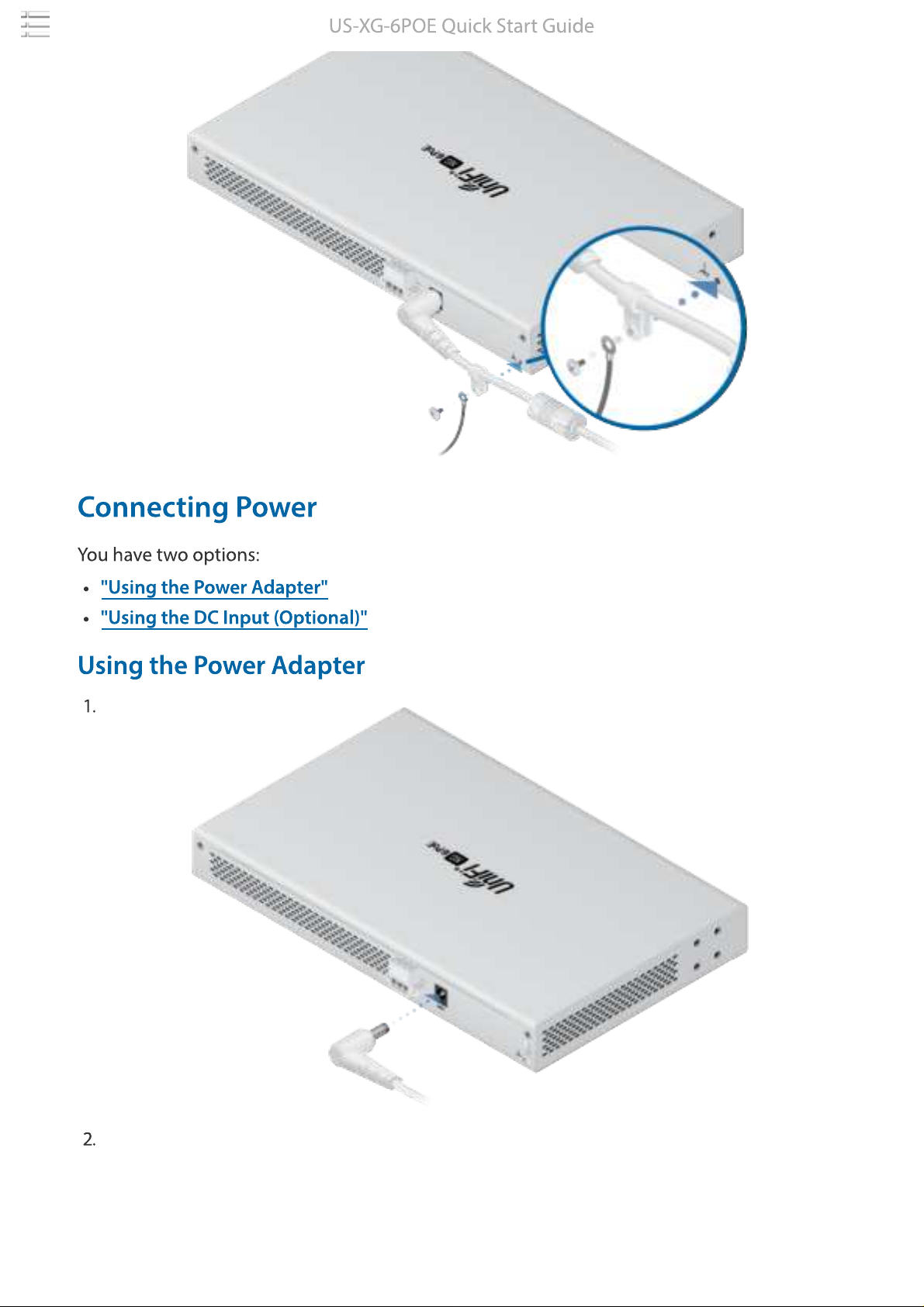

Connecting Power

You have two options:

"Using the Power Adapter"

"Using the DC Input (Optional)"

Using the Power Adapter

US-XG-6POE Quick Start Guide

Using the DC Input (Optional)

For stand-alone power or redundant backup, connect a DC power source to the UniFi Switch.

Note:

Only one power source can be used at any one time. With both power sources

connected, the input with the highest voltage will be used; the other power source

defaults to backup.

Wire a DC/DC cable (not included) to the DC Input. Ensure the polarity is correct: red is

positive (+) and black is negative (-).

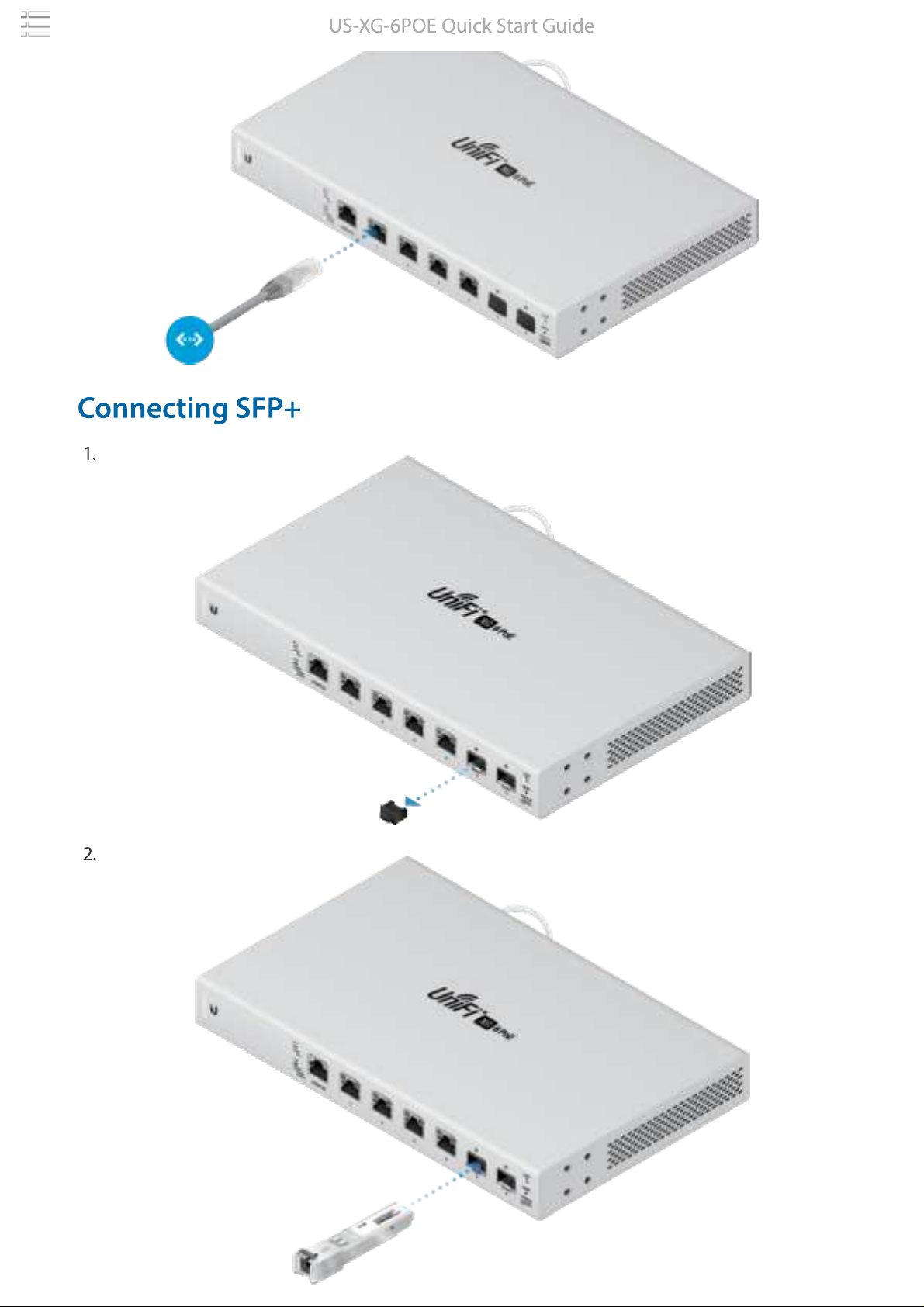

Connecting Ethernet

US-XG-6POE Quick Start Guide

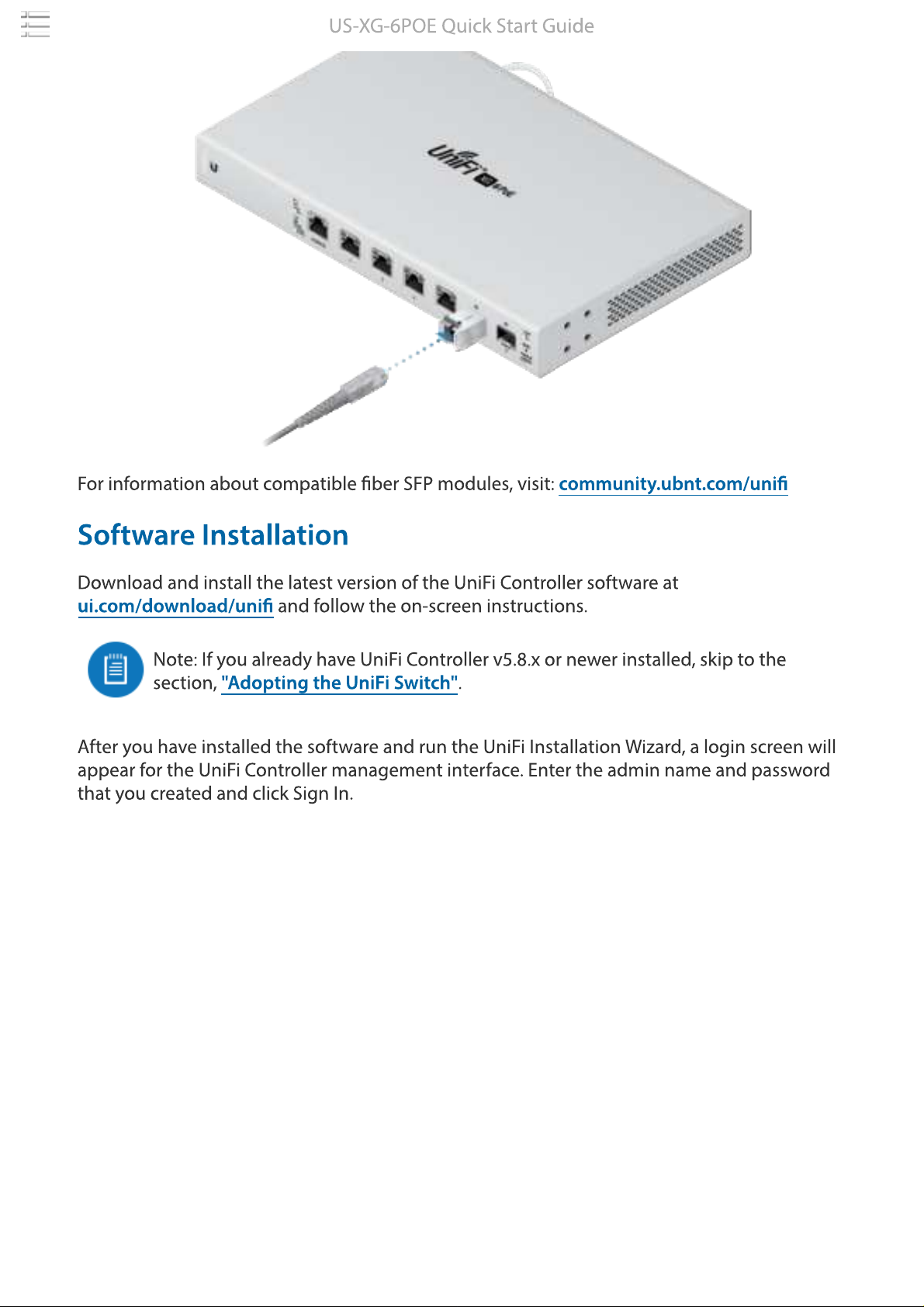

Connecting SFP+

US-XG-6POE Quick Start Guide

For information about compatible ber SFP modules, visit:

community.ubnt.com/uni

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/uni

and follow the on-screen instructions.

Note: If you already have UniFi Controller v5.8.x or newer installed, skip to the

section,

"Adopting the UniFi Switch"

After you have installed the software and run the UniFi Installation Wizard, a login screen will

appear for the UniFi Controller management interface. Enter the admin name and password

that you created and click Sign In.

US-XG-6POE Quick Start Guide

You can manage your network and view network statistics using the UniFi Controller

management interface.

To adopt the UniFi Switch, proceed to the section,

"Adopting the UniFi Switch"

For information on conguring and using the UniFi Controller software, refer to the User

Guide on the website:

ui.com/download/uni

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model

column. To adopt the UniFi Switch, click Adopt.

US-XG-6POE Quick Start Guide
