Ubiquiti US-16-XG Manuale utente

UniFi Switch Power Cord Rack-Mount Brackets (Qty. 2)

Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)

Package Contents

Installation Requirements

Phillips screwdriver (for rack- or wall-mounting)

Standard-sized, 19” wide rack with a minimum of 1U height available (for rack-mounting)

Use compatible ber SFP+ modules with the appropriate ber optic cabling. For

information about compatible ber SFP+ modules, visit:

community.ubnt.com/uni

For indoor applications, use Category 6A (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 6A (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the UniFi Switch itself should be

housed inside a protective enclosure.

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

US-16-XG Quick Start Guide

System LED

SFP+ Speed/Link/Act LED (Ports 1 - 12)

RJ45 Speed/Link/Act LED (Ports 13 - 16)

SFP+ (Ports 1 - 12)

RJ45 (Ports 13 - 16)

Reset Button

UniFi Controller software v5.4 or newer, available at:

ui.com/download/uni

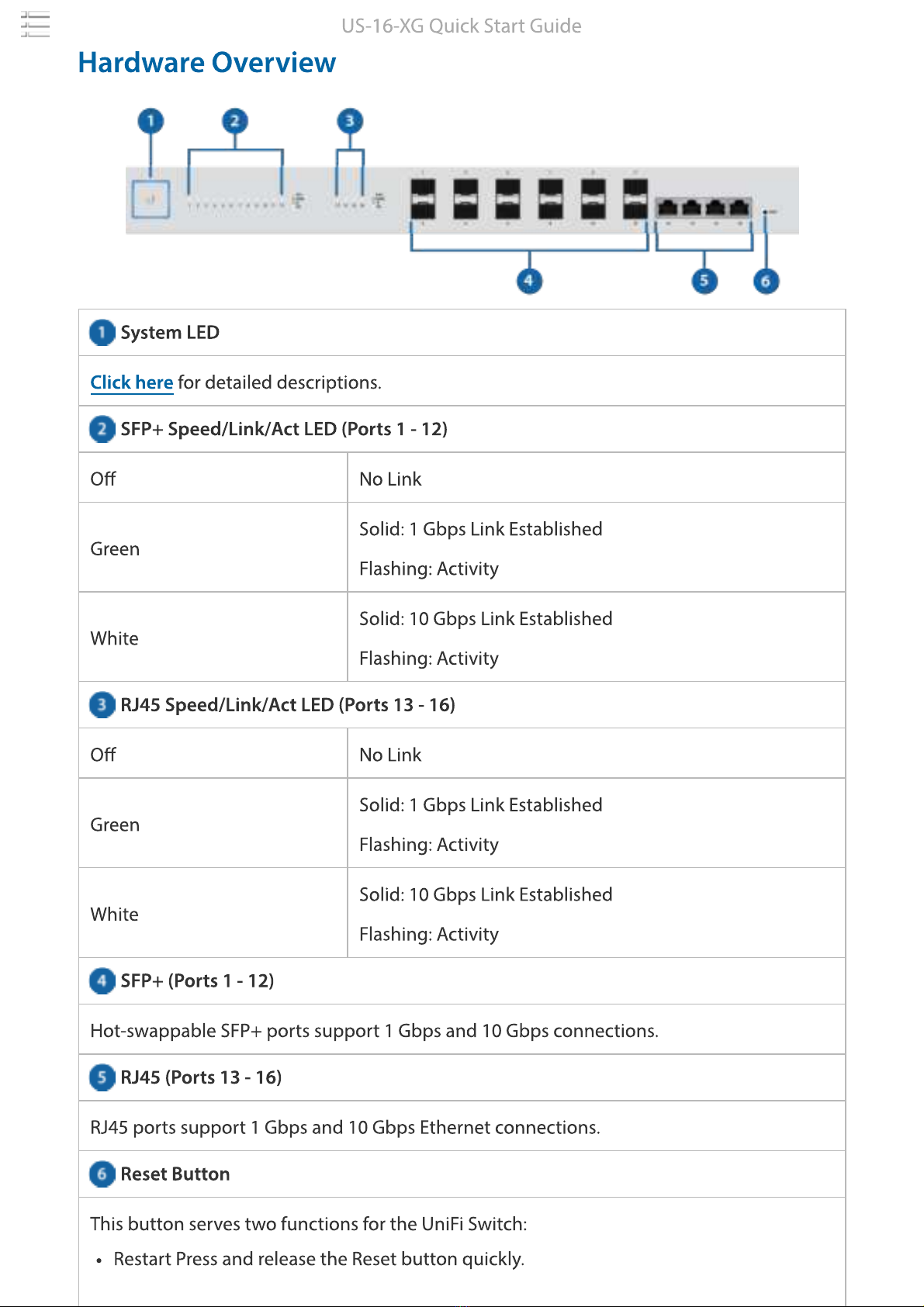

Hardware Overview

Click here

for detailed descriptions.

Oﬀ No Link

Green Solid: 1 Gbps Link Established

Flashing: Activity

White Solid: 10 Gbps Link Established

Flashing: Activity

Oﬀ No Link

Green Solid: 1 Gbps Link Established

Flashing: Activity

White Solid: 10 Gbps Link Established

Flashing: Activity

Hot-swappable SFP+ ports support 1 Gbps and 10 Gbps connections.

RJ45 ports support 1 Gbps and 10 Gbps Ethernet connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

US-16-XG Quick Start Guide

Console Port

DC Input

Power Port

Restore to Factory Default Settings Press and hold the Reset button for more than ve

seconds.

Console Port

RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-

DB9, serial console cable, also known as a rollover cable, to connect the Console port to

your computer. Then congure the following settings as needed:

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

The 48/24VDC input can connect a redundant or stand-alone DC power source (not

included) with minimum power: 56W, 57 to 20V.

Note:

You can use the redundant DC power source as a hot spare; if the internal

AC/DC power supply no longer provides power, the UniFi Switch will switch to

the DC power source without interrupting its operation.

Connect the included Power Cord to the Power port.

Hardware Installation

Mounting in a Rack (Optional)

US-16-XG Quick Start Guide



US-16-XG Quick Start Guide

Connecting Power

US-16-XG Quick Start Guide

Connecting SFP+

US-16-XG Quick Start Guide

For information about compatible ber SFP+ modules, visit:

community.ubnt.com/uni

Connecting RJ45

US-16-XG Quick Start Guide

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/uni

and follow the on-screen instructions.

Note:

If you already have UniFi Controller v5.4 or higher installed, go to the section,

Adopting the UniFi Switch.

After you have installed the software and run the UniFi Installation Wizard, a login screen will

appear for the UniFi Controller management interface. Enter the username and password

that you created and click Sign In.

US-16-XG Quick Start Guide

You can manage your network and view network statistics using the UniFi Controller

management interface.

To adopt the UniFi Switch, proceed to the section, Adopting the UniFi Switch.

For information on conguring and using the UniFi Controller software, refer to the User

Guide on the website:

ui.com/download/uni

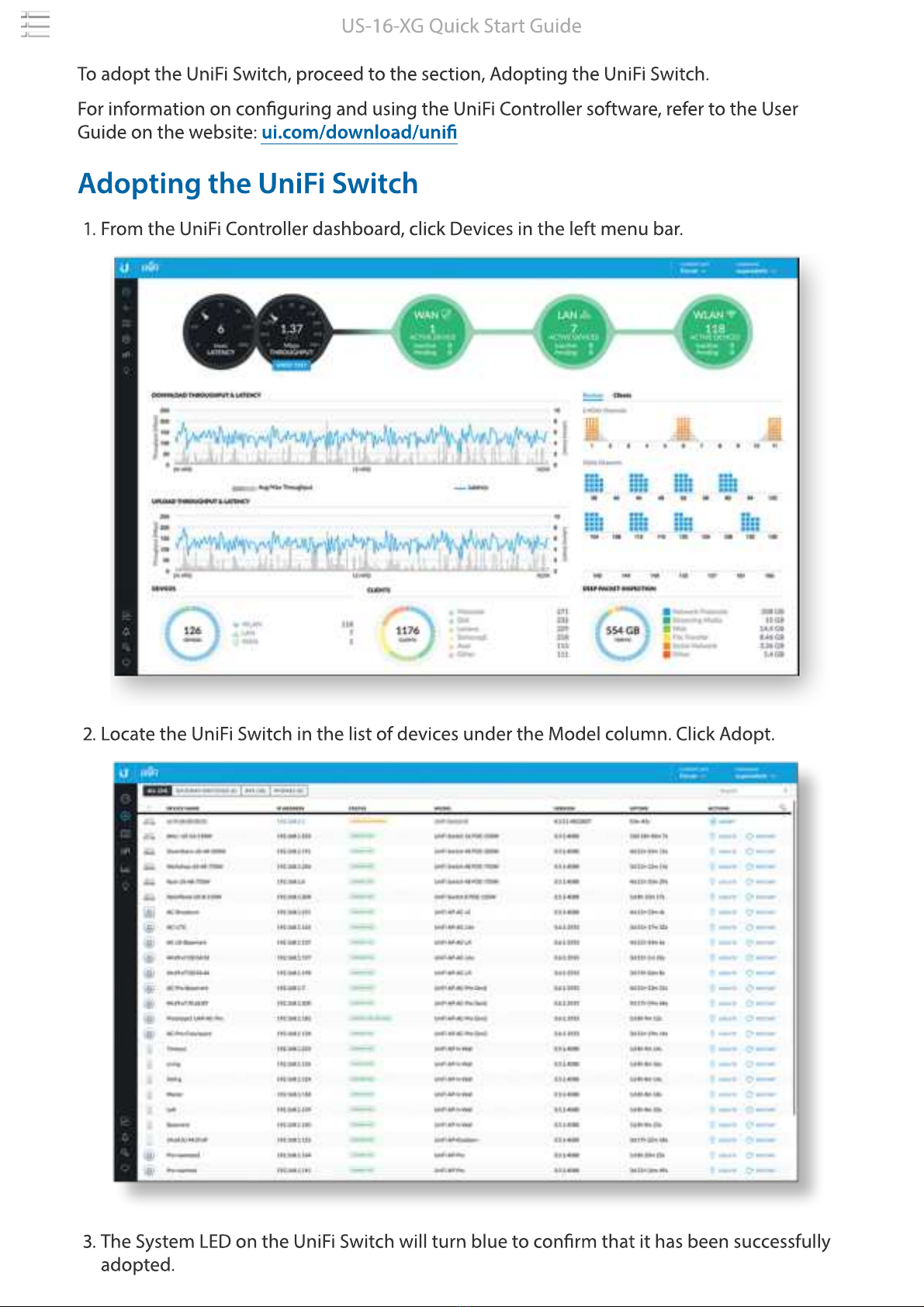

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

2. Locate the UniFi Switch in the list of devices under the Model column. Click Adopt.

3. The System LED on the UniFi Switch will turn blue to conrm that it has been successfully

adopted.

US-16-XG Quick Start Guide
