Ubiquiti US-16-150W Manuale utente
Managed PoE+ Gigabit Switch
with SFP
Model: US-16-150W
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®
Switch. This Quick Start Guide is designed to guide you
through the installation and also includes the warranty terms.

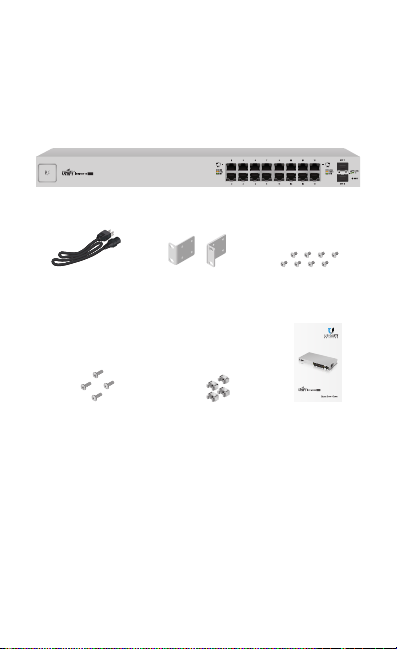

Package Contents
UniFi Switch US-16-150W
Power Cord Rack-Mount Brackets
(Qty. 2)
Bracket Screws
(M4, Qty. 8)
ManagedPoE+ Gigabit Switch
withSFP
Model:US-16-150
Mounting Screws
(#10-32 x 5/8", Qty. 4)
Cage Nuts
(#10-32 x 5/8", Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (1.8 or newer recommended)
• Web Browser: Mozilla Firefox, Google Chrome, Microsoft
Edge, or Microsoft Internet Explorer 10 (or newer)
• UniFi Controller software v4.8.5 or newer (available at:
downloads.ubnt.com/unifi)
Installation Requirements
• Phillips screwdriver (for rack-mounting)
• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack-mounting)
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your outdoor networks
from the most brutal environments and devastating ESD
attacks with industrial-grade shielded Ethernet cable,
TOUGHCable™, from Ubiquiti Networks. For more details,
visit: www.ubnt.com/toughcable
Note: Although the cabling can be located outdoors,
the UniFi Switch itself should be housed inside a
protective enclosure.
Network Topology Requirements
• A DHCP-enabled network for the UniFi Switch to obtain an
IPaddress (connected devices will also obtain IP addresses
after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller v4.8.5 (or newer) software, located either on-site
and connected to the same Layer2 network, or off-site in a
cloud or NOC
UniFi Switch US-16-150W
UniFi Security Gateway Pro
(DHCP Server)
Internet
UAP-AC-PRO UAP-AC-LR
UAP-IW
LAN
WAN
UniFi Cloud Key
(UniFi Controller)
Remote Access to
UniFi Controller
NetworkHealth
DASHBOARD
MAP
DEVICES
CLIENTS
CALLS
STATISTICS
INSIGHTS
SETTINGS
CURRENTSITE
Default
REFRESHRATE
2minutes
Sample Network Diagram
All UniFi devices support off-site management controllers.
For setup details, refer to the User Guide on the website:
documentation.ubnt.com/unifi
Hardware Overview
Front Panel
RJ45 1-16 SFP 1-2
Reset
Button
Port Description
RJ45 1-16 RJ45 ports support Power over Ethernet (PoE)
and 10/100/1000 Ethernet connections.
SFP 1-2 Hot-swappable SF P ports support 1 Gbps
connections.
Reset
Button
This button serves two functions for the
UniFi Switch:
• Restart Press and release the Reset button
quickly.
• Restore to Factory Default Settings Press
and hold the Reset button for more than five
seconds.
Back Panel
Power
Console Ventilation Fans
The Console port is reserved for future use.
Note: Keep a clearance of 20 mm from the ventilation
fans for adequate airflow.
Front Panel System LED
System
State Status
White Factory defaults, waiting for integration.
Flashing White Initializing.
Alternating
White/Blue
Device is busy; do not use or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Blue Successfully integrated into a network
and working properly.
Flashing Blue
This is used to locate a device.
When you click Locate in the UniFi
Controller software, the System LED
will flash blue. The software will also
display the location of the UniFi Switch
on the map.
*640-00172-01*
640-00172-01
Front Panel Port LEDs
SFP:
Speed/Link/Activity
RJ45:
PoE
RJ45:
Speed/Link/Activity
LED State Status
RJ45 1-16
PoE
Off No PoE
Amber IEEE 802.3af/802.3at
Green 24V Passive
Speed/
Link/
Activity
Off No Link
Amber
Link Established at
10/100Mbps
Flashing Indicates Activity
Green
Link Established at
1000Mbps (1 Gbps)
Flashing Indicates Activity
SFP 1-2
Speed/
Link/
Activity
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity
Hardware Installation
The UniFi Switch can be placed on a horizontal surface or
mounted in a rack.
Note: Keep a clearance of 20 mm next to the ventilation
holes for adequate airflow.
Mounting in a Rack (Optional)
1. Attach the Rack-Mount Brackets to the UniFi Switch using
the eight Bracket Screws.
2. Attach the UniFi Switch to the rack using the four Mounting
Screws. (If the rack has square slots, then use the Cage Nuts
with the Mounting Screws.)
Connecting Power
1. Connect the Power Cord to the Power port of the
UniFiSwitch.
2. Connect the other end of the Power Cord to a power outlet.

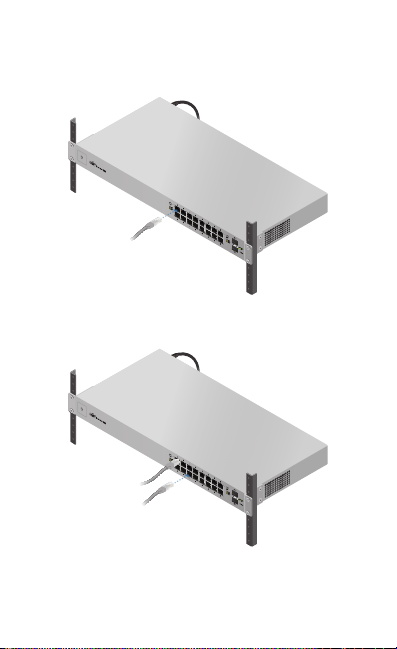

Connecting Ethernet
1. Connect the UniFi Cloud Key, management computer, or
LAN running the UniFi Controller to the UniFi Switch.
2. Connect Ethernet cables from the gateway or router (DHCP
server) and other devices to the UniFi Switch.
