Ubiquiti USW-Industrial Manuale utente

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 1/18

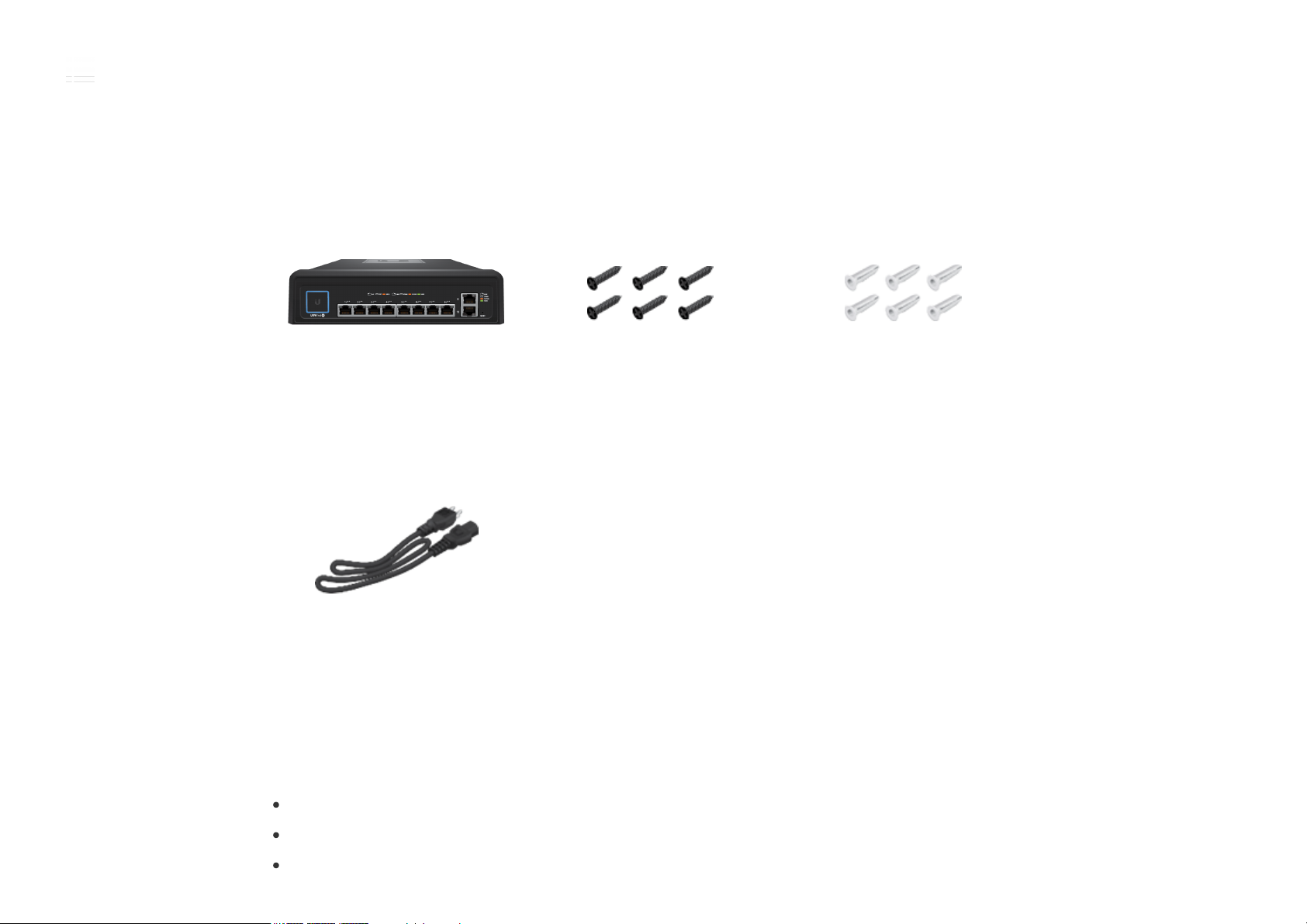

UniFi Switch Screws (Qty. 6) Screw Anchors (Qty. 6)

Power Cord

Package Contents

Installation Requirements

Drill with 6 mm drill bit

Phillips screwdriver

Cat5/6 UTP cable for indoor installations. Plenum-rated cabling for plenum spaces.

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 2/18

System LED

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi

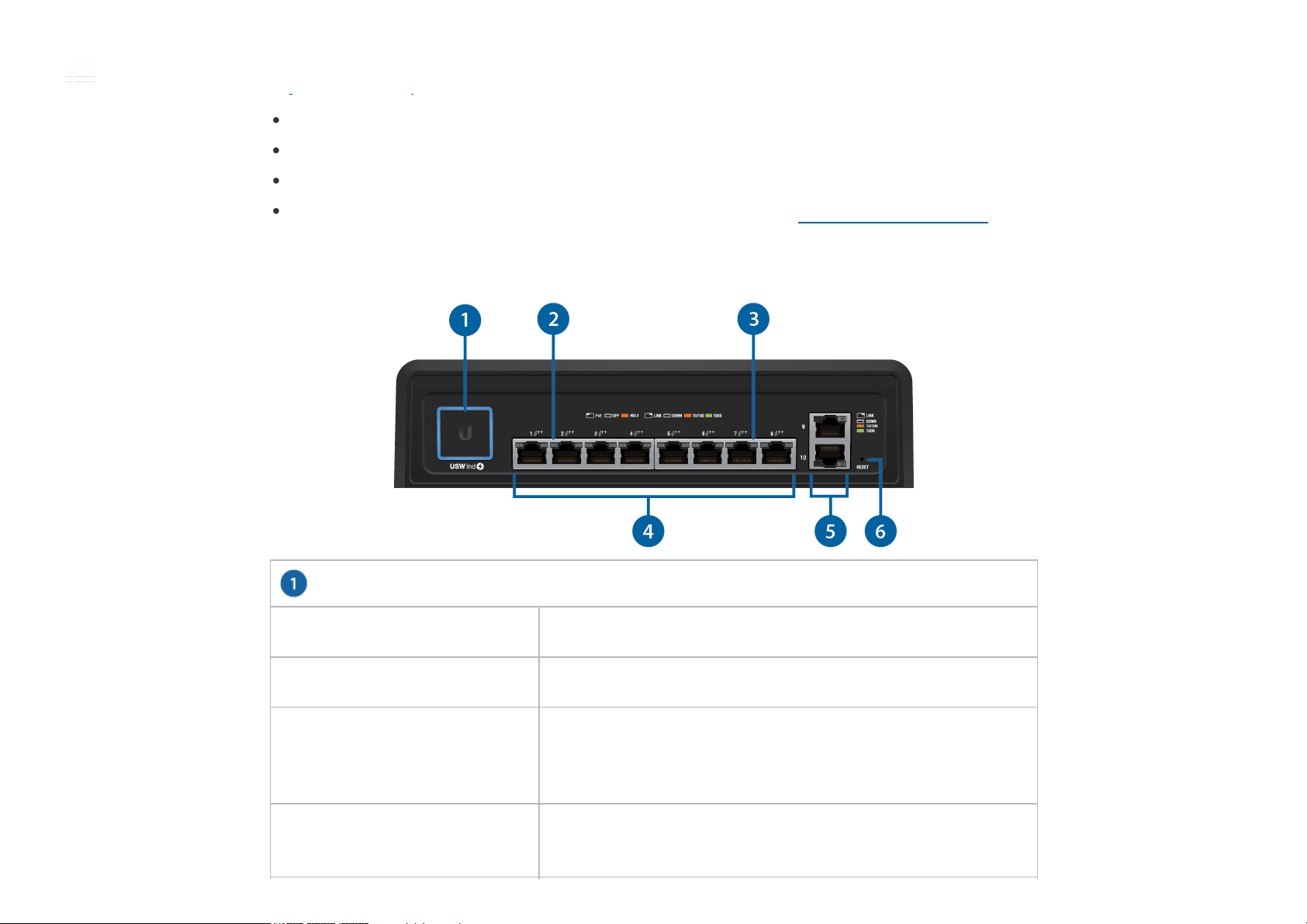

Hardware Overview

Flashing White Initializing.

Steady White Factory defaults, waiting for adoption.

Alternating White/Blue

Device is busy; do not touch or unplug it. This usually

indicates that a process such as a firmware upgrade

is taking place.

Steady Blue Successfully adopted by a network and working

properly.

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 3/18

PoE LED

Link/Speed/Activity LED

Ports 1 - 8

Ports 9 - 10

Reset Button

Flashing Blue This is used to locate a device.

When you click Locate in the UniFi Controller

software, the System LED will flash blue. The

software will also display the location of the UniFi

Switch on the map.

Off PoE Disabled

Amber 802.3af/at/bt PoE

Off No Link

Amber

Link Established at 10 or 100 Mbps

Flashing Indicates Activity

Green

Link Established at 1000 Mbps (1 Gbps)

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at/bt PoE output.

RJ45 ports support 10/100/1000 Ethernet connections.

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 4/18

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

Hardware Installation

You have two options for mounting:

Screws and Screw Anchors You can use the included Screws and Screw Anchors.

Go to "Wall Mounting".

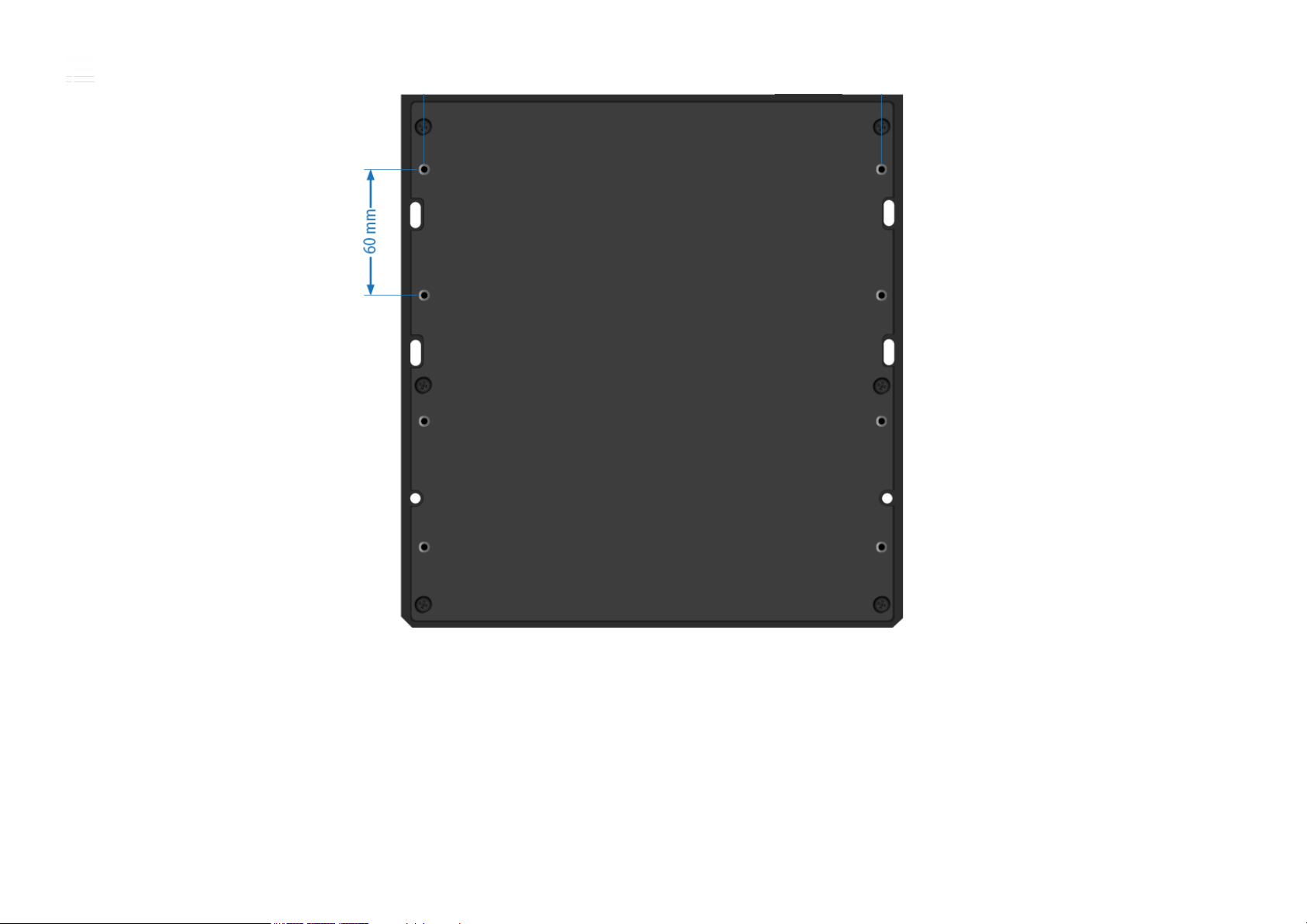

Machine Screws You can use eight M4 machine screws (not included), which must

be long enough to extend 6 mm into the Switch.

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 5/18

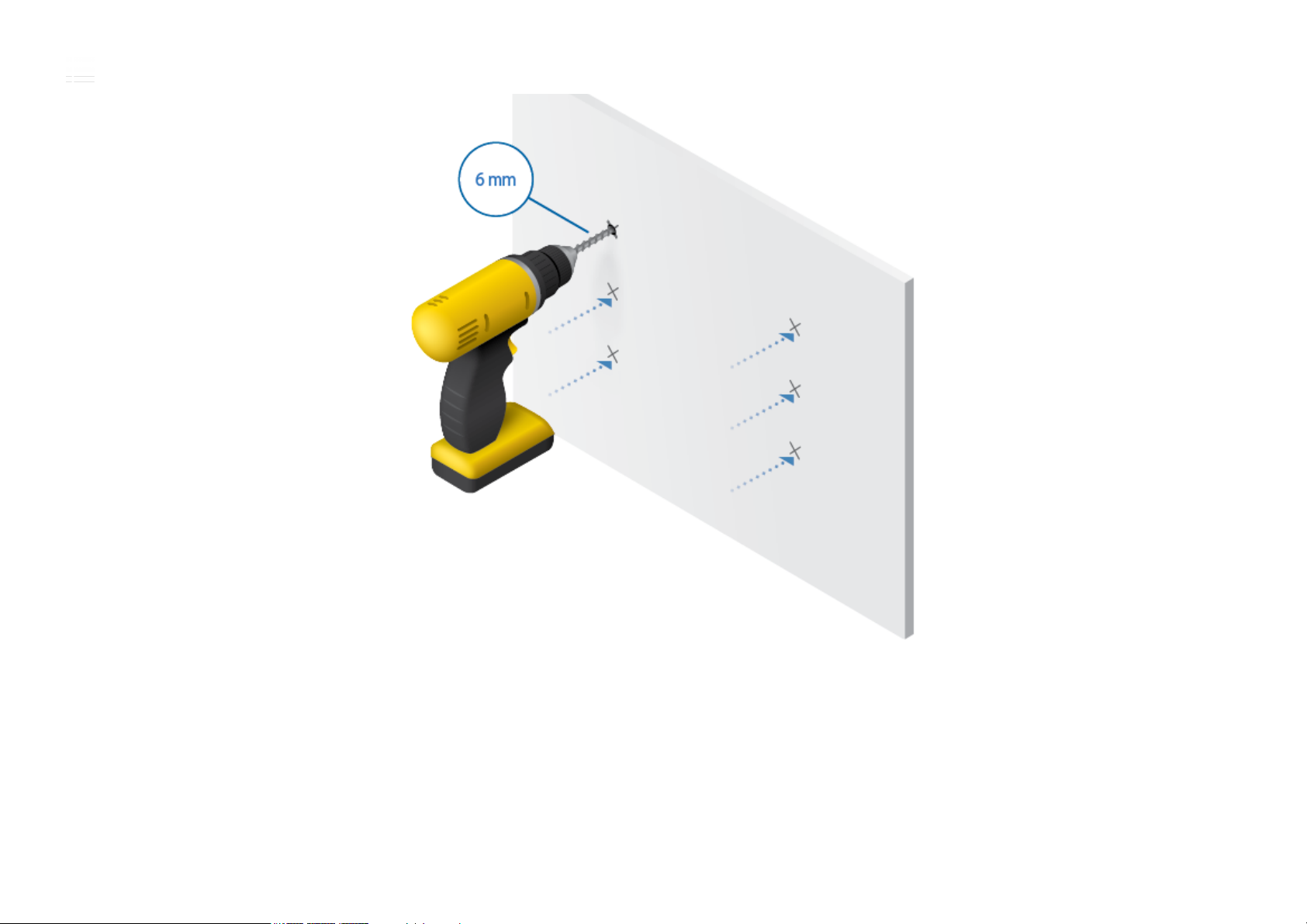

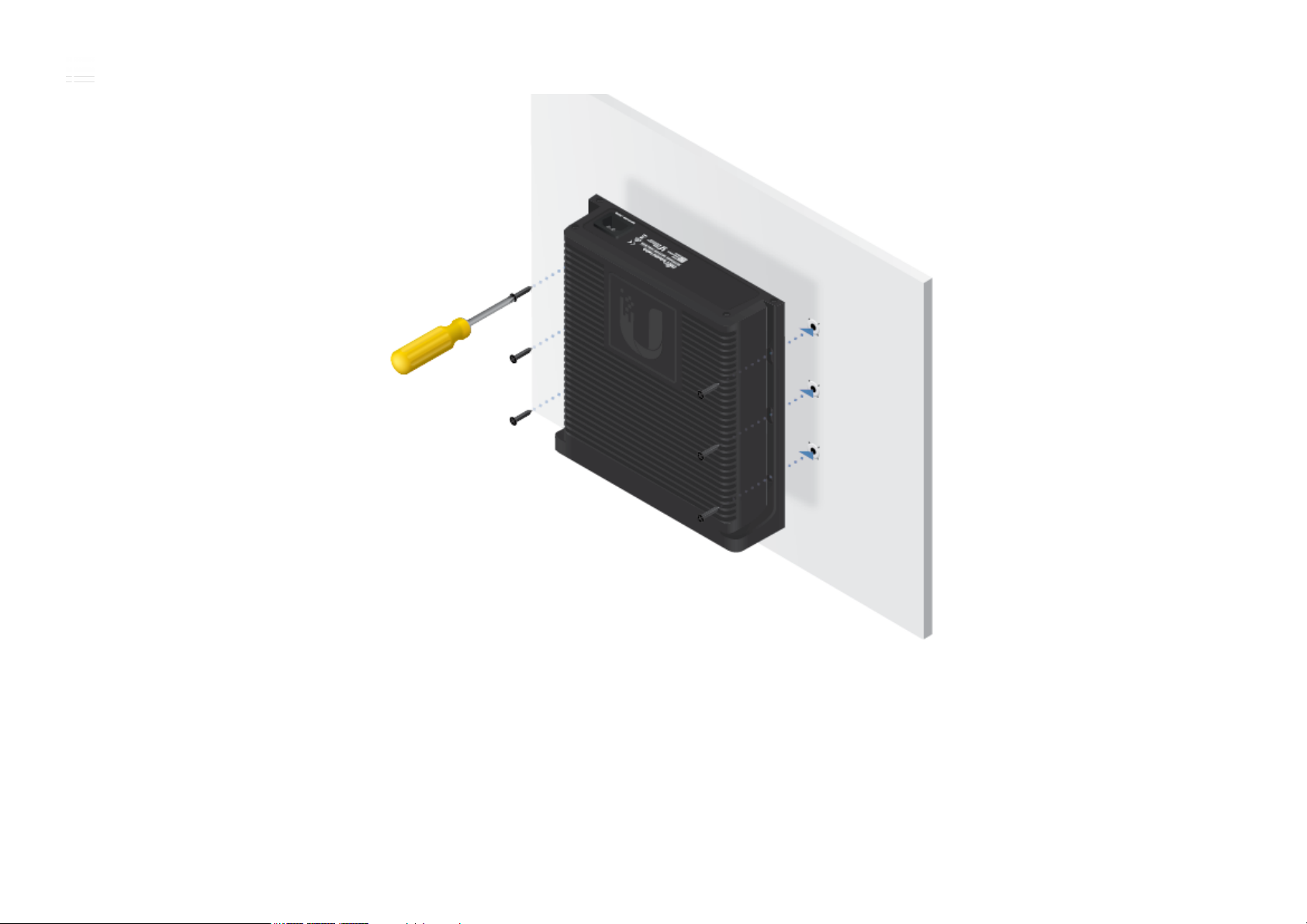

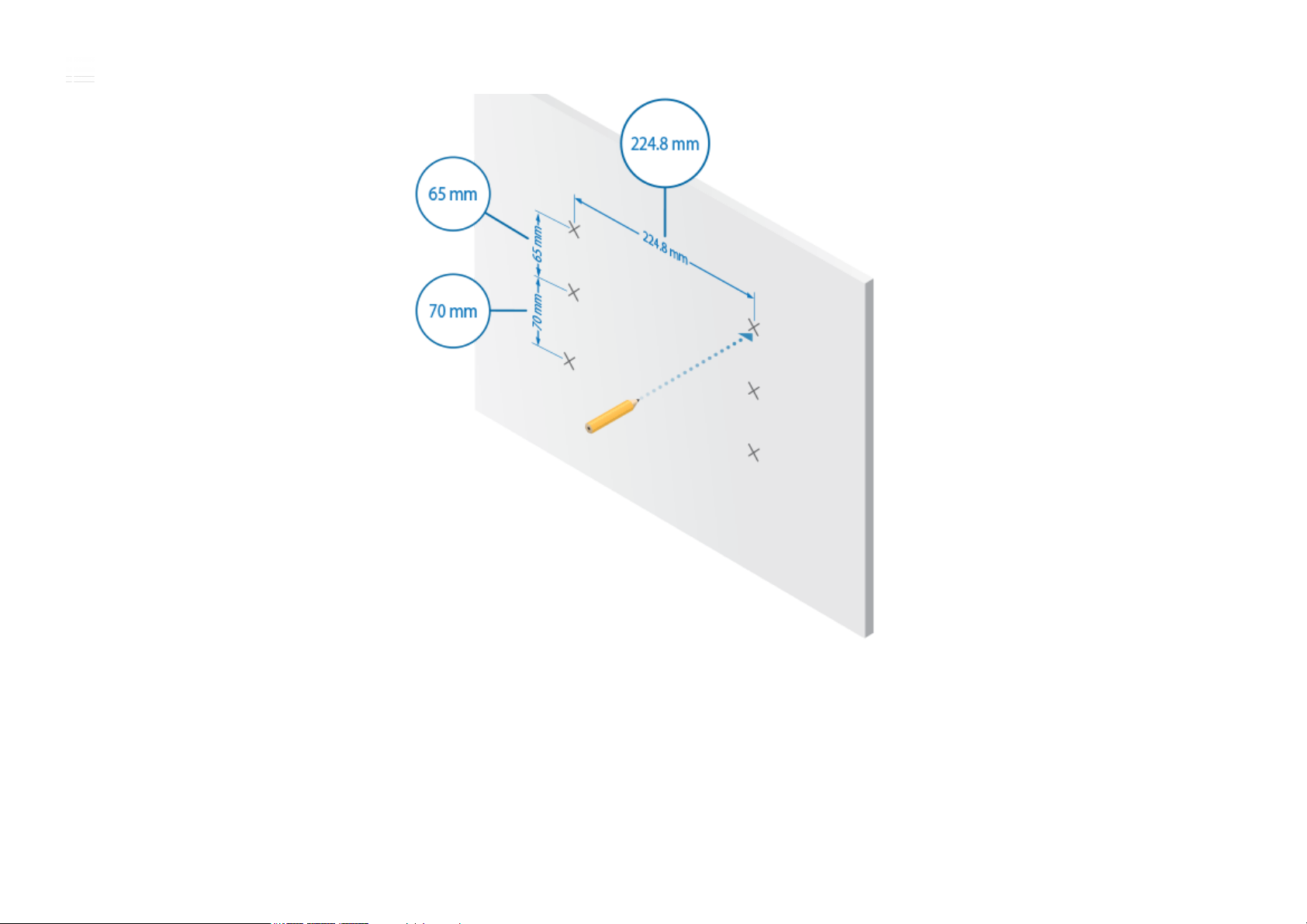

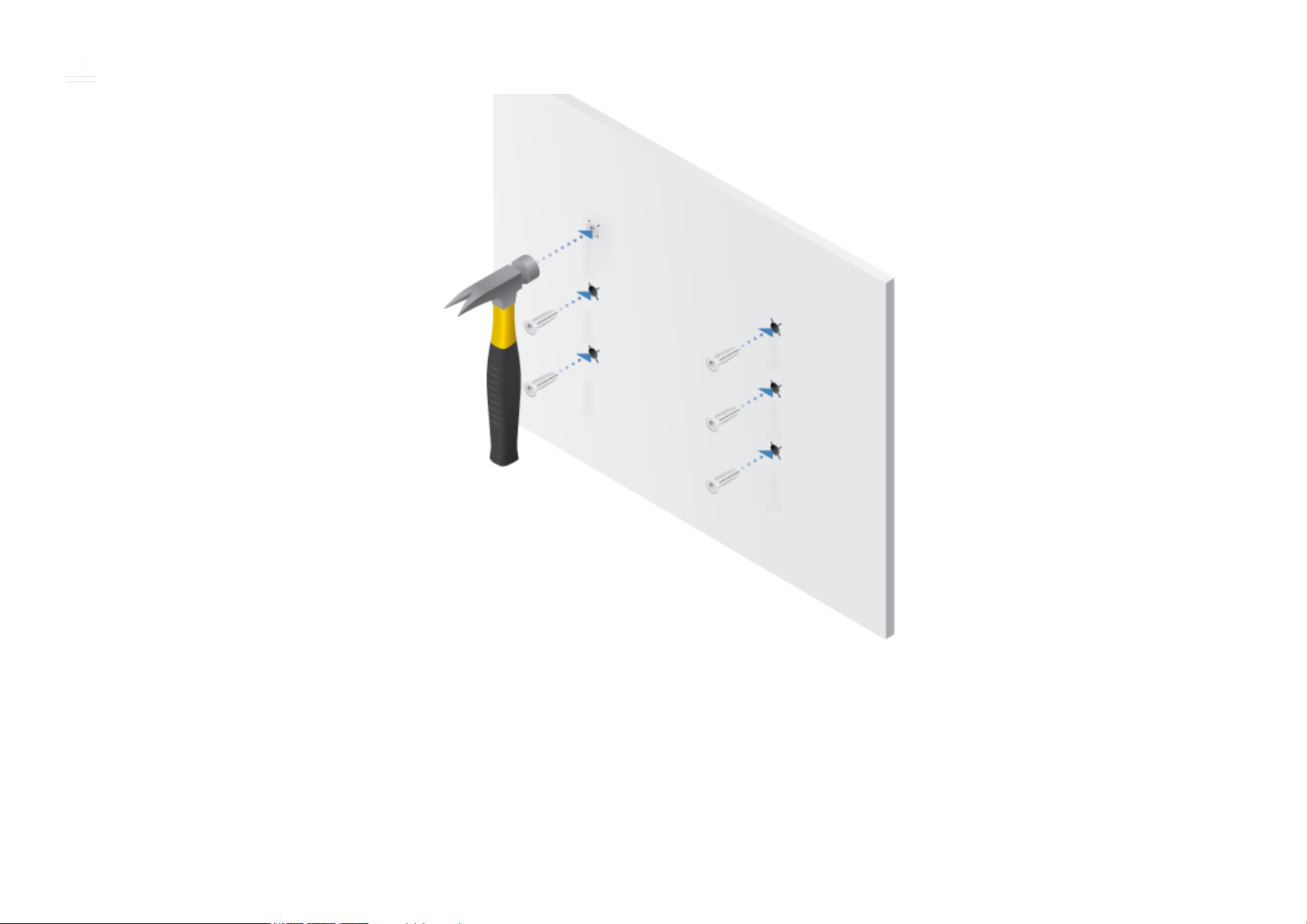

Wall Mounting

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 6/18

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 7/18

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 8/18

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 9/18

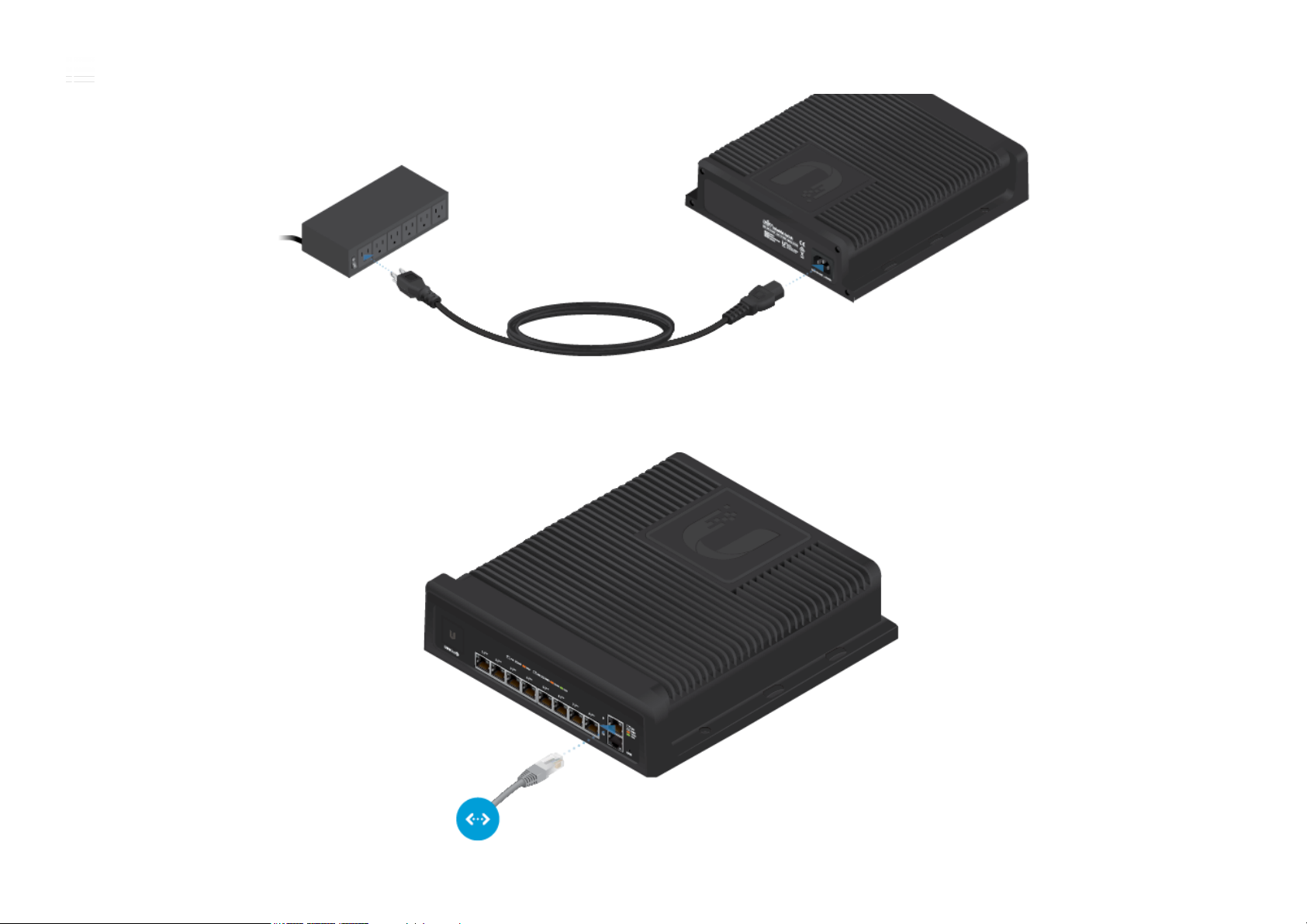

Connecting Power

USW-Industrial Quick Start Guide

9. 9. 2019 USW-Industrial Quick Start Guide

https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 10/18

Connecting Ethernet

USW-Industrial Quick Start Guide
