Ubiquiti USW-48-POE Manuale utente

UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Touchscreen Display

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi

IMPORTANT: We strongly recommend using UPS backup and power regulation

to prevent equipment damage due to stability issues with local AC power.

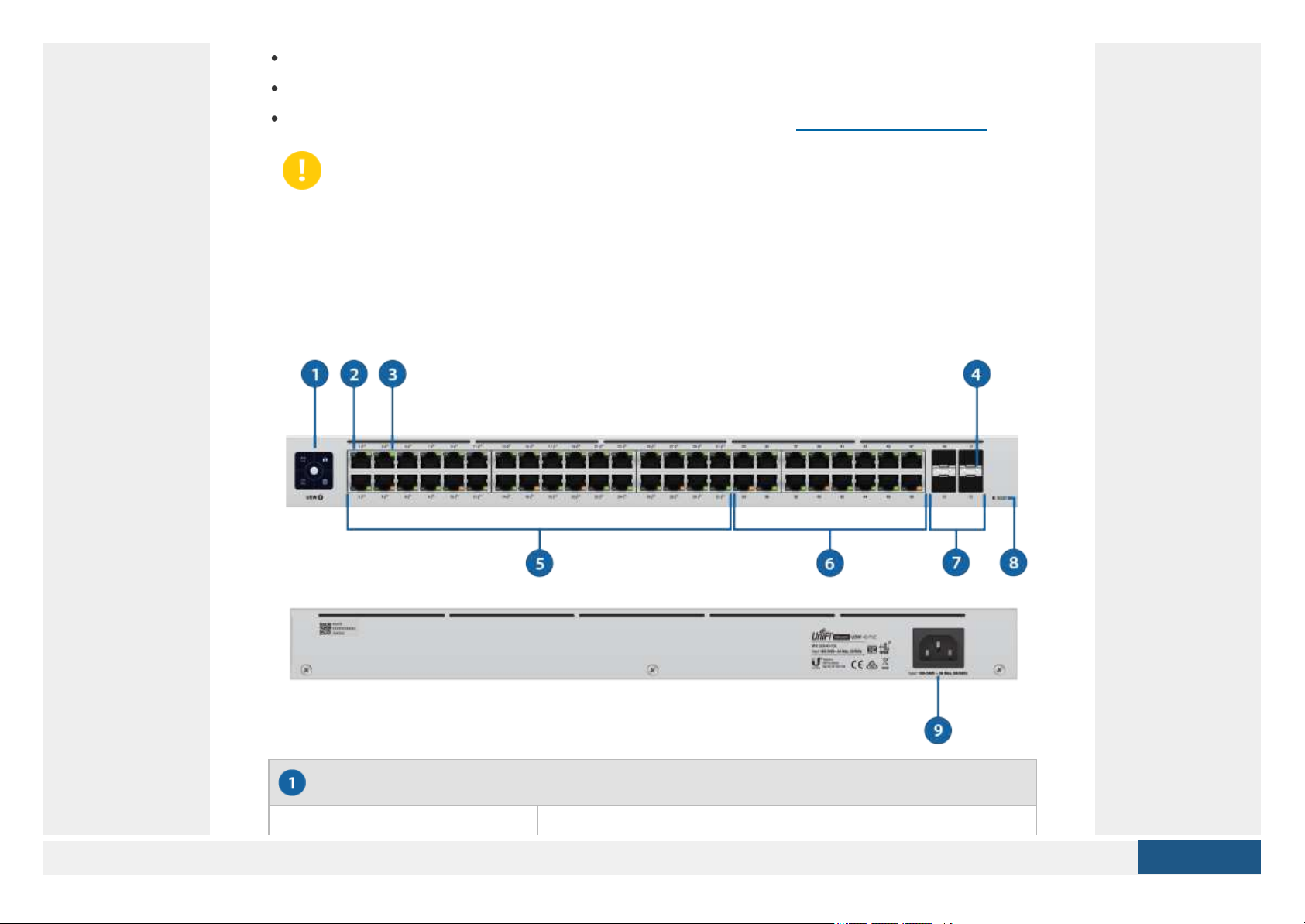

Hardware Overview

LEDs

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RJ45 PoE LED (Ports 1 - 32)

RJ45 Speed/Link/Activity LED (Ports 1 - 48)

SFP Speed/Link/Activity LED (Ports 49 - 52)

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

Steady Blue Successfully adopted by a network and working

properly.

Location Animation

This indicates that you clicked Locate in the UniFi

Controller software. The software will also display the

location of the device on the map.

Off No PoE

Amber 802.3af/at PoE

Off No Link

Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity

Green

Link Established at 1000 Mbps

Flashing Indicates Activity

Off No Link

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RJ45 (Ports 1 - 32)

RJ45 (Ports 33 - 48)

SFP (Ports 49 - 52)

Reset Button

Power Port

Green Link Established at 1 Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE output.

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor

use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the UniFi Switch itself

should be housed inside a protective enclosure.

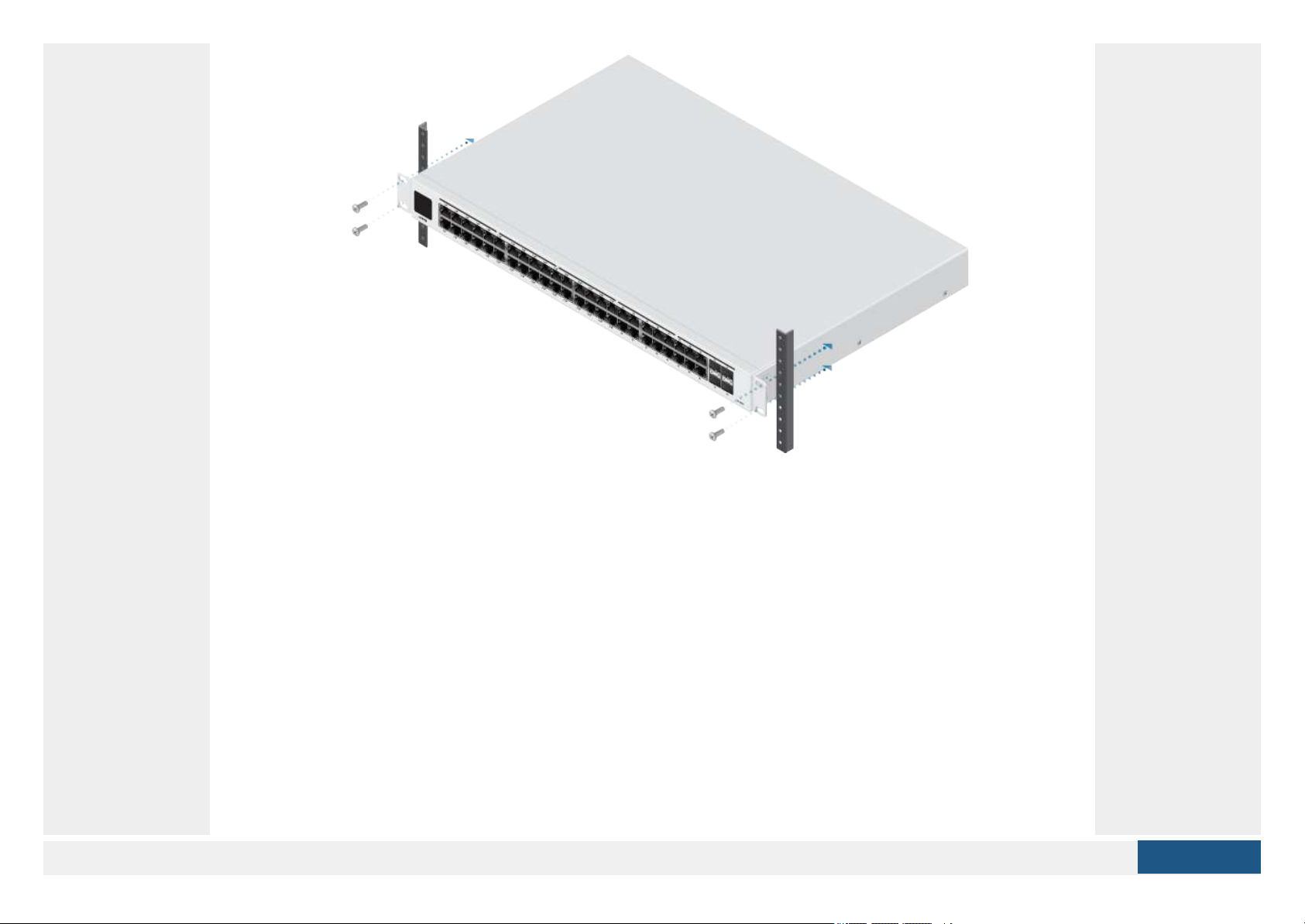

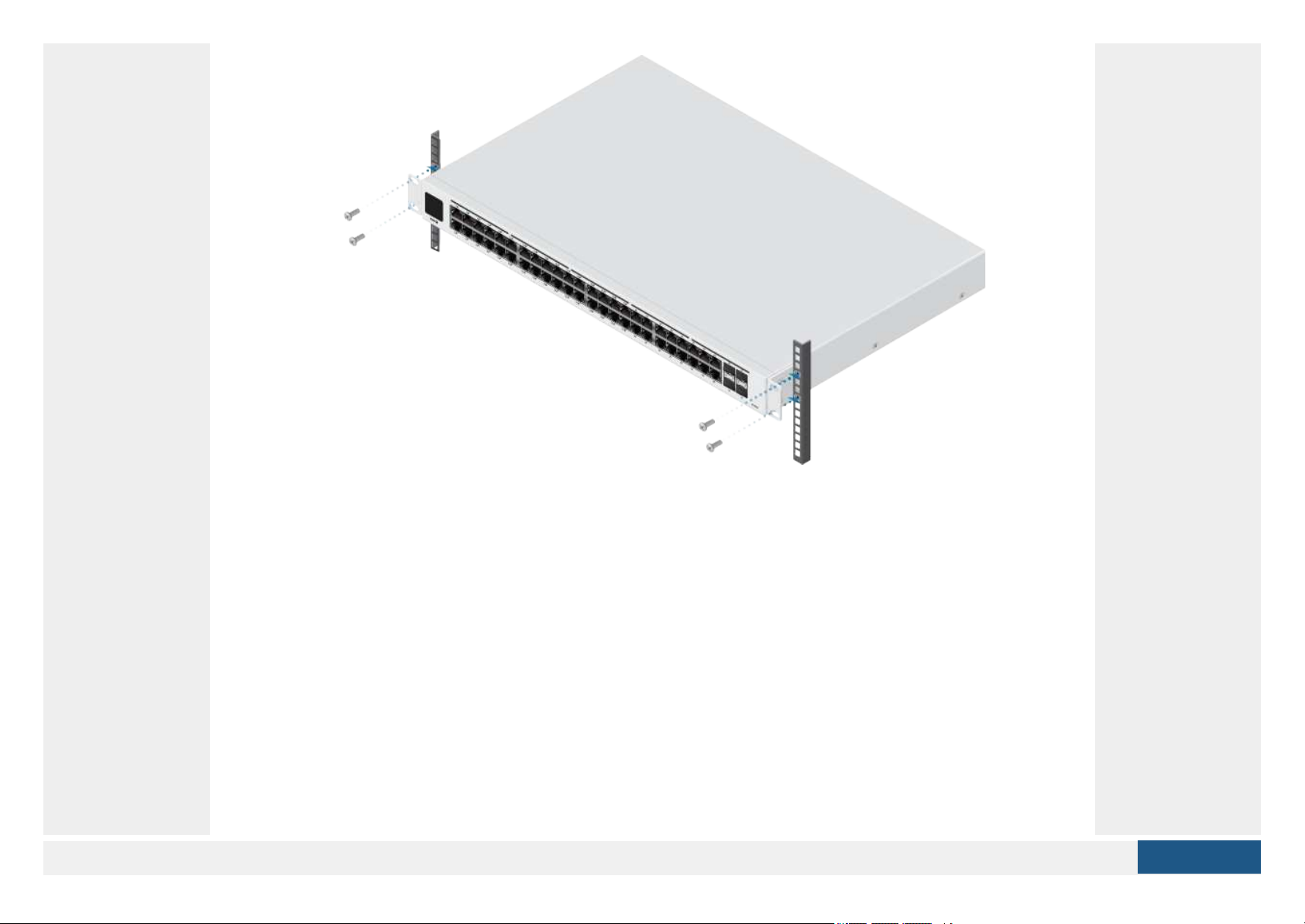

Hardware Installation

IMPORTANT: Fanless switches must not be stacked. Do not place this UniFi

Switch on top of another switch. Do not place anything on top of this UniFi

Switch.

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

OR

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

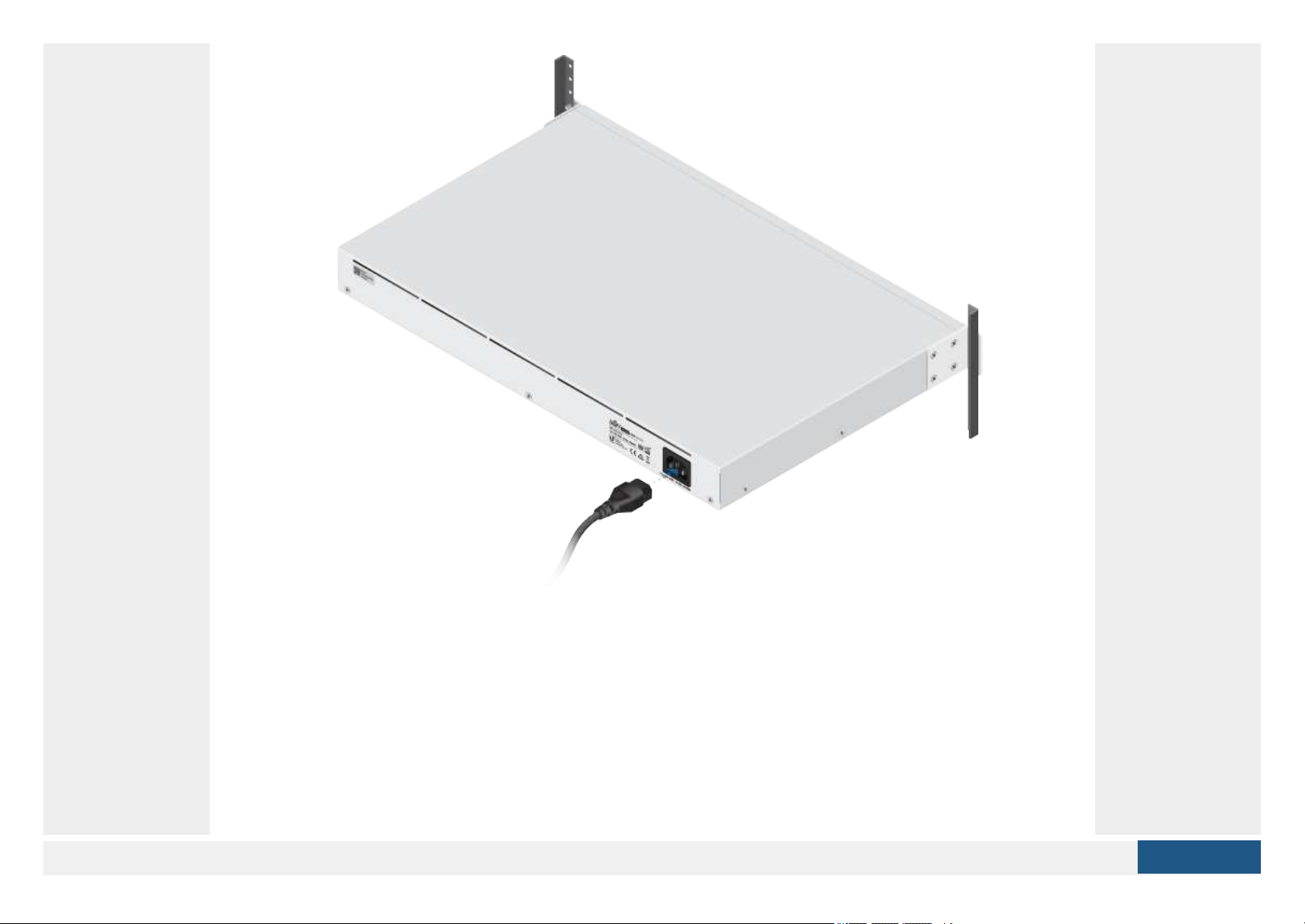

Connecting Power

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
