Ubiquiti airFiber AF-24-US Manuale utente
24 GHz Point-to-Point
1.4+ Gbps Radio
Model: AF-24
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks® airFiber® 24GHz
Point-to-Point Radio. This Quick Start Guide is designed to guide
you through installation and also includes the warranty terms.

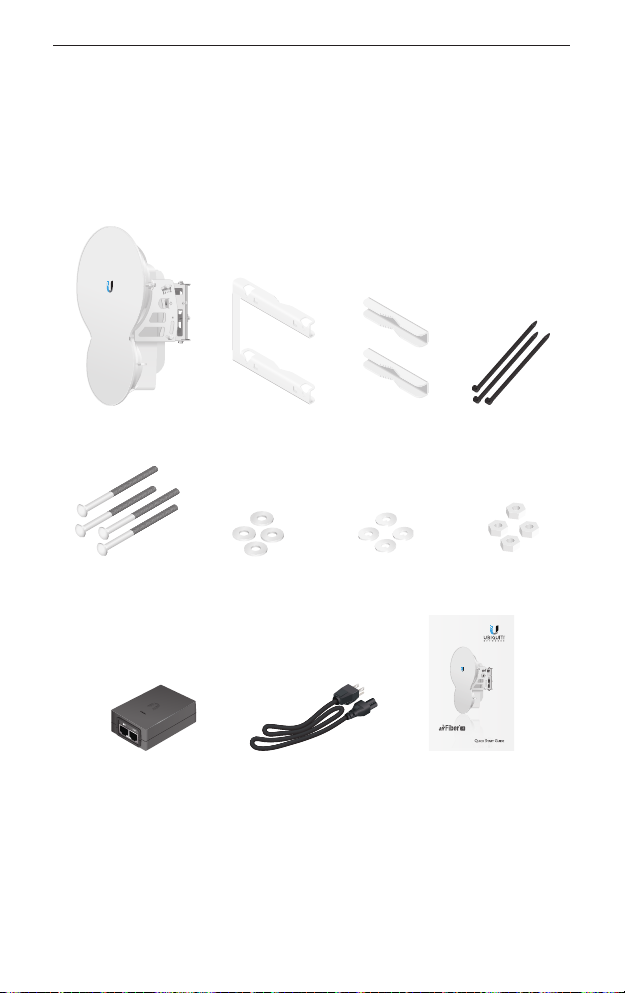

Package Contents
airFiber AF-24 Pole Mount Bracket Pole Clamps
(Qty. 2)
Cable Ties
(Qty. 3)
Carriage Bolts
(Qty. 4)
Flat Washers
(Qty. 4)
Split Lock Washers
(Qty. 4)
Hex Nuts
(Qty. 4)
24 GHz Point to Point
1.4+ Gbps Radio
Model: AF-24
GigE PoE Adapter
(50V, 1.2A)
Power Cord airFiber AF-24
Quick Start Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and
earth grounding must be used as conditions of product warranty. TOUGHCable™is designed for
outdoor installations. It is the professional installer’s responsibility to follow local country regulations,
including operation within legal frequency channels, output power, and Dynamic Frequency Selection
(DFS) requirements.
2
airFiber AF-24 Quick Start Guide

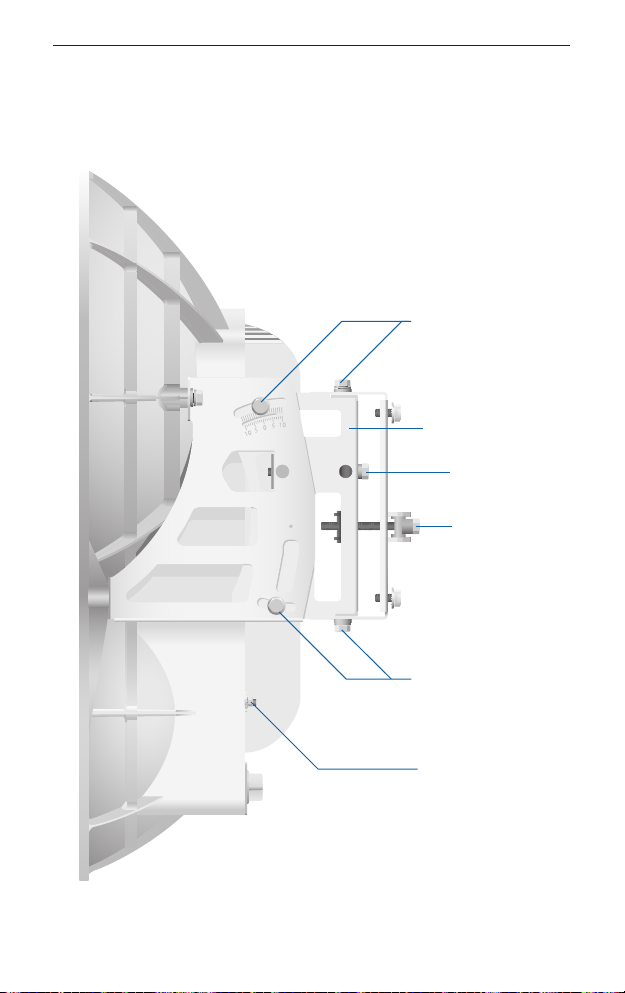

Hardware Overview
Side
24 GHz
Alignment Bracket
Elevation
Adjustment
Azimuth
Adjustment
Ground
Bonding Point
Lock Bolts
Lock Bolts
3

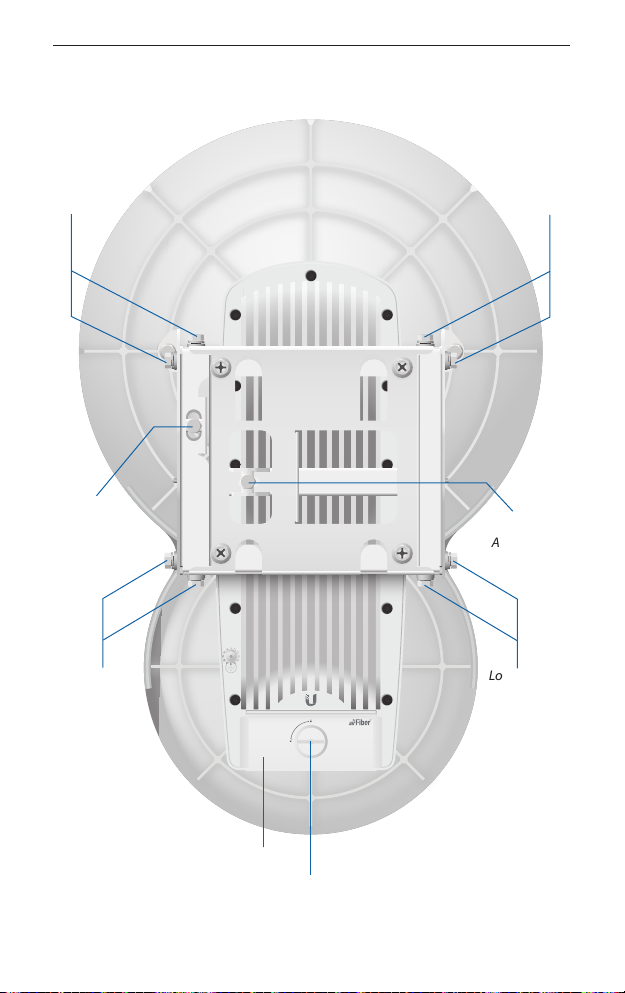

Hardware Overview
Back
Lock Bolts
Lock Bolts
Azimuth
Adjustment
24 GHz
Lock Bolts
Lock Bolts
Cover Lock
Elevation
Adjustment
Port Cover
4
airFiber AF-24 Quick Start Guide

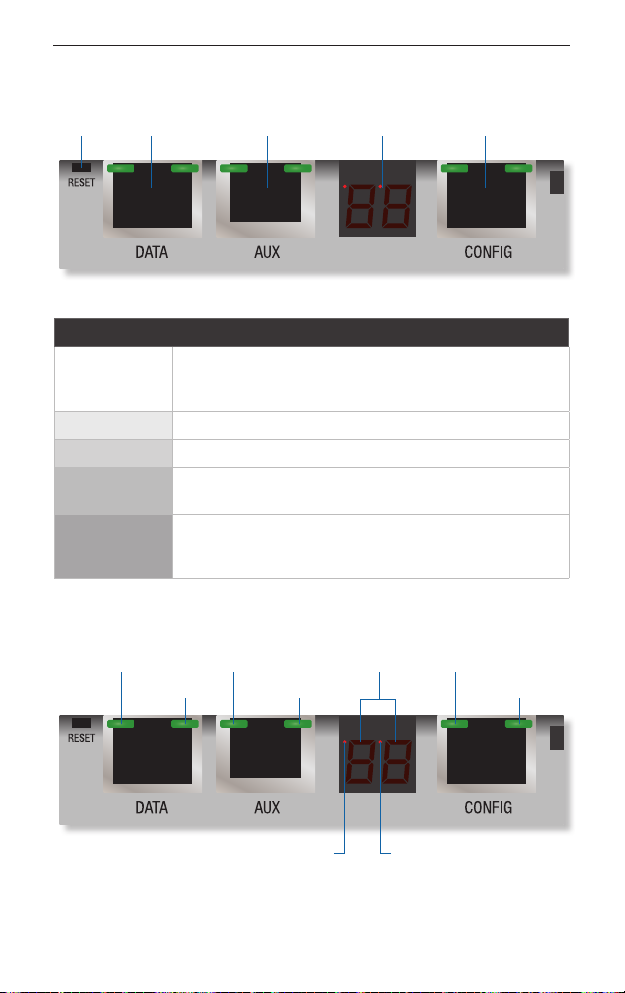

Interfaces
Reset Data Aux ConfigLED Display
Interface Description
Reset
To reset to factory defaults, press and hold the Reset
button for more than five seconds while the unit is
powered on.
Data 10/100/1000 Mbps port handles all user traffic.
Aux Port for audio tone aiming.
LED Display Digital display used for power, status, and mode
information.
Config
10/100 Mbps, secured port for configuration. By
default, this is the only port that can monitor,
configure, and/or update firmware.
LEDs
Link/Act
Speed GPS
Modulation Link/Act
SpeedRX Power
Master/Slave RF Link Status
5
Hardware Overview
LED State Status
Data
Speed Off 10/100 Mbps
On 1000 Mbps
Link/Act
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
Aux
GPS
Off No GPS Synchronization
On Operational (Strong Signal)
Normal Flash* Operational (Weak Signal)
Modulation
Off ¼x or 1x (QPSK SISO)
Short Flash* 2x (QPSK MIMO)
Normal Flash* 4x (16QAM MIMO)
Long Flash* 6x (64QAM MIMO)
LED Display
RX Power
(-dBm)
Number Decodable RX Signal
Flashing Number Undecodable RX Signal
Overload Condition
Master/
Slave
Off Slave Mode
On Master Mode
RF Link
Status
Off RF Off
Short Flash* Syncing
Normal Flash* Beaconing
Long Flash* Registering
On Operational
Config
Speed Off 10 Mbps
On 100 Mbps
Link/Act
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
* Short Flash (1:3 on/off cycle)
Normal Flash (1:1 on/off cycle)
Long Flash (3:1 on/off cycle)
6
airFiber AF-24 Quick Start Guide
Installation Requirements
• 17 mm wrench
• 13 mm socket wrench or driver
• Clear line of sight between airFiber radios
• Clear view of the sky for proper GPS operation
• Mounting location with < 0.5° displacement due to twist and
sway under wind loading
• Mounting point:
• At least 1 meter below the highest point on the structure
• For tower installations, at least 3 meters below the top of the
tower
• Ground wires – min. 8 AWG (10 mm2) and max. length: 1 meter.
As a safety precaution, ground the airFiber radios to grounded
masts, poles, towers, or grounding bars.
WARNING: Failure to properly ground your airFiber
units will void your warranty.
• (Recommended) 2 Outdoor GigE PoE surge protectors
Note: For guidelines about grounding and lightning
protection, follow your local electrical regulatory codes.
• Outdoor, shielded Category 5e (or above) cabling and shielded
RJ-45 connectors should be used for all wired Ethernet
connections. Category 6 is required for installations with long
cable runs (up to 100 m).
We recommend that you protect your networks from harmful
outdoor environments and destructive ESD events with
industrial-grade, shielded Ethernet cable from Ubiquiti Networks
.
For more details, visit www.ubnt.com/toughcable
Installation Overview
We recommend that you configure your paired airFiber radios
before mounting. Below is an overview of the installation with
specific details on the following pages:
• Connect Power over Ethernet to the Data port, and connect an
Ethernet cable between your computer and the Config port.
• Configure device settings in the airFiber Configuration Interface.
7
Connecting Power over Ethernet
• Once configuration is complete, disconnect the cables to move
the airFiber radios.
• Reconnect at the site.
• After you have mounted the airFiber radios, establish and
optimize the RF link.
Connecting Power over Ethernet

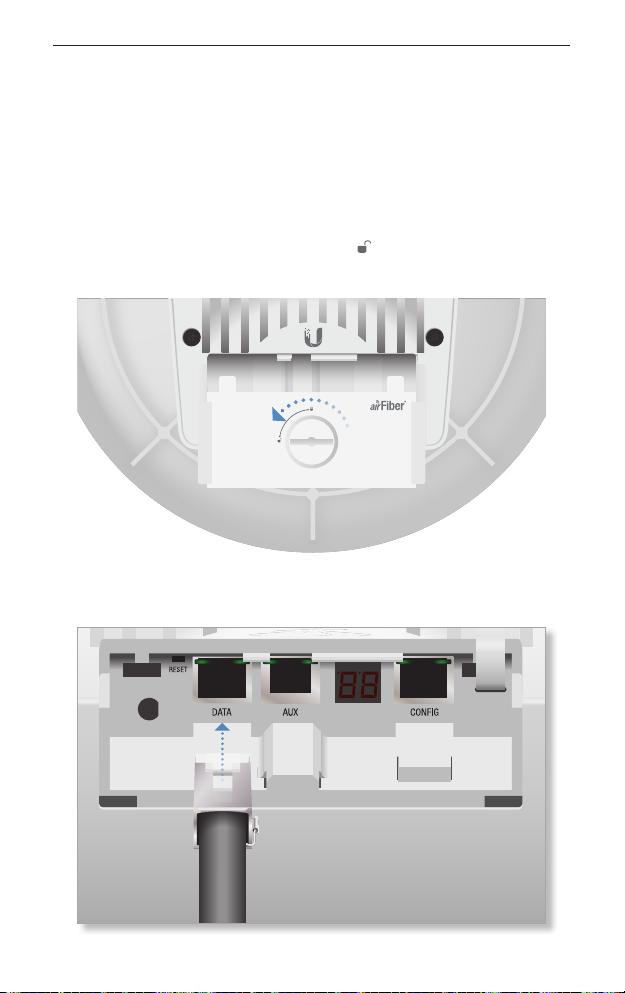

1. Turn the Cover Lock to the Unlocked icon. Slide the Port Cover
down to remove it.
24 GHz
2. Connect an Ethernet cable to the Data port.
8
airFiber AF-24 Quick Start Guide

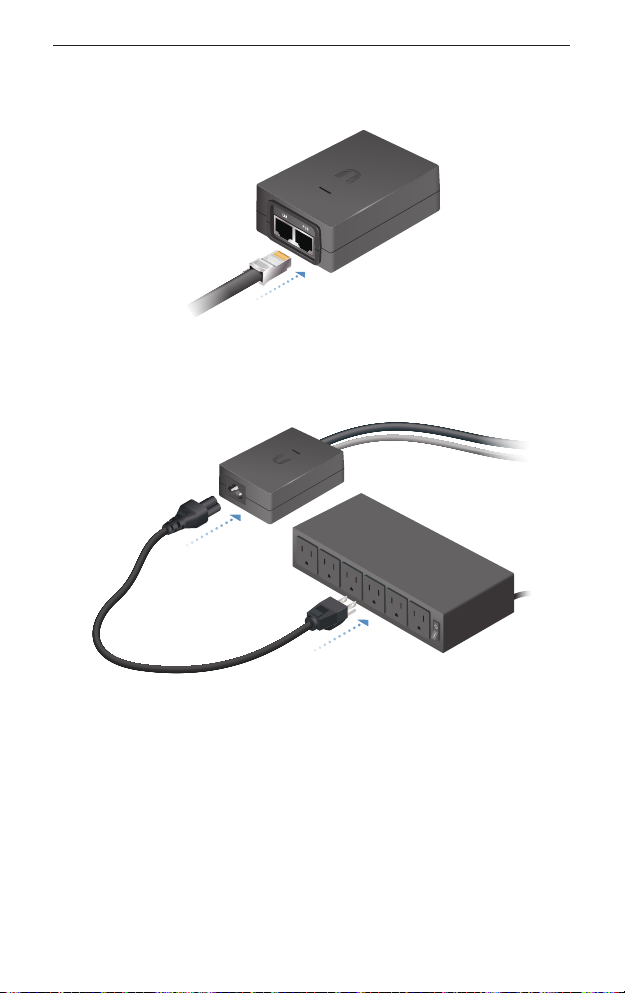

3. Connect the Ethernet cable from the Data port to the POE port
on the GigE PoE Adapter.
4. Connect the Power Cord to the GigE PoE Adapter, and then plug
the Power Cord into a power outlet.
