Ubiquiti U-LTE Manuale utente

U-LTE Stand Mounting Bracket

Double-Sided Adhesive Self-Tapping Screws (Qty. 2) Screw Anchors (Qty. 2)

Package Contents

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RP-SMA Cap

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi

Hardware Overview

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

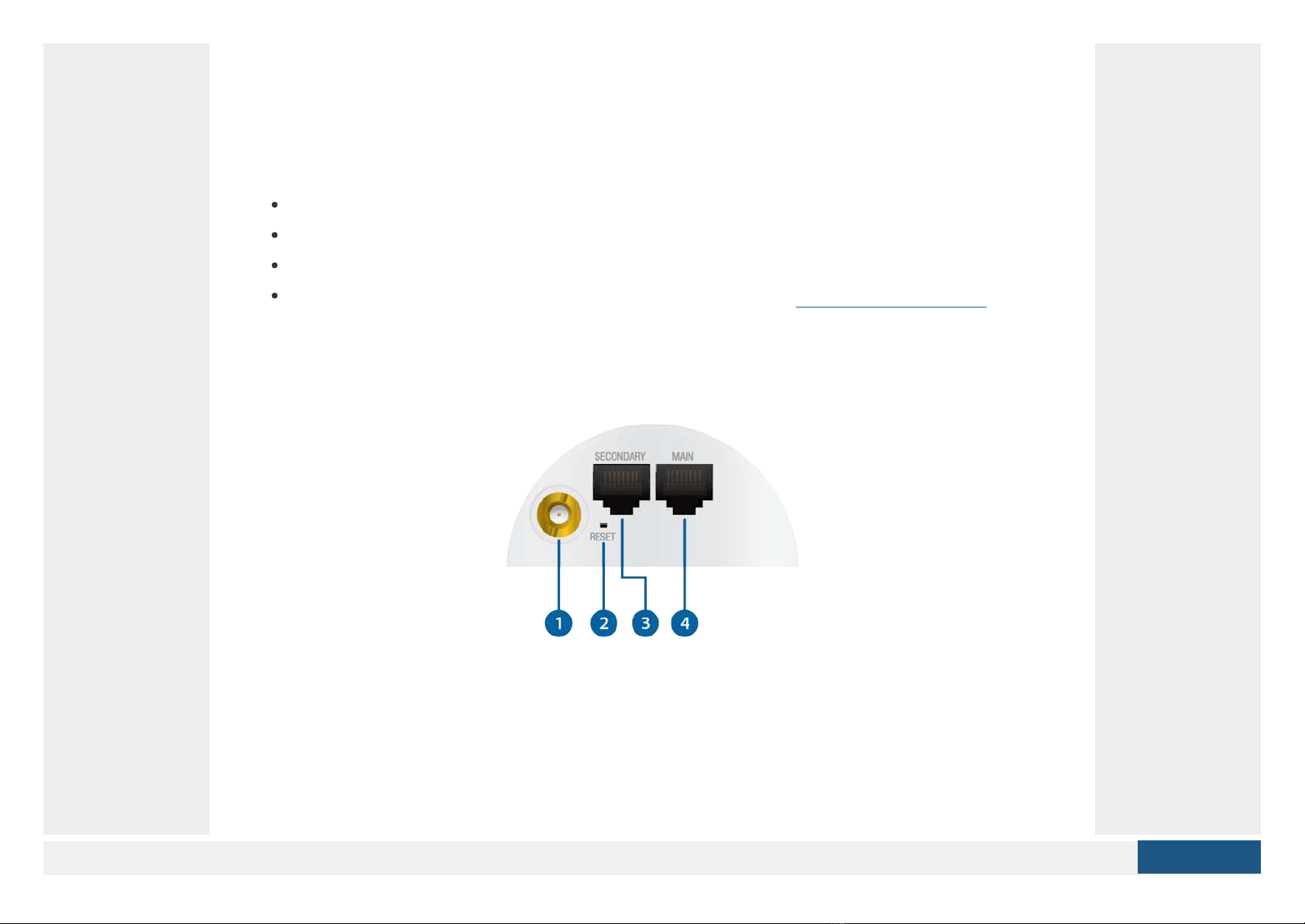

RP-SMA Antenna Connector

Reset Button

You can connect an optional external LTE antenna (not included). If you are not

using an external antenna, then you can cover the connector with the RP-SMA Cap.

The Reset Button serves two functions:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds, until the display indicates “Factory Reset”.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Secondary

Main

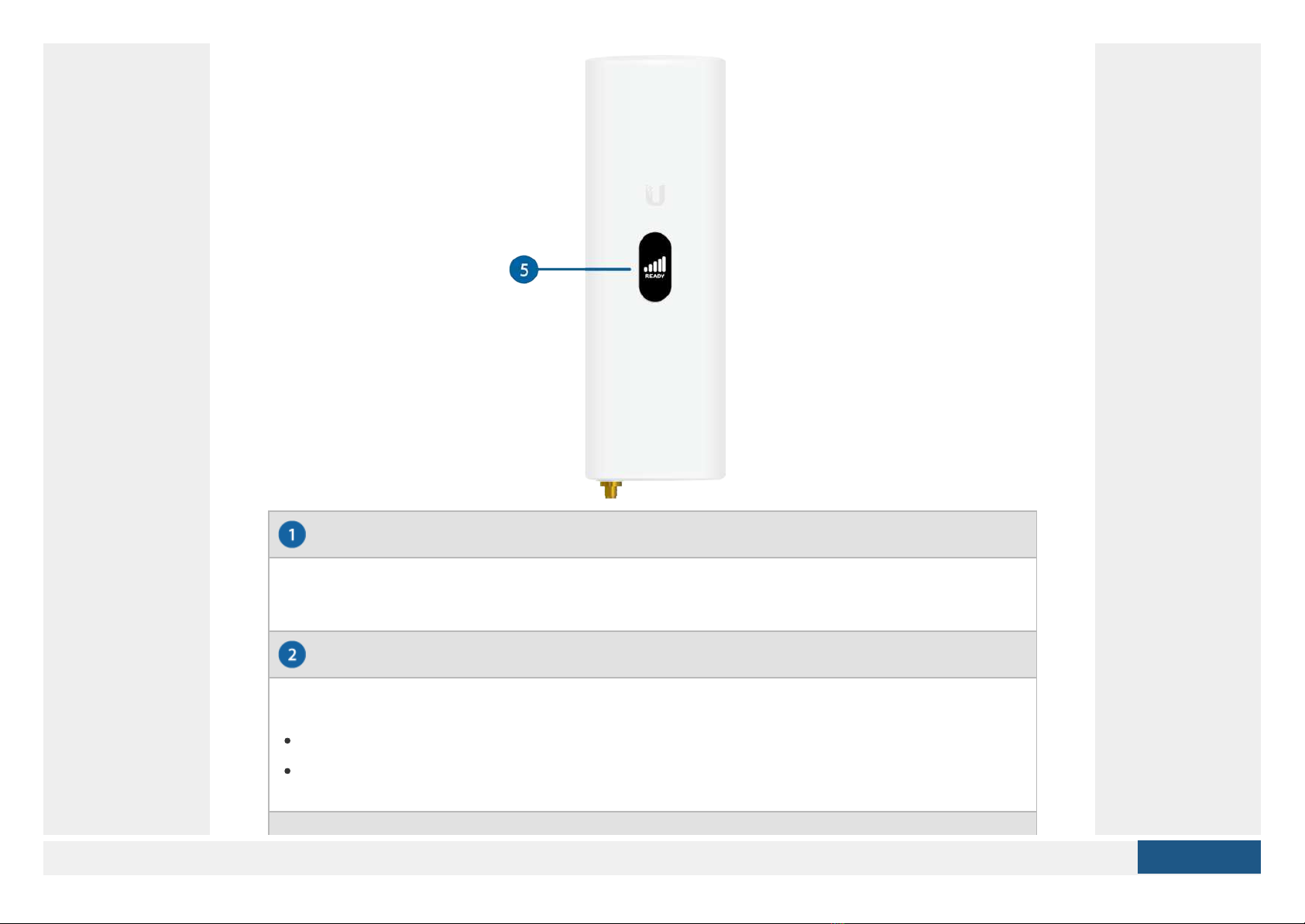

LCD Screen

This Gigabit Ethernet port is used for bridging and can provide passive PoE to a

device.

This Gigabit Ethernet port is used to connect the power and should be connected to

the LAN and DHCP server. 803.2at PoE+ can be provided by an 802.3at PoE+

switch, such as a UniFi PoE Switch.

Displays status information, including the LTE signal strength.

Installation Requirements

Phillips screwdriver

Wall-mounting (optional): drill with 6 mm drill bit

For WAN failover:

UniFi Dream Machine, model UDM

UniFi Security Gateway, model USG, USG-PRO-4, or USG-XG-8

UniFi cloud account

Note: The U-LTE can only be adopted via remote access at: unifi.ui.com

Activation of Ubiquiti LTE data plan

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor

use.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

For outdoor applications, shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

Ubiquiti. For more details, visit: ui.com/toughcable

WARNING: To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Note: Although the cabling can be located outdoors, the U-LTE itself should be

housed inside a protective enclosure.

Hardware Installation

The U-LTE can be mounted in three ways:

Screw Mount

“Adhesive Mount”

“Desktop Mount”

Screw Mount

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

4.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

5.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Proceed to “Connecting Ethernet”.

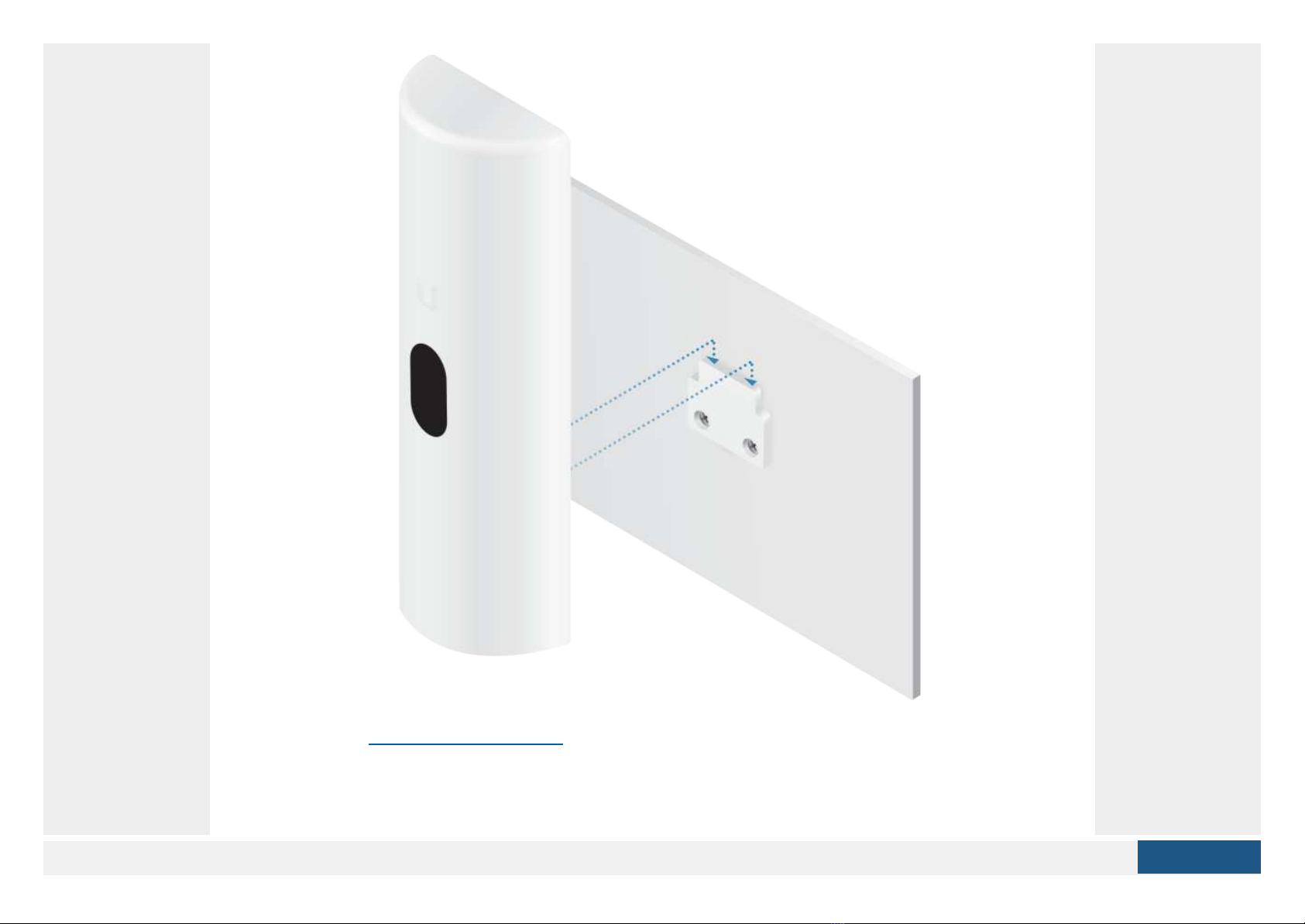

Adhesive Mount

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
