TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Recording a Sound WAV
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at All Times
2 min UE Systems Training

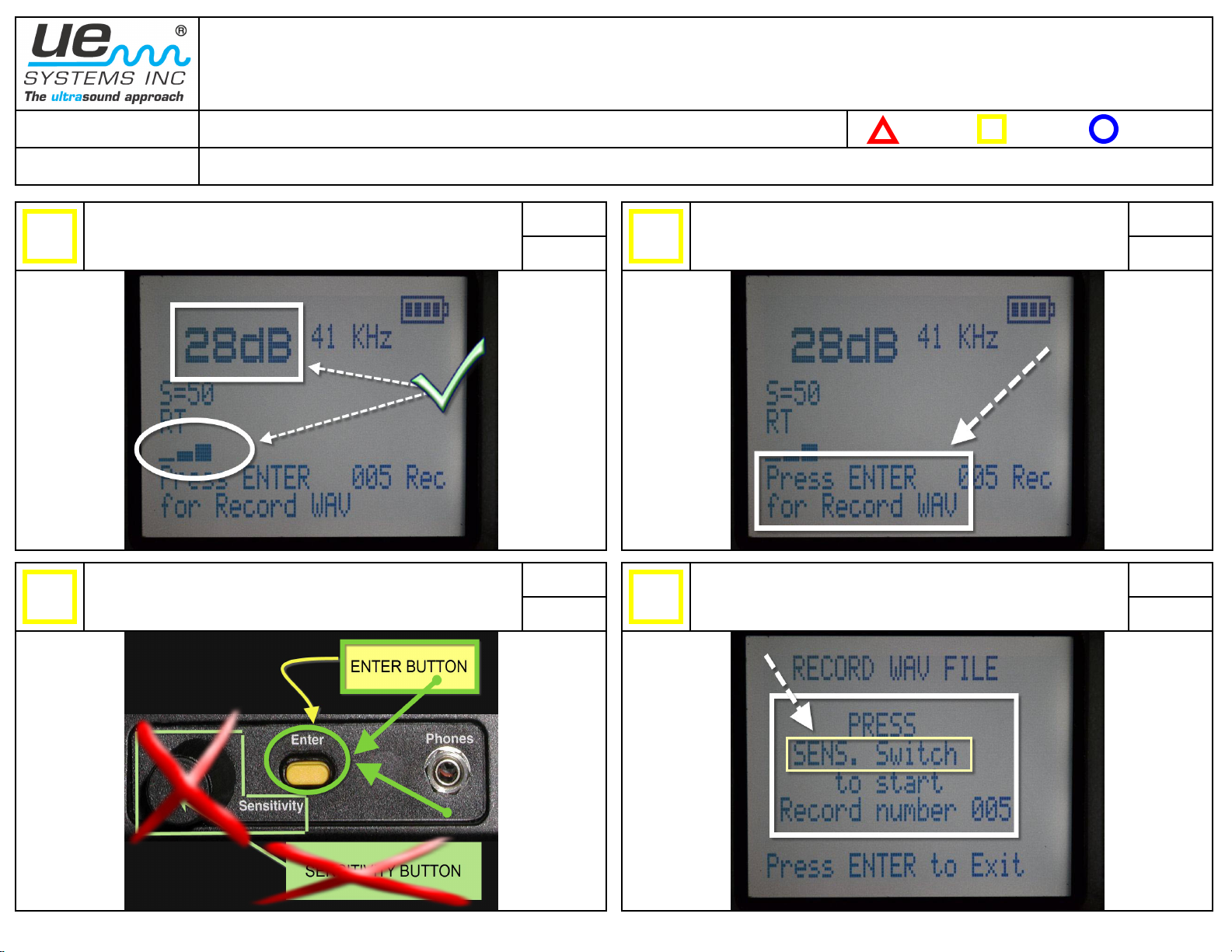

*Compact Flash Card & Module Inserted BEFORE Turning ON*
Adjust Sensitivity to obtain a Steady dB and 2-4
Bars on Intensity Meter
1Push Sens Knob 2X to move cursor to Function
Bar/ Rotate Sens. Knob until "Press Enter for
Record WAV" appears
2
Press Enter to begin storage process of sound
WAV file (and text info, i.e. dB, Freq, etc)
3Push Sens Knob to begin recording. Unit should
be steady during recording.
4
Page 1 of
3
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Recording a Sound WAV
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at All Times
2 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning ON*

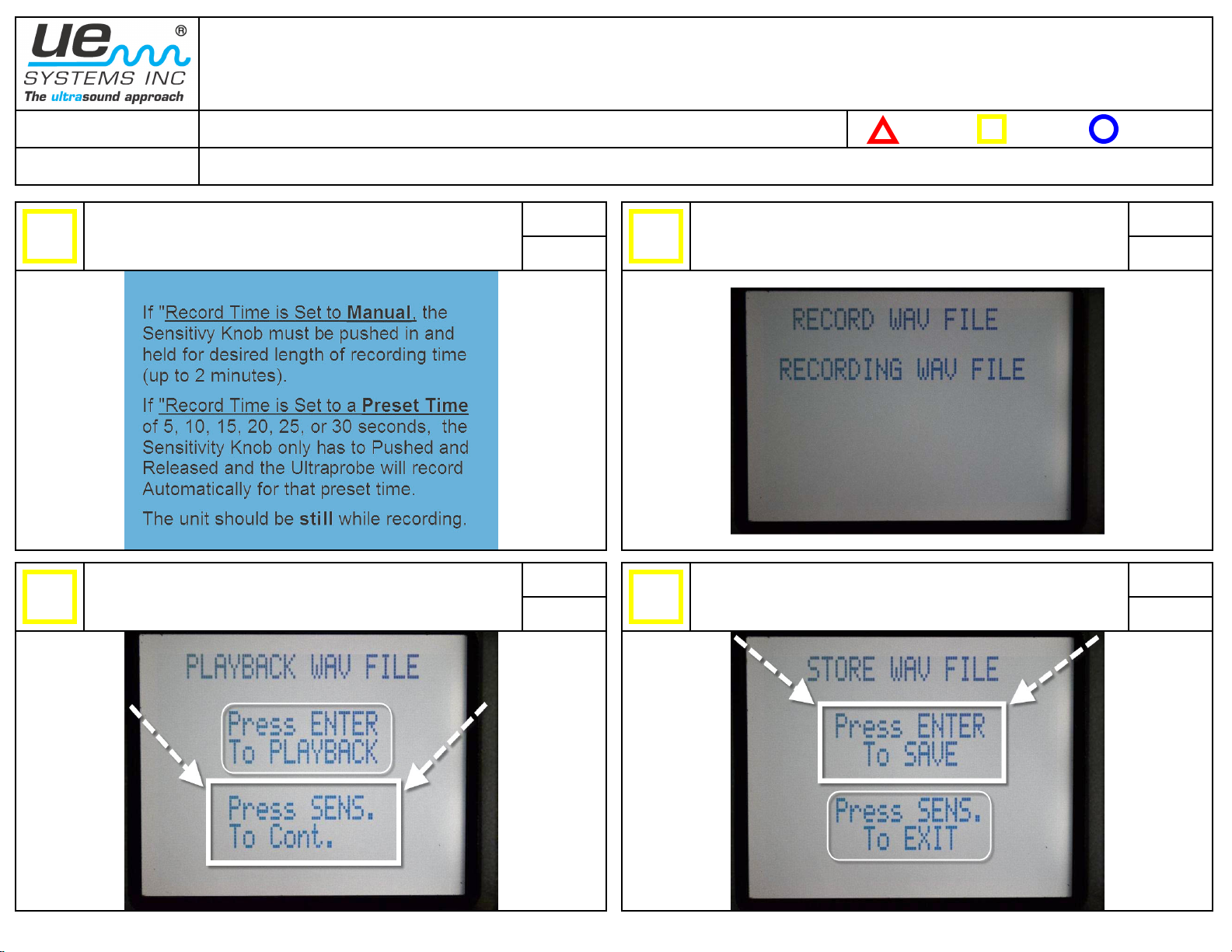

Manual Record Time vs. Preset Record Time under
Setup Menu "Set Record Time"
5"Recording Wav File" appears during recording of
sound WAV
6
Push Sens Knob to Save Wav recording OR Press
Enter to hear sound recorded
7PRESS ENTER to SAVE WAV file OR Push Sens
Knob to exit and start again
8
Page 2 of
3
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Recording a Sound WAV
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at All Times
2 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning ON*

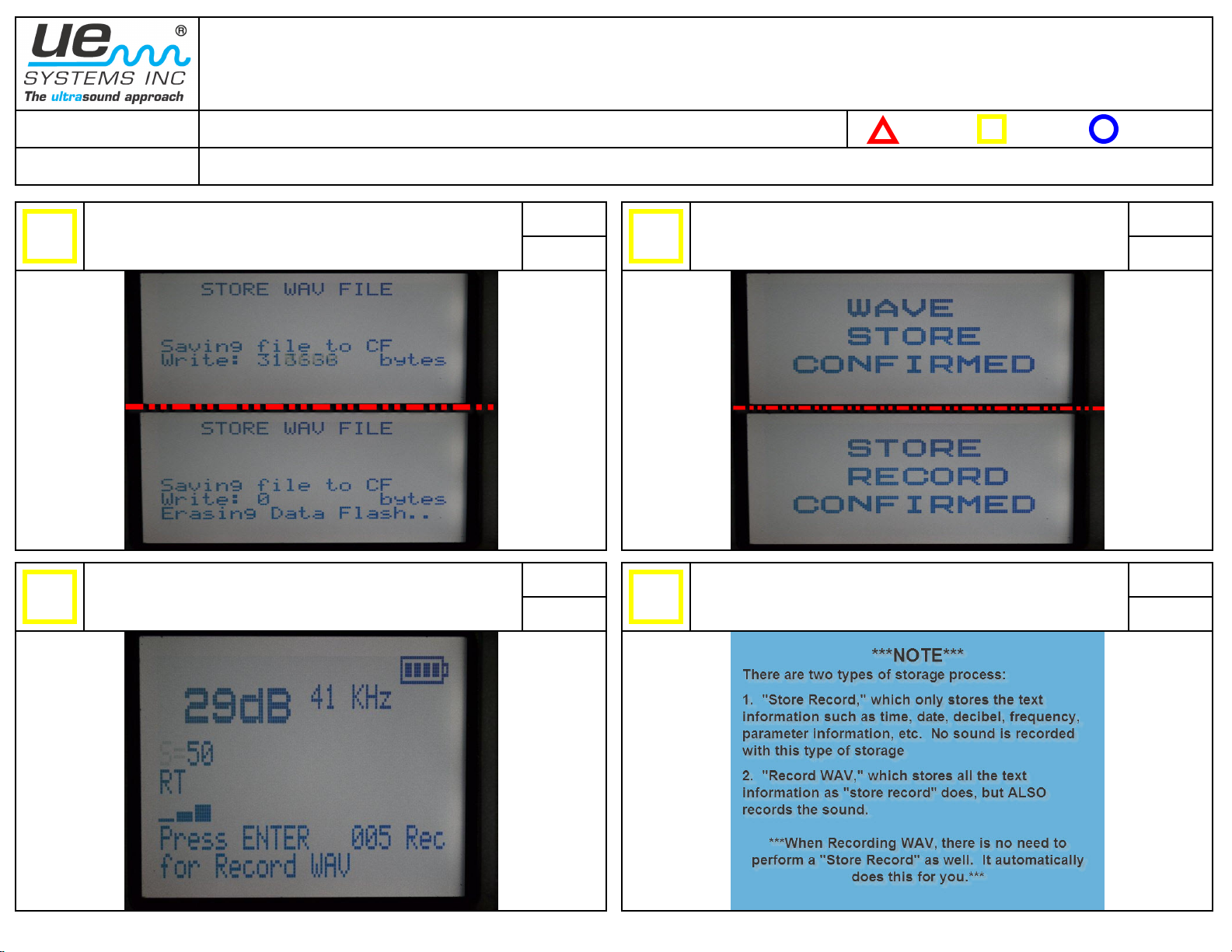

Display shows file writing to Flash Card. "Erase
Data Flash," is normal
9Two Different Screens appear for CONFIRMATION
of WAVE and RECORD. Must see this for
Confirmation.
10
Storage of WAV sound is complete when unit
returns to Main Display and advances to next
record
11 Two Ways to Store Information "Record WAV," OR
"Store Record."
12
Page 3 of
3
